Nissan X-Trail 32. Manual - part 714

DMS-4

< SYSTEM DESCRIPTION >

[ECO MODE]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

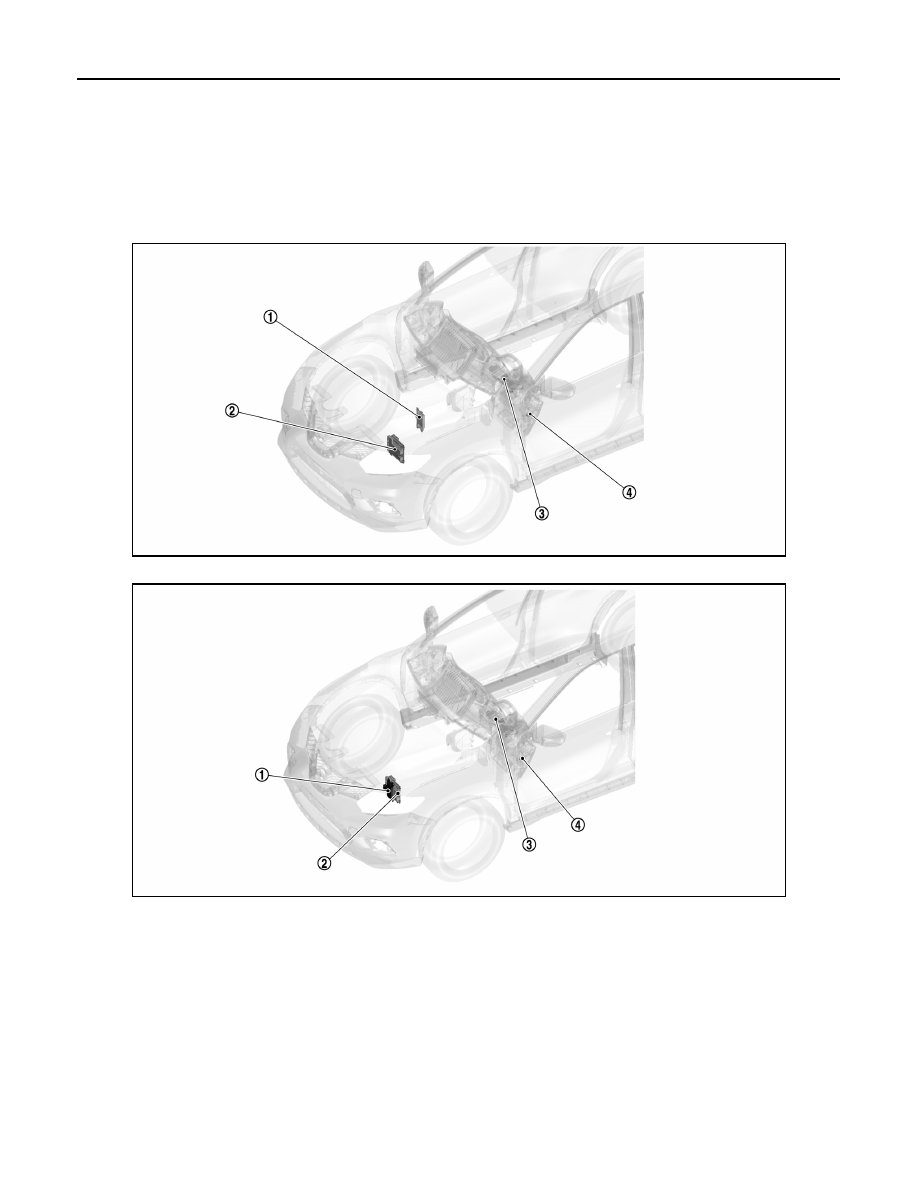

Component Parts Location

INFOID:0000000010623742

LHD MODELS

Except for R9M Models

R9M Models

JSOIA1559ZZ

JSOIA1632ZZ

DMS

COMPONENT PARTS

DMS-5

< SYSTEM DESCRIPTION >

[ECO MODE]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

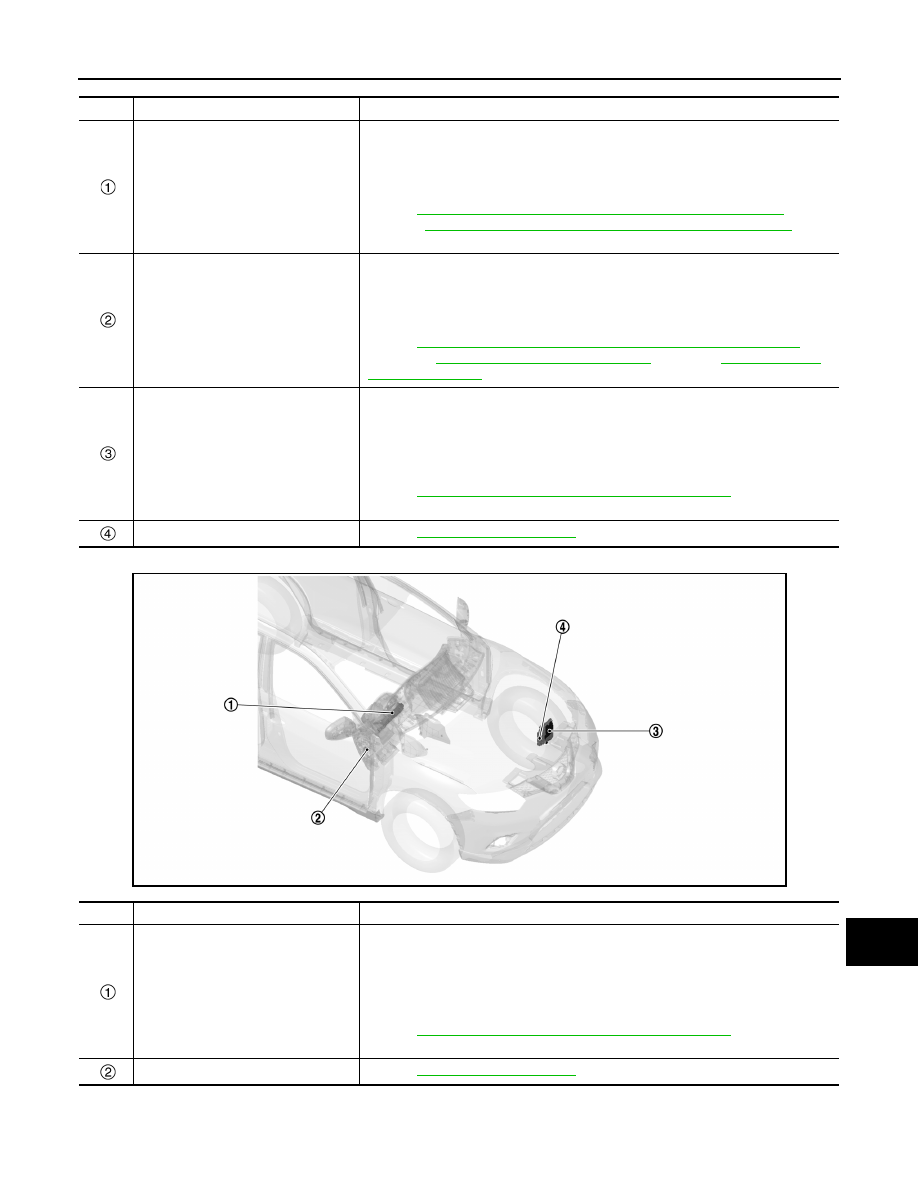

RHD MODELS

No.

Component

Function

TCM

• The TCM receives the following signal via CAN communications from the combi-

nation meter.

- ECO mode switch signal
• The TCM transmits the following signal via CAN communications to the ECM.
- ECO mode signal
Refer to

TM-235, "CVT CONTROL SYSTEM : Component Parts Location"

 (Except

for R9M),

TM-466, "CVT CONTROL SYSTEM : Component Parts Location"

 (R9M)

for detailed installation location.

ECM

• The ECM receives the following signal via CAN communications from the TCM.
- ECO mode signal
• The ECM transmits the following signal via CAN communications to the combina-

tion meter.

- ECO mode indicator signal
Refer to

EC-28, "ENGINE CONTROL SYSTEM : Component Parts Location"



(MR20DD),

EC-440, "Component Parts Location"

 (QR25DE),

EC-812, "Compo-

nent Parts Location"

 (R9M) for detailed installation location.

Combination meter

• The combination meter transmits the following signal via CAN communications to

the TCM.

- ECO mode switch signal
• The combination meter receives the following signal via CAN communications

from the ECM.

- ECO mode indicator signal
Refer to

MWI-7, "METER SYSTEM : Component Parts Location"

 for detailed instal-

lation location.

ECO mode switch

Refer to

DMS-6, "ECO Mode Switch"

.

JSOIA1664ZZ

No.

Component

Function

Combination meter

• The combination meter transmits the following signal via CAN communications to

the TCM.

- ECO mode switch signal
• The combination meter receives the following signal via CAN communications

from the ECM.

- ECO mode indicator signal
Refer to

MWI-7, "METER SYSTEM : Component Parts Location"

 for detailed instal-

lation location.

ECO mode switch

Refer to

DMS-6, "ECO Mode Switch"

.

DMS-6

< SYSTEM DESCRIPTION >

[ECO MODE]

COMPONENT PARTS

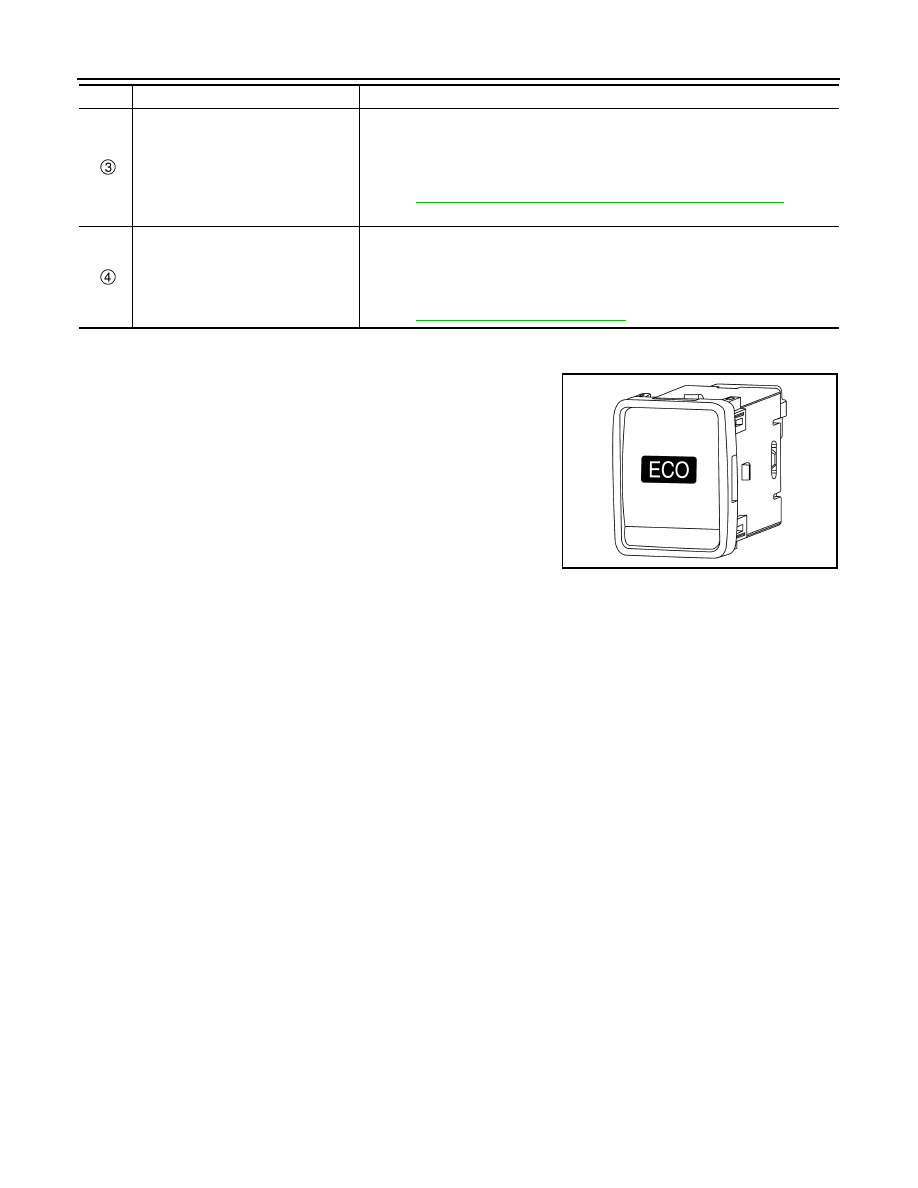

ECO Mode Switch

INFOID:0000000010623743

• The ECO mode switch is installed to the instrument lower panel.
• When the ECO mode indicator on the combination meter is OFF

and the ECO mode switch is pressed, the ECO mode is active and
the ECO mode indicator is ON.

• When the ECO mode indicator on the combination meter is ON

and the ECO mode switch is pressed, the ECO mode is cancelled
and the ECO mode indicator is OFF.

TCM

• The TCM receives the following signal via CAN communications from the combi-

nation meter.

- ECO mode switch signal
• The TCM transmits the following signal via CAN communications to the ECM.
- ECO mode signal
Refer to

TM-466, "CVT CONTROL SYSTEM : Component Parts Location"

 for de-

tailed installation location.

ECM

• The ECM receives the following signal via CAN communications from the TCM.
- ECO mode signal
• The ECM transmits the following signal via CAN communications to the combina-

tion meter.

- ECO mode indicator signal
Refer to

EC-812, "Component Parts Location"

 for detailed installation location.

No.

Component

Function

JSOIA0767ZZ

DMS

SYSTEM

DMS-7

< SYSTEM DESCRIPTION >

[ECO MODE]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

SYSTEM

ECO MODE CONTROL

ECO MODE CONTROL : System Description

INFOID:0000000010623744

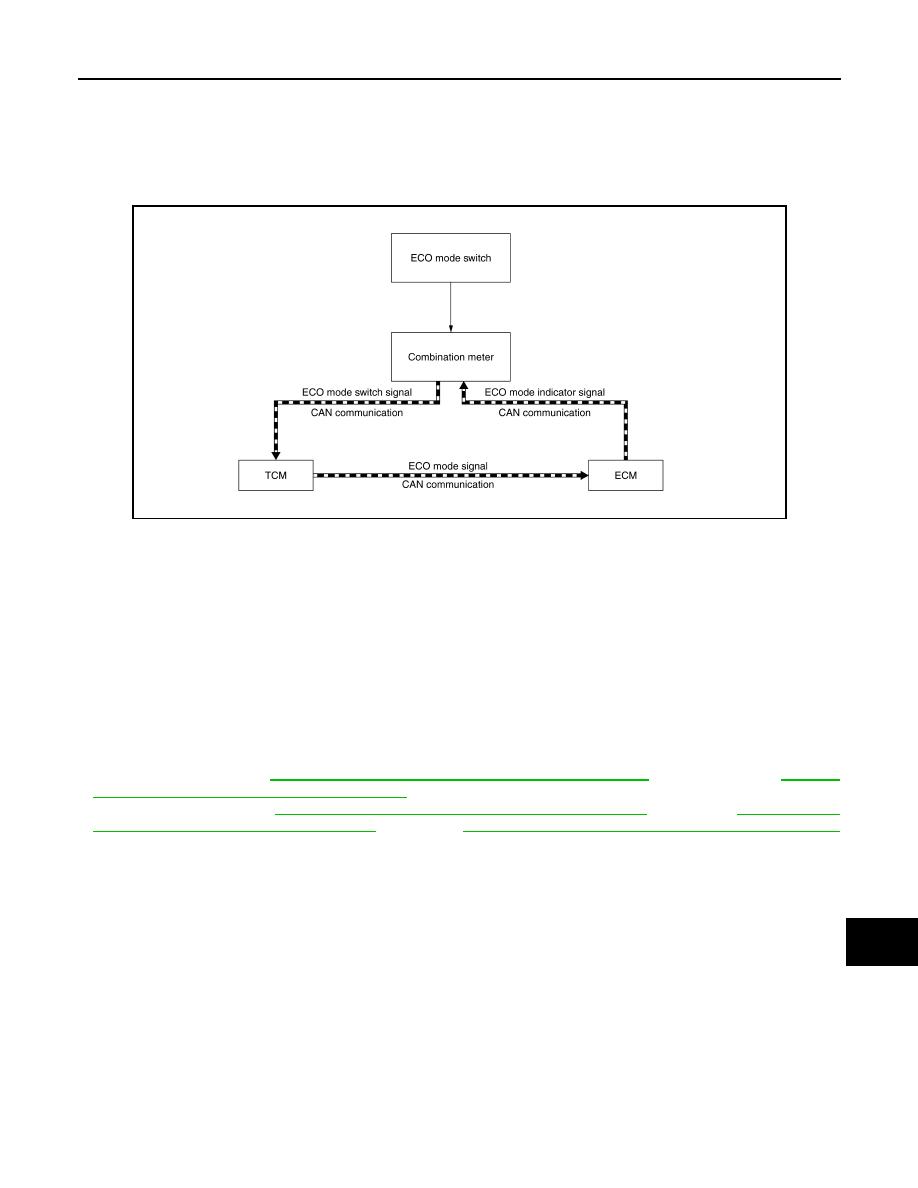

SYSTEM DIAGRAM

SYSTEM DISCRIPTION

• TCM receives ECO mode switch signal (ON/OFF) from combination meter via CAN communication. TCM

transmits ECO mode signal to ECM via CAN communication according to the signal.

• ECM transmits ECO mode indicator signal to combination meter via CAN communication. Combination

meter displays ECO mode indicator according to the signal.

NOTE:
• When the ignition switch is turned ON while the ECO mode indicator stays ON, the ECO mode indicator

automatically turns ON at the next ignition switch ON.

• The ECO mode system cannot be turned off while the accelerator pedal is depressed even if the ECO mode

switch is pushed to OFF. (ECO mode indicator turns OFF.)
Release the accelerator pedal to turn off the ECO mode system.
(Except for R9M)

ECU Control

• For TCM control, refer to

TM-267, "ECO MODE SYSTEM : System Description"

 (Except for R9M),

TM-503,

"ECO MODE SYSTEM : System Description"

 (R9M).

• For ECM control, refer to

EC-65, "ECO MODE SYSTEM : System Description"

 (MR20DD),

EC-478, "ECO

MODE CONTROL : System Description"

 (QR25DE),

EC-868, "ECO MODE SYSTEM : System Description"

(R9M).

JSOIA0679GB
