RING GEAR SHAFT

DLN-191

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

Check the bearing mounting surface for wear, cracks and damages.

DLN-192

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY30A]

DRIVE PINION

DRIVE PINION

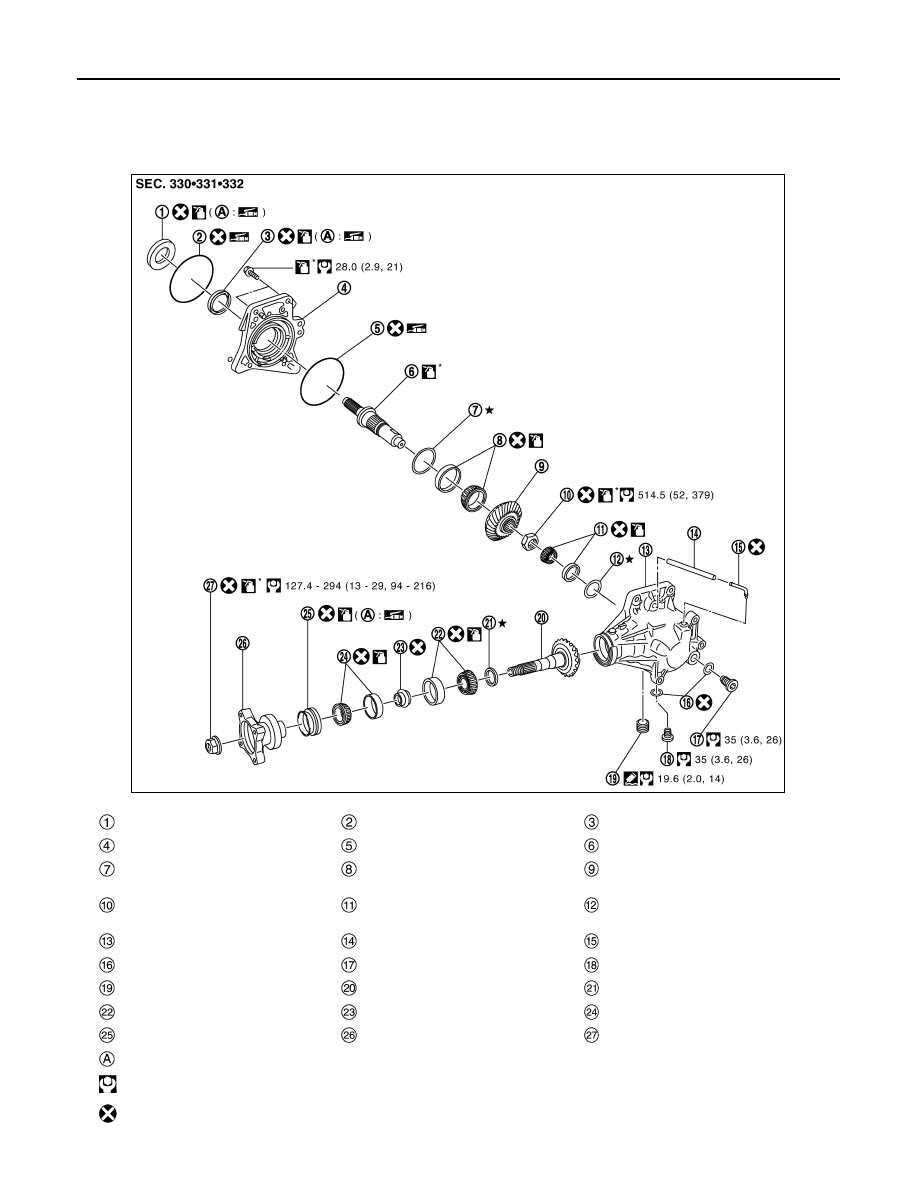

Exploded View

INFOID:0000000011005110

Adapter case oil seal (outer)

O-ring (outer)

Adapter case oil seal (inner)

Adapter case

O-ring (inner)

Ring gear shaft

Ring gear adjusting shim
(adapter case side)

Ring gear shaft bearing
(adapter case side)

Ring gear

Ring gear nut

Ring gear shaft bearing
(transfer case side)

Ring gear adjusting shim
(transfer case side)

Transfer case

Air breather hose

Air breather tube

Gasket

Filler plug

Drain plug

Plug

Drive pinion

Drive pinion adjusting shim

Drive pinion bearing (front side)

Collapsible spacer

Drive pinion bearing (rear side)

Drive pinion oil seal

Companion flange

Lock nut

Oil seal lip

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.

JSDIA0319GB

DRIVE PINION

DLN-193

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY30A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

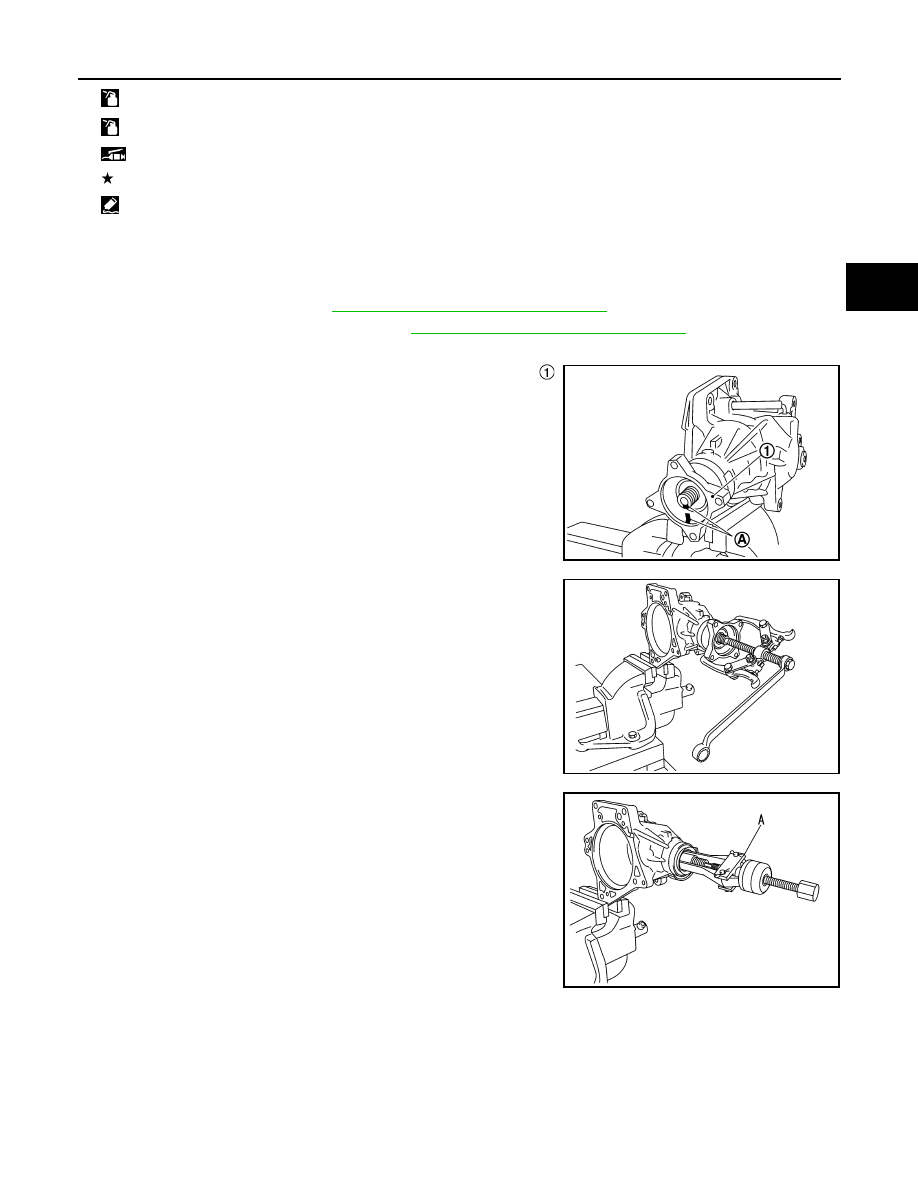

Disassembly and Assembly

INFOID:0000000011005060

DISASSEMBLY

1.

Remove adapter case. Refer to

DLN-185, "Disassembly and Assembly"

.

2.

Remove ring gear shaft assembly. Refer to

DLN-188, "Disassembly and Assembly"

.

3.

Remove lock nut from the drive pinion.

4.

Put matching marks (A) on screw ends of companion flange
and drive pinion.

CAUTION:

Use paint to avoid scratching the surface.

5.

Remove companion flange from drive pinion with a puller.

6.

Remove drive pinion oil seal from the transfer case with a puller
(A) (SST: KV381054S0).

CAUTION:

Never damage transfer case.

: Apply transfer oil.

*

: Apply anti-corrosive oil.

: Apply multi-purpose grease.

: Select with proper thickness.

: Apply Genuine Liquid Gasket, Three Bond 1217 or equivalent.

SDIA3084J

SDIA3085J

SDIA3089J

DLN-194

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY30A]

DRIVE PINION

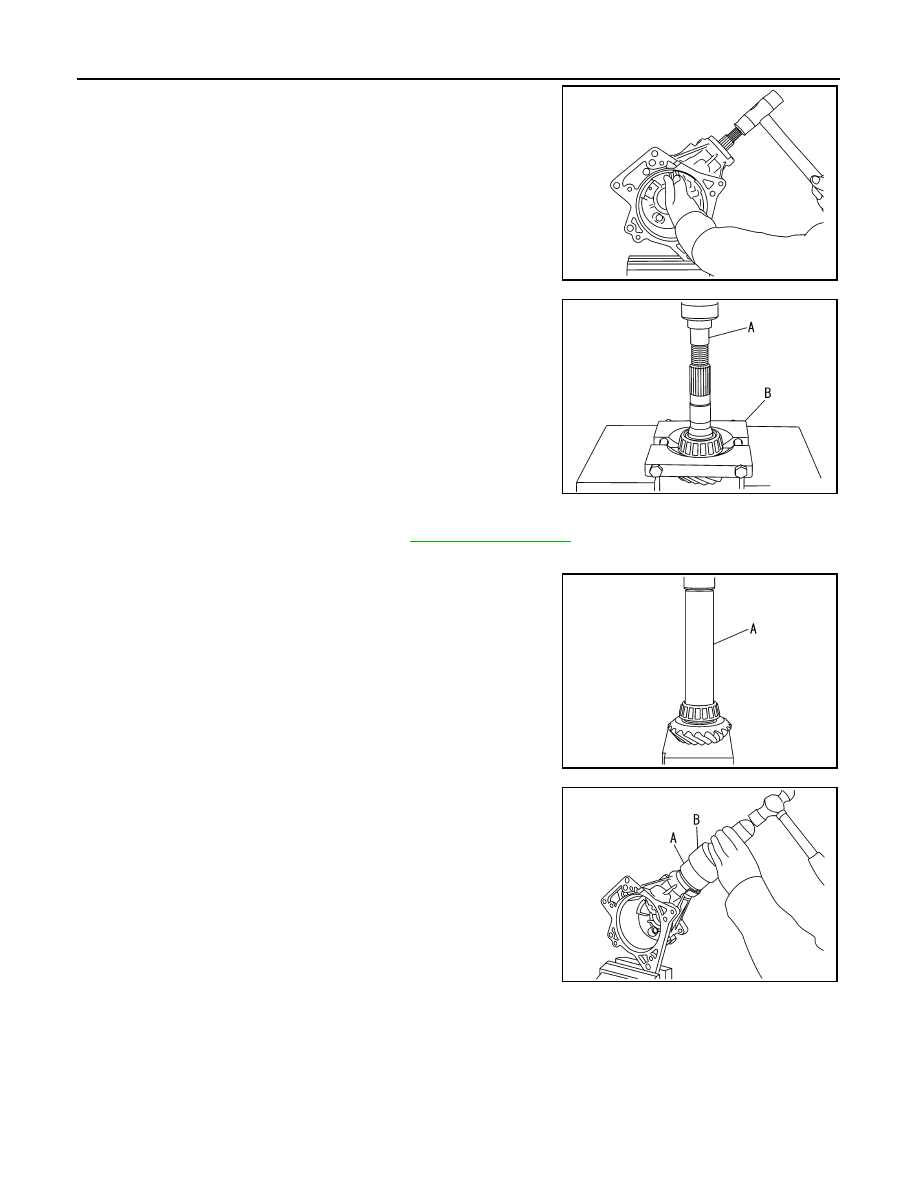

7.

Remove drive pinion assembly from transfer case while tapping
the drive pinion lightly with a plastic hammer.

CAUTION:

Never drop the drive pinion assembly.

8.

Remove collapsible spacer from the drive pinion.

9.

Remove inner race of drive pinion bearing (rear side) from trans-
fer case.

10. Remove inner race of drive pinion bearing (front side) from drive

pinion with a drift (A) (SST: ST33052000) and replacer (B) (SST:
ST22730000).

11. Remove drive pinion adjusting shim from the drive pinion.

ASSEMBLY

1.

Select drive pinion adjusting shim. Refer to

DLN-195, "Adjustment"

.

2.

Install selected drive pinion adjusting shim to drive pinion.

3.

Install inner race of drive pinion bearing (front side) to drive pin-
ion with a drift (A) (SST: ST23860000).

CAUTION:

• Never reuse drive pinion bearing (front side).
• Apply gear oil to the drive pinion bearing (front side).

4.

Assemble the inner race of drive pinion bearing (rear side) into
the transfer case.

CAUTION:

• Never reuse drive pinion bearing (rear side).
• Apply gear oil to the drive pinion bearing (rear side).

5.

Install drive pinion oil seal to transfer case with drifts so that it
becomes flush with case end surface.

CAUTION:

• Never reuse oil seal.
• Apply multi-purpose grease onto oil seal lips, and gear oil

onto the circumference.

6.

Assemble a collapsible spacer onto the drive pinion.

CAUTION:

Never reuse the collapsible spacer.

SDIA3086J

SDIA3087J

SDIA3094J

A

: Drift (SST: ST27861000)

B

: Drift (SST: ST30720000)

SDIA3093J
