TRANSFER COVER OIL SEAL

DLN-79

< REMOVAL AND INSTALLATION >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

4.

Perform inspection after installation. Refer to

DLN-79, "MR20DD : Inspection"

.

MR20DD : Inspection

INFOID:0000000010992035

INSPECTION AFTER INSTALLATION

Check oil level and transfer for oil leakage. Refer to

DLN-74, "MR20DD : Inspection"

.

QR25DE

QR25DE : Removal and Installation

INFOID:0000000011001966

NOTE:
• Replacement on vehicle may cause damage to transfer cover, and may cause a transfer oil leak.
• If transfer cover oil seal requires replacement, remove transfer assembly from the vehicle before replacing

transfer cover oil seal. Refer to

DLN-85, "Disassembly and Assembly"

.

DLN-80

< UNIT REMOVAL AND INSTALLATION >

[TRANSFER: TY21C]

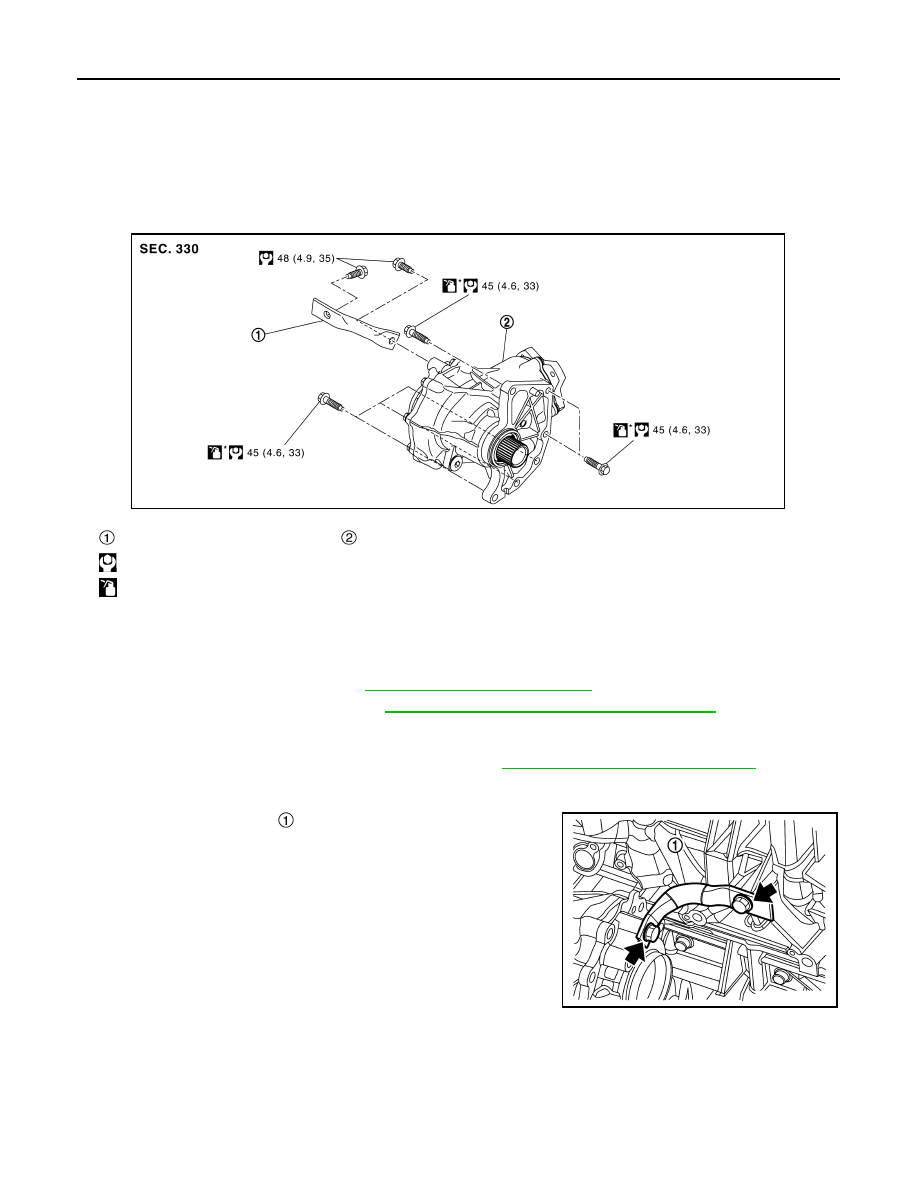

TRANSFER ASSEMBLY

UNIT REMOVAL AND INSTALLATION

TRANSFER ASSEMBLY

MR20DD

MR20DD : Exploded View

INFOID:0000000011002856

MR20DD : Removal and Installation

INFOID:0000000011002857

REMOVAL

1.

Remove exhaust front tube. Refer to

EX-6, "Removal and Installation"

.

2.

Remove front drive shaft (RH). Refer to

FAX-101, "MR20DD : Removal and Installation"

.

CAUTION:

Oil may leak from the opening. Use cap and/or plug to prevent leakage.

3.

Remove propeller shaft from transfer assembly. Refer to

DLN-214, "Removal and Installation"

.

CAUTION:

The joint of propeller shaft must be handled with care.

4.

Remove transfer gusset

.

5.

Remove transfer assembly from transaxle assembly.

CAUTION:

• Never damage ring gear shaft.
• Be careful when removing transfer assembly form the

vehicle because it is heavy.

INSTALLATION

Note the following, and install in the reverse order of removal.

Transfer gusset

Transfer assembly

: N·m (kg-m, ft-lb)

*: Apply anti-corrosion oil.

JSDIA5353GB

JSDIA5358ZZ

TRANSFER ASSEMBLY

DLN-81

< UNIT REMOVAL AND INSTALLATION >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

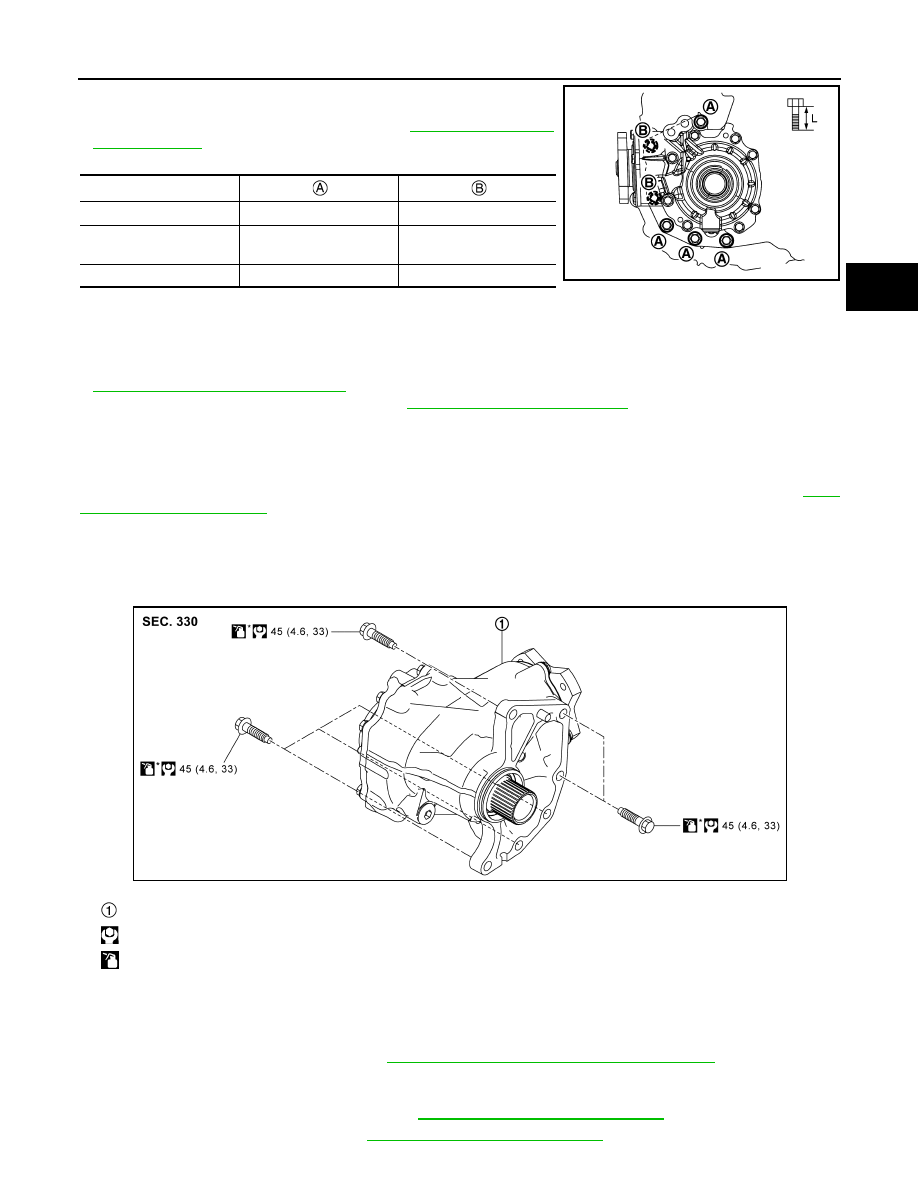

• When installing the transfer to the transaxle, install the mounting

bolts following the standard below, tighten bolts to the specified
torque. For each tightening torque, refer to

DLN-81, "QR25DE :

Exploded View"

.

CAUTION:

• Apply anti-corrosion oil to the thread and seat of mounting bolts.
• Never damage O-ring of transfer.

• For mounting bolts of transfer gusset, temporarily tightening the engine side bolt first. After this, tighten bolts

to the specified torque in the order from transfer side bolt to engine side bolt. For tightening torque, refer to

DLN-81, "QR25DE : Exploded View"

.

• Perform inspection after installation. Refer to

DLN-82, "QR25DE : Inspection"

.

MR20DD : Inspection

INFOID:0000000011002858

INSPECTION AFTER INSTALLATION

When oil leaks while removing/installing transfer assembly, check oil level after the installation. Refer to

DLN-

74, "MR20DD : Inspection"

.

QR25DE

QR25DE : Exploded View

INFOID:0000000011002859

QR25DE : Removal and Installation

INFOID:0000000011002860

REMOVAL

1.

Remove front drive shaft (RH). Refer to

FAX-113, "QR25DE : Removal and Installation"

.

CAUTION:

Oil may leak from the opening. Use cap and/or plug to prevent leakage.

2.

Remove front suspension member. Refer to

FSU-22, "Removal and Installation"

.

3.

Remove exhaust front tube. Refer to

EX-12, "Removal and Installation"

.

Bolt symbol

Quantity

4

2

Bolt length
“L” mm (in)

40 (1.57)

40 (1.57)

Insertion direction

Transfer to transaxle

Transaxle to transfer

JSDIA5355ZZ

Transfer assembly

: N·m (kg-m, ft-lb)

*: Apply anti-corrosion oil.

JSDIA6394GB

DLN-82

< UNIT REMOVAL AND INSTALLATION >

[TRANSFER: TY21C]

TRANSFER ASSEMBLY

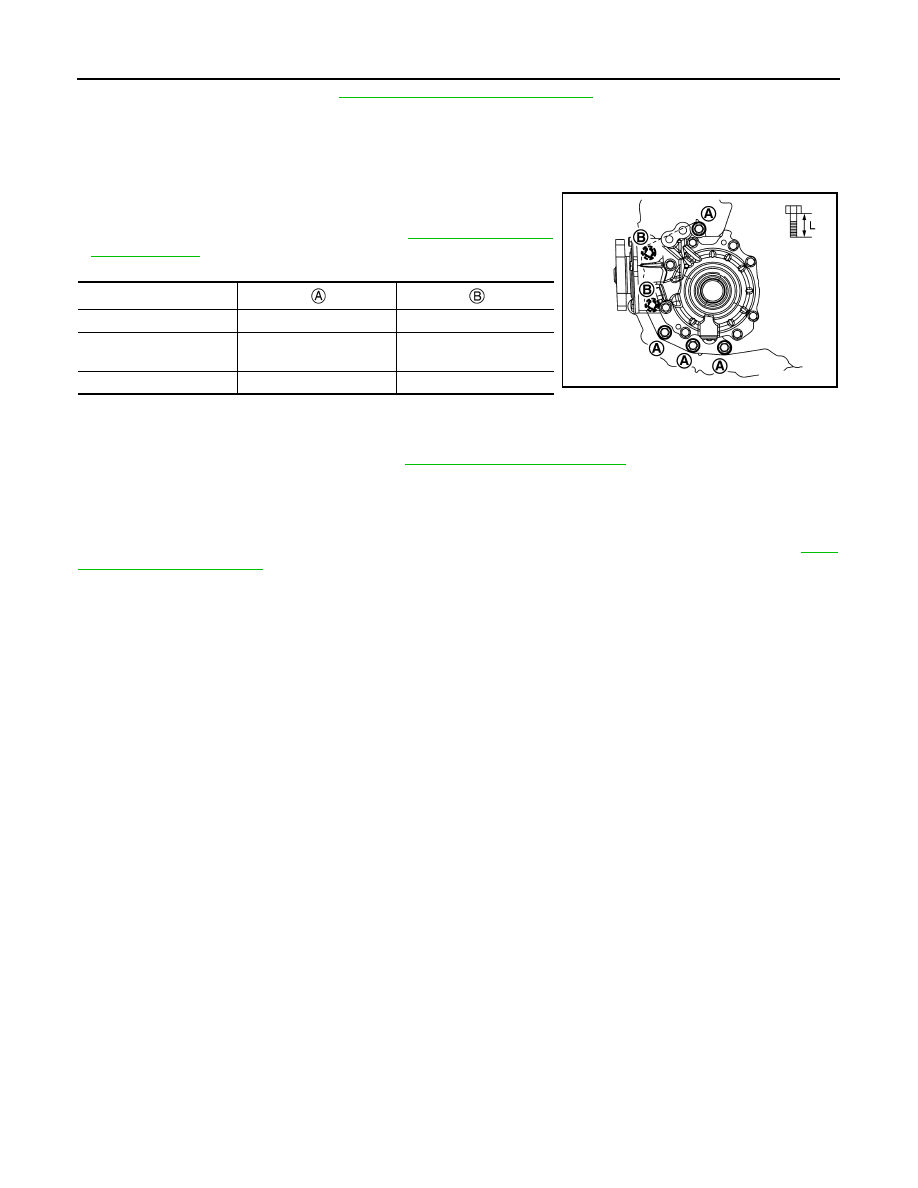

4.

Remove propeller shaft. Refer to

DLN-214, "Removal and Installation"

.

5.

Remove transfer assembly mounting bolts.

6.

Remove transfer assembly from the vehicle.

INSTALLATION

Note the following, and install in the reverse order of removal.
• When installing the transfer to the transaxle, install the mounting

bolts following the standard below, tighten bolts to the specified
torque. For each tightening torque, refer to

DLN-81, "QR25DE :

Exploded View"

.

CAUTION:

• Apply anti-corrosion oil to the thread and seat of mounting bolts.
• Never damage O-ring of transfer.

• Perform inspection after installation. Refer to

DLN-82, "QR25DE : Inspection"

.

QR25DE : Inspection

INFOID:0000000011002861

INSPECTION AFTER INSTALLATION

When oil leaks while removing/installing transfer assembly, check oil level after the installation. Refer to

DLN-

75, "QR25DE : Inspection"

.

Bolt symbol

Quantity

4

2

Bolt length
“L” mm (in)

40 (1.57)

40 (1.57)

Insertion direction

Transfer to transaxle

Transaxle to transfer
