FRONT FENDER

DLK-885

< REMOVAL AND INSTALLATION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2.

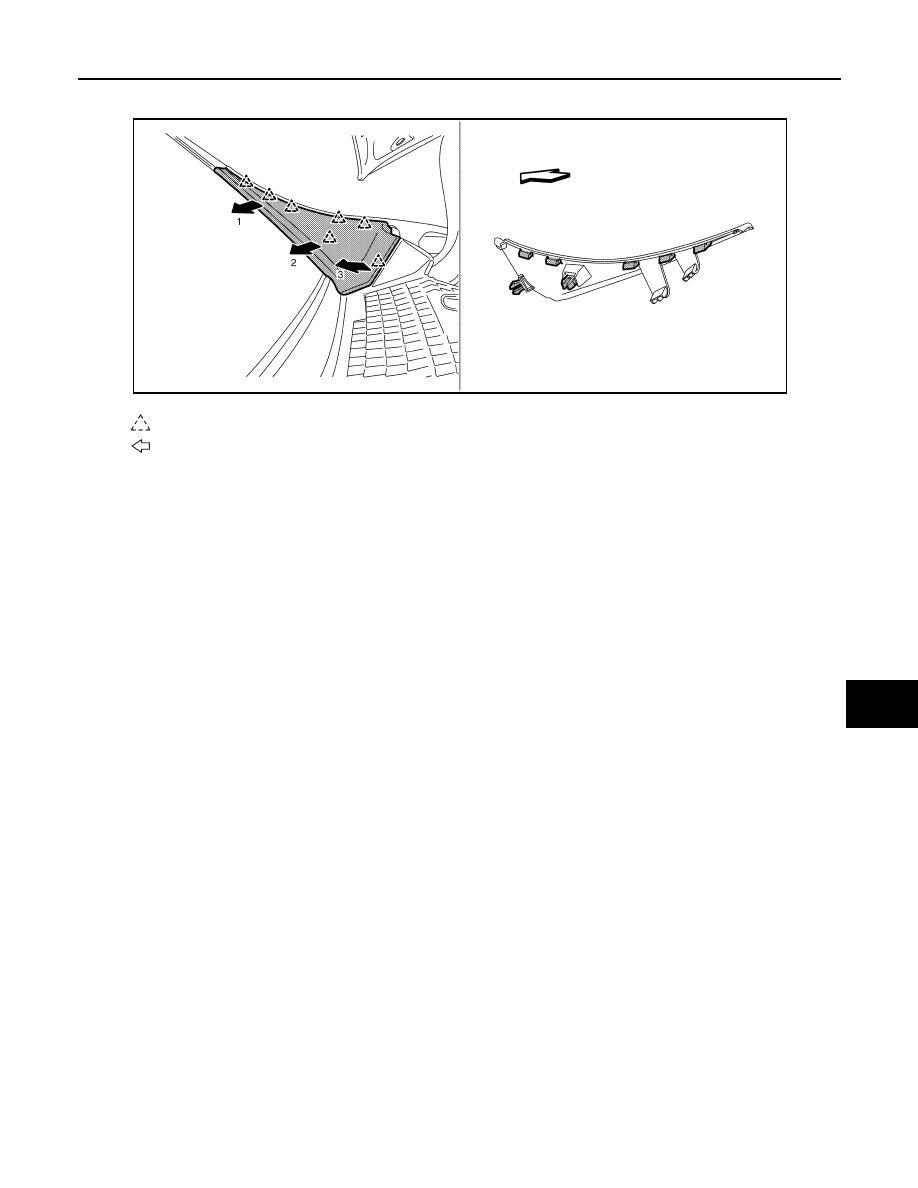

Disengage fixing pawls according to the numerical order 1

→

3 indicated by arrows as shown in the figure,

and then remove front fender cover.

CAUTION:

When performing the procedure after removing fender cover, protect the lower of windshield glass
with urethane etc.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Install so that there is no clearance between windshield and cowl top cover.

: Pawl

: Vehicle front

JMKIB3008ZZ

DLK-886

< REMOVAL AND INSTALLATION >

[TYPE 4]

FRONT DOOR

FRONT DOOR

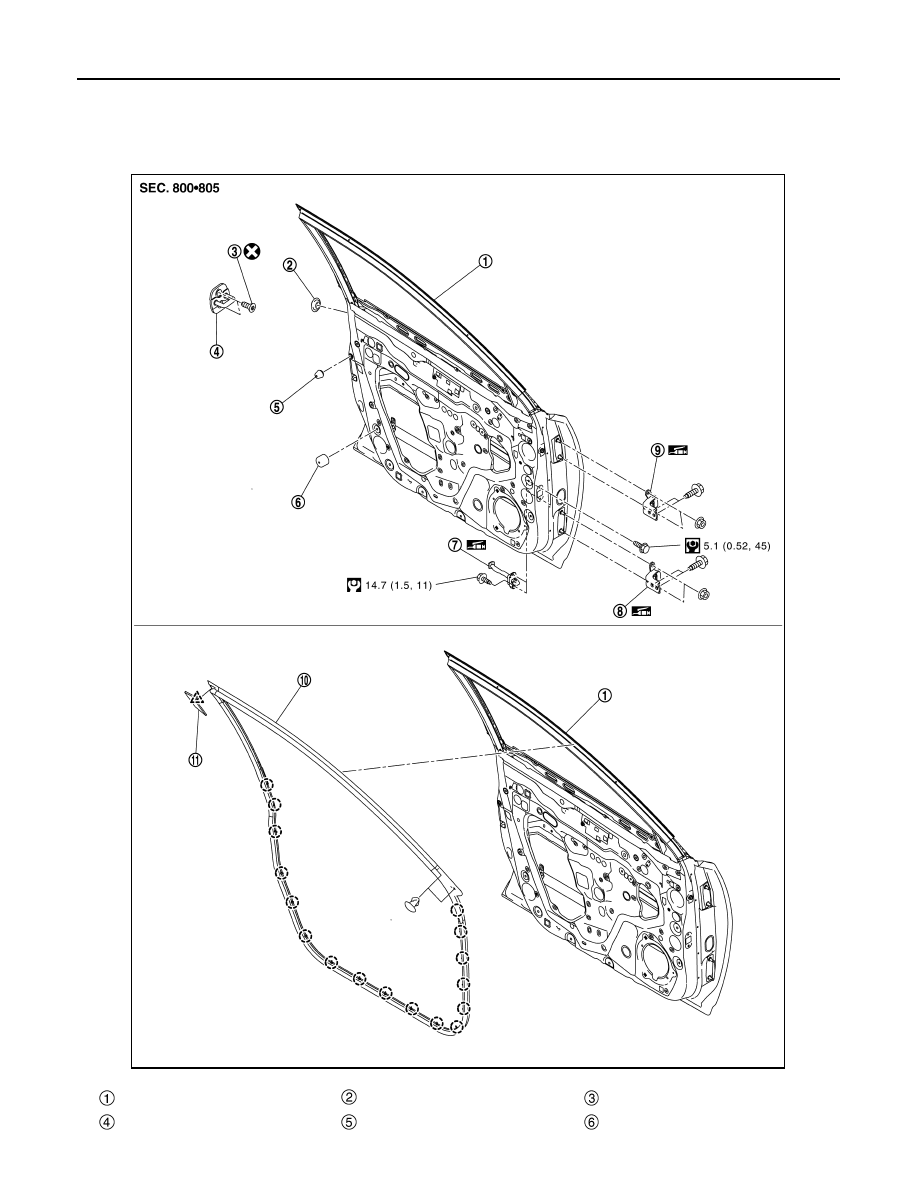

Exploded View

INFOID:0000000010728634

Front door panel

Grommet

TORX bolt

Door striker

Bumper rubber

Bumper rubber

JMKIB3502GB

FRONT DOOR

DLK-887

< REMOVAL AND INSTALLATION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR ASSEMBLY

DOOR ASSEMBLY : Removal and Installation

INFOID:0000000010728635

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• When removing and installing front door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

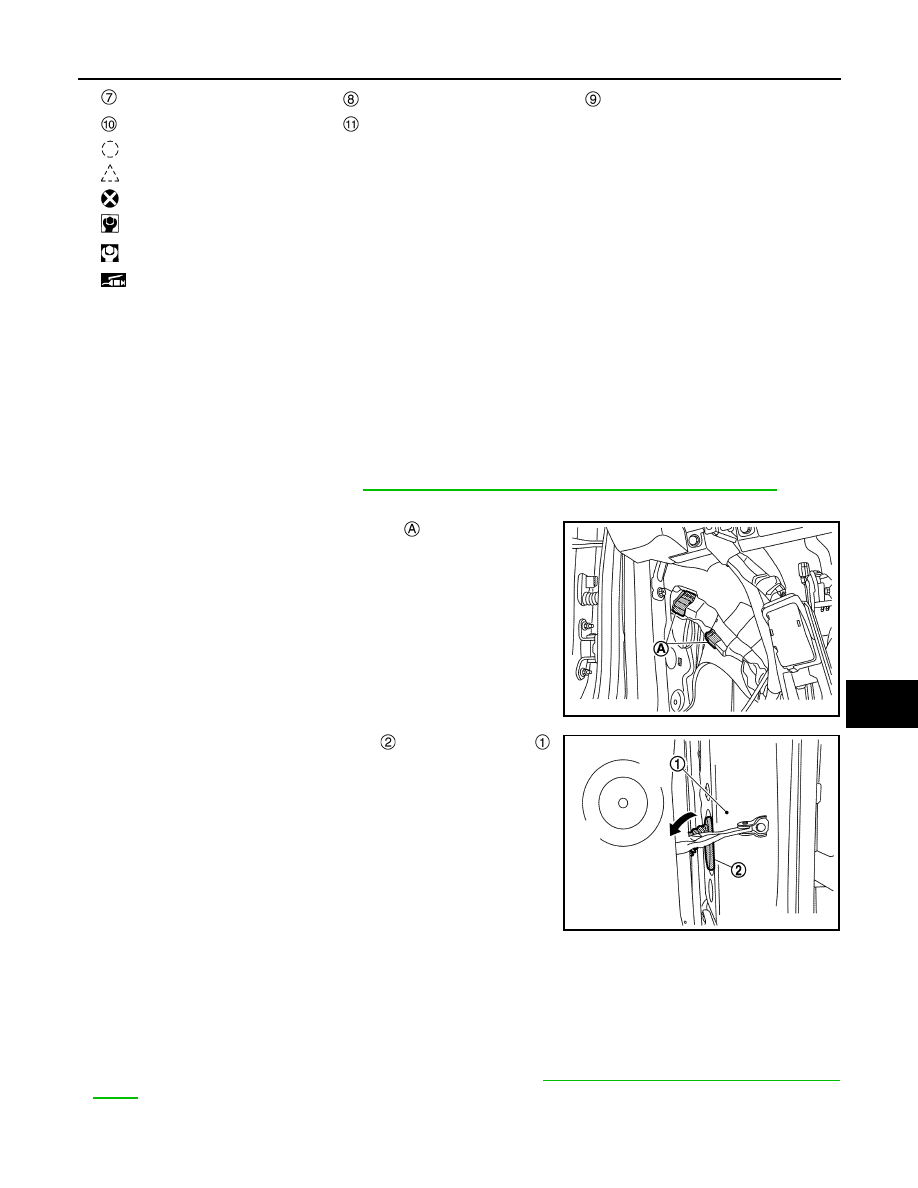

1.

Remove dash side finisher. Refer to

INT-26, "DASH SIDE FINISHER : Removal and Installation"

.

2.

Remove SMJ (super multiple junction).

3.

Disconnect front door harness connectors

.

4.

Remove front door harness grommet

 from vehicle body

,

and then pull out front door harness from vehicle body.

5.

Remove mounting bolt of door check link on vehicle body.

6.

Remove door hinge mounting nuts of door side, and then remove front door assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the mounting surface.
• After installation, perform the fitting adjustment. Refer to

DLK-888, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.

Door check link

Door hinge (lower)

Door hinge (upper)

Front door weather-strip

Front door weather-strip clip

: Clip

: Pawl

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Body grease

JMKIB3503ZZ

JMKIB3504ZZ

DLK-888

< REMOVAL AND INSTALLATION >

[TYPE 4]

FRONT DOOR

• After installation, check that door opens and closes normally. Refer to

DLK-888, "DOOR ASSEMBLY

: Inspection"

.

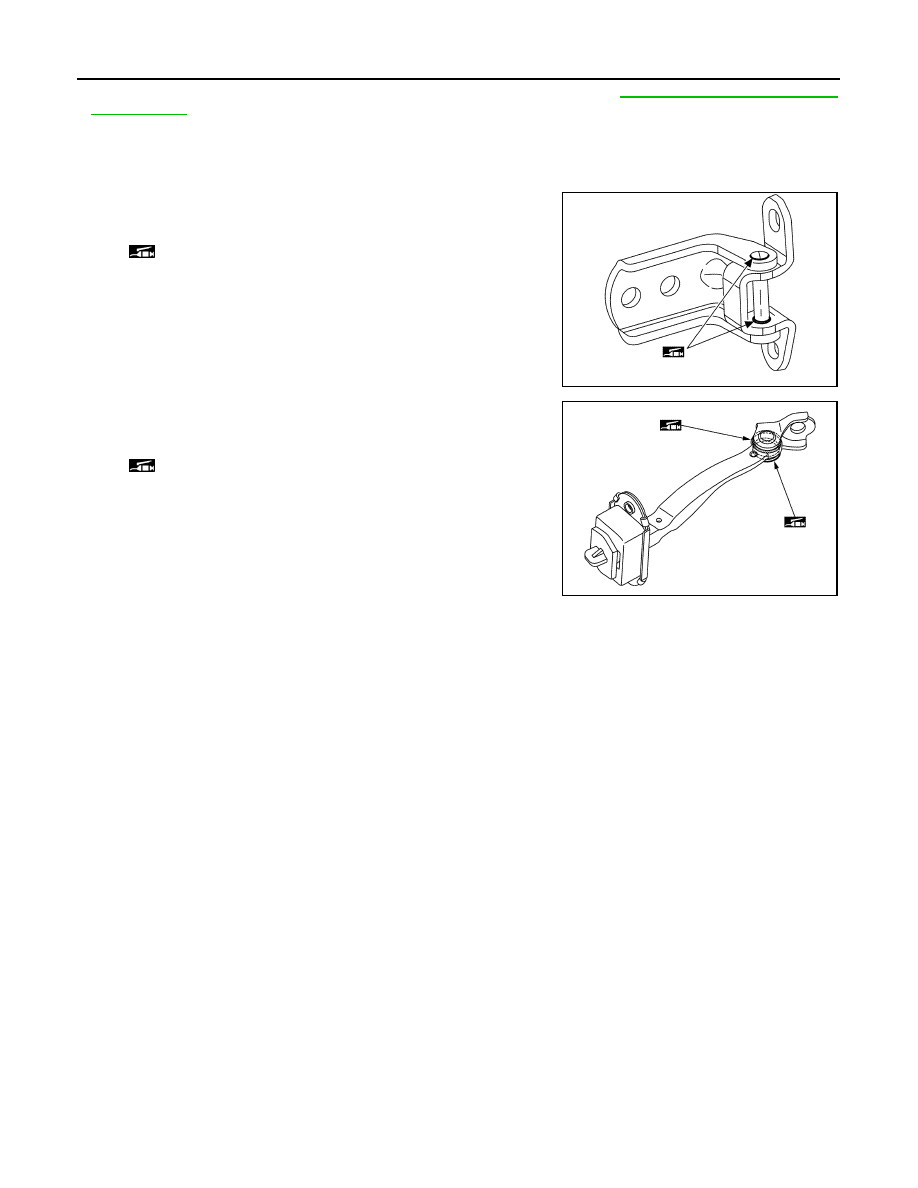

DOOR ASSEMBLY : Inspection

INFOID:0000000010728636

1.

Open and close the door. Check that door hinge and check link rotation portion moves smoothly.

2.

Check door hinge rotating part for poor lubrication. Apply body
grease if necessary.

3.

Check door check link rotating part for poor lubrication. Apply
body grease if necessary.

DOOR ASSEMBLY : Adjustment

INFOID:0000000010728637

FITTING ADJUSTMENT

: Body grease

JMKIB0321ZZ

: Body grease

JMKIB0322ZZ
