SEATS

When isolating seat noise it is important to note the position the seat is in and the load placed on the seat
when the noise is present. These conditions should be duplicated when verifying and isolating the cause of
the noise.
Cause of seat noise include:
1.

Headrest rods and holder

2.

A squeak between the seat pad cushion and frame

3.

Rear seatback lock and bracket

These noises can be isolated by moving or pressing on the suspected components while duplicating the con-
ditions under which the noise occurs. Most of these incidents can be repaired by repositioning the component
or applying urethane tape to the contact area.

UNDERHOOD

Some interior noise may be caused by components under the hood or on the engine wall. The noise is then
transmitted into the passenger compartment.
Causes of transmitted underhood noise include:
1.

Any component mounted to the engine wall

2.

Components that pass through the engine wall

3.

Engine wall mounts and connectors

4.

Loose radiator mounting pins

5.

Hood bumpers out of adjustment

6.

Hood striker out of adjustment

These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best
method is to secure, move or insulate one component at a time and test drive the vehicle. Also, engine RPM
or load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or
insulating the component causing the noise.

DLK-730

< SYMPTOM DIAGNOSIS >

[TYPE 3]

SQUEAK AND RATTLE TROUBLE DIAGNOSES

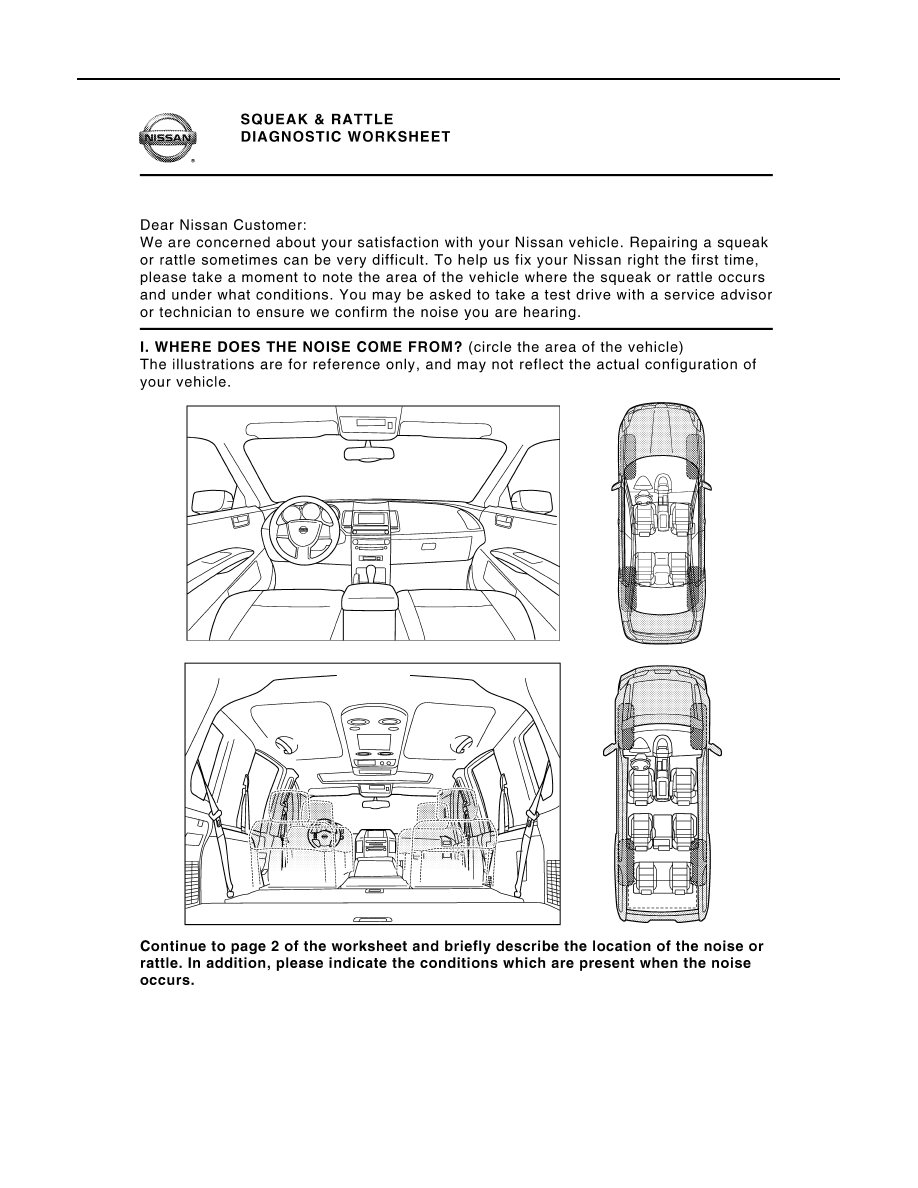

Diagnostic Worksheet

INFOID:0000000010708413

PIIB8740E

SQUEAK AND RATTLE TROUBLE DIAGNOSES

DLK-731

< SYMPTOM DIAGNOSIS >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

PIIB8742E

DLK-732

< REMOVAL AND INSTALLATION >

[TYPE 3]

HOOD

REMOVAL AND INSTALLATION

HOOD

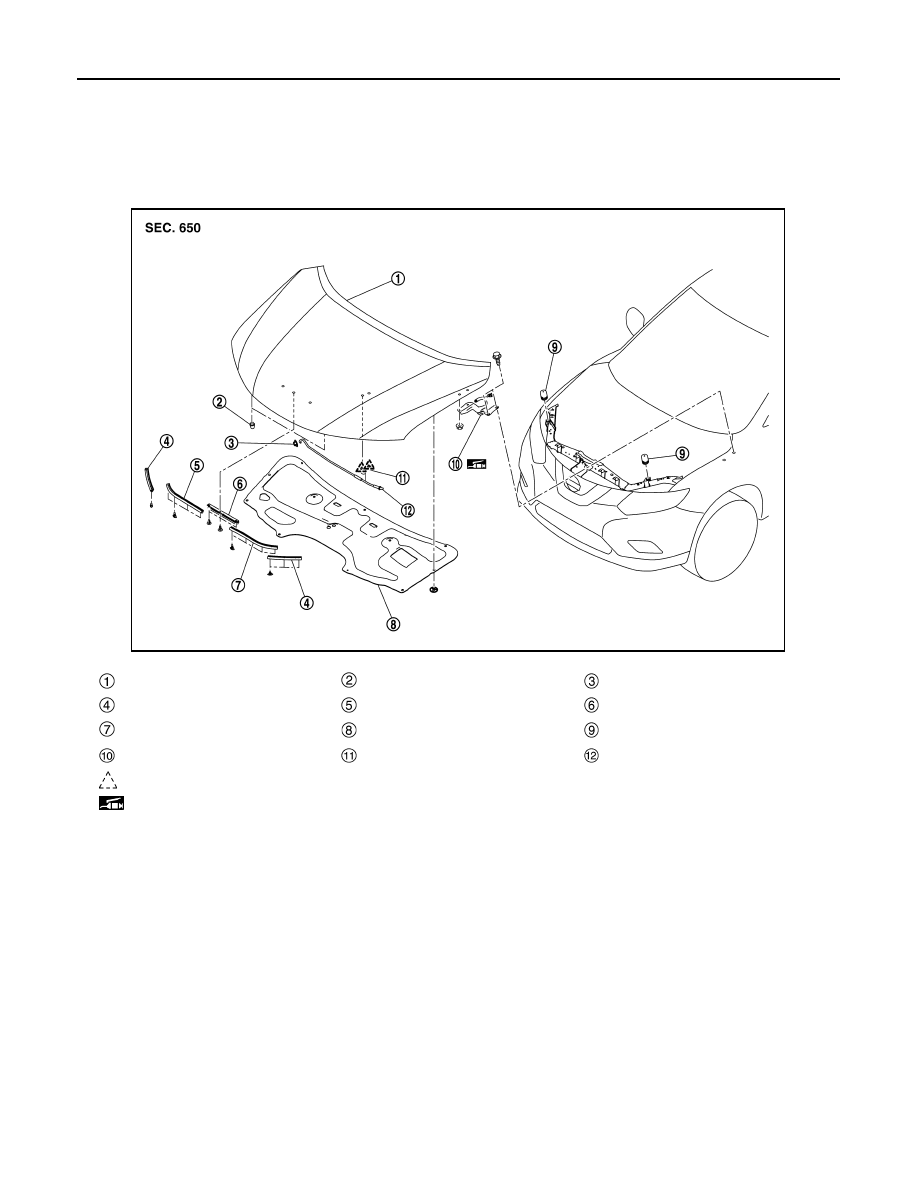

Exploded View

INFOID:0000000010728539

HOOD ASSEMBLY

HOOD ASSEMBLY : Removal and Installation

INFOID:0000000010728540

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• Use protective tape or shop cloth to protect from damage during removal and installation.

REMOVAL

1.

Support hood assembly with the proper material to prevent it from falling.

WARNING:

Injury may occur if hood assembly is not supported with appropriate material when removing
hood assembly.

2.

Remove hood assembly mounting nuts, and then remove hood assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

Hood assembly

Bumper rubber

Hood rod grommet

Radiator core seal

Radiator core seal RH

Radiator core seal

Radiator core seal LH

Hood insulator

Hood bumper rubber

Hood hinge

Hood rod clamp

Hood support rod

: Pawl

: Body grease

JMKIB2689ZZ
