REAR DOOR

DLK-597

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

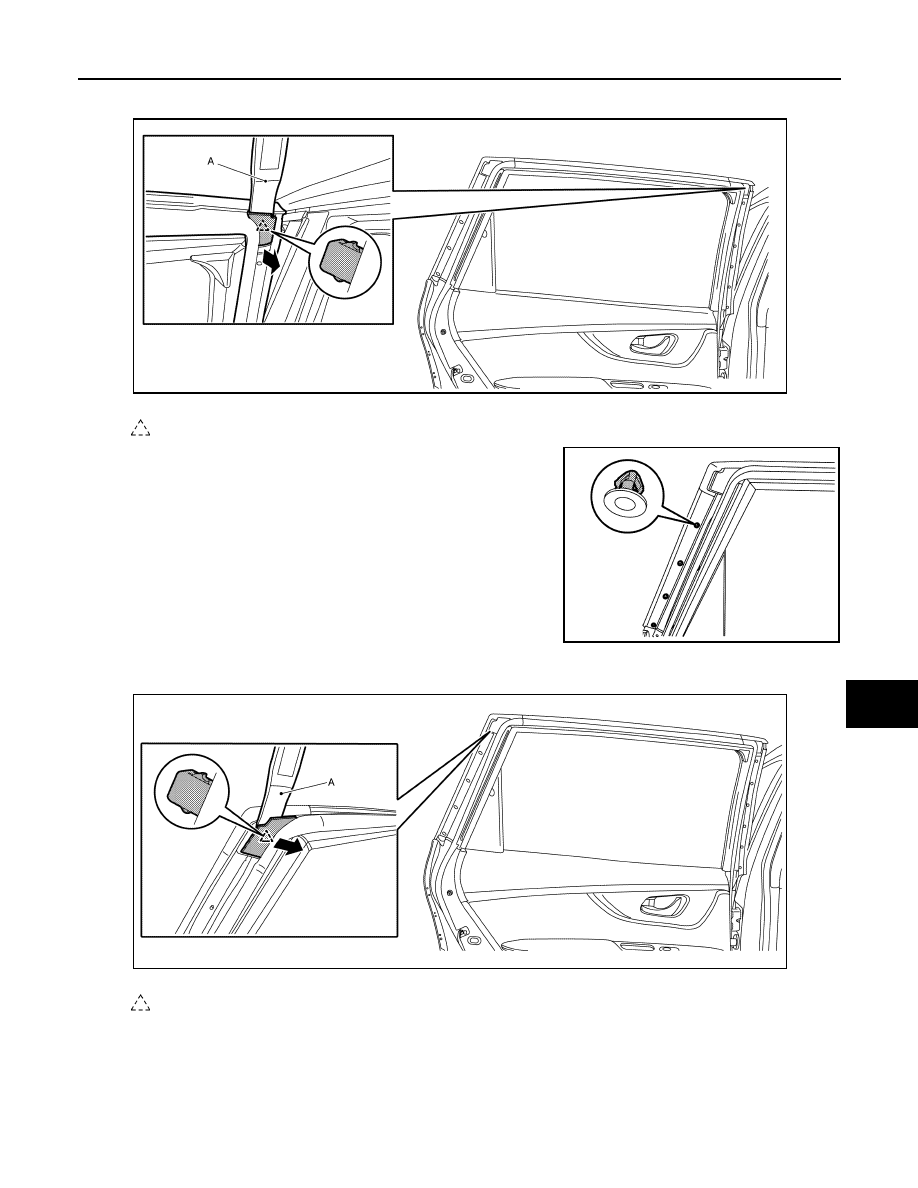

4.

Disengage fixing pawl on front upper end of rear door weather-strip using a remover tool (A), and then
remove weather-strip clip.

5.

Remove rear fixing clips from weather-strip.

6.

Disengage fixing pawl on rear upper end of rear door weather-strip using a remover tool (A), and then
remove weather-strip clip.

7.

Remove door check link mounting bolt of vehicle body side.

8.

Remove rear door weather-strip from rear door panel.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMKIB3515ZZ

JMKIB3516ZZ

: Pawl

JMKIB3517ZZ

DLK-598

< REMOVAL AND INSTALLATION >

[TYPE 2]

BACK DOOR

BACK DOOR

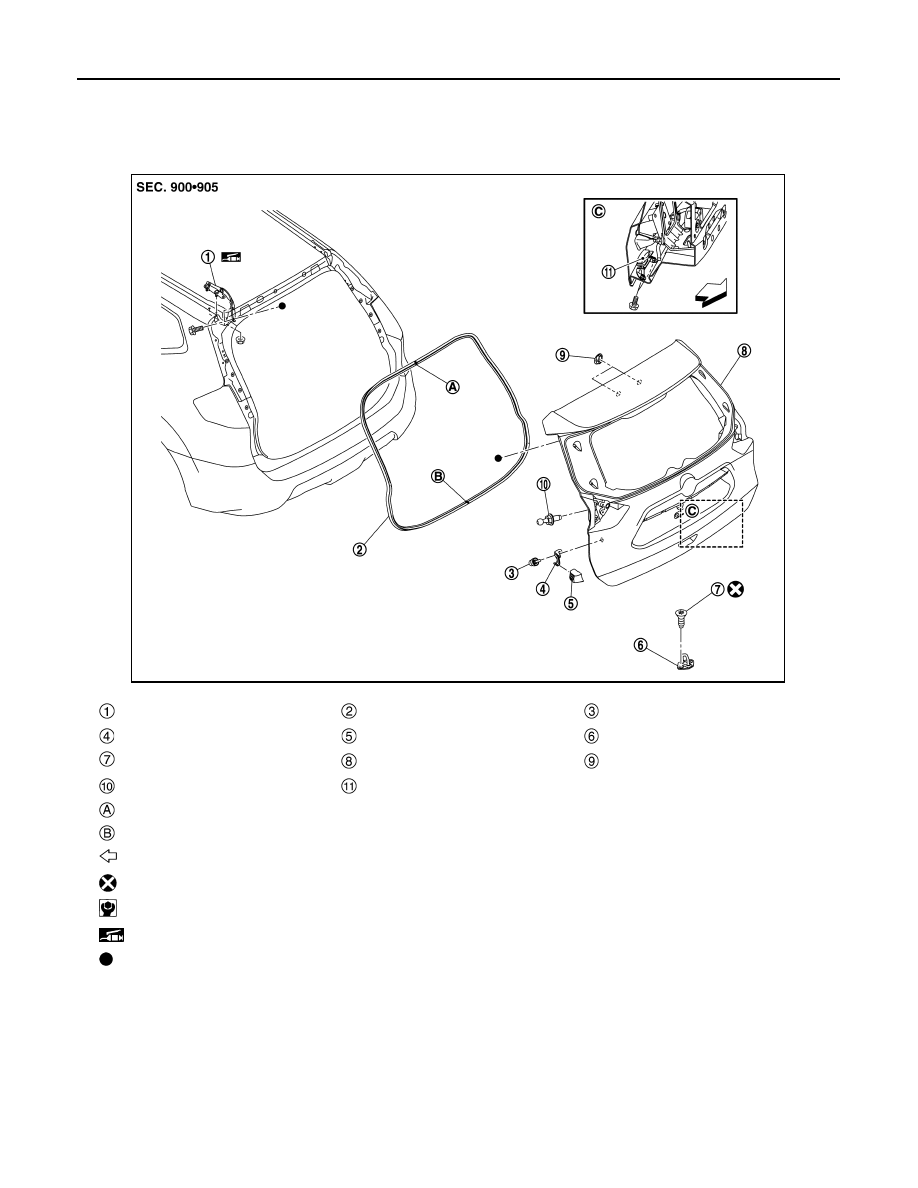

Exploded View

INFOID:0000000010728138

BACK DOOR ASSEMBLY

BACK DOOR ASSEMBLY : Removal and Installation

INFOID:0000000010728139

CAUTION:

• Back door is made of resin. Never apply strong force to it, and be careful to prevent contact with oil.
• Perform work with 2 workers, because of its heavy weight.
• Use protective tape or shop cloth to protect from damage during removal and installation.

Back door hinge

Back door weather-strip

Bumper rubber

Wedge bracket

Back door wedge

Back door striker

TORX bolt

Back door panel

Plug

Stud ball

Back door damper

: Center mark

: Seam

: Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Body grease

: Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIB3683GB

BACK DOOR

DLK-599

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

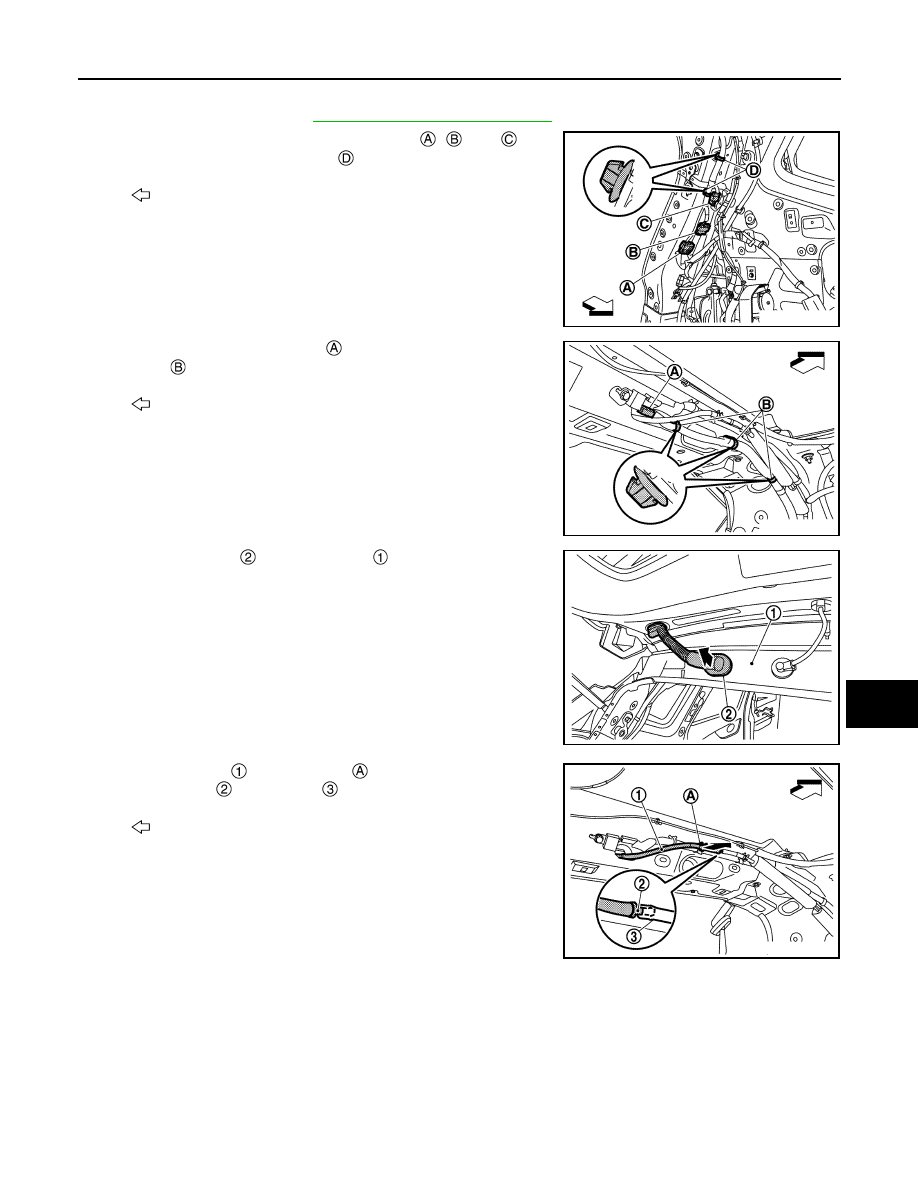

REMOVAL

1.

Remove headlining. Refer to

INT-37, "Removal and Installation"

.

2.

Disconnect back door harness connectors

,

 and

, and

then remove harness fixing clips

.

3.

Disconnect harness connector

, and then remove harness fix-

ing clips

.

4.

Remove grommet

 from roof panel

, and then pull out back

door harness from vehicle body.

5.

Remove air tube

 from tube clip

, and then disconnect tube

joint connector

 and air tube

 (with around view monitor).

: Vehicle front

JMKIB3115ZZ

: Vehicle front

JMKIB3116ZZ

JMKIB3117ZZ

: Vehicle front

JMKIB3118ZZ

DLK-600

< REMOVAL AND INSTALLATION >

[TYPE 2]

BACK DOOR

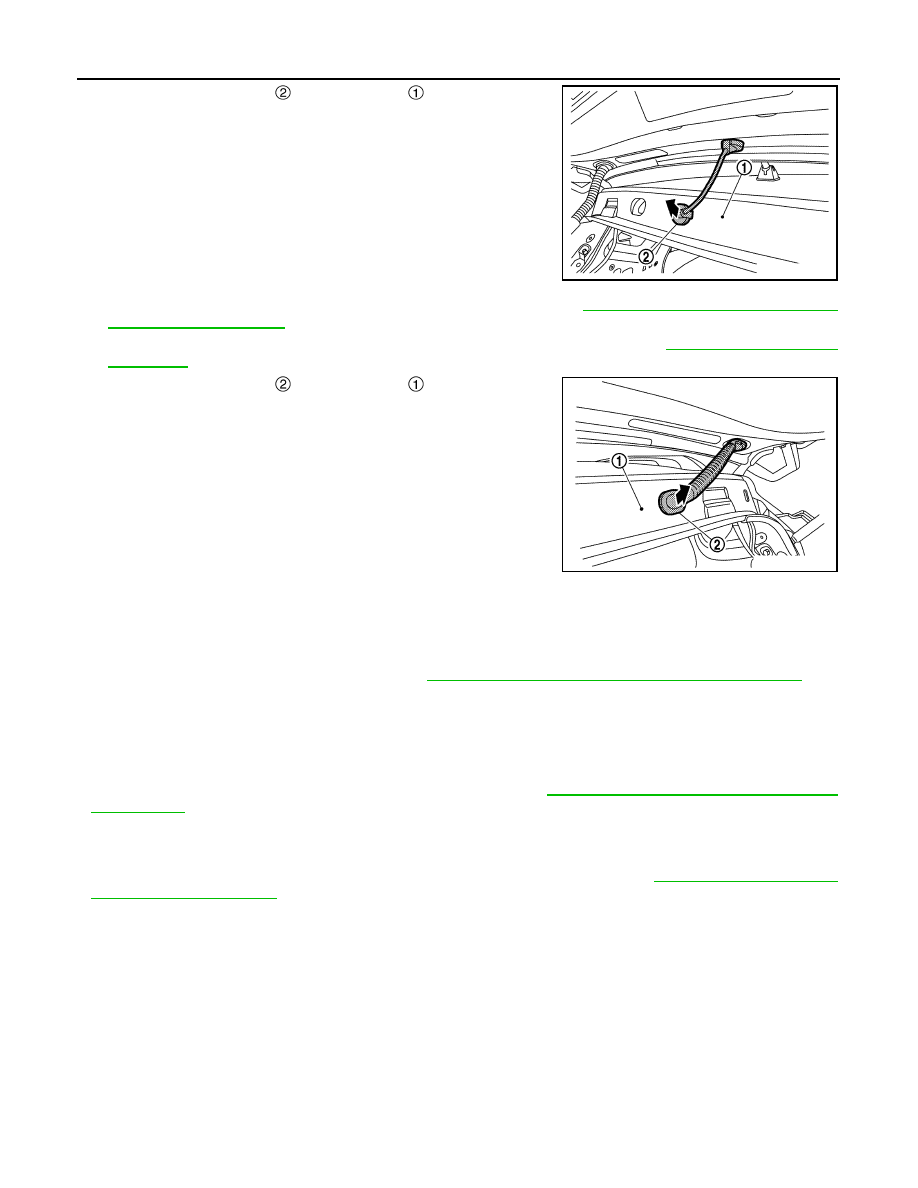

6.

Remove tube grommet

 from roof panel

, and then pull out

air tube from vehicle body.

7.

Disconnect rear washer tube A and rear washer tube B. Refer to

WW-102, "REAR WASHER TUBE :

Removal and Installation"

.

8.

Disconnect rear view camera washer tube (with around view monitor). Refer to

DAS-156, "Removal and

Installation"

.

9.

Remove tube grommet

 from roof panel

, and then pull out

rear washer tube B and rear camera washer tube from vehicle
body.

10. Support back door with the proper material to prevent it from falling.

WARNING:

Bodily injury may occur if no supporting rod is holding the back door open when removing the
back door stay.

11. Remove spindle unit from back door. Refer to

DLK-620, "SPINDLE UNIT : Removal and Installation"

.

12. Remove back door hinge mounting nuts of back door and remove back door assembly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• After installation, perform the fitting adjustment. Refer to

DLK-601, "BACK DOOR ASSEMBLY :

Adjustment"

.

• After installation, check whether harness is not pinched. If harness is pinched, pull harness down-

ward lightly.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.
• After installation, check that door opens and closes normally. Refer to

DLK-600, "BACK DOOR

ASSEMBLY : Inspection"

.

BACK DOOR ASSEMBLY : Inspection

INFOID:0000000010728140

1.

Open and close the back door. Check that door hinge rotation portion moves smoothly.

JMKIB3119ZZ

JMKIB3120ZZ
