REAR DOOR

DLK-593

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

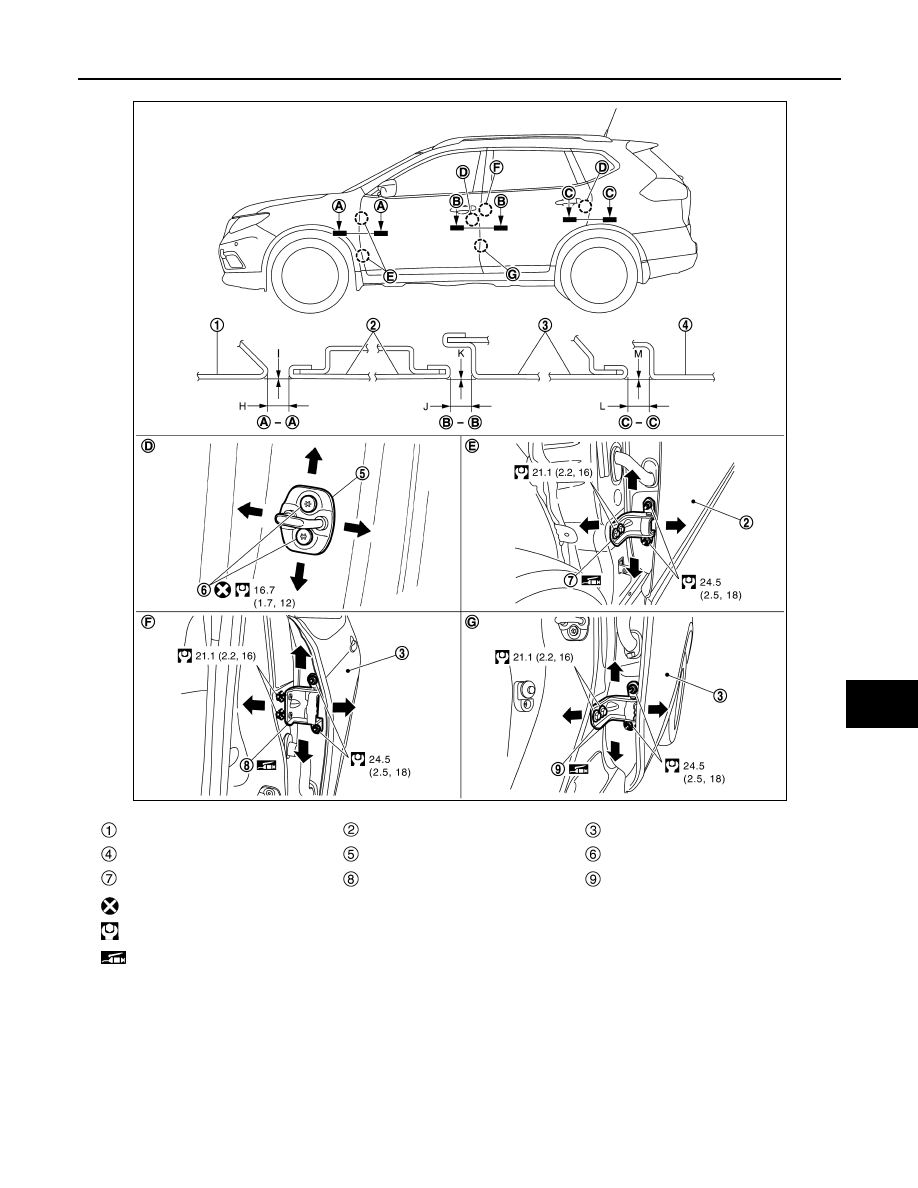

Fitting Adjustment Standard

Check the clearance and surface height between rear door and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

Front fender

Front door

Rear door

Body side outer

Door striker

TORX bolt

Front door hinge

Rear door hinge (upper)

Rear door hinge (lower)

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: Body grease

JMKIB3479GB

DLK-594

< REMOVAL AND INSTALLATION >

[TYPE 2]

REAR DOOR

Unit: mm [in]

Fitting Adjustment Procedure

1.

Remove center pillar lower garnish. Refer to

INT-27, "CENTER PILLAR LOWER GARNISH : Removal

and Installation"

.

2.

Loosen door hinge mounting nuts of door side.

3.

Adjust the surface height of rear door according to the fitting standard dimension.

4.

Temporarily tighten door hinge mounting nuts of door side.

5.

Loosen door hinge mounting nuts and bolts of vehicle body side.

6.

Raise rear door at rear end to adjust clearance of rear door according to the fitting standard dimension.

7.

After adjustment, tighten bolts and nuts to the specified torque.

CAUTION:

After installation, apply touch-up paint (the body color) onto the head of hinge mounting bolts and
nuts.

8.

Install center pillar lower garnish. Refer to

INT-27, "CENTER PILLAR LOWER GARNISH : Removal and

Installation"

.

DOOR STRIKER ADJUSTMENT

Adjust door striker so that it becomes parallel with door lock insertion direction.

DOOR STRIKER

DOOR STRIKER : Removal and Installation

INFOID:0000000010728134

REMOVAL

Remove TORX bolts, and then remove door striker.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never reuse TORX bolt. Always replace it with a new one when it is removed.
• After installation, perform the fitting adjustment. Refer to

DLK-592, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, check that door opens and closes normally. Refer to

DLK-592, "DOOR ASSEMBLY

: Inspection"

.

DOOR HINGE

DOOR HINGE : Removal and Installation

INFOID:0000000010728135

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• When removing and installing rear door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

1.

Remove rear door assembly. Refer to

DLK-591, "DOOR ASSEMBLY : Removal and Installation"

.

2.

Remove center pillar lower garnish. Refer to

INT-27, "CENTER PILLAR LOWER GARNISH : Removal

and Installation"

.

Portion

Standard

Front door – Rear door

 –

J

Clearance

3.3 – 5.3

[0.130 – 0.209]

K

Surface height

(

−

1.0) – (+1.0)

[(

−

0.039) – (+0.039)]

Rear door – Body side outer

 –

L

Clearance

3.0 – 5.0

[0.118 – 0.197]

M

Surface height

(

−

1.0) – (+1.0)

[(

−

0.039) – (+0.039)]

REAR DOOR

DLK-595

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

3.

Remove rear door hinge mounting bolts and nuts of vehicle body side, and then remove rear door hinge.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the mounting surface.
• After installation, perform the fitting adjustment. Refer to

DLK-592, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installing, apply the touch-up paint (the body color) onto the head of door hinge mounting bolts

and nuts.

• After installation, check that door opens and closes normally. Refer to

DLK-592, "DOOR ASSEMBLY

: Inspection"

.

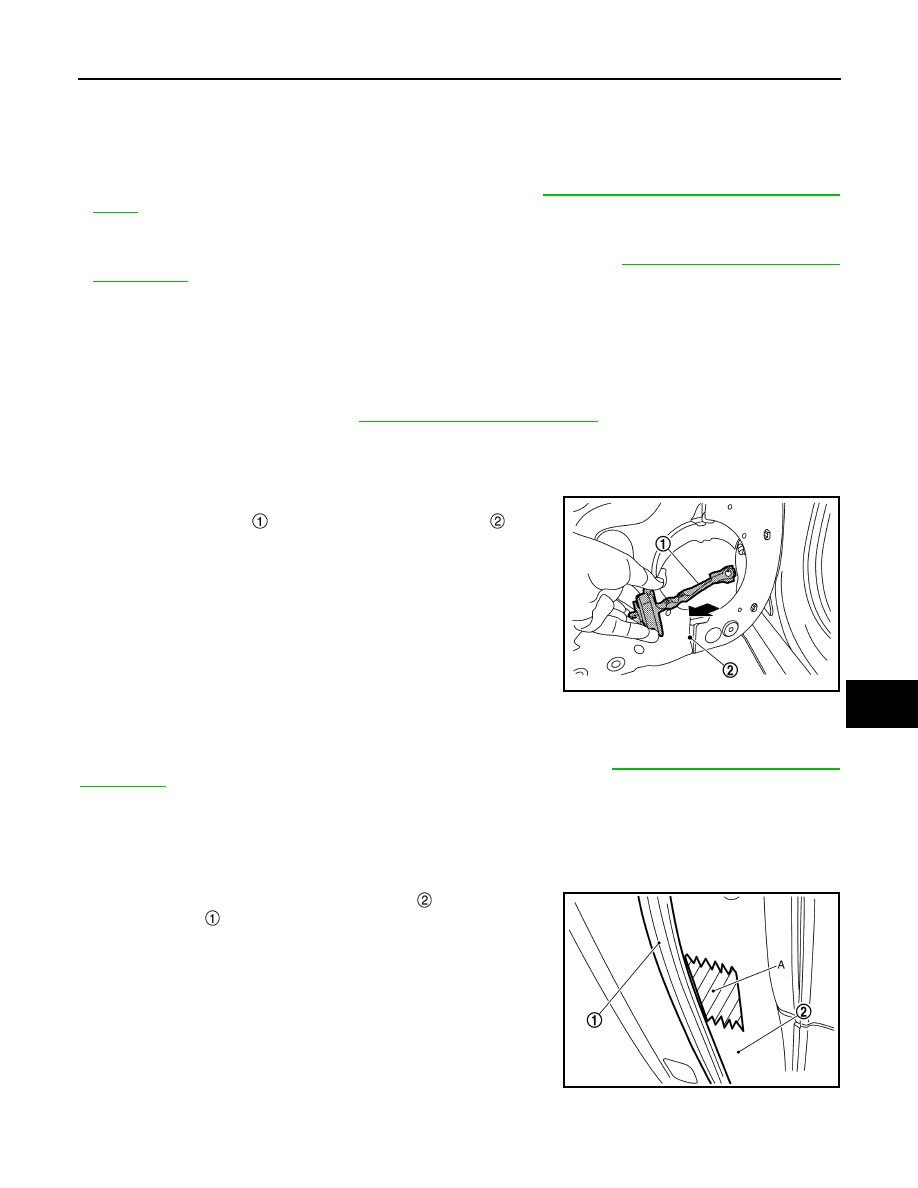

DOOR CHECK LINK

DOOR CHECK LINK : Removal and Installation

INFOID:0000000010728136

REMOVAL

1.

Fully close rear door glass.

2.

Remove rear door finisher. Refer to

INT-19, "Removal and Installation"

.

3.

Disconnect harness connector of rear door speaker.

4.

Remove mounting bolts of rear door speaker, and then remove rear door speaker.

5.

Remove door check link mounting bolt of vehicle body side.

6.

Remove door check link mounting bolts of door panel, and then
take door check link

 out from the hole of door panel

.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, check that door opens and closes normally. Refer to

DLK-592, "DOOR ASSEMBLY :

Inspection"

.

DOOR WEATHER-STRIP

DOOR WEATHER-STRIP : Removal and Installation

INFOID:0000000010728137

REMOVAL

1.

Apply protective tape (A) to rear door panel

 around rear door

weather-strip

 fixing clips for preventing damage.

JMKIB3512ZZ

JMKIB0410ZZ

DLK-596

< REMOVAL AND INSTALLATION >

[TYPE 2]

REAR DOOR

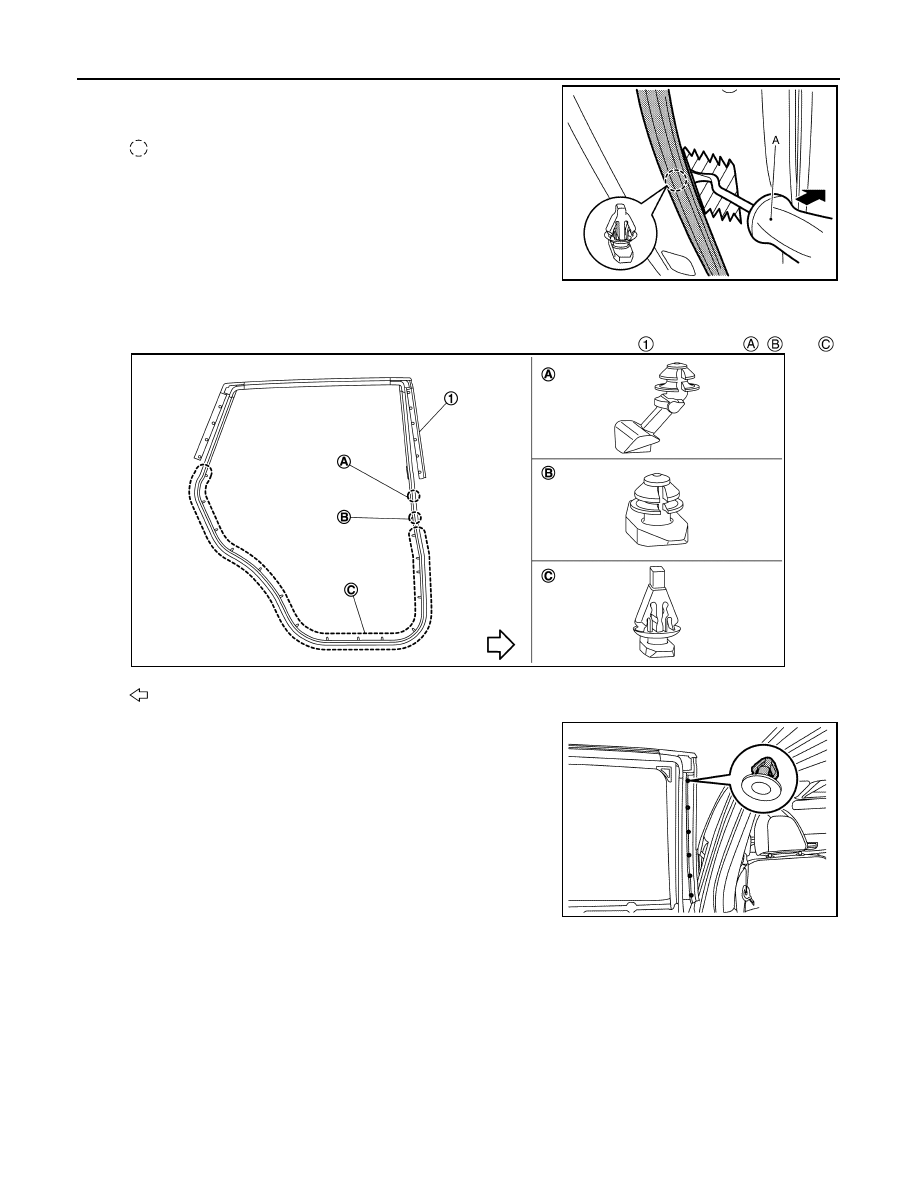

2.

Disengage fixing clips on the reverse side of rear door weather-
strip using a remover tool (A).

CAUTION:

• Never damage rear door panel.
• When removing, never confuse the 3 types of rear door weather-strip

 fixing clips

,

 and

.

3.

Remove front fixing clips from weather-strip.

: Clip

JMKIB0411ZZ

: Vehicle front

JMKIB3513ZZ

JMKIB3514ZZ
