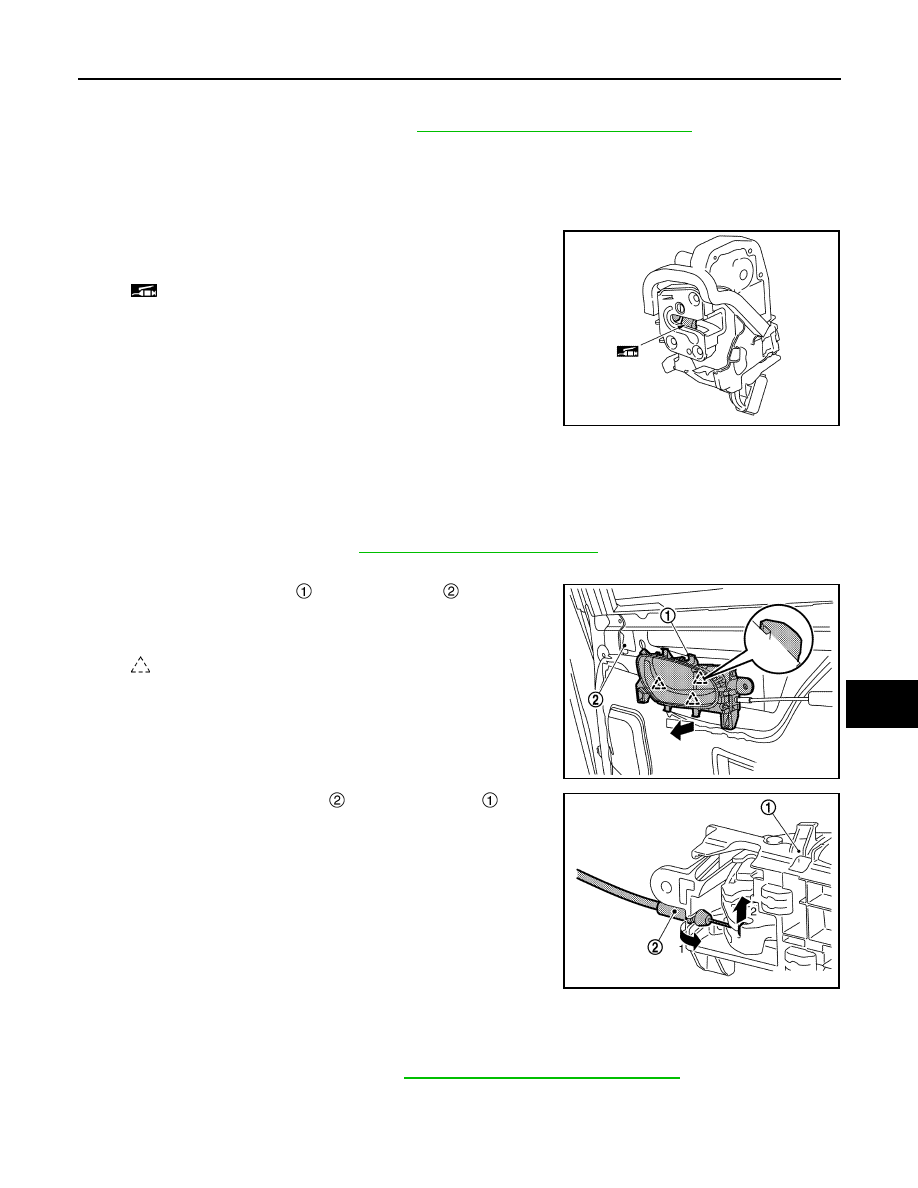

REAR DOOR LOCK

DLK-309

< REMOVAL AND INSTALLATION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

• When installing outside handle cable to outside handle, be careful that outside handle cable is

routed normally.

• After installation, check door lock. Refer to

DLK-309, "DOOR LOCK : Inspection"

.

DOOR LOCK : Inspection

INFOID:0000000010708301

1.

After opening and closing the door, check that door is fixed to the vehicle body normally.

2.

Check the lock/unlock operation of door lock.

3.

Check door lock assembly for poor lubrication. Apply body
grease to door lock if necessary.

INSIDE HANDLE

INSIDE HANDLE : Removal and Installation

INFOID:0000000010708302

REMOVAL

1.

Remove rear door finisher. Refer to

INT-19, "Removal and Installation"

.

2.

Remove inside handle mounting bolt.

3.

Disengage inside handle

 from door panel

 while sliding

inside handle toward vehicle rear, and then separate inside han-
dle.

4.

Disengage inside handle cable

 from inside handle

 accord-

ing to the numerical order 1

→

2 indicated by arrows as shown in

the figure.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, check door lock. Refer to

DLK-309, "DOOR LOCK : Inspection"

.

OUTSIDE HANDLE

: Body grease

JMKIA8534ZZ

: Pawl

JMKIB3685ZZ

JMKIB3669ZZ

DLK-310

< REMOVAL AND INSTALLATION >

[TYPE 1]

REAR DOOR LOCK

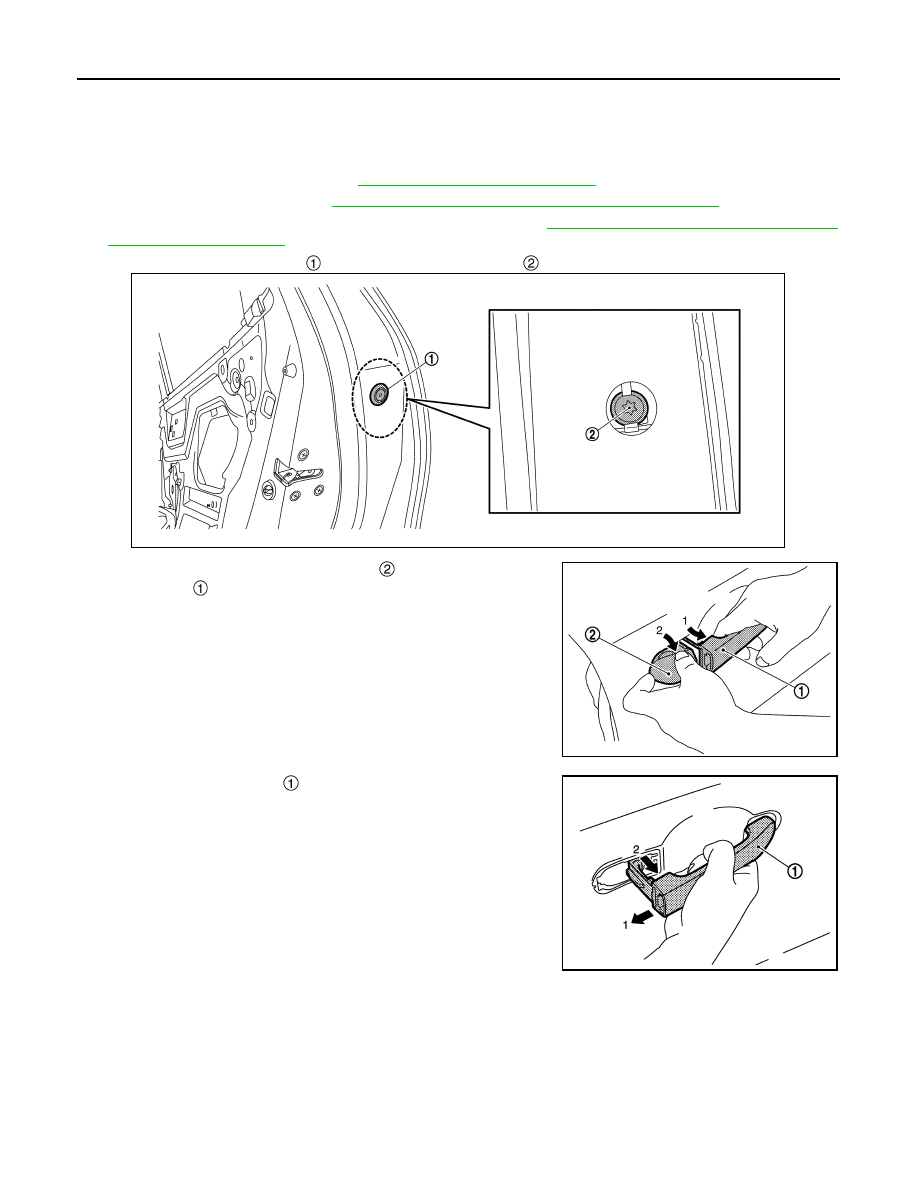

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000010708303

REMOVAL

1.

Fully close the rear door glass.

2.

Remove rear door finisher. Refer to

INT-19, "Removal and Installation"

.

3.

Remove inside handle. Refer to

DLK-309, "INSIDE HANDLE : Removal and Installation"

.

4.

Remove sealing screen and rear door lower sash. Refer to

GW-52, "REAR DOOR LOWER SASH :

Removal and Installation"

.

5.

Remove door side grommet

, and then loosen TORX bolt

 from grommet hole.

6.

Remove outside handle escutcheon

 while pulling outside

handle grip

 according to the numerical order 1

→

2 indicated

by arrows as shown in the figure.

7.

Slide outside handle grip

 toward rear of vehicle and remove it

according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

JMKIB3096ZZ

JMKIA9526ZZ

JMKIA2948ZZ

REAR DOOR LOCK

DLK-311

< REMOVAL AND INSTALLATION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

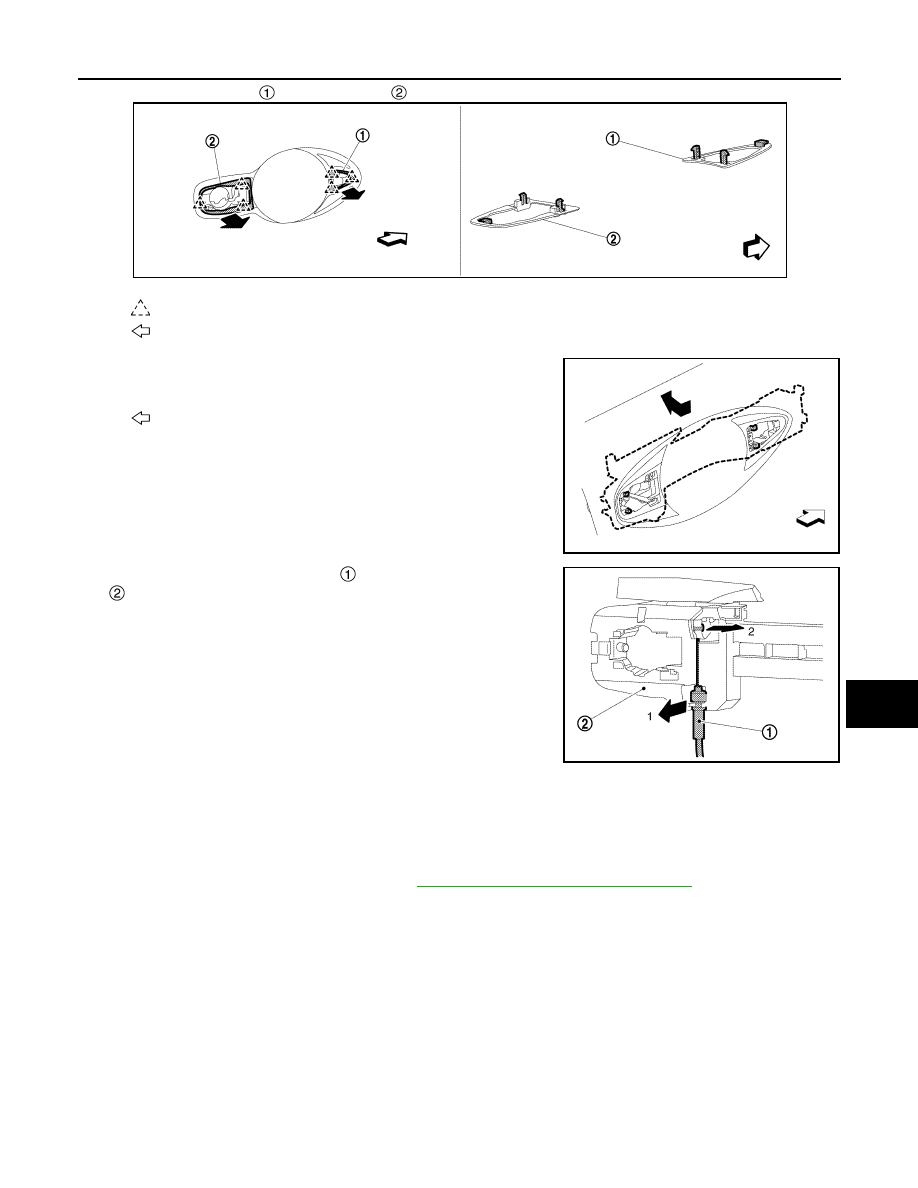

8.

Remove front gasket

 and rear gasket

.

9.

Slide outside handle bracket toward rear of vehicle and remove
it.

10. Disconnect outside handle cable

 from outside handle bracket

 according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• When installing outside handle cable to outside handle, be careful that outside handle cable is

routed normally.

• After installation, check door lock. Refer to

DLK-309, "DOOR LOCK : Inspection"

.

: Pawl

: Vehicle front

JMKIB2240ZZ

: Vehicle front

JMKIB2241ZZ

JMKIB2242ZZ

DLK-312

< REMOVAL AND INSTALLATION >

[TYPE 1]

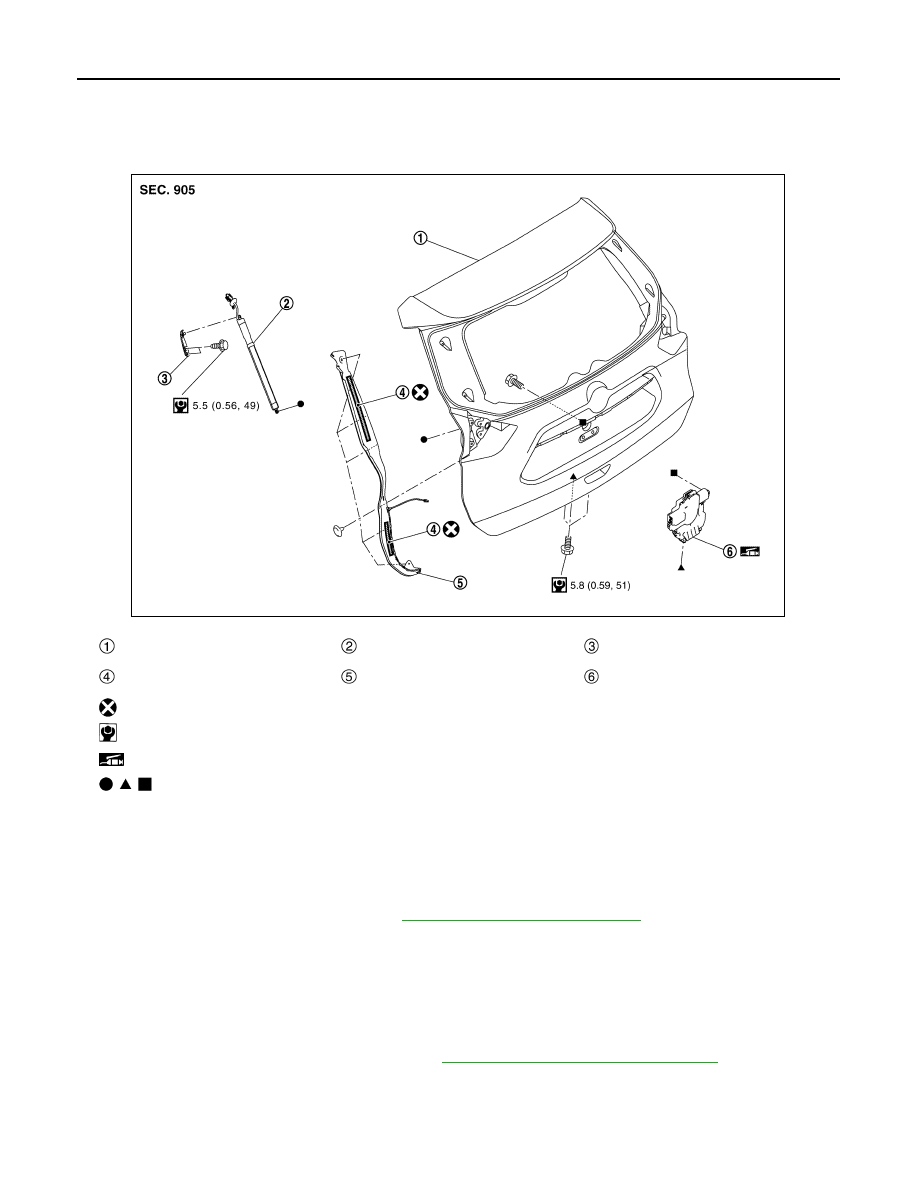

BACK DOOR LOCK

BACK DOOR LOCK

Exploded View

INFOID:0000000010708304

DOOR LOCK

DOOR LOCK : Removal and Installation

INFOID:0000000010708305

REMOVAL

1.

Remove back door inner finisher. Refer to

INT-47, "Removal and Installation"

.

2.

Disconnect back door lock & remote control assembly harness connector.

3.

Remove back door lock & remote control assembly mounting bolts, and then remove back door lock &
remote control assembly from back door panel.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, check back door lock. Refer to

DLK-312, "DOOR LOCK : Inspection"

.

DOOR LOCK : Inspection

INFOID:0000000010708306

1.

After opening and closing the back door, check that door is fixed to the vehicle body normally.

Back door panel

Spindle unit

Back door stay upper bracket

Double-sided tape
[t: 1.2 mm (0.047 in)]

Back door touch sensor

Back door lock & remote control as-
sembly

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Body grease

,

,

: Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIB3552GB
