HOOD LOCK

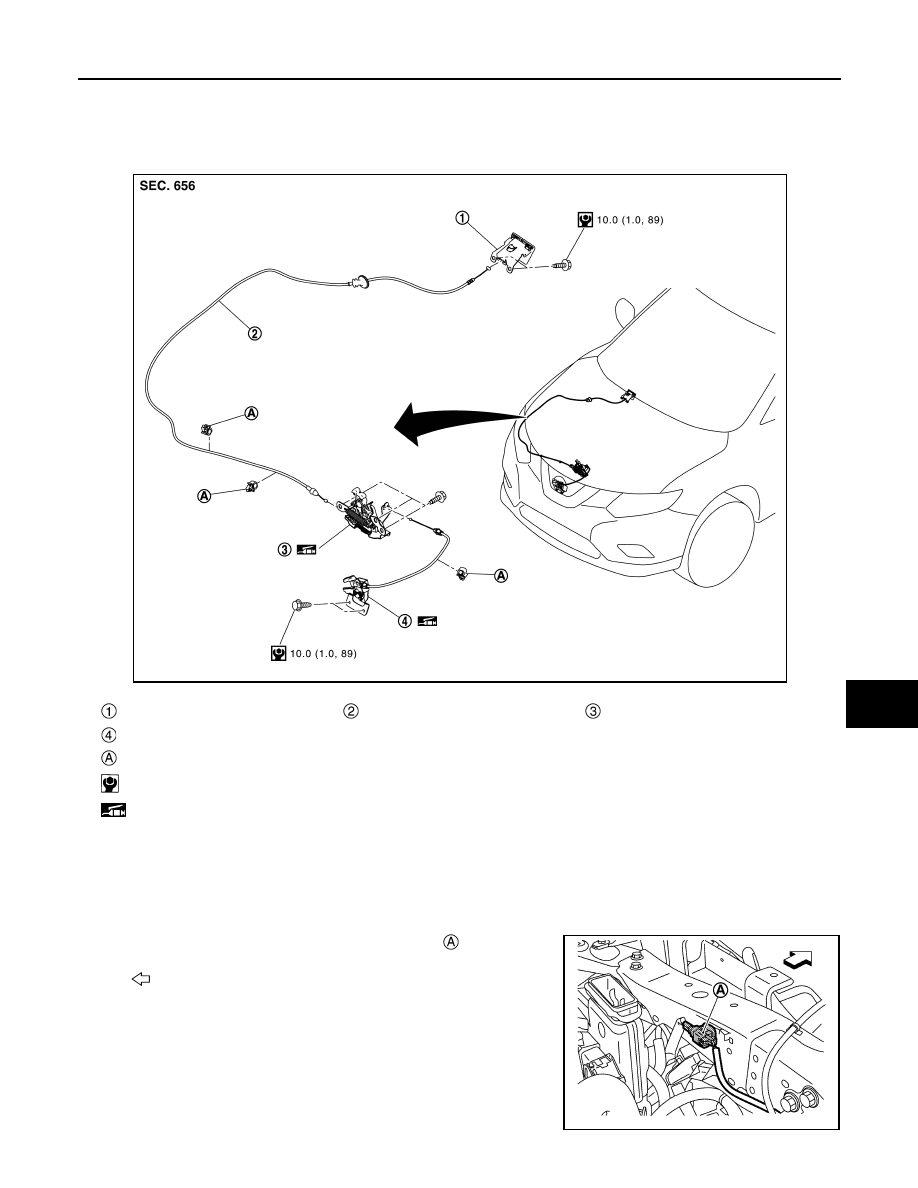

Exploded View

INFOID:0000000010708288

HOOD LOCK

HOOD LOCK : Removal and Installation

INFOID:0000000010708289

REMOVAL

1.

Disconnect hood lock switch harness connector

 (if equipped).

Hood lock control handle assembly

Hood lock control cable assembly

Hood lock assembly

Hood lock bell crank assembly

Cable clip

: N·m (kg-m, in-lb)

: Body grease

JMKIB3483GB

: Vehicle front

JMKIB2974ZZ

DLK-298

< REMOVAL AND INSTALLATION >

[TYPE 1]

HOOD LOCK

2.

Disconnect hood lock bell crank cable from hood lock assembly. Refer to

DLK-300, "HOOD LOCK BELL

CRANK : Removal and Installation"

.

3.

Remove hood lock assembly mounting bolts, and then remove hood lock assembly.

4.

Disconnect hood lock control cable assembly

 from hood lock

assembly

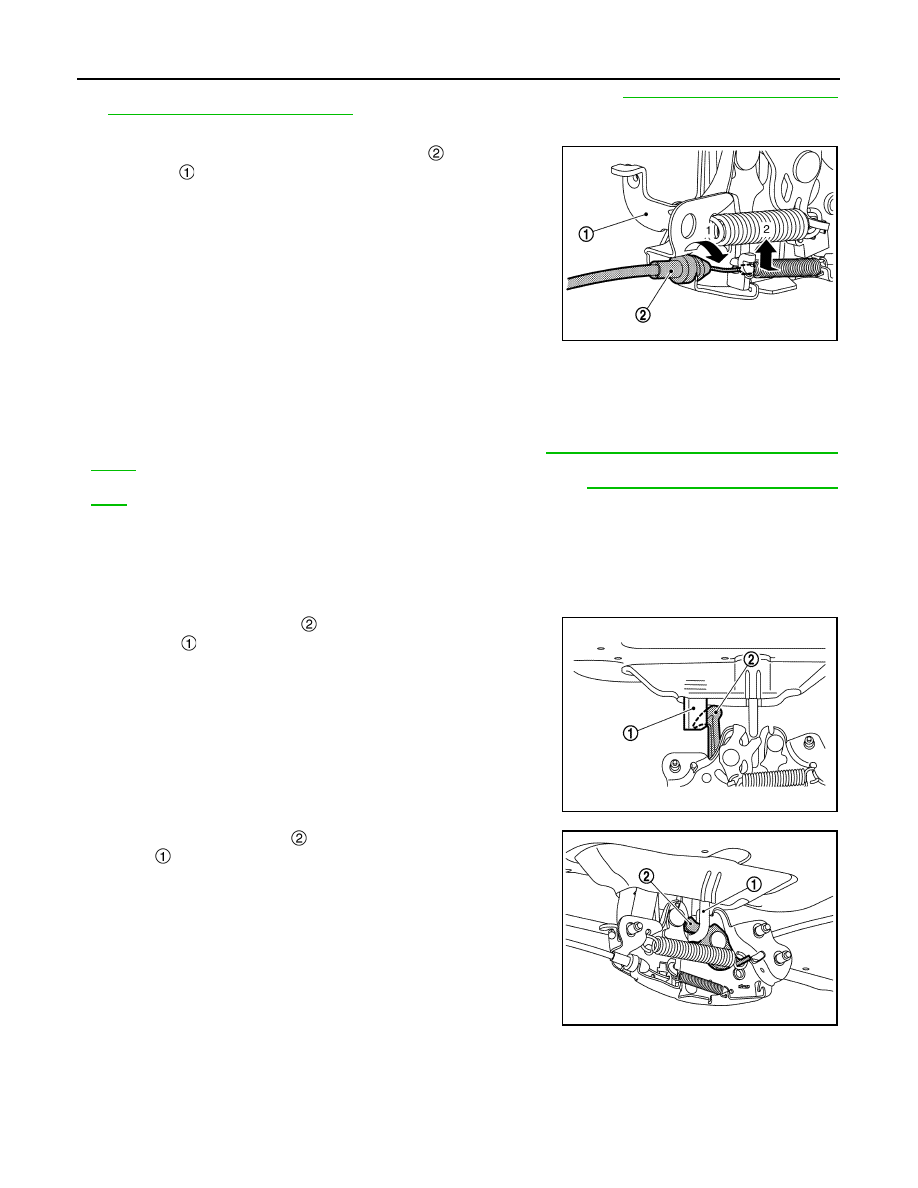

 according to the numerical order 1

→

2 indicated by

arrows as shown in the figure.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Never bend cable too much, keeping the radius 100 mm (3.937 in) or more.
• Check that hood lock control cable is properly engaged with hood lock.
• After installation, perform hood fitting adjustment. Refer to

DLK-263, "HOOD ASSEMBLY : Adjust-

ment"

.

• After installation, perform hood lock control inspection. Refer to

DLK-298, "HOOD LOCK : Inspec-

tion"

.

HOOD LOCK : Inspection

INFOID:0000000010708290

NOTE:
If the hood lock cable is bent or deformed, replace it.

1.

Check that hood opener operating is condition 49 N (5.0 kg, 11.0 lb) or below.

2.

Check that secondary latch

 is securely engaged with second-

ary striker

 from the dead load of hood assembly.

3.

Check that primary latch

 is securely engaged with primary

striker

 when hood assembly is closed [free-fall from approxi-

mately 200 mm (7.874 in) height].

4.

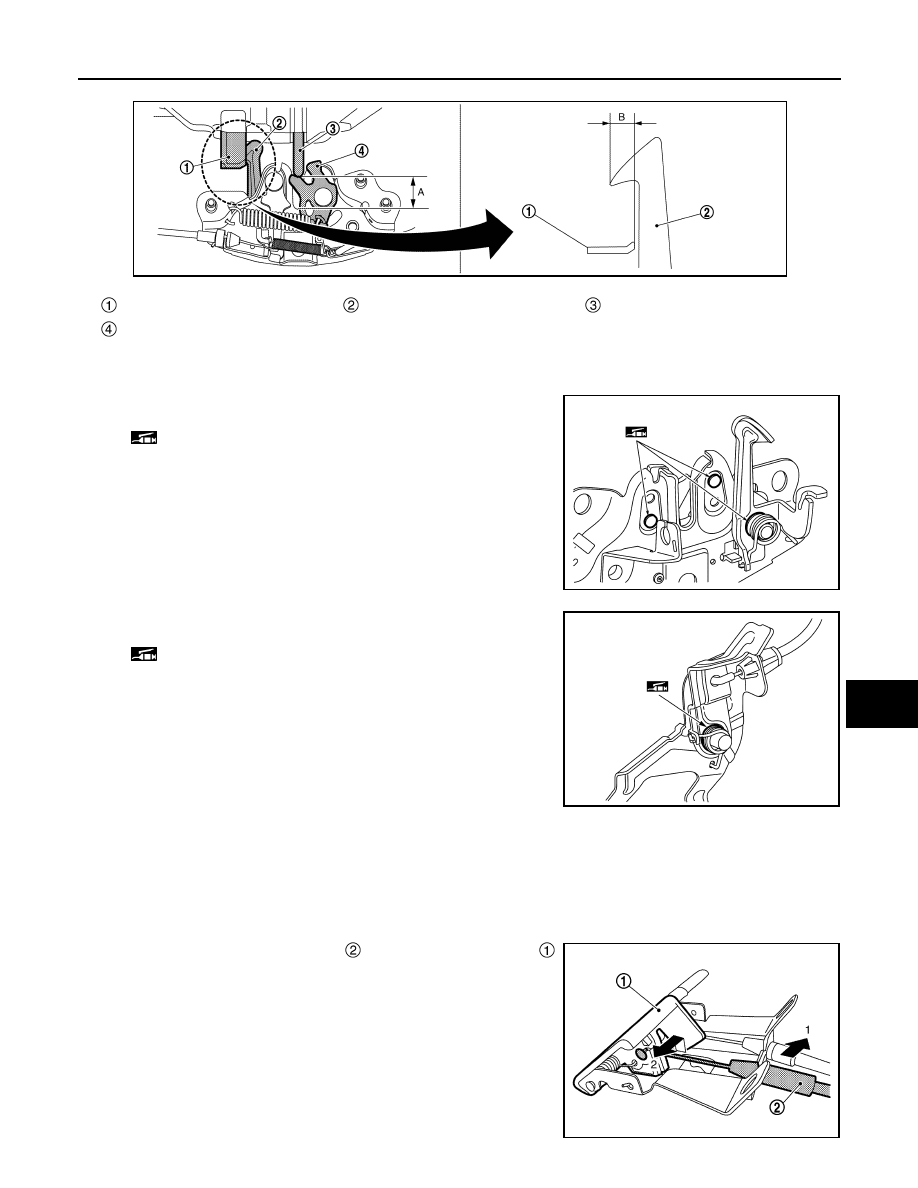

While operating the hood opener carefully, check that the front end of the hood is lifted by approximately
20 mm (0.787 in) (A). Also, check that the hood opener returns to the original position.

JMKIB2975ZZ

JMKIB3518ZZ

JMKIB3551ZZ

HOOD LOCK

DLK-299

< REMOVAL AND INSTALLATION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

5.

Check that secondary latch is properly engaged with secondary striker [6.8 mm (0.268 in)] (B).

6.

Check the hood lock lubrication condition. If necessary, apply body grease to hood lock.
• Hood lock assembly

• Hood lock bell crank assembly

HOOD LOCK CONTROL HANDLE

HOOD LOCK CONTROL HANDLE : Removal and Installation

INFOID:0000000010708291

REMOVAL

1.

Remove hood lock control handle mounting bolts, and then remove hood lock control handle.

2.

Remove hood lock control cable

 from hood opener lever

according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

Secondary striker

Secondary latch

Primary striker

Primary latch

JMKIB3487ZZ

: Body grease

JMKIB2979ZZ

: Body grease

JMKIB2980ZZ

JMKIB0327ZZ

DLK-300

< REMOVAL AND INSTALLATION >

[TYPE 1]

HOOD LOCK

3.

Remove fuel filler lid opener cable from fuel filler lid opener lever. Refer to

DLK-318, "FUEL FILLER

OPENER CABLE : Removal and Installation"

.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

After installation, perform hood lock control inspection. Refer to

DLK-298, "HOOD LOCK : Inspection"

.

HOOD LOCK CONTROL CABLE

HOOD LOCK CONTROL CABLE : Removal and Installation

INFOID:0000000010708292

REMOVAL

1.

Disconnect hood lock control cable assembly from hood lock assembly. Refer to

DLK-297, "HOOD LOCK

: Removal and Installation"

.

2.

Remove fender protector RH. Refer to

EXT-35, "FENDER PROTECTOR : Removal and Installation"

.

3.

Remove hood lock control cable fixing clips.

4.

Disconnect hood lock control cable assembly from hood lock control handle. Refer to

DLK-299, "HOOD

LOCK CONTROL HANDLE : Removal and Installation"

.

5.

Remove dash side finisher RH. Refer to

INT-26, "DASH SIDE FINISHER : Removal and Installation"

.

6.

Remove grommet of the lower dash, and pull the hood lock control cable assembly toward inside vehicle.

CAUTION:

While pulling, never damage (peeling) the outside of hood lock control cable.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never bend cable too much, keeping the radius 100 mm (3.937 in) or more.
• Install grommet in the panel hole surely.

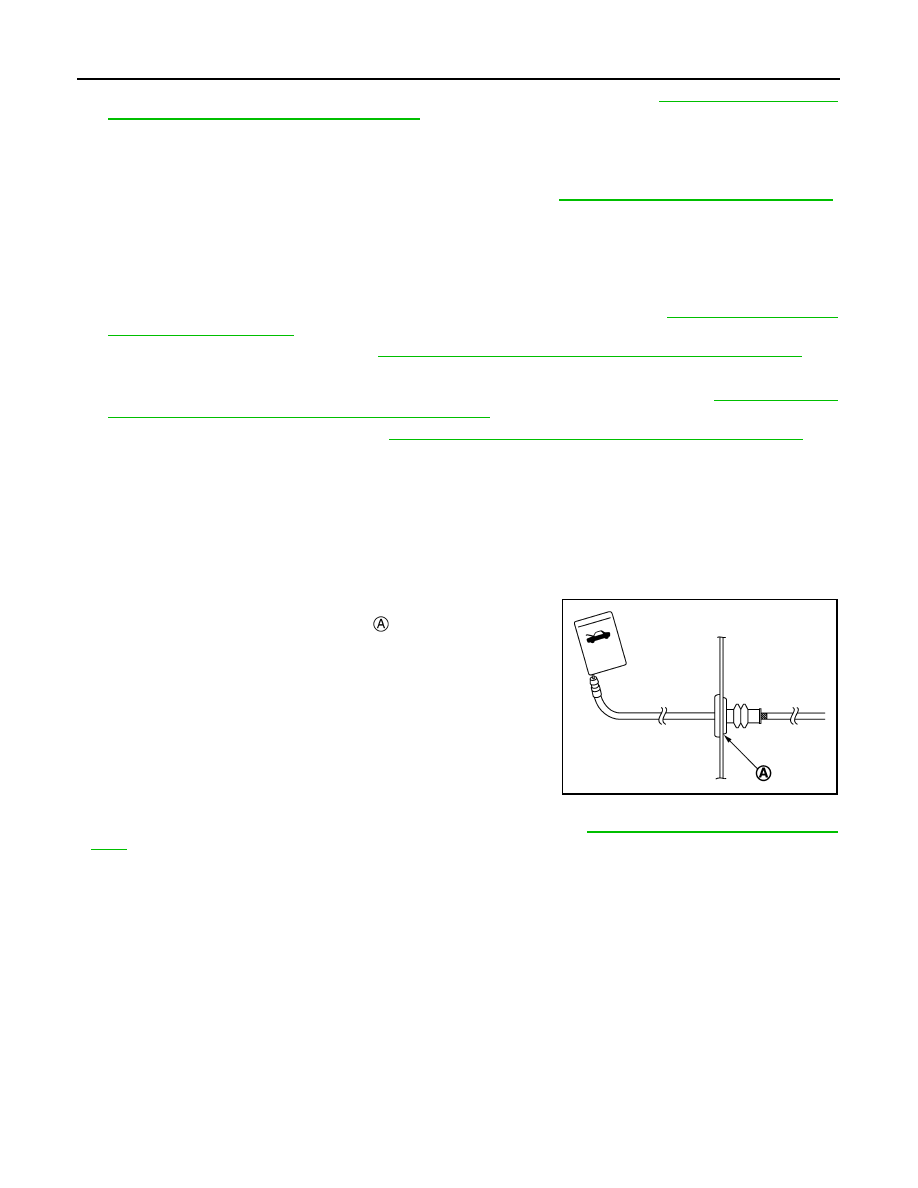

• Check that cable is not offset from the positioning grommet,

and apply the sealant to the grommet

 properly.

• After installation, perform hood lock control inspection. Refer to

DLK-298, "HOOD LOCK : Inspec-

tion"

.

HOOD LOCK BELL CRANK

HOOD LOCK BELL CRANK : Removal and Installation

INFOID:0000000010708293

REMOVAL

JMKIA5814ZZ
