BACK DOOR

DLK-293

< REMOVAL AND INSTALLATION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2.

Check back door hinge rotating part for poor lubrication. Apply
body grease if necessary.

BACK DOOR ASSEMBLY : Adjustment

INFOID:0000000010708282

FITTING ADJUSTMENT

: Body grease

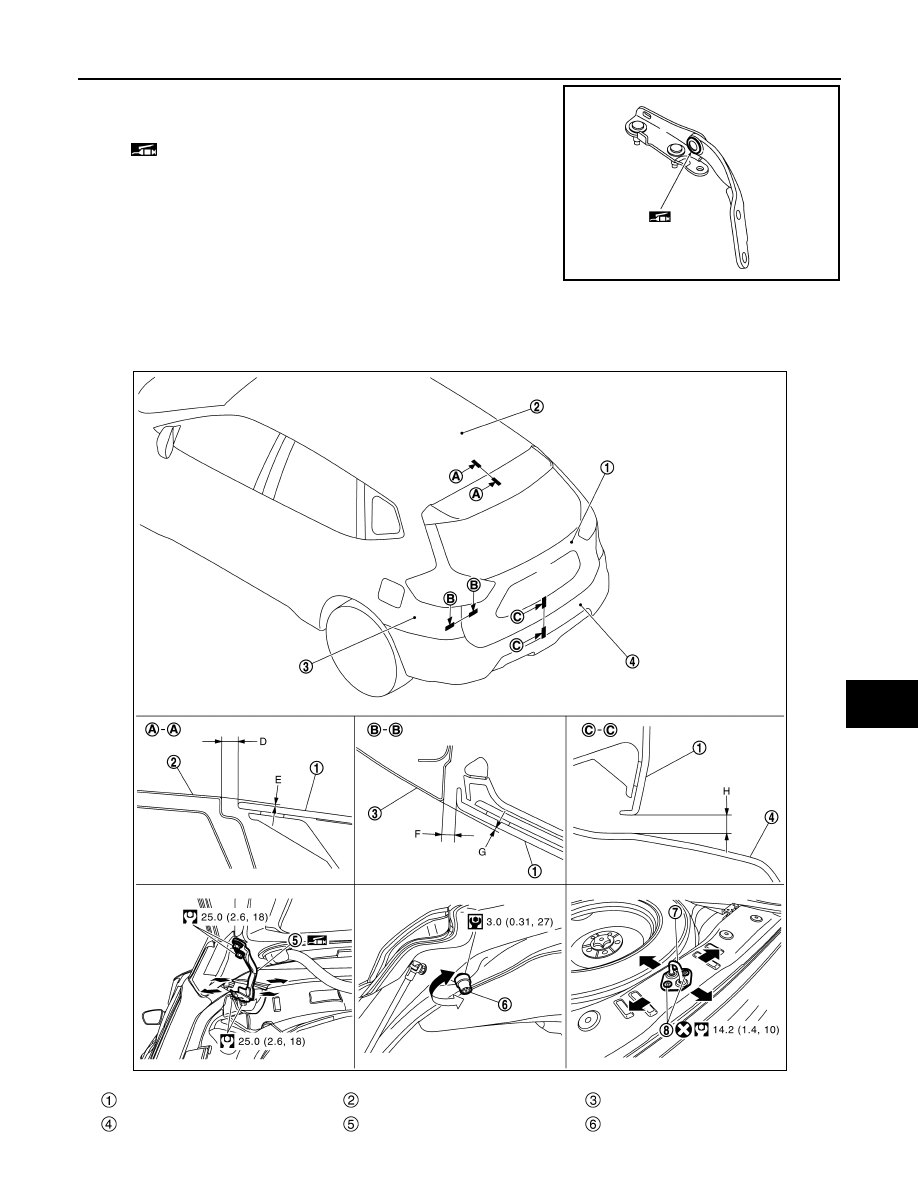

JMKIB3113ZZ

Back door assembly

Roof panel

Body side outer panel

Rear bumper fascia

Back door hinge

Bumper rubber

JMKIB3480GB

DLK-294

< REMOVAL AND INSTALLATION >

[TYPE 1]

BACK DOOR

Fitting Adjustment Standard

Check the clearance and the surface height between back door and each part by seeing and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

When back door is reused.

Unit: mm [in]

When back door is replaced.

Unit: mm [in]

Fitting Adjustment Procedure

1.

Loosen back door hinge mounting nuts of back door side.

2.

Loosen bumper rubber.

3.

Remove luggage rear plate mask. Refer to

INT-41, "LUGGAGE REAR PLATE : Removal and Installation"

.

4.

Loosen back door striker mounting TORX bolts.

5.

Position back door lock assembly and engage back door striker. Check back door lock assembly and back
door striker for looseness.

6.

Adjust the clearance and surface height of back door according to the fitting standard dimension by back
door hinge and bumper rubber.

Back door striker

TORX bolt

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: Body grease

Portion

Standard

Difference

(LH/RH,

MAX)

 Back door – Roof panel

 –

D

Clearance

5.0 – 9.0

[0.197 – 0.354]

—

E

Surface height

(

−

3.0) – (+1.0)

[(

−

0.118) – (+0.039)]

—

Back door – Body side outer
panel


 –

F

Clearance

3.0 – 7.0

[0.118 – 0.276]

<2.0

[0.079]

G

Surface height

(

−

3.0) – (+1.0)

[(

−

0.118) – (+0.039)]

—

Back door – Rear bumper
fascia

 –

H

Clearance

5.5 – 9.5

[0.217 – 0.374]

—

Portion

Standard

Difference

(LH/RH,

MAX)

 Back door – Roof panel

 –

D

Clearance

5.1 – 9.1

[0.201 – 0.358]

—

E

Surface height

(

−

2.0) – (+2.0)

[(

−

0.079) – (+0.079)]

—

Back door – Body side outer
panel


 –

F

Clearance

2.5 – 6.5

[0.098 – 0.256]

<2.0

[0.079]

G

Surface height

(

−

3.3) – (+0.7)

[(

−

0.130) – (+0.028)]

—

Back door – Rear bumper
fascia

 –

H

Clearance

5.7 – 9.7

[0.224 – 0.382]

—

BACK DOOR

DLK-295

< REMOVAL AND INSTALLATION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

7.

After adjustment, tighten back door striker mounting TORX bolts, bumper rubber and back door hinge
mounting nuts of back door side to the specified torque.

CAUTION:

After installation, apply touch-up paint to the body color if the paint around back door hinge and
back door hinge mounting nuts is peeled off.

8.

Install luggage rear plate mask. Refer to

INT-41, "LUGGAGE REAR PLATE : Removal and Installation"

.

CAUTION:

• After adjusting, check that bumper rubber is in contact with vehicle body surely.
• After adjusting, check that door opens and closes normally. Refer to

DLK-292, "BACK DOOR

ASSEMBLY : Inspection"

.

• After adjusting, perform calibration of automatic back door position information (with automatic

back door). Refer to

DLK-117, "Work Procedure"

.

• After adjusting, perform calibration camera image (with around view monitor). Refer to

AV-161,

"CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Work Procedure"

 (with navigation).

BACK DOOR STRIKER ADJUSTMENT

Adjust back door striker so that it becomes parallel with back door lock insertion direction.

BACK DOOR STRIKER

BACK DOOR STRIKER : Removal and Installation

INFOID:0000000010708283

REMOVAL

1.

Remove luggage rear plate. Refer to

INT-41, "LUGGAGE REAR PLATE : Removal and Installation"

.

2.

Remove TORX bolts, and then remove back door striker.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never reuse TORX bolt. Always replace it with a new one when it is removed.
• After installation, perform the fitting adjustment. Refer to

DLK-293, "BACK DOOR ASSEMBLY :

Adjustment"

.

• After installation, check that door opens and closes normally. Refer to

DLK-292, "BACK DOOR

ASSEMBLY : Inspection"

.

BACK DOOR HINGE

BACK DOOR HINGE : Removal and Installation

INFOID:0000000010708284

REMOVAL

1.

Remove back door assembly. Refer to

DLK-290, "BACK DOOR ASSEMBLY : Removal and Installation"

.

2.

Remove back door hinge cover. Refer to

EXT-46, "Removal and Installation"

.

3.

Remove back door hinge mounting nuts of vehicle body side, and then remove back door hinge.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• After installation, perform the fitting adjustment. Refer to

DLK-293, "BACK DOOR ASSEMBLY :

Adjustment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.
• After installation, check that door opens and closes normally. Refer to

DLK-292, "BACK DOOR

ASSEMBLY : Inspection"

.

BACK DOOR WEATHER-STRIP

BACK DOOR WEATHER-STRIP : Removal and Installation

INFOID:0000000010708287

REMOVAL

Pull up and remove engagement with body from weather-strip joint.

CAUTION:

Never pull strongly on back door weather-strip.

DLK-296

< REMOVAL AND INSTALLATION >

[TYPE 1]

BACK DOOR

INSTALLATION

1.

Working from the upper section, align back door weather-strip

 center mark

 with vehicle center posi-

tion mark

 and install weather-strip onto the vehicle

.

2.

Align the connecting point

 of back door weather-strip

 with the center

 of back door striker

, and

then install weather-strip onto the vehicle.

3.

Pull back door weather-strip gently to ensure that there is no loose section.

CAUTION:

Check that weather-strip fits tightly in each corner.

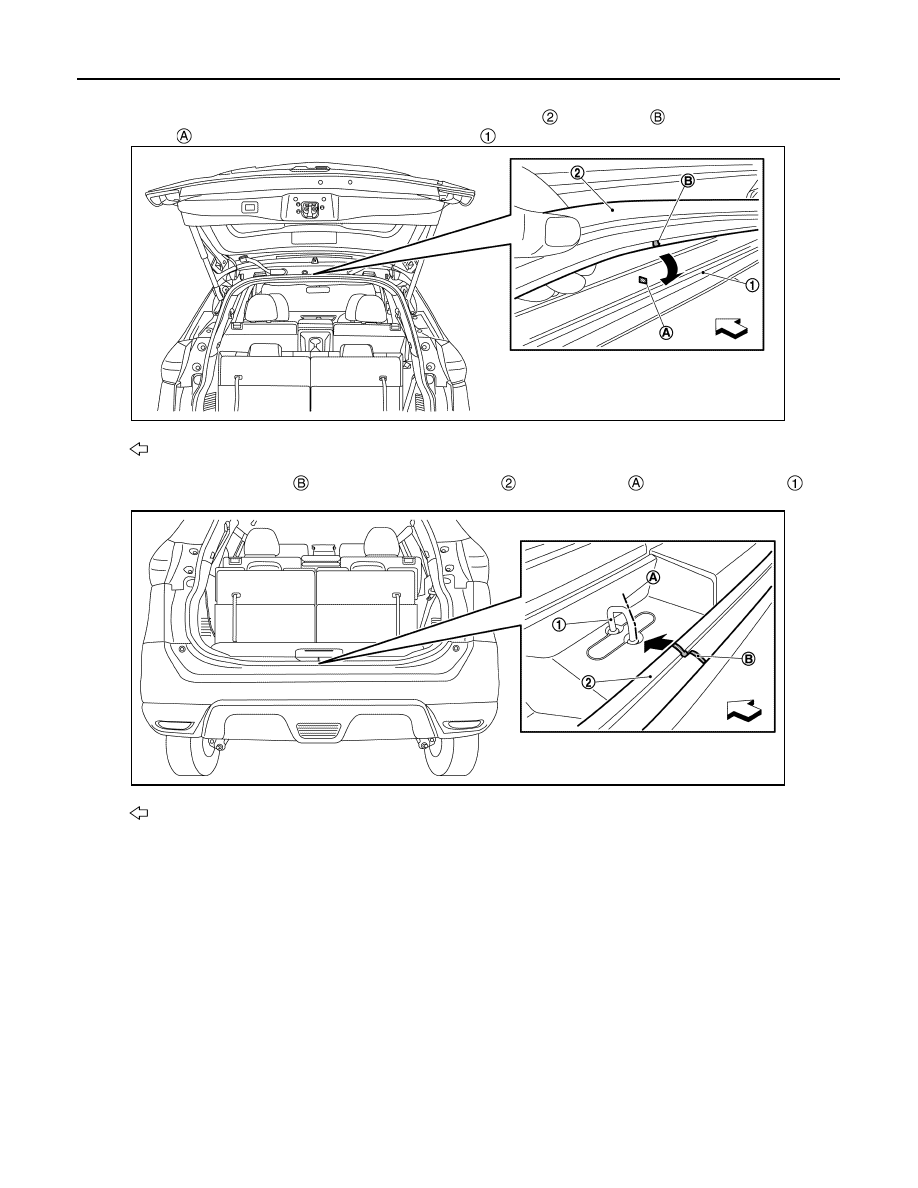

: Vehicle front

JMKIB3151ZZ

: Vehicle front

JMKIB3152ZZ
