SYSTEM (AUTOMATIC BACK DOOR SYSTEM)

DLK-65

< SYSTEM DESCRIPTION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Intelligent Key

Automatic back door close switch

Condition

Back door opera-

tion

Back door position

Ignition switch

Automatic back

door main switch

Back door condi-

tion

Intelligent Key

Full open

OFF

Stop

Long press (1 sec)

Perform the auto
close function

Fully open to just
before fully open

OFF

Stop

Long press (1 sec)

Perform the auto
close function

OFF

Auto open function
operating

Long press (1 sec)

Perform the auto
close function (re-
verse operation)

OFF

Auto close function
operating

Long press (1 sec)

Operation is contin-
ued

Middle

OFF

Stop

Long press (1 sec)

Non-operation
(manual movement
only)

OFF

Auto open function
operating

Long press (1 sec)

Perform the auto
close function (re-
verse operation)

OFF

Auto close function
operating

Long press (1 sec)

Perform the auto
open function (re-
verse operation)

Just before fully
closed to fully
closed

OFF

Stop

Long press (1 sec)

Non-operation
(manual movement
only)

OFF

Auto open function
operating

Long press (1 sec)

Operation is contin-
ued

OFF

Auto close function
operating

Long press (1 sec)

Perform the auto
open function (re-
verse operation)

Full closed

OFF

Stop

Long press (1 sec)

Perform the auto
open function

Condition

Back door operation

Back door position

Automatic back door

main switch

Back door condition

Automatic back door

close switch

Full open

ON

Stop

Press

Perform the auto close
function

Fully open to just before
fully open

ON

Stop

Press

Perform the auto close
function

Auto open function op-
erating

Press

Perform the auto close
function (reverse oper-
ation)

Auto close function op-
erating

Press

Operation is continued

Middle

ON

Stop

Press

Perform the auto close
function

Auto open function op-
erating

Press

Perform the auto close
function (reverse oper-
ation)

Auto close function op-
erating

Press

Perform the auto open
function (reverse oper-
ation)

DLK-66

< SYSTEM DESCRIPTION >

[TYPE 1]

SYSTEM (AUTOMATIC BACK DOOR SYSTEM)

Back door opener switch

Timing Chart (Full Closed to Fully Open Operation)

Just before fully closed
to fully closed

Stop

Press

Non-operation (manual
movement only)

Auto open function op-
erating

Press

Operation is continued

Auto close function op-
erating

Press

Perform the auto open
function (reverse oper-
ation)

Condition

Back door operation

Back door position

Automatic back door

main switch

Back door condition

Back door opener

switch

Full open

Stop

Press

Non-operation

Fully open to just before
fully open

Stop

Press

Non-operation

Auto open function op-
erating

Press

Operation stop (auto-
matic open/close tem-
porary stop function)

Auto close function op-
erating

Press

Operation stop (auto-
matic open/close tem-
porary stop function)

Middle

ON

Stop

Press

Perform the auto open
function

Auto open function op-
erating

Press

Operation stop (auto-
matic open/close tem-
porary stop function)

Auto close function op-
erating

Press

Operation stop (auto-
matic open/close tem-
porary stop function)

Just before fully closed
to fully closed

ON

Stop

Press

Perform the auto open
function

Auto open function op-
erating

Press

Operation stop (auto-
matic open/close tem-
porary stop function)

Auto close function op-
erating

Press

Operation stop (auto-
matic open/close tem-
porary stop function)

Full closed

ON

Stop

Press

Perform the auto open
function

OFF

Stop

Press

Back door open

Condition

Back door operation

Back door position

Automatic back door

main switch

Back door condition

Automatic back door

close switch

SYSTEM (AUTOMATIC BACK DOOR SYSTEM)

DLK-67

< SYSTEM DESCRIPTION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

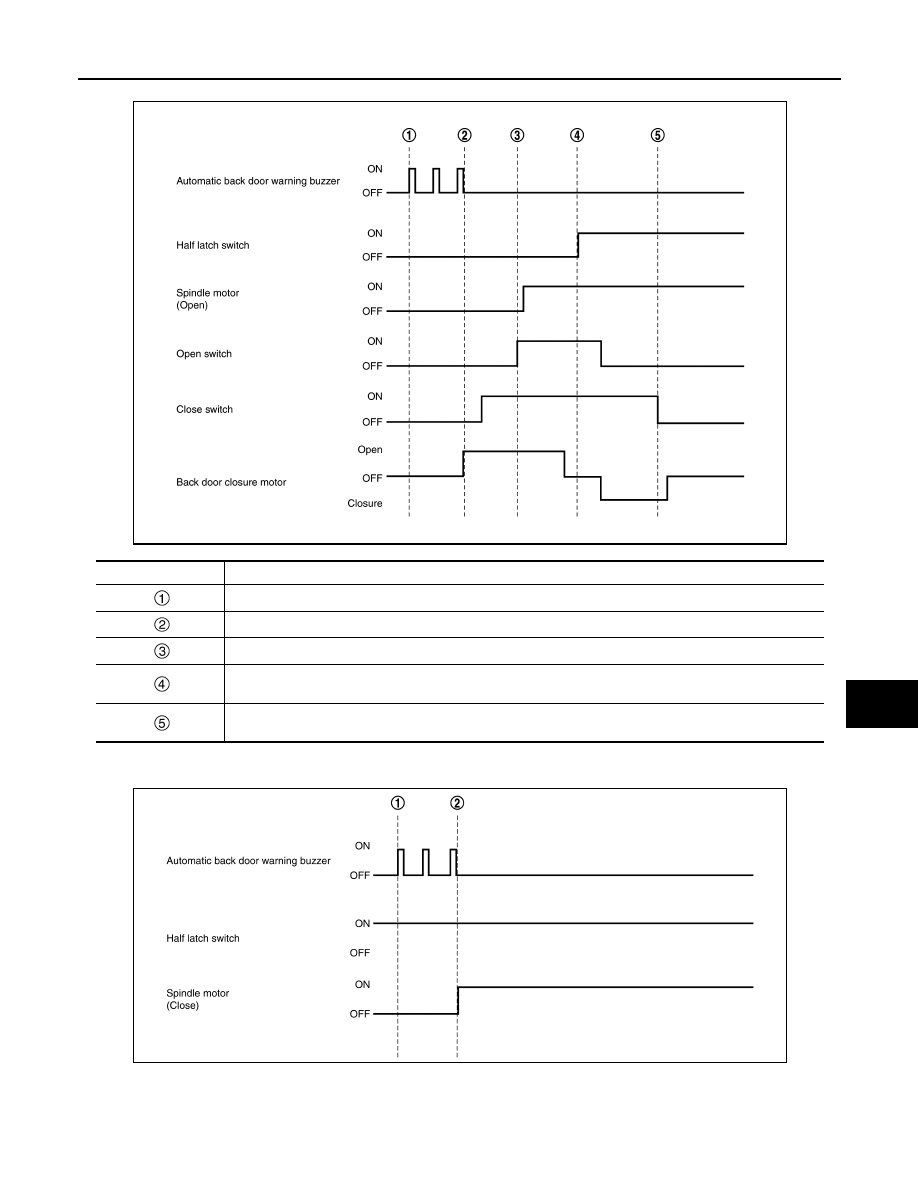

Timing Chart (Fully Open to Fully Closed Operation)

Timing

Operation

Buzzer operate after operation permission conditions are satisfied.

After buzzer operation (A pattern) ends, back door closure motor starts the open operation.

Open SW turns ON, and back door latch release operation completes.

Half latch SW turns ON, and then back door closure motor performs reverse operation and returns to the
neutral position.

When close SW turns OFF, back door closure motor reverse operation stops, and then completes return-
ing to the neutral position.

JMKIB3679GB

JMKIB3680GB

DLK-68

< SYSTEM DESCRIPTION >

[TYPE 1]

SYSTEM (AUTOMATIC BACK DOOR SYSTEM)

CONTROL IF NOT WITHIN THE OPERATION CONDITIONS DURING THE OPERATION

If the back door is not within the operation conditions during the operation, the automatic back door control unit
performs the control as follows.

WARNING FUNCTION

The warning function is as follows and gives the user warning information using automatic back door warning
buzzer.

Automatic back door warning buzzer

Timing

Operation

Buzzer operate after operation permission conditions are satisfied.

After buzzer operation (A pattern) ends, spindle motor starts the close operation.

Item

(Condition)

Back door operation status

Automatic back door main switch: ON

OFF

Operation stops

Operation condition release during the operation start
announcement

Automatic back door function is not operating

CVT models: Shift position: P position

other than P po-

sition

Operation continues (once back door fully closed state is detected, au-
tomatic operation does not become available again until the shift posi-
tion is shifted to P range)

M/T models: Parking brake: ON

OFF

Operation continues (once back door fully closed state is detected, au-
tomatic operation does not become available again until the parking
brake is set to ON)

Vehicle speed
(0 km/h

 More than 1 km/h)

Auto open function op-
erating

Operation stop [Back door fully closed or buzzer sounds until the vehi-
cle stops (pattern C)]

Auto close function op-
erating

The operation is continued [buzzer sounds (pattern C) until back door
fully closed]

Operation time
(More than approx. 180 sec.)

Operation stops

Malfunction detected
(Power supply circuit, half latch switch, and back door
condition)

Operation stops

Touch sensor circuit
(Normal

 Open)

Open operation

Operation continues (operation stops when pinching is detected after-
wards.)

Close operation

Operation stops

Closure (close) opera-
tion

Closure closing operation, or warning buzzer operates (B pattern)

Closure [open (return
the latch to the neutral
position)]

Operation continues

Pattern

Description

Time

A

• Operation start announcement
• Anti-pinch operation start announce-

ment

0.75 sec

B

Pi---

During the closure operation, when touch
sensor detects any trapped foreign materi-
al, the back door stops halfway

2.0 sec

JMKIA1862ZZ
