SYSTEM (POWER DOOR LOCK SYSTEM)

DLK-37

< SYSTEM DESCRIPTION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

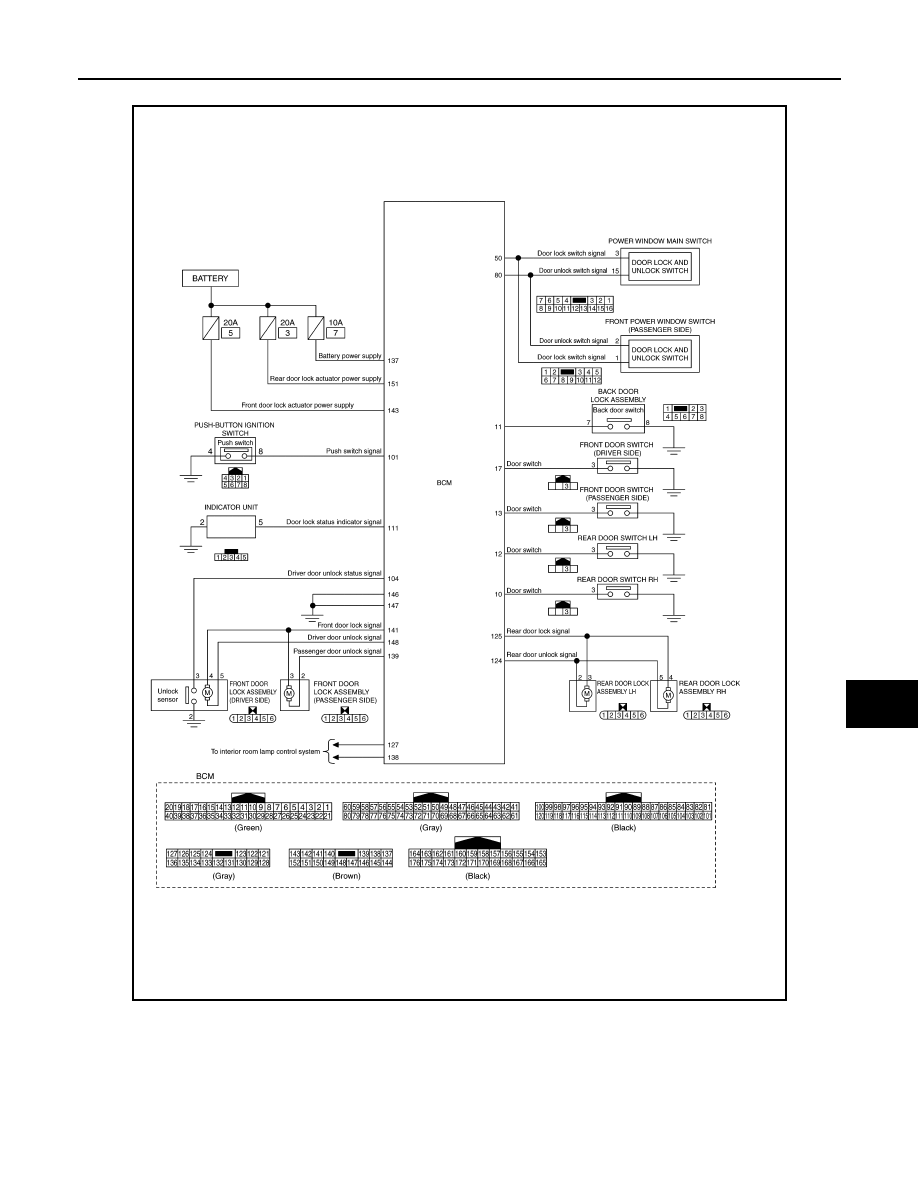

Circuit Diagram

INFOID:0000000010708034

JMKIB3706GB

DLK-38

< SYSTEM DESCRIPTION >

[TYPE 1]

SYSTEM (INTELLIGENT KEY SYSTEM)

SYSTEM (INTELLIGENT KEY SYSTEM)

INTELLIGENT KEY SYSTEM

INTELLIGENT KEY SYSTEM : System Description

INFOID:0000000010708035

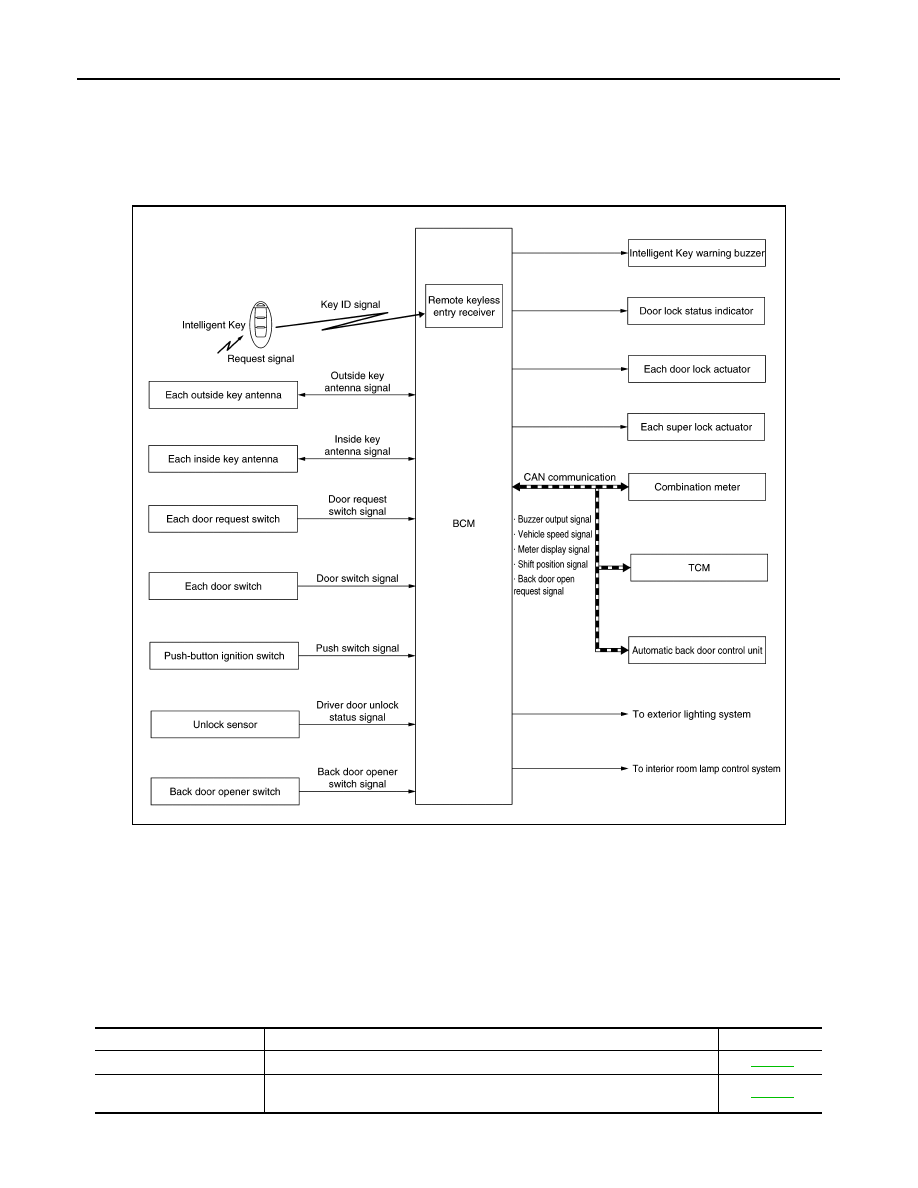

SYSTEM DIAGRAM

SYSTEM DESCRIPTION

• The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/

unlock function) by carrying the Intelligent Key, which operates based on the results of electronic ID verifica-
tion using two-way communication between the Intelligent Key and the vehicle (BCM).
NOTE:
The driver should always carry the Intelligent Key

• The settings for each function can be changed with CONSULT.
• If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be

registered.

• It is possible to perform a diagnosis on the system and register an Intelligent Key with CONSULT.

JMKIB3640GB

Function

Description

Refer

Door lock

Lock/unlock can be performed by pressing the door request switch.

DLK-42

Back door open

The back door can be opened by carrying the Intelligent Key and pressing the
back door opener switch.

DLK-44

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-39

< SYSTEM DESCRIPTION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Super lock

When all doors are closed super lock system can be set/release by Intelligent
Key or door request switch

DLK-46

Remote keyless entry

Lock/unlock can be performed by pressing the remote controller button of the
Intelligent Key.

DLK-47

Key reminder

The Intelligent Key reminder buzzer sounds a warning if the door is locked with
the key left inside the vehicle.

DLK-49

Warning (information dis-
play)

If an action that does not meet the operating condition of the Intelligent Key sys-
tem is taken, the information display displays to inform the driver.

DLK-61

Warning (buzzer)

If an action that does not meet the operating condition of the Intelligent Key sys-
tem is taken, the buzzer sounds to inform the driver.

DLK-61

Engine start

The engine can be turned on while carrying the Intelligent Key.

SEC-15

Interior room lamp control

Interior room lamp is controlled according to door lock/unlock state.

INL-11

Function

Description

Refer

DLK-40

< SYSTEM DESCRIPTION >

[TYPE 1]

SYSTEM (INTELLIGENT KEY SYSTEM)

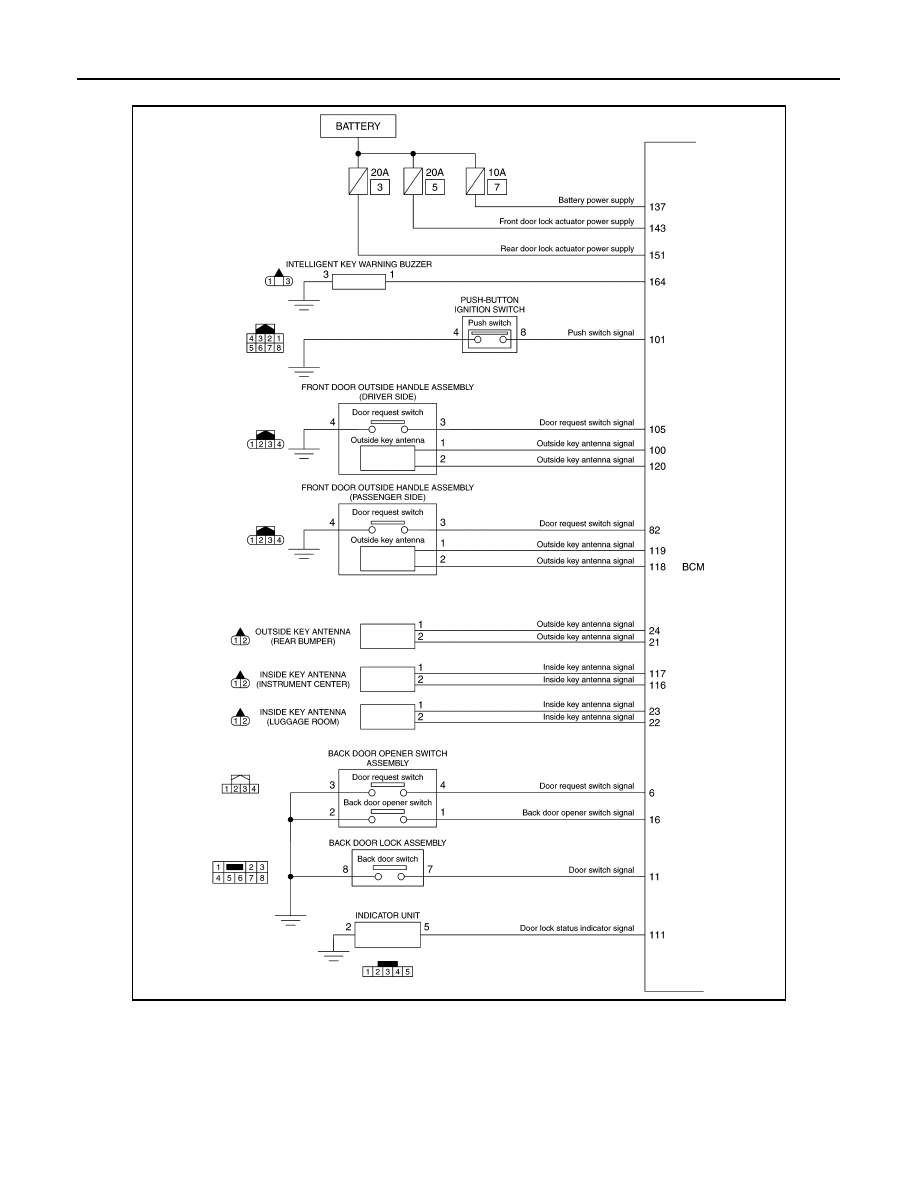

INTELLIGENT KEY SYSTEM : Circuit Diagram

INFOID:0000000010708036

JMKIB3707GB
