Nissan X-Trail 32. Manual - part 422





COMPONENT PARTS

DLK-29

< SYSTEM DESCRIPTION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

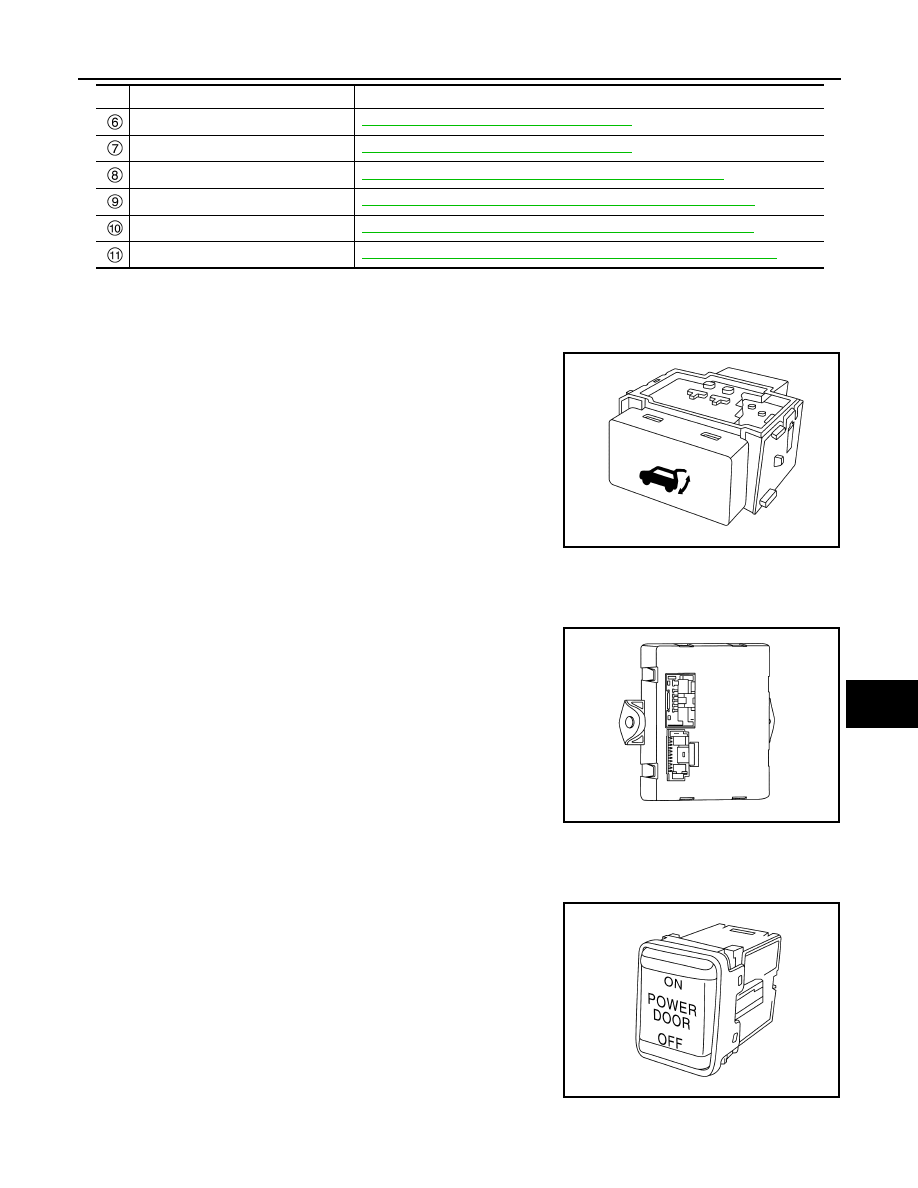

DOOR LOCK SYSTEM : Automatic Back Door Close Switch

INFOID:0000000010708016

• When automatic back door close switch is pressed, back door auto close or reverse operation is detected

and transmits automatic back door close switch signal to automatic back door control unit.

• Automatic back door close switch is installed in the back door

panel.

DOOR LOCK SYSTEM : Automatic Back Door Control Unit

INFOID:0000000010708017

• Automatic back door control unit controls the automatic back door system.
• Automatic back door control unit is installed behind luggage side

lower finisher.

DOOR LOCK SYSTEM : Automatic Back Door Main Switch

INFOID:0000000010708018

• Controls automatic back door open/close operation of automatic back door open/close function.
• Automatic back door main switch is installed in the instrument

lower panel RH.

Spindle unit LH

DLK-33, "DOOR LOCK SYSTEM : Spindle Unit"

Spindle unit RH

DLK-33, "DOOR LOCK SYSTEM : Spindle Unit"

Automatic back door switch

DLK-30, "DOOR LOCK SYSTEM : Automatic Back Door Switch"

Automatic back door main switch

DLK-29, "DOOR LOCK SYSTEM : Automatic Back Door Main Switch"

Automatic back door control unit

DLK-29, "DOOR LOCK SYSTEM : Automatic Back Door Control Unit"

Automatic back door warning buzzer

DLK-30, "DOOR LOCK SYSTEM : Automatic Back Door Warning Buzzer"

No.

Component

Function

JMKIB2928ZZ

JMKIB2929ZZ

JMKIB3657ZZ

DLK-30

< SYSTEM DESCRIPTION >

[TYPE 1]

COMPONENT PARTS

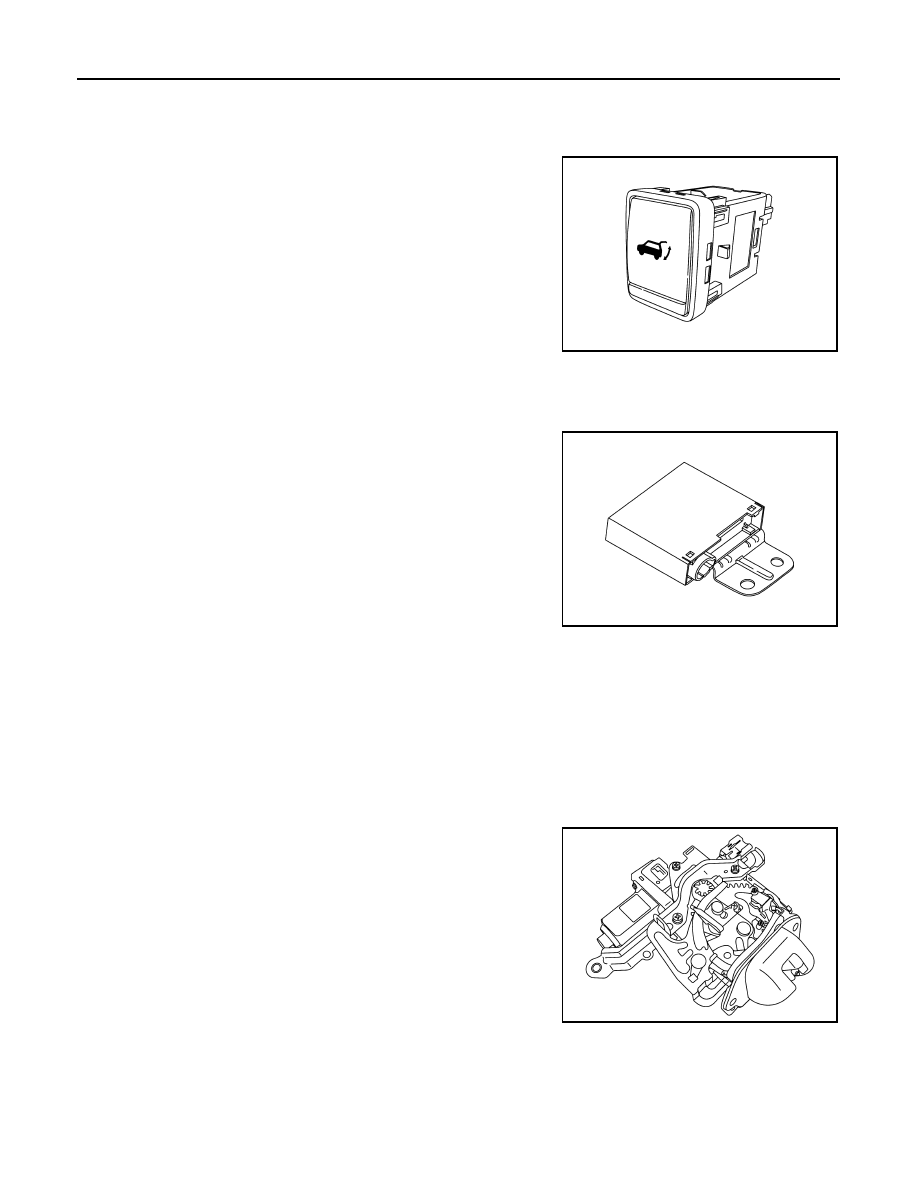

DOOR LOCK SYSTEM : Automatic Back Door Switch

INFOID:0000000010708019

• When automatic back door switch is pressed, back door auto open/close operation is detected and transmits

automatic back door switch signal to automatic back door control unit.

• Automatic back door switch is installed in the instrument lower

panel LH.

DOOR LOCK SYSTEM : Automatic Back Door Warning Buzzer

INFOID:0000000010708020

• Warns the user of the automatic back door condition and inappropriate operations with the buzzer sounds.
• Automatic back door warning buzzer is installed behind rear

bumper fascia assembly.

DOOR LOCK SYSTEM : Back Door Lock Assembly

INFOID:0000000010708021

• Back door lock assembly integrates back door closure motor, half latch switch, open switch, close switch

and back door switch.

• Closure motor: Inputs open/close signal from automatic back door control unit and activates the back door

auto closure operation.

• Half latch switch: Starts the closure motor close operation.
• Open switch: Stops the closure motor open operation.
• Close switch: Stops the closure motor close operation
• Back door switch: Detects open/close status of back door.
• Back door lock assembly is installed in the back door panel.

DOOR LOCK SYSTEM : Back Door Opener Switch Assembly

INFOID:0000000010708022

• Back door opener switch assembly integrates back door opener switch and back door opener request

switch.

JMKIB2930ZZ

JMKIB2931ZZ

JMKIB2942ZZ

COMPONENT PARTS

DLK-31

< SYSTEM DESCRIPTION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

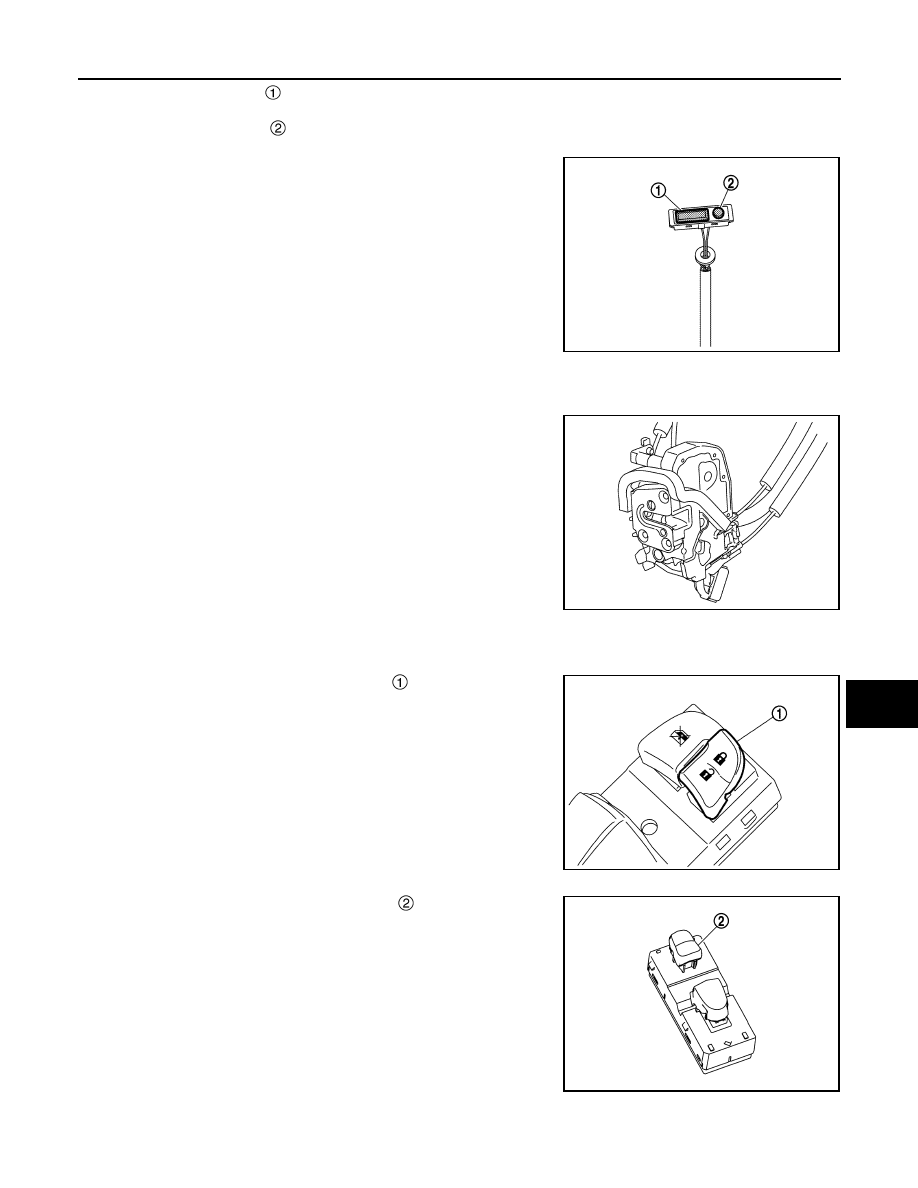

• Back door opener switch

 detects open operation of back door and transmits back door opener switch sig-

nal to BCM.

• Back door request switch

 detects door lock/unlock operation and transmits door request switch signal to

BCM.

• Back door opener switch assembly is installed in the back door

panel.

DOOR LOCK SYSTEM : Door Lock Assembly

INFOID:0000000010708023

• Door lock actuator and unlock sensor are integrated in front door

lock assembly (driver side).

• Door lock actuator receives lock/unlock signal from BCM, and then

locks/unlocks door.

• Only front door lock assembly (driver side) integrates unlock sen-

sor. Unlock sensor transmits lock/unlock status of driver side door
to BCM.

DOOR LOCK SYSTEM : Door Lock and Unlock Switch

INFOID:0000000010708024

• Door lock and unlock switch transmits door lock/unlock signal operation to BCM.
• Driver side door lock and unlock switch

 is integrated in the

power window main switch.

• Passenger side door lock and unlock switch

 is integrated in front

power window switch (passenger side).

JMKIB2937ZZ

JMKIA9347ZZ

JMKIA9352ZZ

JMKIB1506ZZ

DLK-32

< SYSTEM DESCRIPTION >

[TYPE 1]

COMPONENT PARTS

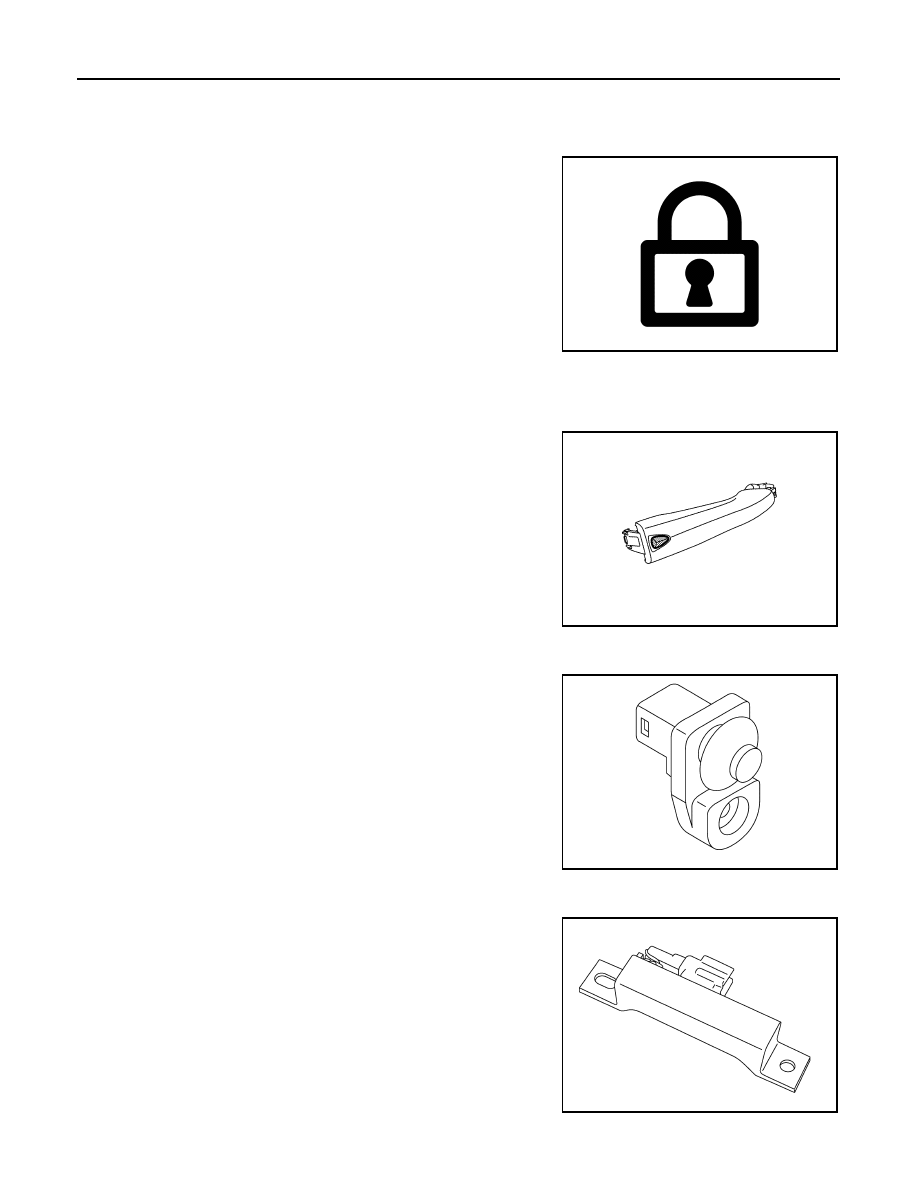

DOOR LOCK SYSTEM : Door Lock Status Indicator

INFOID:0000000010713165

• Door lock status indicates door lock status.
• The indicator illuminates when a lock operation is successful.
• Door lock status indicator is integrated in the integral switch.

DOOR LOCK SYSTEM : Door Request Switch

INFOID:0000000010708025

• Door request switch detects door lock/unlock operation and transmits door request switch signal to BCM.
• Door request switch is integrated in the outside handle grip.

DOOR LOCK SYSTEM : Door Switch

INFOID:0000000010708026

Detects door open/close condition.

DOOR LOCK SYSTEM : Inside Key Antenna

INFOID:0000000010708028

• Inside key antenna detects that Intelligent Key is within the inside

detection area, and then transmits detection status to BCM.

• Inside key antenna (instrument center) is installed behind instru-

ment lower cover.

• Inside key antenna (luggage room) is installed behind rear seat.

JMKIB1879ZZ

JMKIB2935ZZ

JMKIA9779ZZ

JMKIA8646ZZ
