Nissan X-Trail 32. Manual - part 421





COMPONENT PARTS

DLK-25

< SYSTEM DESCRIPTION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

DOOR LOCK SYSTEM

DOOR LOCK SYSTEM : Component Parts Location

INFOID:0000000010708015

VIEW WITH REAR

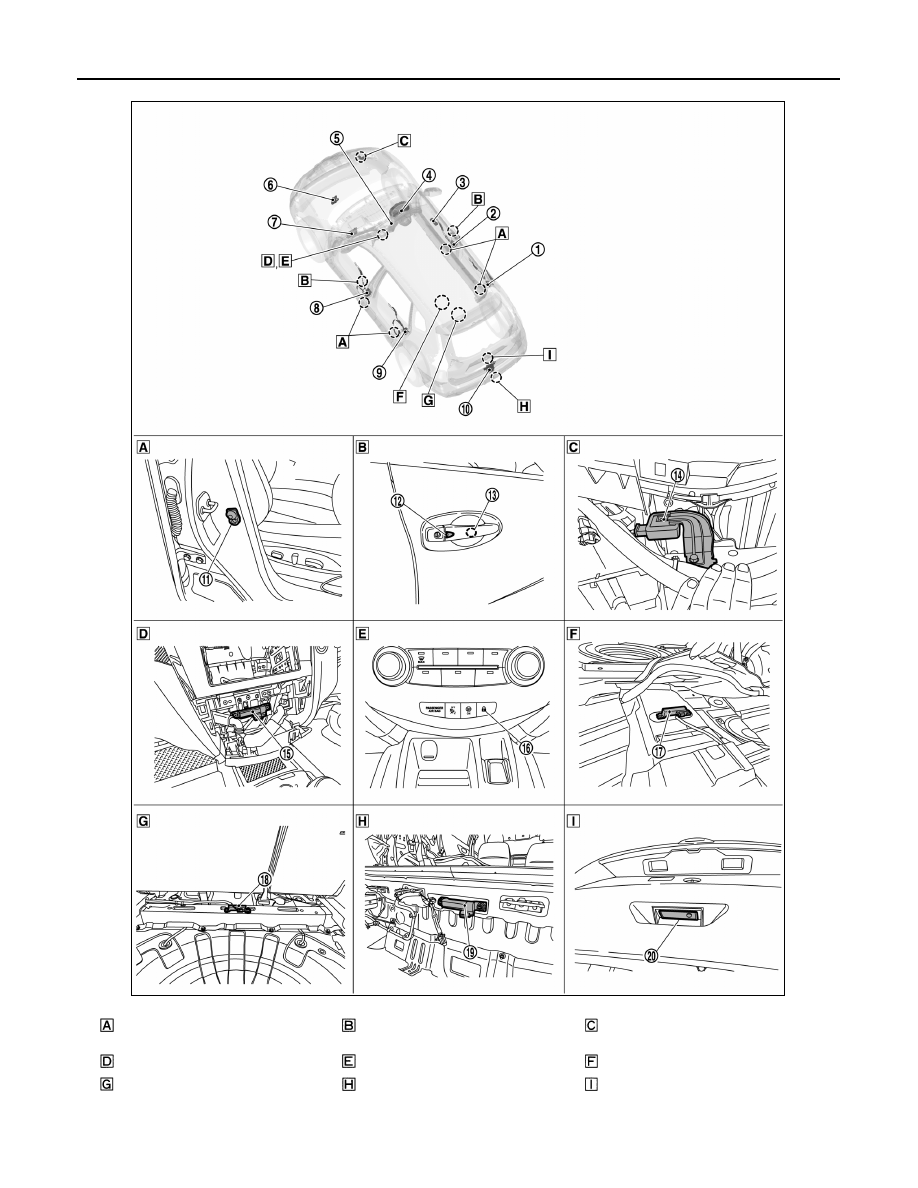

DLK-26

< SYSTEM DESCRIPTION >

[TYPE 1]

COMPONENT PARTS

View with door opened

View with door panel

View with front bumper fascia as-
sembly removed

View with A/C control removed

View with instrument panel center

View with rear seat removed

View with front luggage floor board
removed

View with rear bumper fascia assem-
bly removed

View with back door panel

JMKIB3673ZZ

COMPONENT PARTS

DLK-27

< SYSTEM DESCRIPTION >

[TYPE 1]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

VIEW WITH FRONT

No.

Component

Function

Rear door lock assembly RH

DLK-31, "DOOR LOCK SYSTEM : Door Lock Assembly"

Front door lock assembly (driver side)

DLK-31, "DOOR LOCK SYSTEM : Door Lock Assembly"

Power window main switch (door lock
and unlock switch)

DLK-31, "DOOR LOCK SYSTEM : Door Lock and Unlock Switch"

Combination meter

• Performs operation method guide and warning with buzzer.
• Transmits vehicle speed signal to CAN communication line.

Push-button ignition switch

Inputs push-button ignition switch ON/OFF condition to BCM.
Refer to

PCS-65, "Component Parts Location"

 for detailed installation location.

TCM

Transmits shift position signal to BCM and automatic back door control unit via
CAN communication line.
Refer to

TM-235, "CVT CONTROL SYSTEM : Component Parts Location"

 for de-

tailed installation location.

BCM

BCM detects the vehicle status according to signals from each door switch and
each outside/inside key antenna. BCM transmits drive signal to door lock actuator
when BCM receives operation signal from remote keyless entry receiver and each
switch.
Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

 for de-

tailed installation location.

Front door lock assembly (passenger
side)

DLK-31, "DOOR LOCK SYSTEM : Door Lock Assembly"

Rear door lock assembly LH

DLK-31, "DOOR LOCK SYSTEM : Door Lock Assembly"

Back door lock assembly

DLK-30, "DOOR LOCK SYSTEM : Back Door Lock Assembly"

Door switch

DLK-32, "DOOR LOCK SYSTEM : Door Switch"

Front door request switch

DLK-32, "DOOR LOCK SYSTEM : Door Request Switch"

Outside key antenna (front door)

DLK-33, "DOOR LOCK SYSTEM : Outside Key Antenna"

Intelligent Key warning buzzer

DLK-33, "DOOR LOCK SYSTEM : Intelligent Key Warning Buzzer"

Inside key antenna (instrument cen-
ter)

DLK-32, "DOOR LOCK SYSTEM : Inside Key Antenna"

Door lock status indicator

DLK-32, "DOOR LOCK SYSTEM : Door Lock Status Indicator"

Inside key antenna (luggage room)
(For 3 seat rows models)

DLK-32, "DOOR LOCK SYSTEM : Inside Key Antenna"

Inside key antenna (luggage room)
(For 2 seat rows models)

DLK-32, "DOOR LOCK SYSTEM : Inside Key Antenna"

Outside key antenna (rear bumper)

DLK-33, "DOOR LOCK SYSTEM : Outside Key Antenna"

Back door opener switch assembly

DLK-30, "DOOR LOCK SYSTEM : Back Door Opener Switch Assembly"

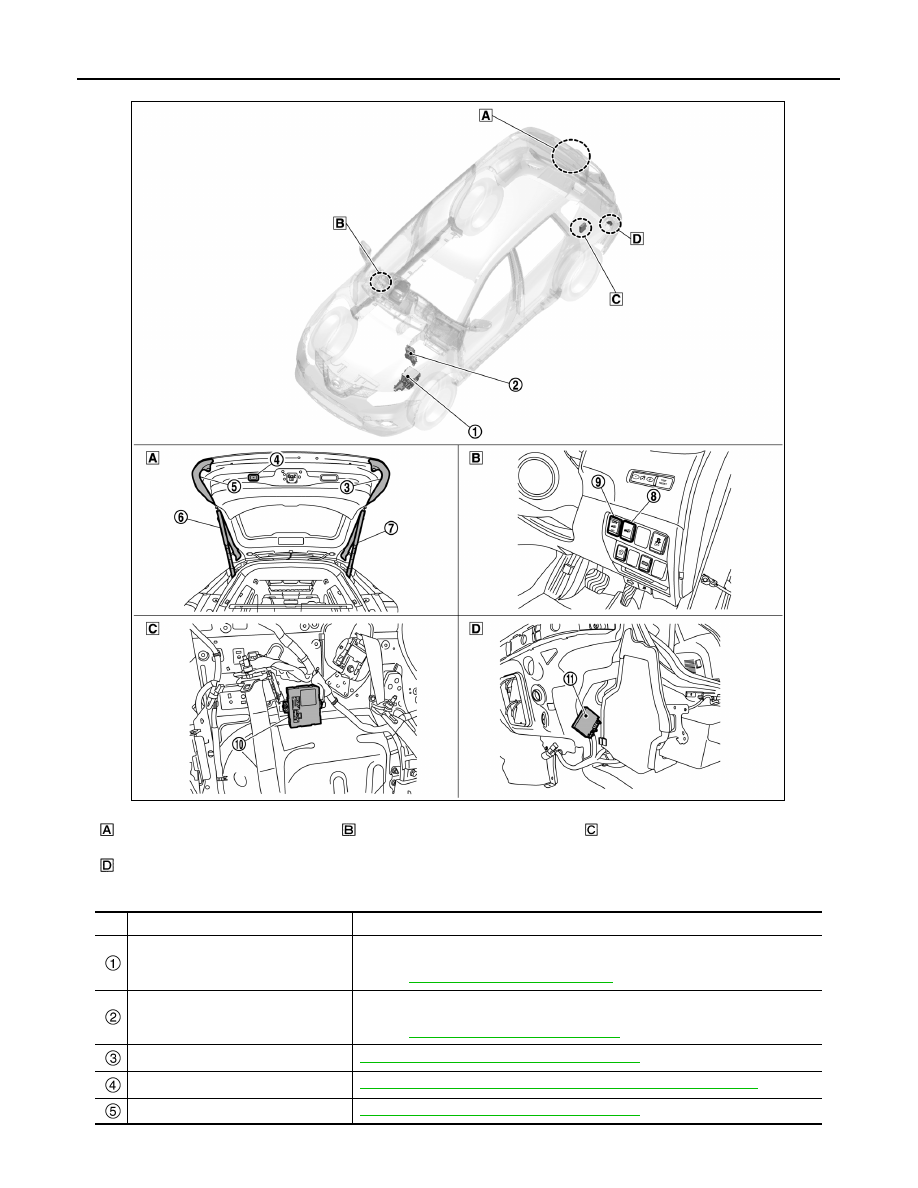

DLK-28

< SYSTEM DESCRIPTION >

[TYPE 1]

COMPONENT PARTS

View with back door opened

View with instrument lower panel LH

View with luggage side lower finisher
removed

View with rear bumper fascia assem-
bly removed

No.

Component

Function

IPDM E/R

Transmits ignition switch ON signal to BCM and automatic back door control unit
via CAN communication line.
Refer to

PCS-5, "Component Parts Location"

 for detailed installation location.

ABS actuator and electric unit (control
unit)

Transmits vehicle speed signal to BCM and automatic back door control unit via
CAN communication line.
Refer to

BRC-14, "Component Parts Location"

 for detailed installation location.

Touch sensor RH

DLK-34, "DOOR LOCK SYSTEM : Touch Sensor"

Automatic back door close switch

DLK-29, "DOOR LOCK SYSTEM : Automatic Back Door Close Switch"

Touch sensor LH

DLK-34, "DOOR LOCK SYSTEM : Touch Sensor"

JMKIB2949ZZ
