DAS

SONAR CONTROL UNIT

DAS-333

< ECU DIAGNOSIS INFORMATION >

[PARK ASSIST]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

DTC Index

INFOID:0000000010924100

×

: Applicable

2

B2724-55: SONAR CONTROL UNIT

3

• B2720-12: CORNER SENSOR [RL]
• B2720-14: CORNER SENSOR [RL]
• B2720-55: CORNER SENSOR [RL]
• B2720-92: CORNER SENSOR [RL]
• B2721-12: CENTER SENSOR [RL]
• B2721-14: CENTER SENSOR [RL]
• B2721-55: CENTER SENSOR [RL]
• B2721-92: CENTER SENSOR [RL]
• B2722-12: CENTER SENSOR [RR]
• B2722-14: CENTER SENSOR [RR]
• B2722-55: CENTER SENSOR [RR]
• B2722-92: CENTER SENSOR [RR]
• B2723-12: CORNER SENSOR [RR]
• B2723-14: CORNER SENSOR [RR]
• B2723-55: CORNER SENSOR [RR]
• B2723-92: CORNER SENSOR [RR]
• B2725-12: REAR BUZZER
• B2725-14: REAR BUZZER
• B2728-11: LED
• B2728-12: LED
• B2728-14: LED
• B2729-12: CORNER SENSOR [FL]
• B2729-14: CORNER SENSOR [FL]
• B2729-55: CORNER SENSOR [FL]
• B2729-92: CORNER SENSOR [FL]
• B272A-12: CENTER SENSOR [FL]
• B272A-14: CENTER SENSOR [FL]
• B272A-55: CENTER SENSOR [FL]
• B272A-92: CENTER SENSOR [FL]
• B272B-12: CENTER SENSOR [FR]
• B272B-14: CENTER SENSOR [FR]
• B272B-55: CENTER SENSOR [FR]
• B272B-92: CENTER SENSOR [FR]
• B272C-12: CORNER SENSOR [FR]
• B272C-14: CORNER SENSOR [FR]
• B272C-55: CORNER SENSOR [FR]
• B272C-92: CORNER SENSOR [FR]
• B272D-12: FRONT BUZZER
• B272D-14: FRONT BUZZER
• B272E-12: SIDE SENSOR [FL]
• B272E-14: SIDE SENSOR [FL]
• B272E-55: SIDE SENSOR [FL]
• B272E-92: SIDE SENSOR [FL]
• B272F-12: SIDE SENSOR [FR]
• B272F-14: SIDE SENSOR [FR]
• B272F-55: SIDE SENSOR [FR]
• B272F-92: SIDE SENSOR [FR]

Priority

Detected items (DTC)

DTC

Display item

Reference

U1000-01

CAN COMM CIRCUIT

SN-231, "DTC Description"

U1010-49

CONTROL UNIT (CAN)

SN-232, "DTC Description"

B2720-12

CORNER SENSOR [RL]

SHORT-BAT

SN-158, "DTC Description"

B2720-14

OPEN/SHORT-GND

SN-160, "DTC Description"

B2720-55

CONFIG ERROR

SN-162, "DTC Description"

B2720-92

SENSOR

SN-163, "DTC Description"

DAS-334

< ECU DIAGNOSIS INFORMATION >

[PARK ASSIST]

SONAR CONTROL UNIT

B2721-12

CENTER SENSOR [RL]

SHORT-BAT

SN-164, "DTC Description"

B2721-14

OPEN/SHORT-GND

SN-166, "DTC Description"

B2721-55

CONFIG ERROR

SN-168, "DTC Description"

B2721-92

SENSOR

SN-169, "DTC Description"

B2722-12

CENTER SENSOR [RR]

SHORT-BAT

SN-170, "DTC Description"

B2722-14

OPEN/SHORT-GND

SN-172, "DTC Description"

B2722-55

CONFIG ERROR

SN-174, "DTC Description"

B2722-92

SENSOR

SN-175, "DTC Description"

B2723-12

CORNER SENSOR [RR]

SHORT-BAT

SN-176, "DTC Description"

B2723-14

OPEN/SHORT-GND

SN-178, "DTC Description"

B2723-55

CONFIG ERROR

SN-180, "DTC Description"

B2723-92

SENSOR

SN-181, "DTC Description"

B2724-55

SONAR CONTROL UNIT

CONFIG ERROR

SN-182, "DTC Description"

B2725-12

REAR BUZZER

SHORT-BAT

SN-183, "DTC Description"

B2725-14

OPEN/SHORT-GND

SN-185, "DTC Description"

B2728-11

LED

SHORT-GND

SN-187, "DTC Description"

B2728-12

SHORT-BAT

SN-188, "DTC Description"

B2728-14

OPEN/SHORT-GND

SN-189, "DTC Description"

B2729-12

CORNER SENSOR [FL]

SHORT-BAT

SN-191, "DTC Description"

B2729-14

OPEN/SHORT-GND

SN-193, "DTC Description"

B2729-55

CONFIG ERROR

SN-195, "DTC Description"

B2729-92

SENSOR

SN-196, "DTC Description"

B272A-12

CENTER SENSOR [FL]

SHORT-BAT

SN-197, "DTC Description"

B272A-14

OPEN/SHORT-GND

SN-199, "DTC Description"

B272A-55

CONFIG ERROR

SN-201, "DTC Description"

B272A-92

SENSOR

SN-202, "DTC Description"

B272B-12

CENTER SENSOR [FR]

SHORT-BAT

SN-203, "DTC Description"

B272B14

OPEN/SHORT-GND

SN-205, "DTC Description"

B272B-55

CONFIG ERROR

SN-207, "DTC Description"

B272B-92

SENSOR

SN-208, "DTC Description"

B272C-12

CORNER SENSOR [FR]

SHORT-BAT

SN-209, "DTC Description"

B272C-14

OPEN/SHORT-GND

SN-211, "DTC Description"

B272C-55

CONFIG ERROR

SN-213, "DTC Description"

B272C-92

SENSOR

SN-214, "DTC Description"

B272D-12

FRONT BUZZER

SHORT-BAT

SN-215, "DTC Description"

B272D-14

OPEN/SHORT-GND

SN-217, "DTC Description"

B272E-12

SIDE SENSOR [FL]

SHORT-BAT

SN-219, "DTC Description"

B272E-14

OPEN/SHORT-GND

SN-221, "DTC Description"

B272E-55

CONFIG ERROR

SN-223, "DTC Description"

B272E-92

SENSOR

SN-224, "DTC Description"

B272F-12

SIDE SENSOR [FR]

SHORT-BAT

SN-225, "DTC Description"

B272F-14

OPEN/SHORT-GND

SN-227, "DTC Description"

B272F-55

CONFIG ERROR

SN-229, "DTC Description"

B272F-92

SENSOR

SN-230, "DTC Description"

DTC

Display item

Reference

DAS

DRIVER ASSISTANCE SYSTEMS

DAS-335

< WIRING DIAGRAM >

[PARK ASSIST]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

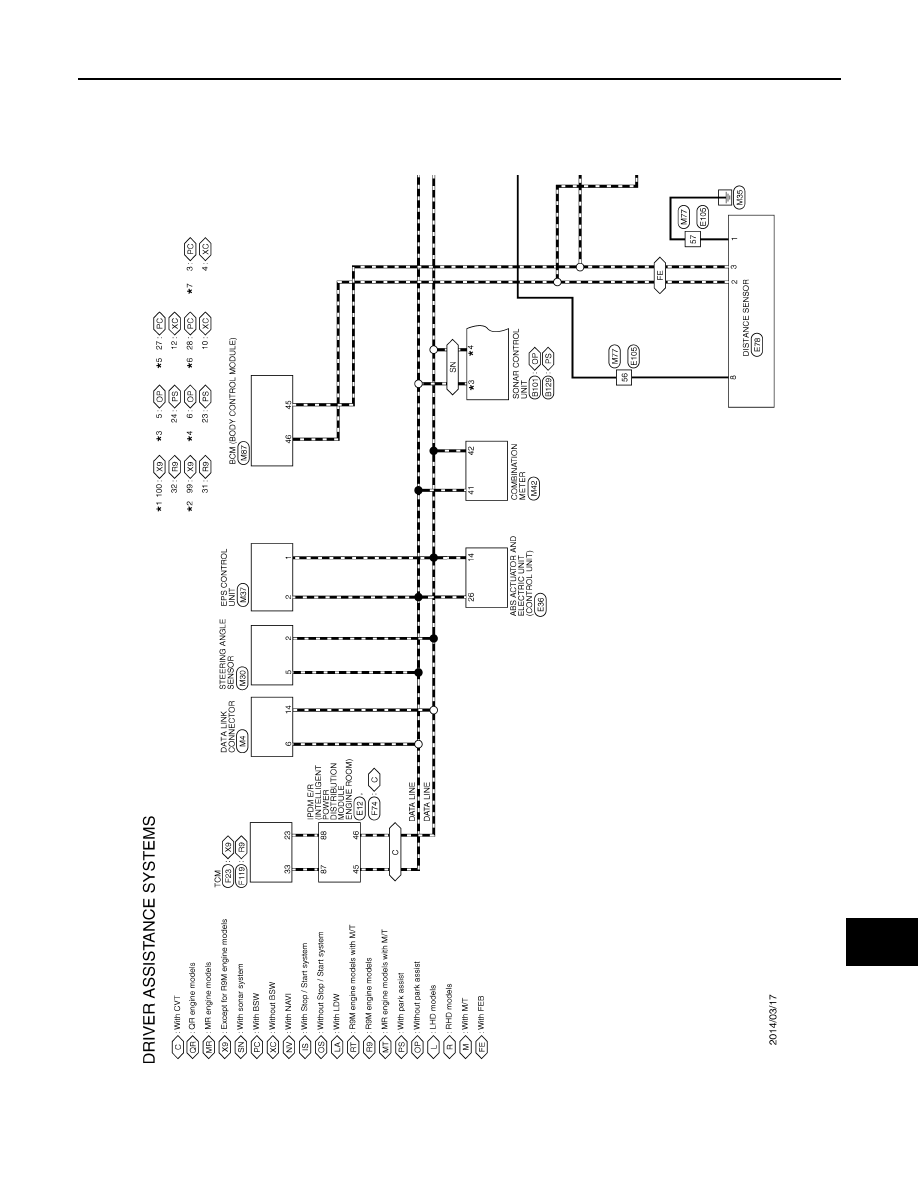

WIRING DIAGRAM

DRIVER ASSISTANCE SYSTEMS

Wiring Diagram

INFOID:0000000011045916

JROWC2843GB

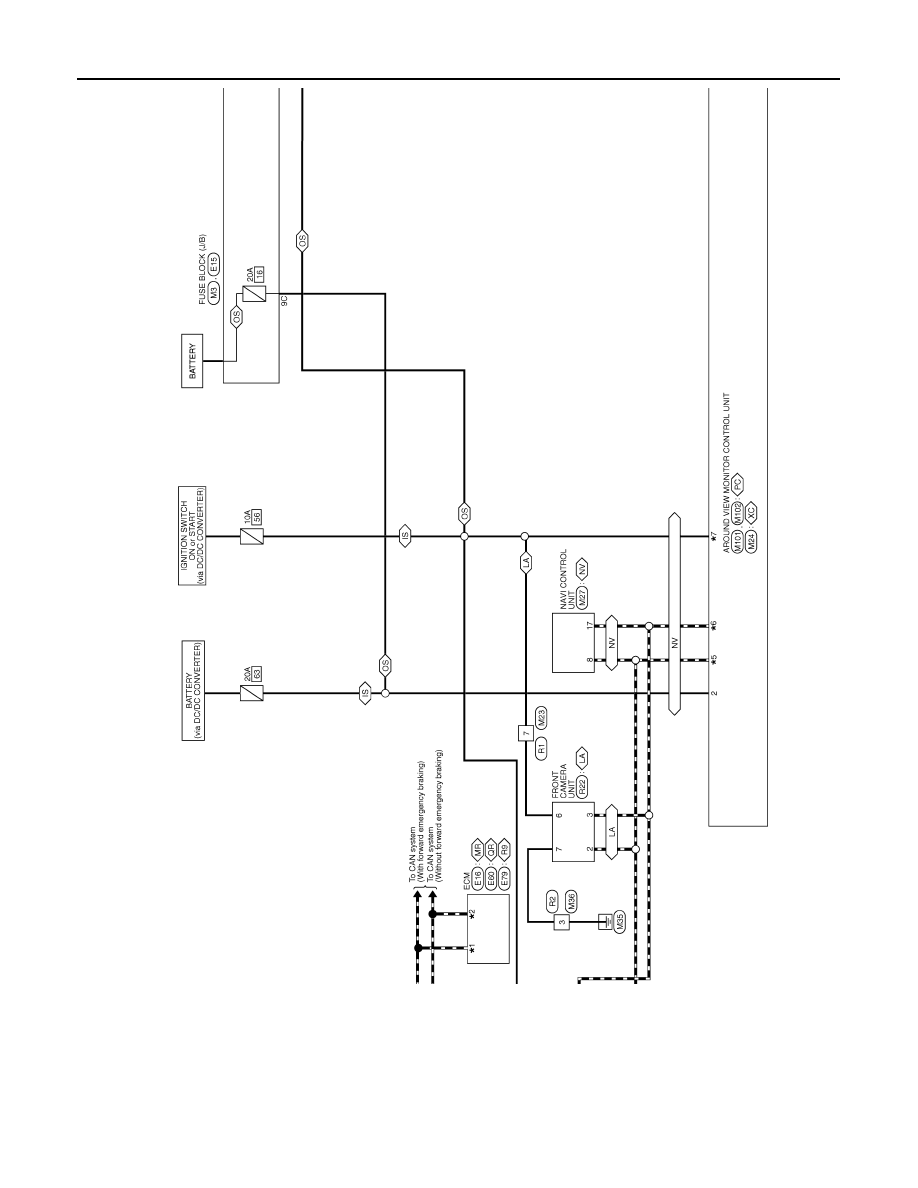

DAS-336

< WIRING DIAGRAM >

[PARK ASSIST]

DRIVER ASSISTANCE SYSTEMS

JROWC2844GB
