C1BC0-00

FR WHEEL SENSOR

DAS-244, "DTC Description"

C1BC1-00

FL WHEEL SENSOR

DAS-246, "DTC Description"

C1BC2-00

RR WHEEL SENSOR

DAS-248, "DTC Description"

C1BC3-00

RL WHEEL SENSOR

DAS-250, "DTC Description"

C1BC4-00

DECEL G SENSOR

DAS-252, "DTC Description"

C1BC5-00

SIDE G SENSOR

DAS-253, "DTC Description"

C1BC6-00

PRESSURE SENSOR

DAS-254, "DTC Description"

U1000-00

CAN COMM CIRCUIT

DAS-256, "DTC Description"

U1010-49

CONTROL UNIT (CAN)

DAS-257, "DTC Description"

U1A34-00

BRAKE CONTROL COMM

DAS-258, "DTC Description"

U1A35-00

BRAKE CONTROL COMM

DAS-260, "DTC Description"

U1A36-00

BCM/IPDM COMM

DAS-262, "DTC Description"

U1A39-00

COMBINATION METER COMM

DAS-264, "DTC Description"

U1A3B-00

TCM COMM

DAS-266, "DTC Description"

U1A42-00

STEERING ANGLE SENSOR COMM

DAS-268, "DTC Description"

U1A43-00

STEERING ANGLE SENSOR COMM

DAS-270, "DTC Description"

U1A48-00

ECM/HPCM COMM

DAS-272, "DTC Description"

U1A4A-00

CONTROL MODULE (CAN)

DAS-274, "DTC Description"

U1A4E-00

ECM/HPCM COMM

DAS-275, "DTC Description"

DTC

Display item

Refer to

DAS-206

< WIRING DIAGRAM >

[CHASSIS CONTROL]

CHASSIS CONTROL

WIRING DIAGRAM

CHASSIS CONTROL

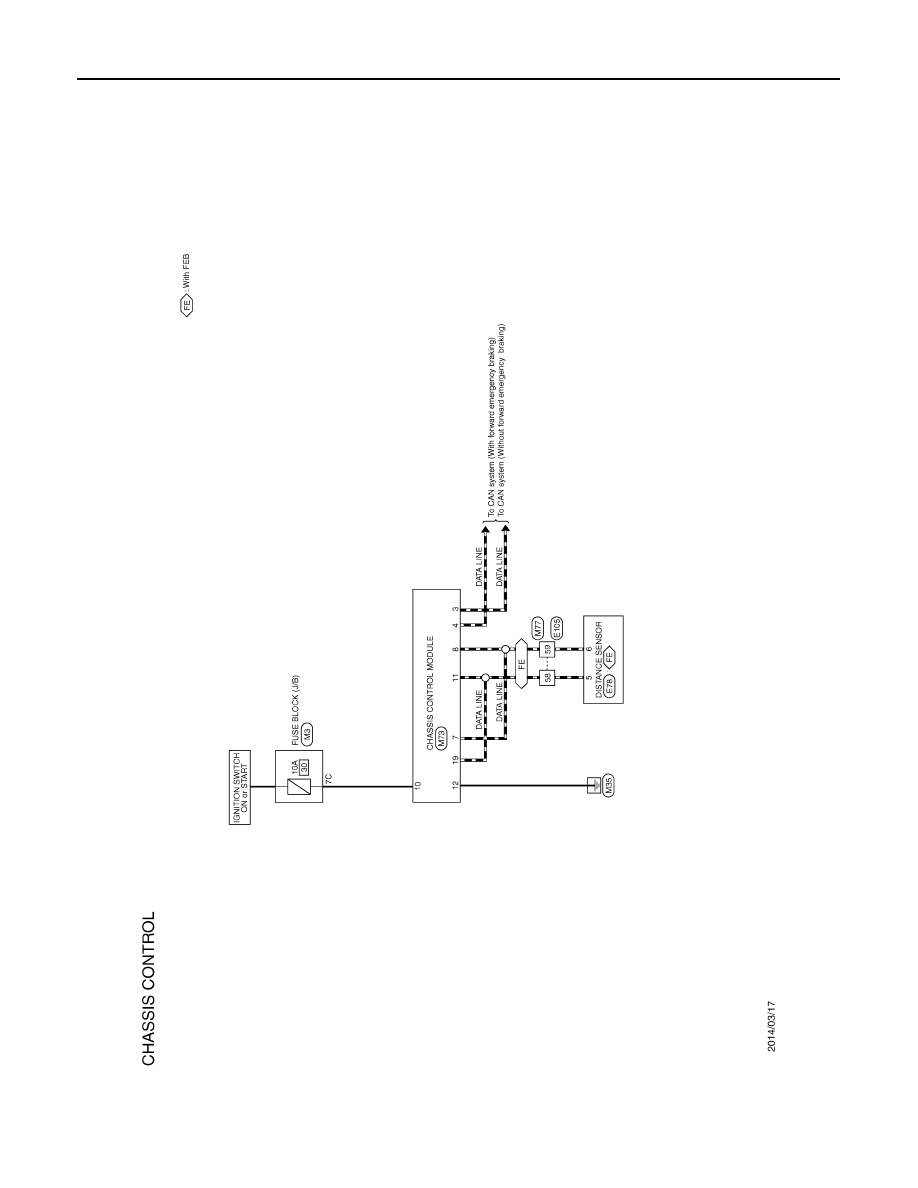

Wiring Diagram

INFOID:0000000010721700

JROWC2861GB

DAS

CHASSIS CONTROL

DAS-207

< WIRING DIAGRAM >

[CHASSIS CONTROL]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

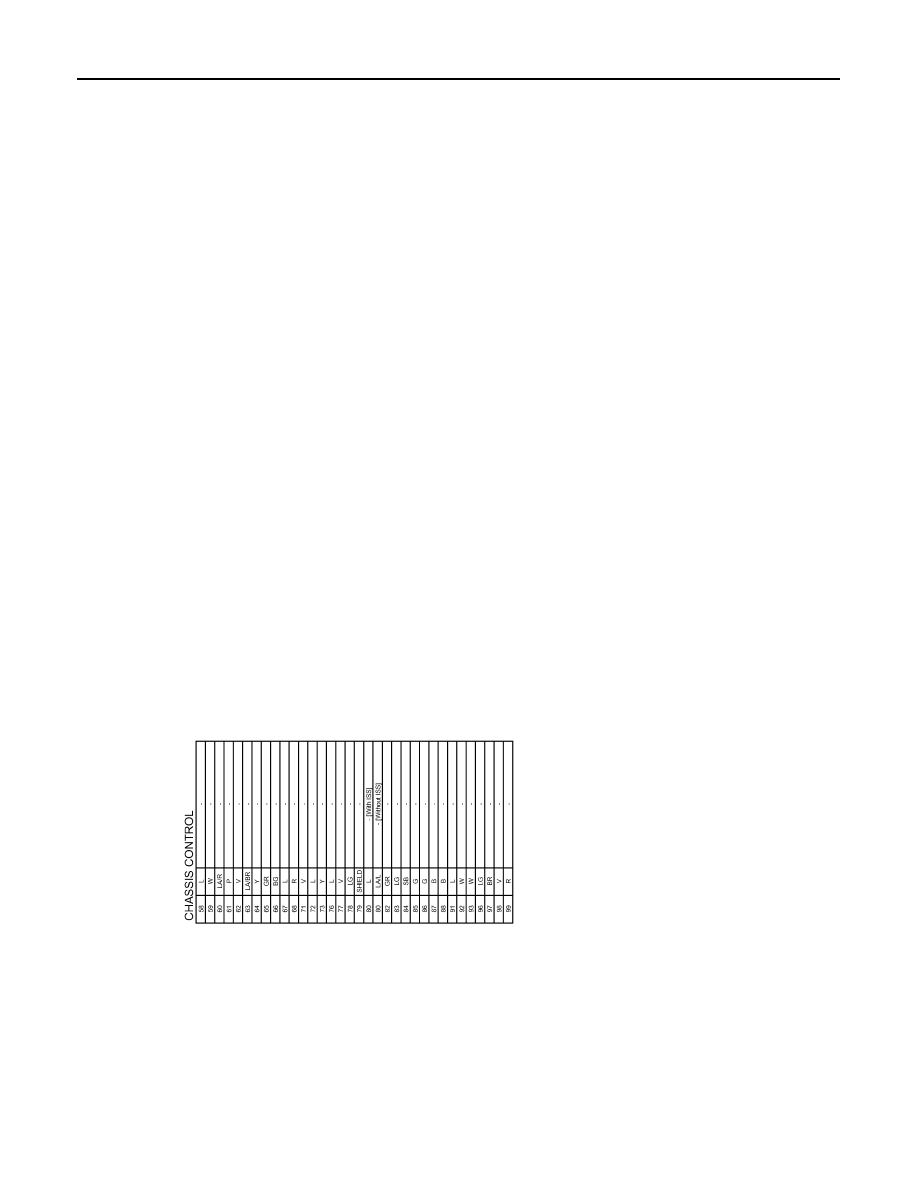

JROWC2862GB

DAS-208

< WIRING DIAGRAM >

[CHASSIS CONTROL]

CHASSIS CONTROL

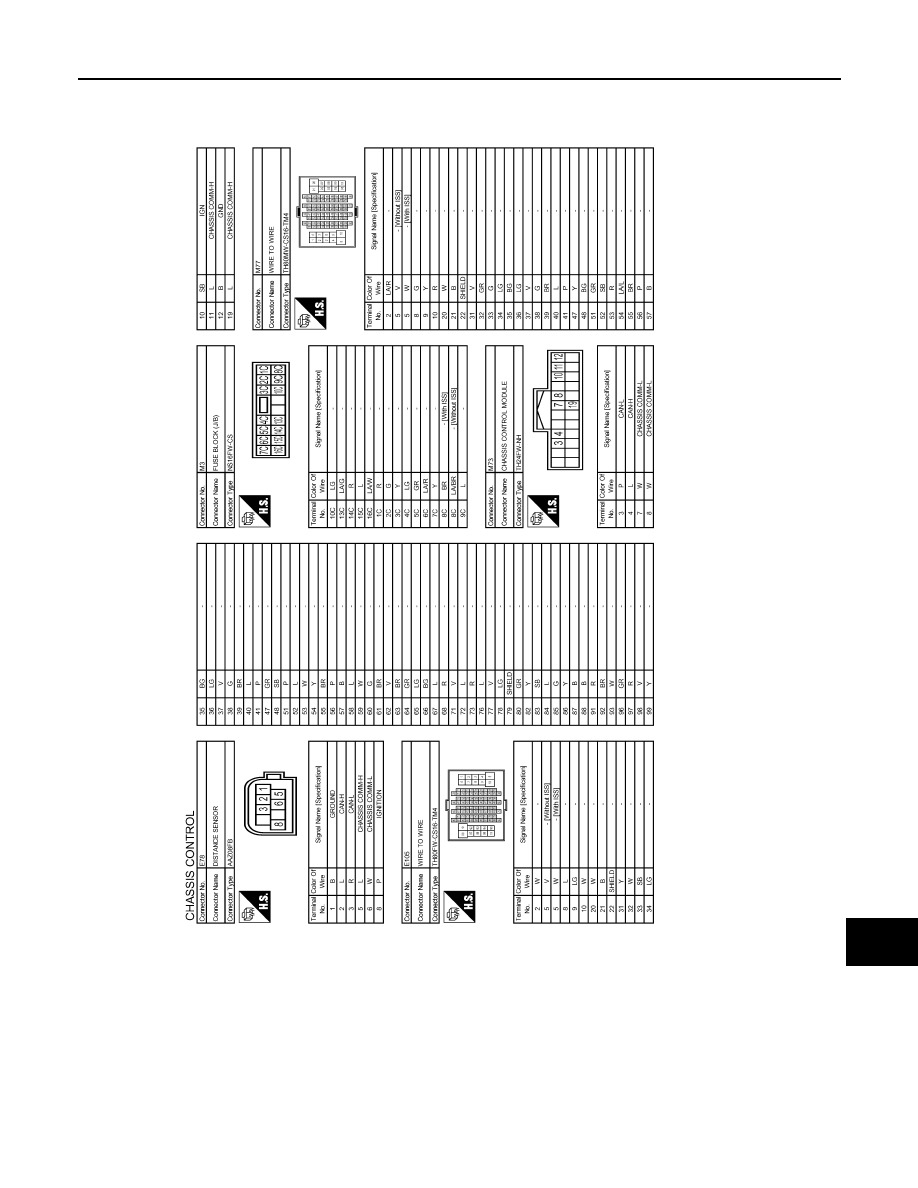

JROWC2863GB
