Component parts

Signal description

ECM

Mainly transmits the following signals to chassis control module via CAN communication.
• Accelerator pedal position signal
• Engine speed signal
• Estimate drive torque signal
• Request drive torque signal
• ECM malfunction signal
• Request drive torque status signal

ABS actuator and electric unit (control
unit)

Mainly transmits the following signals to chassis control module via CAN communication.
• Front LH wheel speed signal
• Front RH wheel speed signal
• Rear LH wheel speed signal
• Rear RH wheel speed signal
• TCS operation signal
• VDC operation signal
• Side G signal
• VDC OFF switch signal
• Brake fluid pressure signal
• Steering angle signal
• VDC accept permission signal
• ABS operation signal
• Vehicle speed signal
• Decel G signal
• ABS malfunction signal
• VDC malfunction signal
• TCS malfunction signal
• Yaw rate signal
• EBD operation signal
• EBD malfunction signal
• hill start assist display request signal
• hill descent control display request signal
Mainly receives the following signals from chassis control module via CAN communication.
• Active trace control signal
• Active engine brake control signal
• Active ride control signal

BCM

Mainly transmits the following signals to chassis control module via CAN communication.
• Stop lamp switch signal
• Turn signal switch signal
• Brake pedal position switch signal
• BCM malfunction signal

IPDM E/R

Mainly transmits the following signals to chassis control module via CAN communication.
• Ignition switch ON signal

TCM

Mainly transmits the following signals to chassis control module via CAN communication.
• Current gear position signal
• CVT target gear ratio signal
• CVT accept permission signal
• Input speed signal
• TCM malfunction signal

DAS-170

< SYSTEM DESCRIPTION >

[CHASSIS CONTROL]

SYSTEM

Combination meter

Mainly transmits the following signals to chassis control module via CAN communication.
• Active trace control setting change request signal
• Active engine brake setting change request signal
• Combination meter malfunction signal
Mainly receives the following signals from chassis control module via CAN communication.
• Curve display request signal
• Tire display request signal
• Active trace control setting display request signal
• Chassis control malfunction display request signal
• Active engine brake setting display request signal
• Active trace control display request signal
• Active engine brake display request signal
• Active ride control display request signal
• hill start assist display signal
• hill descent control display signal

Steering angle sensor

Mainly transmits the following signals to chassis control module via CAN communication.
• Steering angle sensor signal

Component parts

Signal description

DAS

SYSTEM

DAS-171

< SYSTEM DESCRIPTION >

[CHASSIS CONTROL]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

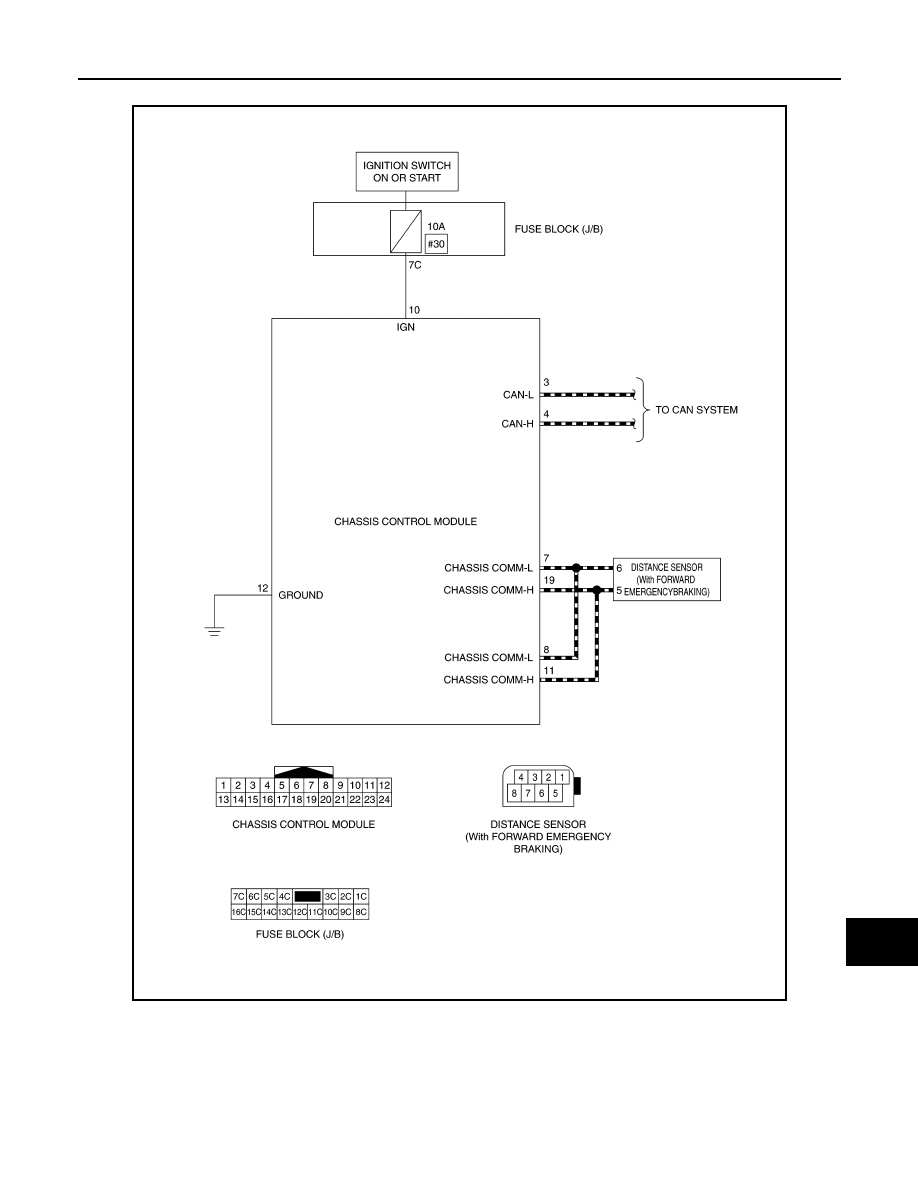

Circuit Diagram

INFOID:0000000010721689

Fail-safe

INFOID:0000000010735364

When a malfunction occurs in the chassis control module, the master warning lamp turns ON and an interrupt
is displayed on the information display of the combination meter.

JSOIA1618GB

DAS-172

< SYSTEM DESCRIPTION >

[CHASSIS CONTROL]

SYSTEM

DTC

Vehicle condition

C1B92-00

The following functions are suspended.
• Active trace control function
• Active engine brake function
• Active ride control function

C1B93-00

The following functions are suspended.
• Active trace control function
• Active engine brake function
• Active ride control (engine control) function

C1B94-00

The following functions are suspended.
• Active trace control function
• Active ride control (engine control) function

C1B95-00

The following functions are suspended.
• Active trace control function
• Active engine brake function
• Active ride control (brake control) function

C1B99-00

The following functions are suspended.
• Active trace control function
• Active engine brake function
• Active ride control function

C1BA0-00

The following functions are suspended.
• Active trace control function
• Active ride control (brake control) function

C1BA2-00

The following functions are suspended.
• Active trace control function
• Active ride control (engine control) function

C1BA5-00

Normal control

C1BAB-00

The following functions are suspended.
• Active trace control function
• Active ride control (engine control) function

C1BB2-00

The following functions are suspended.
• Active trace control function
• Active engine brake function
• Active ride control function

C1BB3-00

C1BB4-00

C1BB5-00

C1BB6-00

Normal control

C1BB7-00

The following functions are suspended.
• Active trace control function
• Active engine brake function
• Active ride control function

C1BB8-00

C1BB9-00

C1BBA-00

C1BBB-00

C1BBC-00

Normal control

C1BBD-00

The following functions are suspended.
• Active trace control function
• Active engine brake function
• Active ride control function

C1BC0-00

The following functions are suspended.
• Active trace control function
• Active ride control function

C1BC1-00

C1BC2-00

C1BC3-00

C1BC4-00

The following functions are suspended.
• Active ride control (brake control) function

C1BC5-00

The following functions are suspended.
• Active trace control function
