Nissan X-Trail 32. Manual - part 353

DAS

PUMP CONTROL UNIT

DAS-153

< REMOVAL AND INSTALLATION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

PUMP CONTROL UNIT

Removal and Installation

INFOID:0000000010727960

REMOVAL

1.

Remove luggage rear plate. Refer to

INT-41, "LUGGAGE REAR PLATE : Removal and Installation"

.

2.

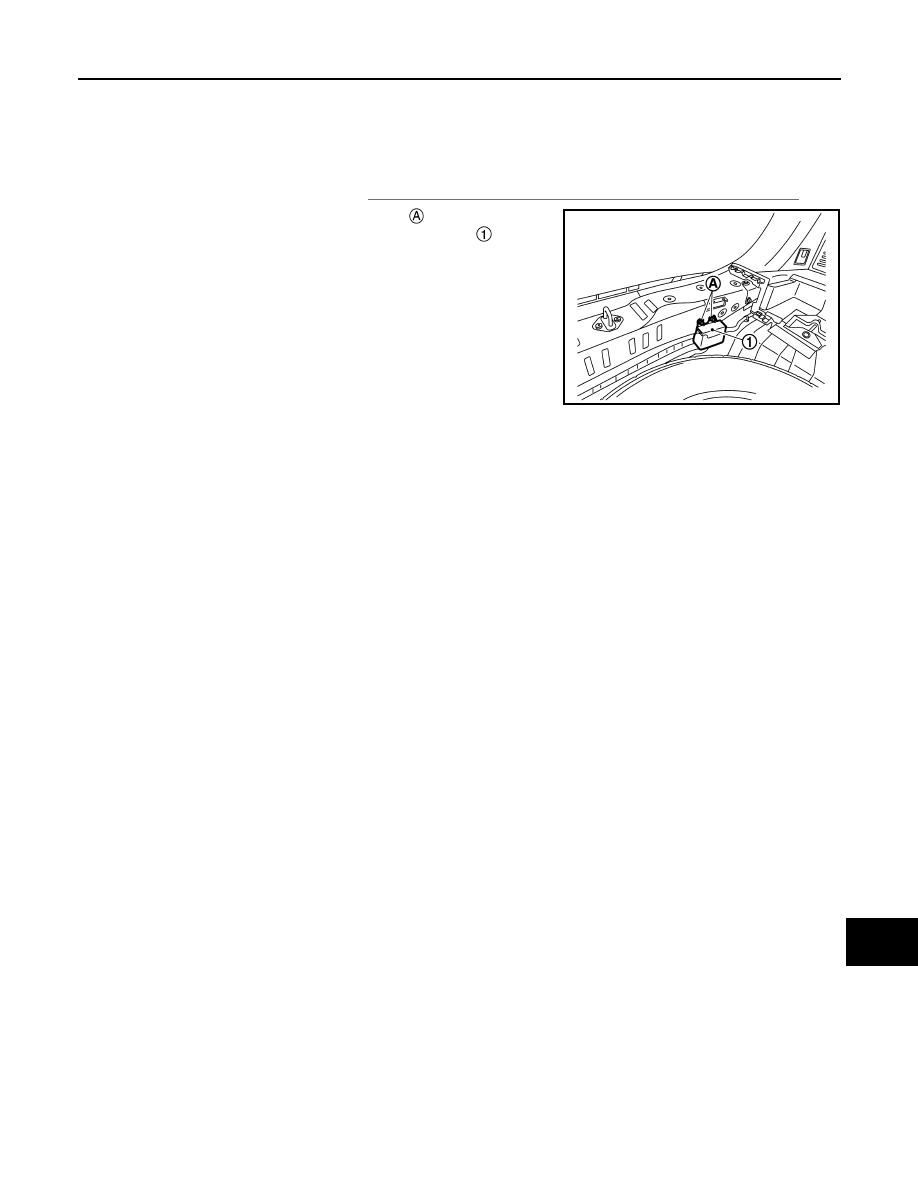

Remove pump control unit mounting nuts

, disconnect pump

control unit connector and remove pump control unit

.

INSTALLATION

Install in the reverse order of removal.

JSOIA1380ZZ

DAS-154

< REMOVAL AND INSTALLATION >

[DRIVER ASSISTANCE SYSTEM]

AIR PUMP

AIR PUMP

Removal and Installation

INFOID:0000000010727961

REMOVAL

1.

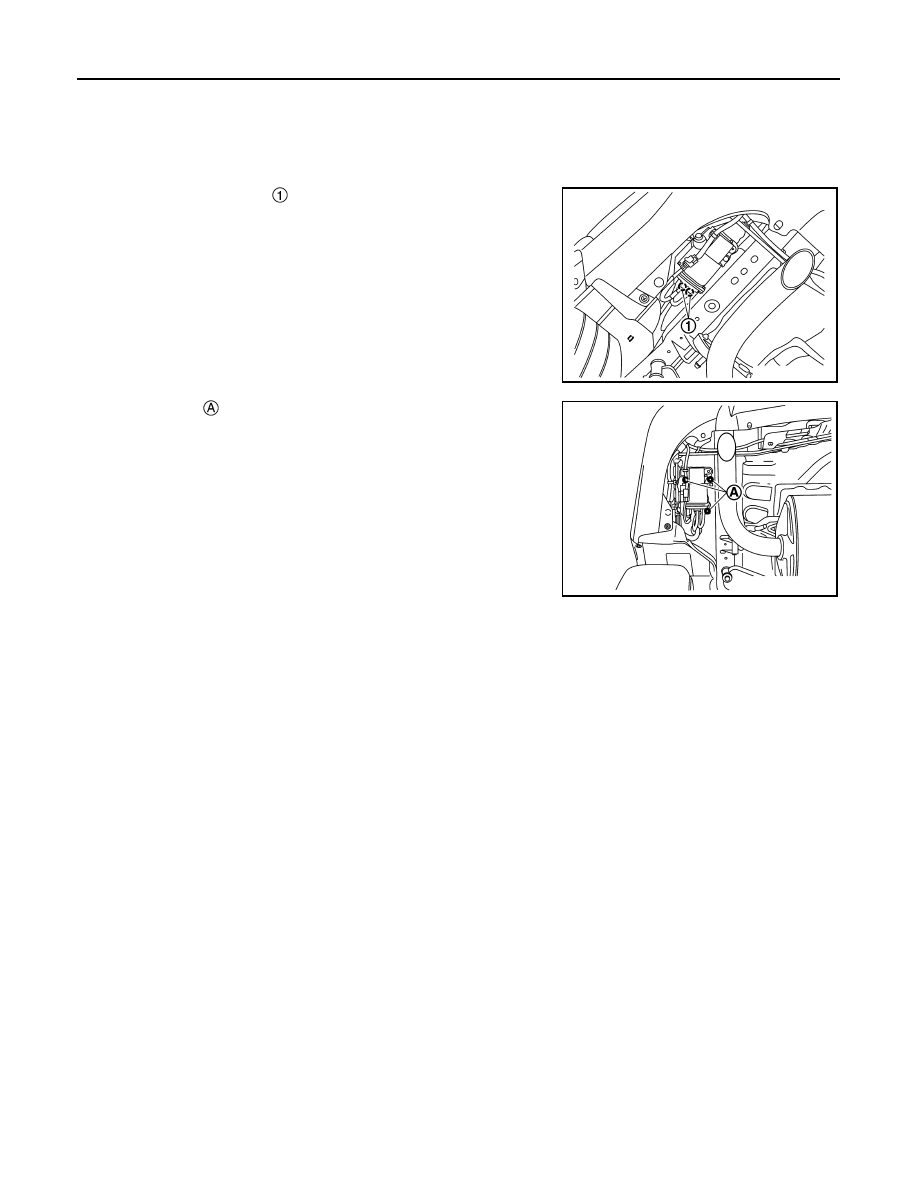

Disconnect the air tube

.

2.

Remove bolt

 and harness clip, disconnect air pump connec-

tor and remove air pump.

INSTALLATION

Install in the reverse order of removal.

JSOIA1381ZZ

JSOIA1382ZZ

DAS

REAR CAMERA WASHER/AIR NOZZLE & TUBE

DAS-155

< REMOVAL AND INSTALLATION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

REAR CAMERA WASHER/AIR NOZZLE & TUBE

Exploded View

INFOID:0000000010727962

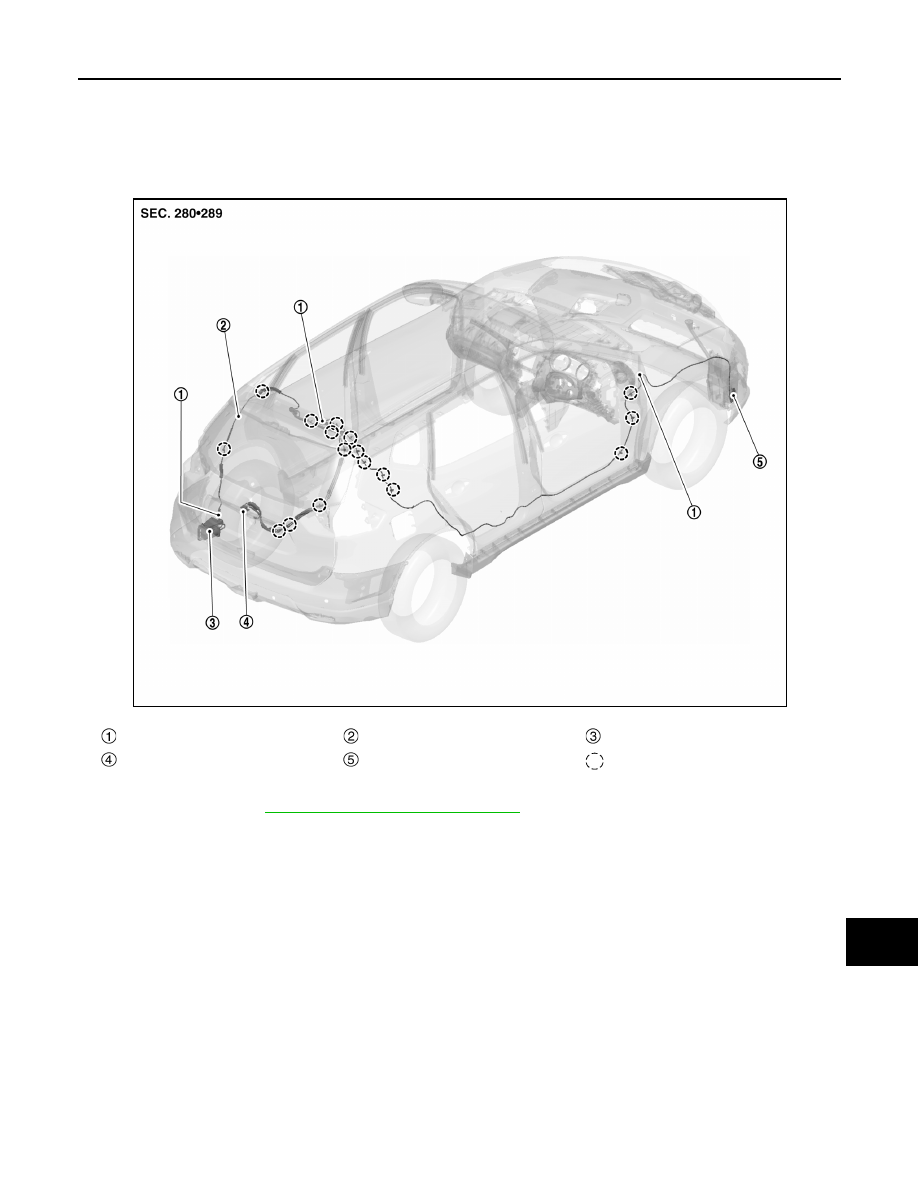

REAR VIEW CAMERA WASHER / AIR NOZZLE & TUBE

NOTE:
For washer pump, refer to

DAS-161, "Removal and Installation"

.

HYDRAULIC LAYOUT

Grommet

Air tube

Air pump assembly

Rear camera with air/washer nozzle

Washer pump

Clip

JSOIA1383ZZ

DAS-156

< REMOVAL AND INSTALLATION >

[DRIVER ASSISTANCE SYSTEM]

REAR CAMERA WASHER/AIR NOZZLE & TUBE

Removal and Installation

INFOID:0000000010727963

REMOVAL

1.

Remove front fender protector RH. Refer to

EXT-35, "FENDER PROTECTOR : Removal and Installation"

.

2.

Remove front kicking plate (inner). Refer to

INT-24, "KICKING PLATE : Removal and Installation"

.

3.

Remove dash side finisher. Refer to

INT-26, "DASH SIDE FINISHER : Removal and Installation"

.

4.

Remove headlining assembly. Refer to

INT-37, "Removal and Installation"

.

5.

Remove back door inner finisher. Refer to

INT-47, "Exploded View"

.

6.

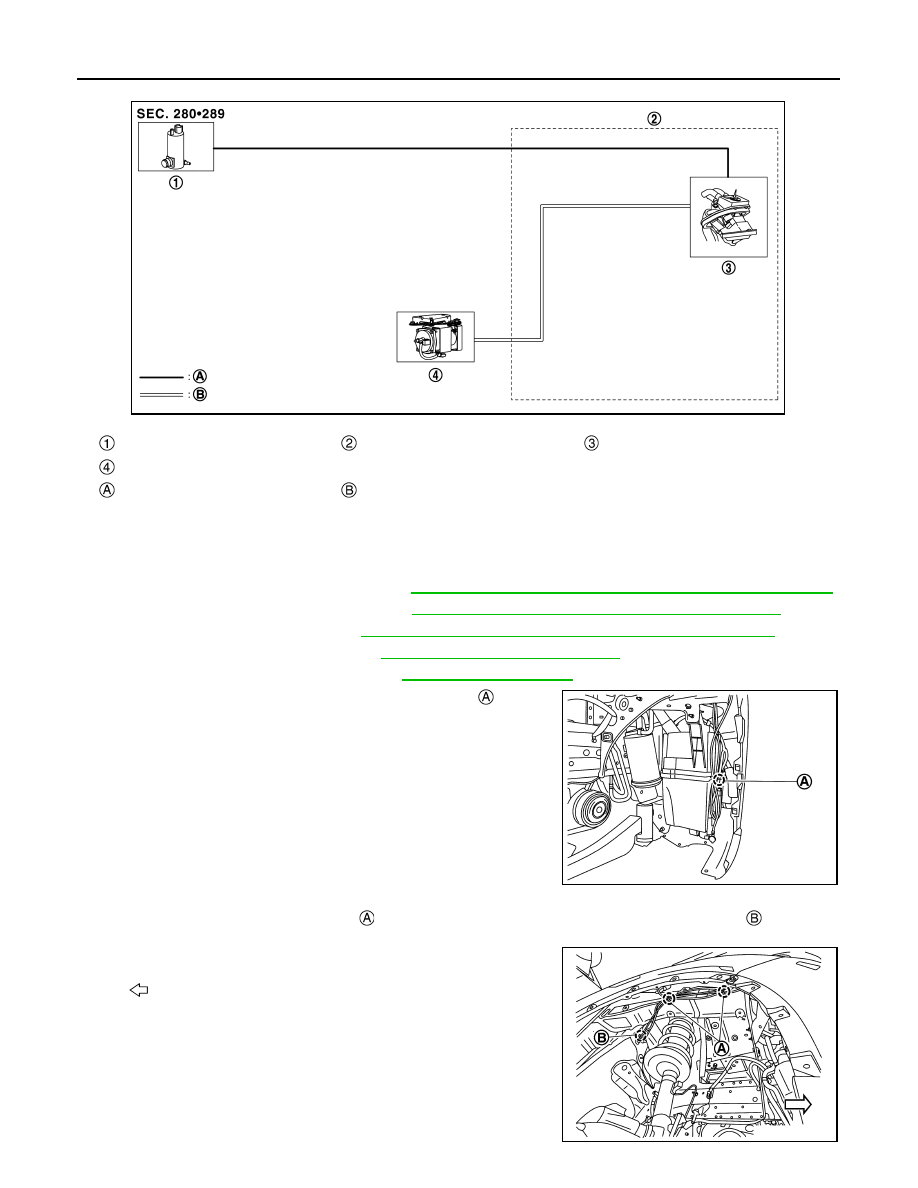

Remove washer tube from washer tank and tube clip

.

7.

Remove washer tube from tube clip

, then pull washer tube towards interior with grommet

.

NOTE:
Do not allow washer fluid to spill in the vehicle.

Washer pump

Back door

Rear camera with air/washer nozzle

Air pump

Washer tube

Air tube

JSOIA1384ZZ

JSOIA1385ZZ

: Vehicle front

JSOIA1386ZZ
