DAS

FRONT CAMERA UNIT

DAS-149

< REMOVAL AND INSTALLATION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

REMOVAL AND INSTALLATION

FRONT CAMERA UNIT

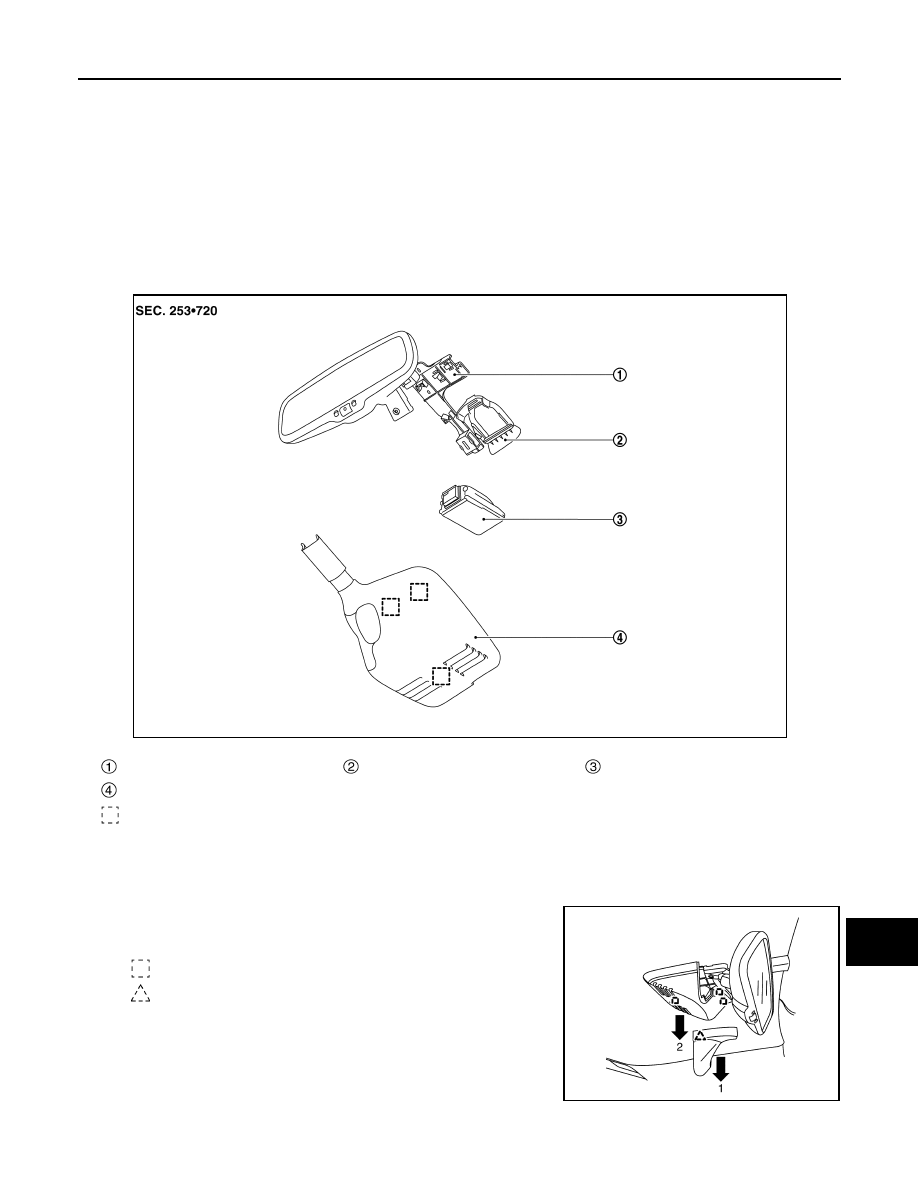

Exploded View

INFOID:0000000010946215

CAUTION:

• Never remove the front camera unit bracket and the camera/sensor cover bracket from windshield

glass.

• The front camera unit bracket and the front camera unit bracket must be replaced together with

windshield glass as an assembly.

Removal and Installation

INFOID:0000000010946216

REMOVAL

1.

Remove the camera/sensor cover in the order from 1 to 2 shown
in the figure.

2.

Disconnect front camera unit connector.

Camera/sensor cover bracket

Front camera unit bracket

Front camera unit

Camera/sensor cover

: Metal clip

JSOIA1633ZZ

: Metal clip

: Pawl

JSOIA1634ZZ

DAS-150

< REMOVAL AND INSTALLATION >

[DRIVER ASSISTANCE SYSTEM]

FRONT CAMERA UNIT

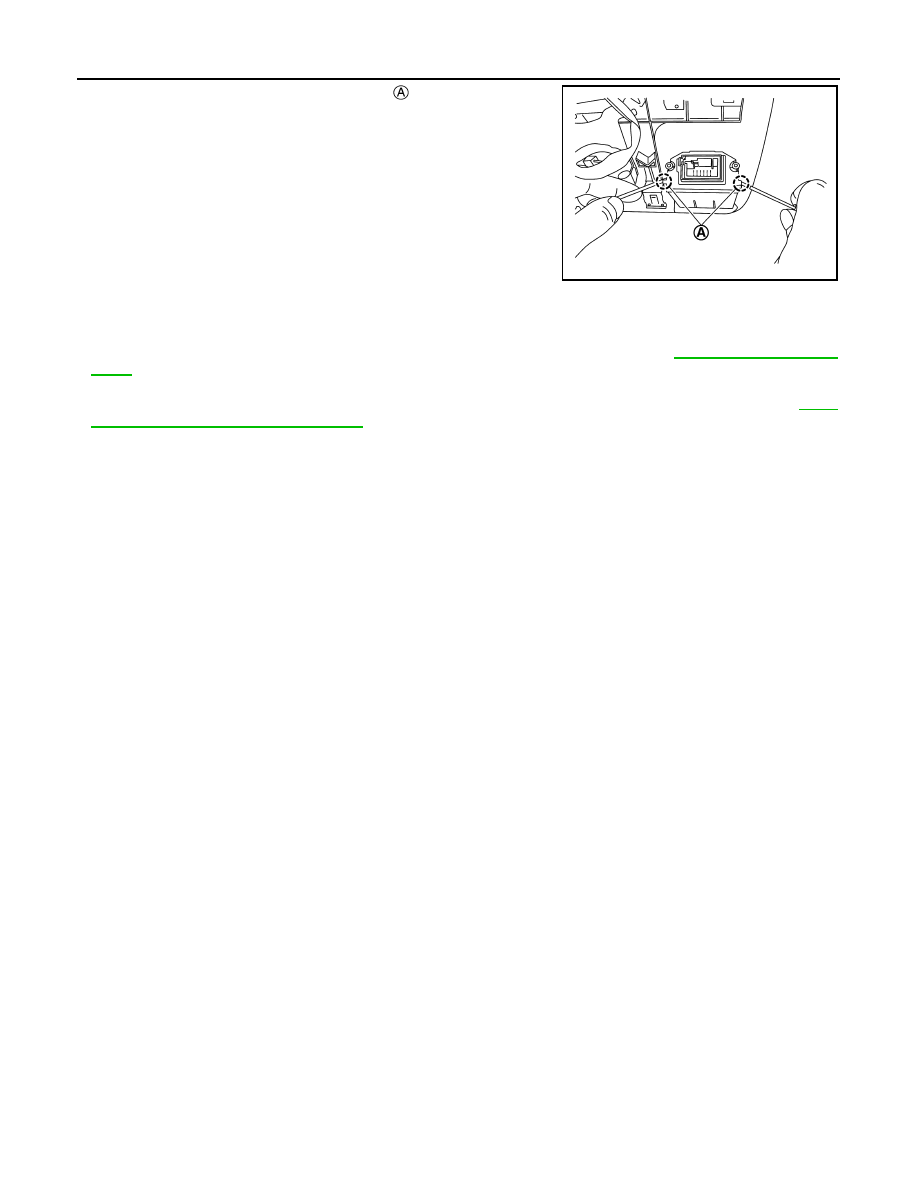

3.

Release front camera unit fixing pawls

 using removal tool,

and then remove front camera unit from front camera unit
bracket.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Must be perform additional service when replacing front camera unit. Refer to

DAS-99, "Work Proce-

dure"

.

• Never give an impact to the front camera unit.
• Perform the camera aiming every time the front camera unit is removed and installed. Refer to

DAS-

100, "Work Procedure (Preparation)"

.

JSOIA1635ZZ

DAS

AROUND VIEW MONITOR CONTROL UNIT

DAS-151

< REMOVAL AND INSTALLATION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

AROUND VIEW MONITOR CONTROL UNIT

Removal and Installation

INFOID:0000000010727958

Refer to

AV-268, "Removal and Installation"

.

DAS-152

< REMOVAL AND INSTALLATION >

[DRIVER ASSISTANCE SYSTEM]

REAR CAMERA

REAR CAMERA

Removal and Installation

INFOID:0000000010727959

Refer to

AV-270, "Removal and Installation"

.
