Nissan X-Trail 32. Manual - part 338





DAS

ACTION TEST

DAS-93

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

1.

Enable the setting of the BSW system on the combination meter.

2.

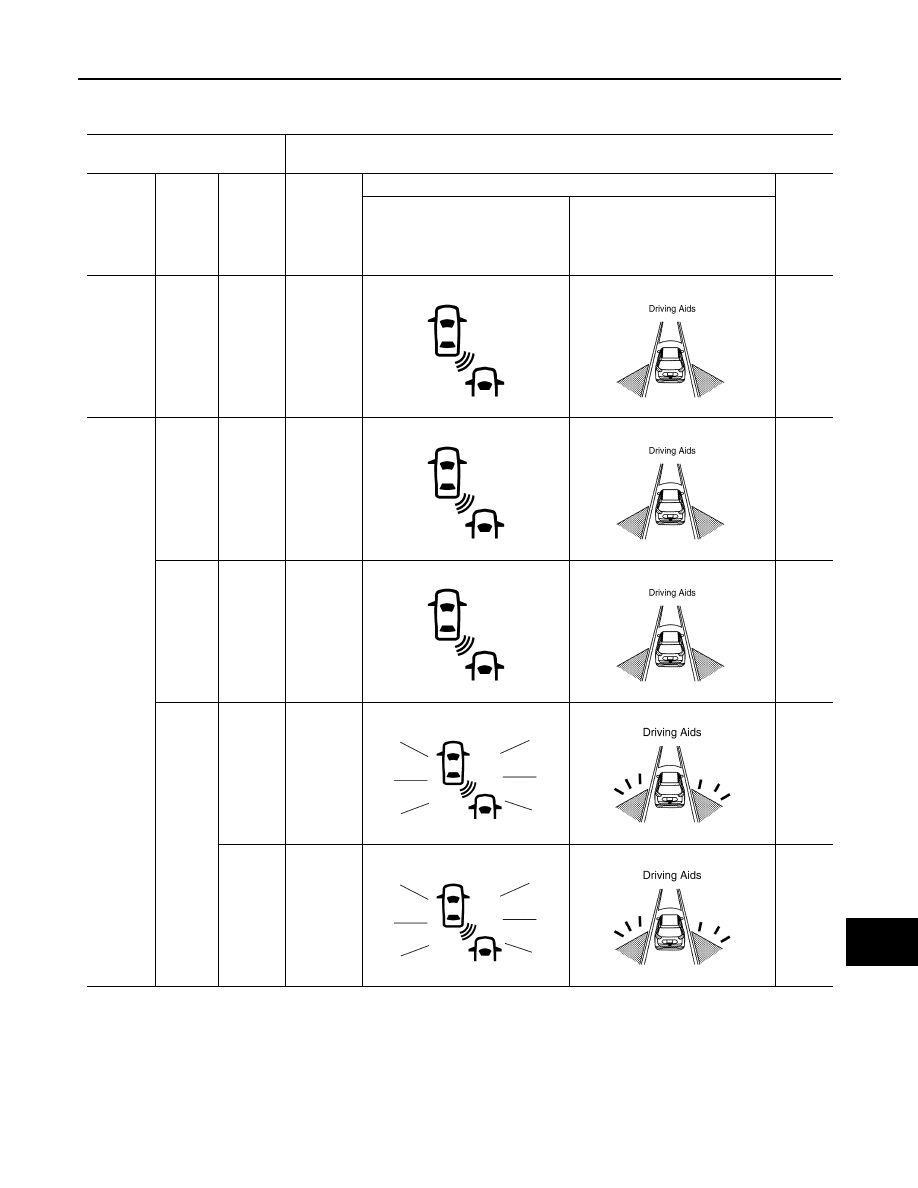

Check BSW operation according to the following table.

NOTE:
• If vehicle speed exceeds approximately 32 km/h (20 MPH), BSW function operates until the vehicle

speed becomes lower than approximately 29 km/h (18 MPH).

• Time shown in the figure is approximate time.

>> INSPECTION END

TSR

Vehicle condition/ Driver's opera-

tion

Action

Vehicle

speed

(Approx.)

Turn sig-

nal con-

dition

Status of

vehicle

detection

within de-

tection

area

Indication

on the

BSW indi-

cator

Indication on the combination meter

Buzzer

Upper part

Middle part

Less than
29 km/h
(18 MPH)

OFF

White

White

OFF

32 km/h
(20 MPH)
or more

Vehicle is
not de-
tected

OFF

White

White

OFF

OFF

Vehicle is
detected

ON

White

White

OFF

ON

(vehicle

detect-

ed direc-

tion)

Before
turn sig-
nal oper-
ates
Vehicle is
detected

Blink

Orange (Blink)

Orange (Blink)

Short

contin-

uous

beeps

Vehicle is
detected
after turn
signal op-
erates

Blink

Orange (Blink)

Orange (Blink)

OFF

JSOIA1423ZZ

JSOIA1597ZZ

JSOIA1423ZZ

JSOIA1597ZZ

JSOIA1423ZZ

JSOIA1597ZZ

JSOIA1425ZZ

JSOIA1600ZZ

JSOIA1425ZZ

JSOIA1600ZZ

DAS-94

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

ACTION TEST

TSR : Description

INFOID:0000000010927844

• Perform action test to verify the customer's concern.
• Perform action test and check the system operation after system diagnosis.

WARNING:

Be careful of traffic conditions and safety around the vehicle when performing road test.

CAUTION:

• Fully understand the following items well before the road test;
- Precautions: Refer to

DAS-8, "Precaution for TSR System Service"

.

- System description for TSR: Refer to

DAS-21, "TSR : System Description"

.

- Handling precaution: Refer to

DAS-41, "Precautions for Traffic Sign Recognition"

.

TSR : Work Procedure

INFOID:0000000010927845

WARNING:

Be careful of traffic conditions and safety around the vehicle when performing road test.

CAUTION:

• Fully understand the following items well before the road test;
- Precautions: Refer to

DAS-8, "Precaution for TSR System Service"

.

- System description for TSR: Refer to

DAS-21, "TSR : System Description"

.

- Handling precaution: Refer to

DAS-41, "Precautions for Traffic Sign Recognition"

.

1.

CHECK TSR SYSTEM SETTING

1.

Start the engine.

2.

After starting the engine wait for 30 seconds or more.

3.

Enable the setting of the TSR system on the combination meter.

4.

Turn OFF the ignition switch and wait for 5 seconds or more.

5.

Check that the previous setting is saved when the engine starts again.

>> GO TO 2.

2.

ACTION TEST FOR LDW

1.

Enable the setting of the TSR system on the combination meter.

2.

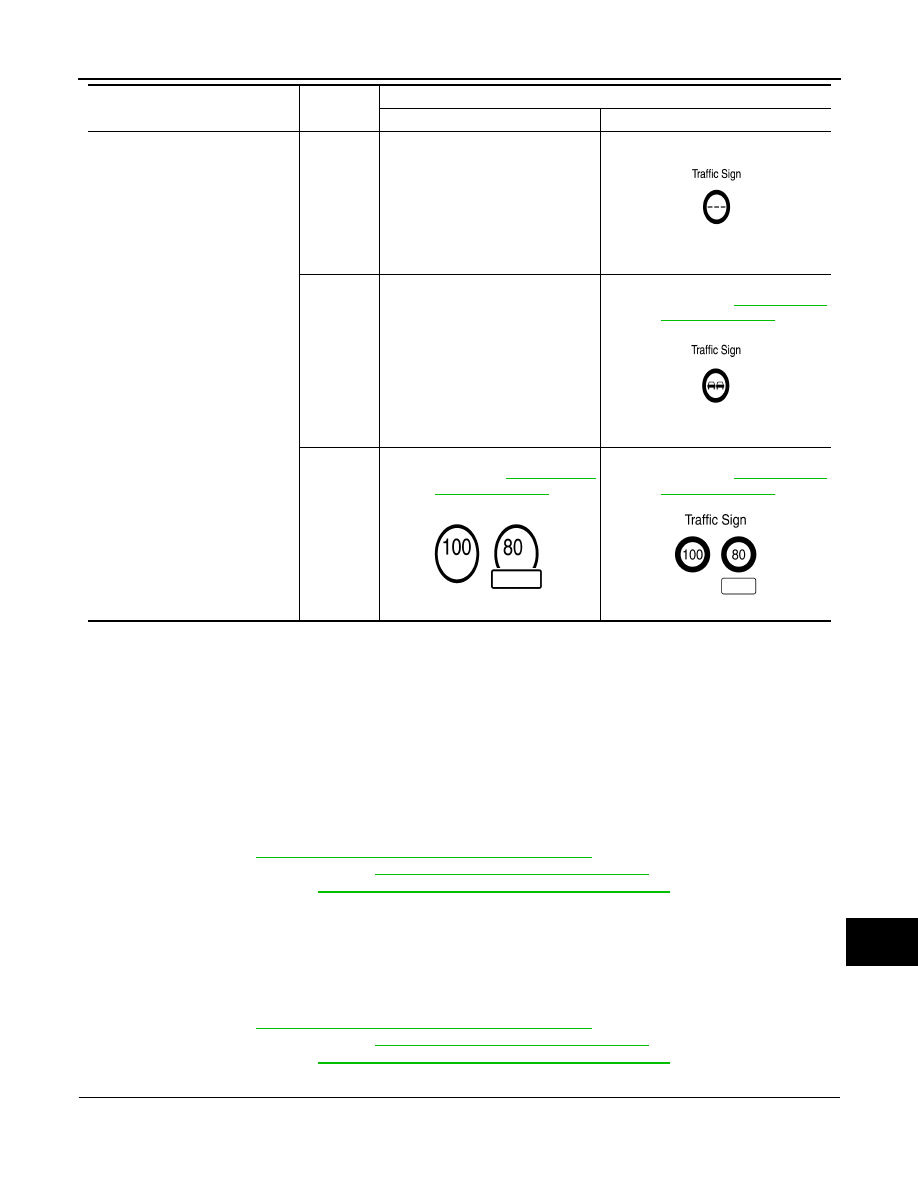

Check the TSR operation according to the following table.

System status

Condition

Display on combination meter

Upper part

Middle part

TSR OFF

JSOIA1611ZZ

DAS

ACTION TEST

DAS-95

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

>> INSPECTION END

DAA

DAA : Description

INFOID:0000000010927846

Always perform the TSR system action test to check that the system operates normally after replacing the
around view monitor control unit or repairing any TSR system malfunction.

WARNING:

Be careful of traffic conditions and safety around the vehicle when performing road test.

CAUTION:

• Fully understand the following items well before the road test;
- Precautions: Refer to

DAS-9, "Precaution for DAA System Service"

.

- System description for DAA: Refer to

DAS-24, "DAA : System Description"

.

- Handling precaution: Refer to

DAS-41, "Precautions for Drive Attention Alert"

.

DAA : Work Procedure

INFOID:0000000010927847

WARNING:

Be careful of traffic conditions and safety around the vehicle when performing road test.

CAUTION:

• Fully understand the following items well before the road test;
- Precautions: Refer to

DAS-9, "Precaution for DAA System Service"

.

- System description for DAA: Refer to

DAS-24, "DAA : System Description"

.

- Handling precaution: Refer to

DAS-41, "Precautions for Drive Attention Alert"

.

1.

CHECK DAA SYSTEM SETTING

1.

Start the engine.

2.

After starting the engine wait for 30 seconds or more.

TSR ON

Road sign

not detect-

ed

Road sign

detected

(except for
speed limit

signs)

This is an example. For details of dis-
played signs, refer to

DAS-21, "TSR :

System Description"

Road sign

detected

(Speed limit

signs)

This is an example. For details of dis-
played signs, refer to

DAS-21, "TSR :

System Description"

This is an example. For details of dis-
played signs, refer to

DAS-21, "TSR :

System Description"

System status

Condition

Display on combination meter

Upper part

Middle part

JSOIA1612ZZ

JSOIA1613ZZ

JSOIA1614ZZ

JSOIA1615ZZ

DAS-96

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

ACTION TEST

3.

Check that the DAA system setting can be enabled/disabled on the combination meter.

4.

Turn OFF the ignition switch and wait for 5 seconds or more.

5.

Check that the previous setting is saved when the engine starts again.

>> GO TO 2.

2.

ACTION TEST FOR DAA

1.

Enable the setting of the DAA system on the combination meter.

2.

Check the DAA operation according to the following table.

>> INSPECTION END

Vehicle condition/ Driv-

er’s operation

Driver’s condi-

tion

Vehicle speed

(Approx.)

Action

Display on combination meter

DAA ON

0 km/h (0 MPH)



Vehicle speed <
60 km/h (37
MPH)

Normal

More than 60 km/
h (37 MPH)

Level indicator: Blue
