Nissan X-Trail 32. Manual - part 336

DAS

DRIVER ASSISTANCE SYSTEMS

DAS-85

< WIRING DIAGRAM >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

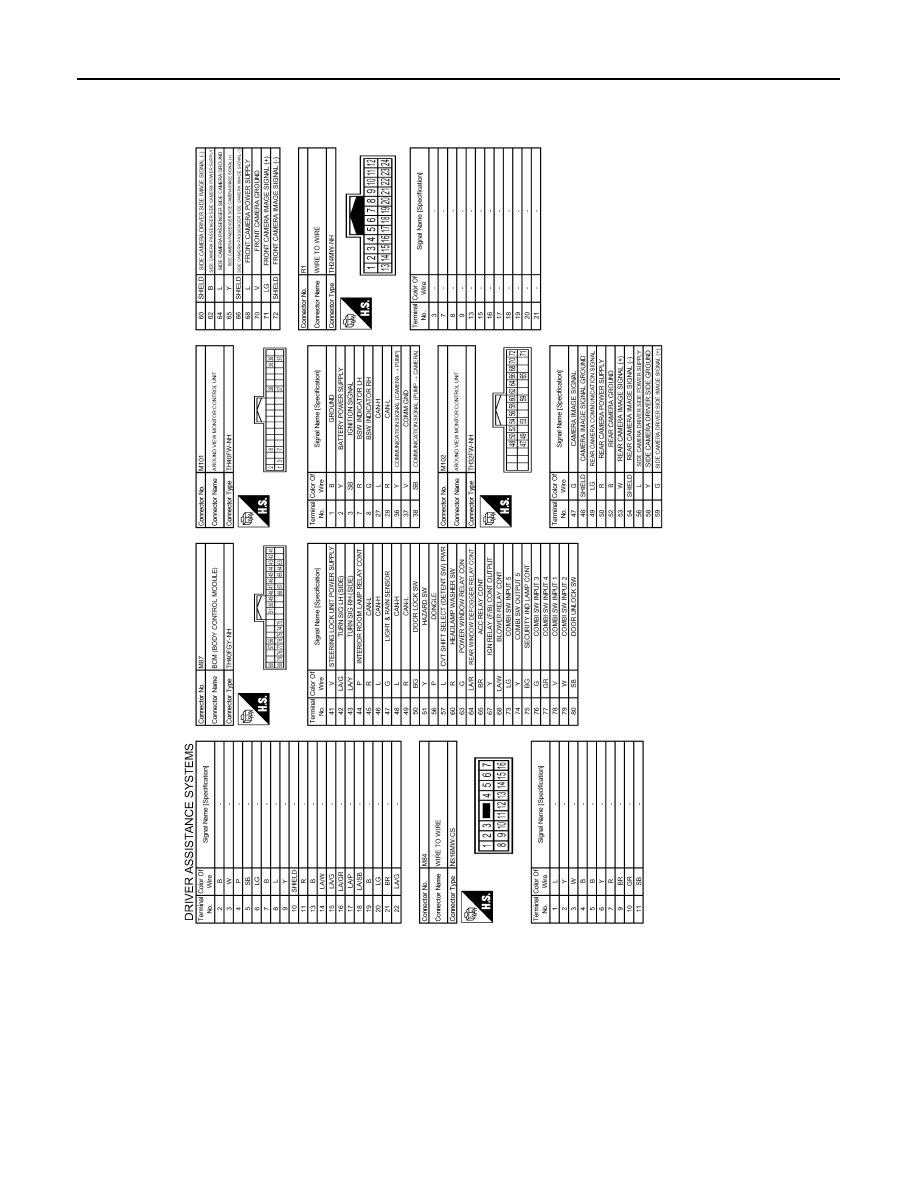

JROWC2858GB

DAS-86

< WIRING DIAGRAM >

[DRIVER ASSISTANCE SYSTEM]

DRIVER ASSISTANCE SYSTEMS

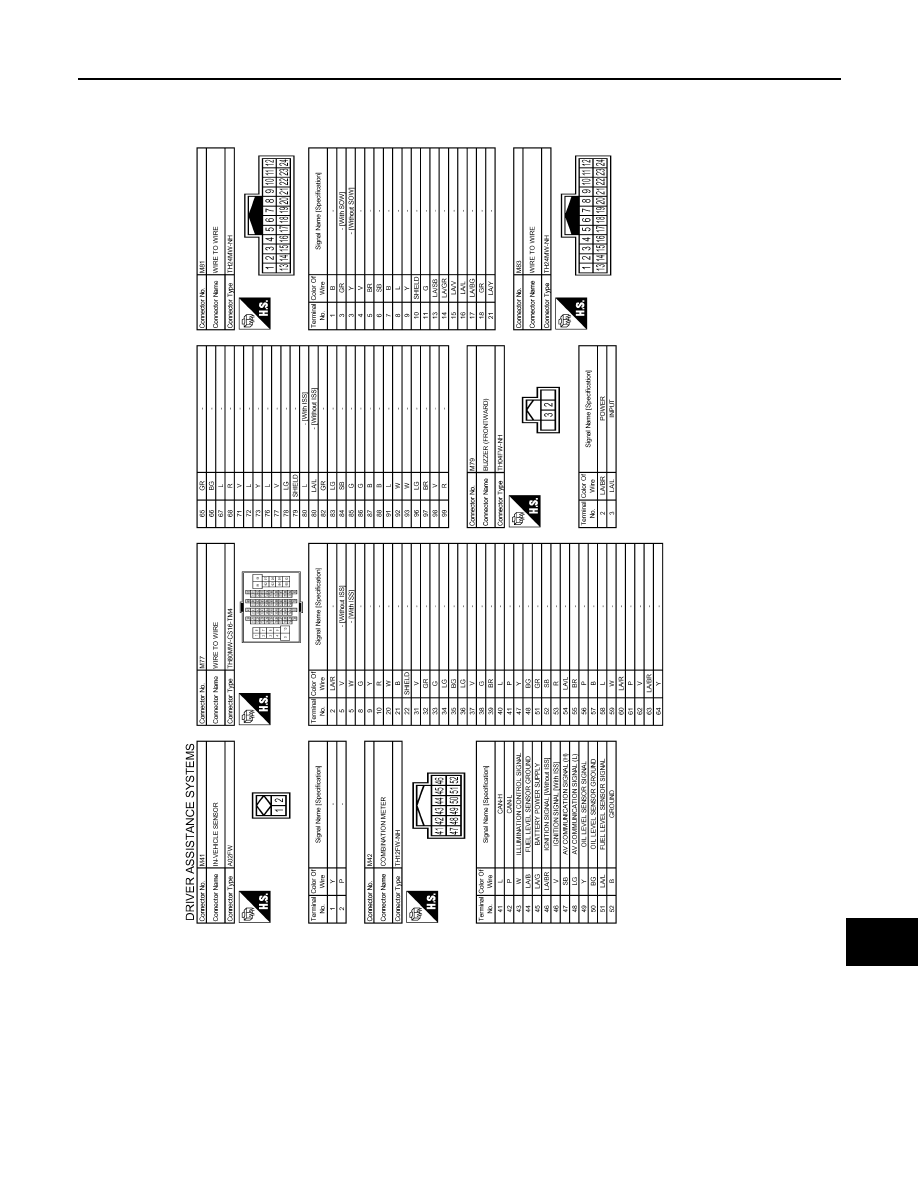

JROWC2859GB

DAS

DRIVER ASSISTANCE SYSTEMS

DAS-87

< WIRING DIAGRAM >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

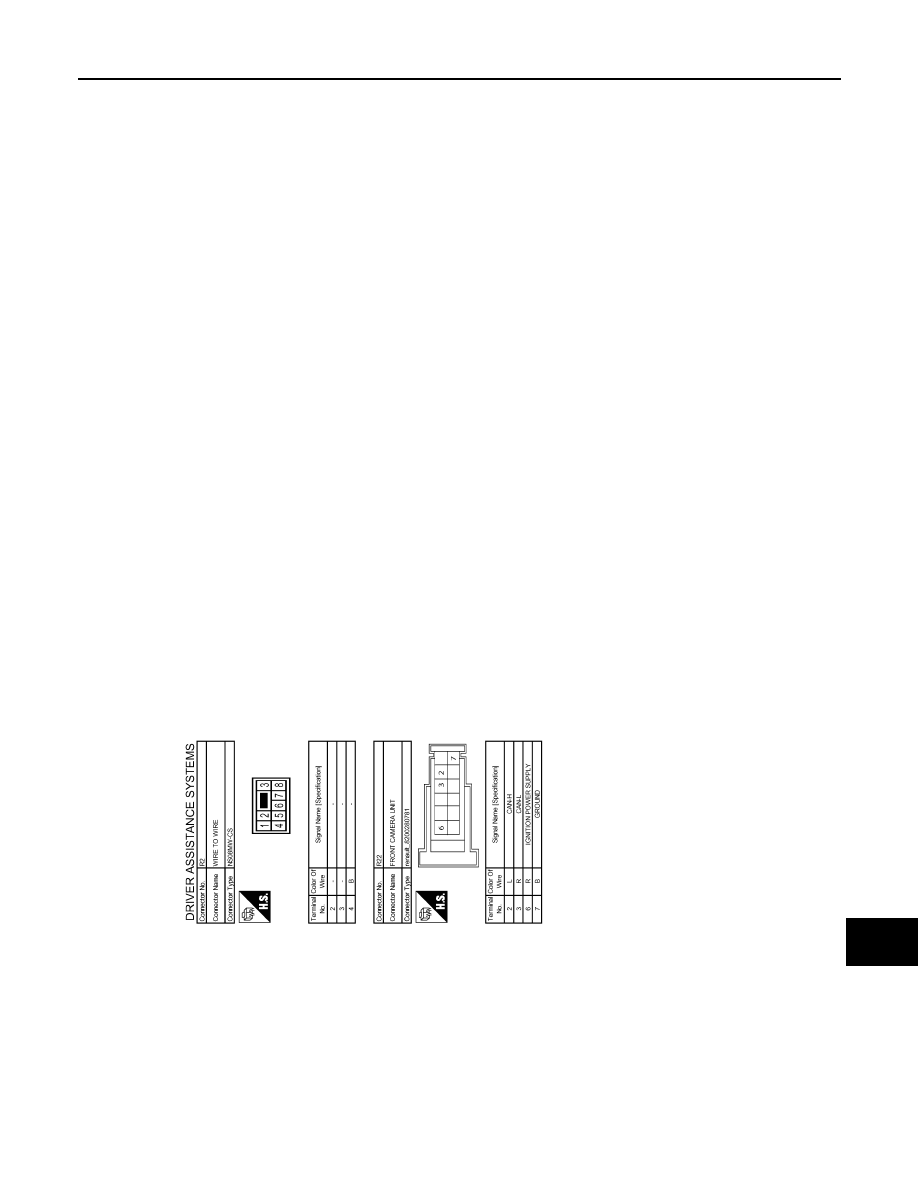

JROWC2860GB

DAS-88

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000010727916

OVERALL SEQUENCE

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

It is also important to clarify the customer concerns before starting the inspection. Interview the customer
about the concerns carefully and understand the symptoms fully.
NOTE:

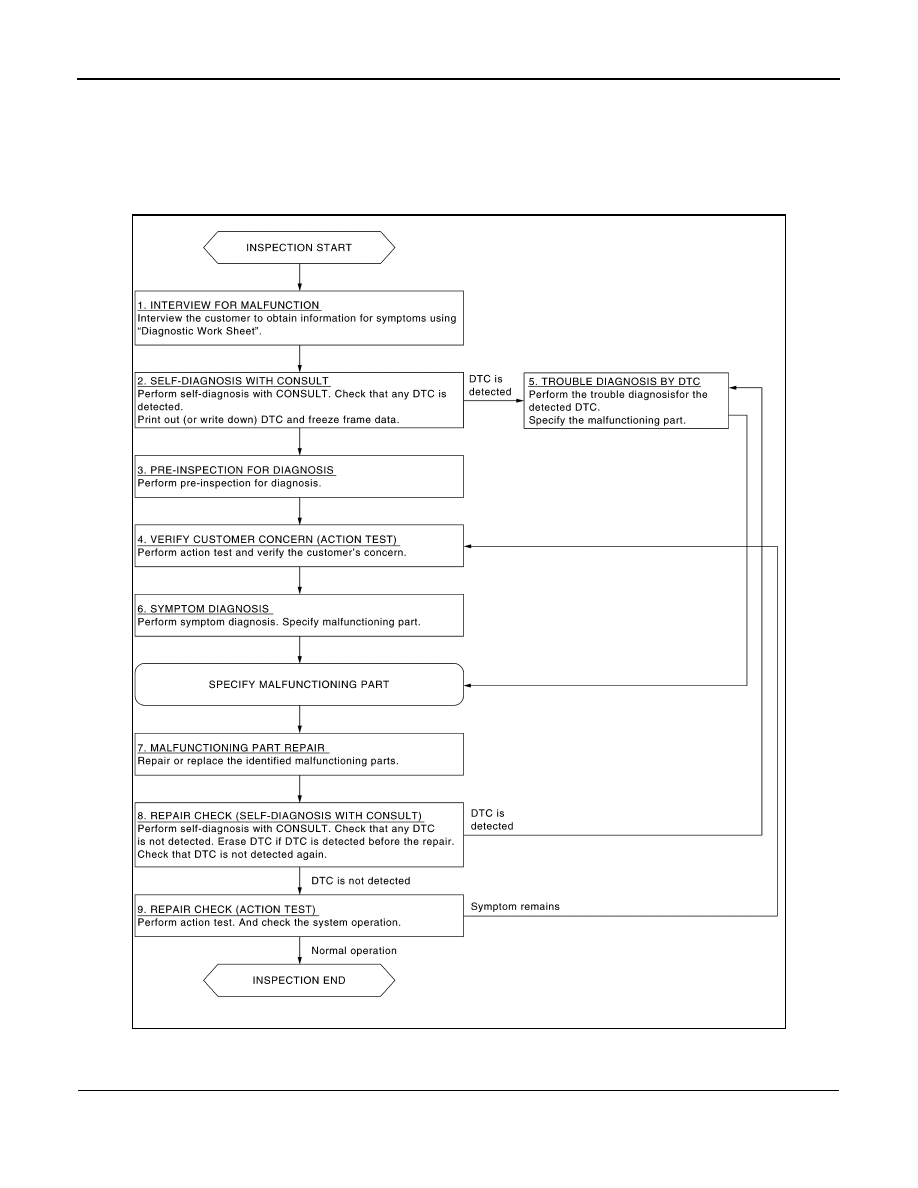

JSOIA0654GB
