CO-6

< PREPARATION >

[MR20DD]

PREPARATION

PREPARATION

PREPARATION

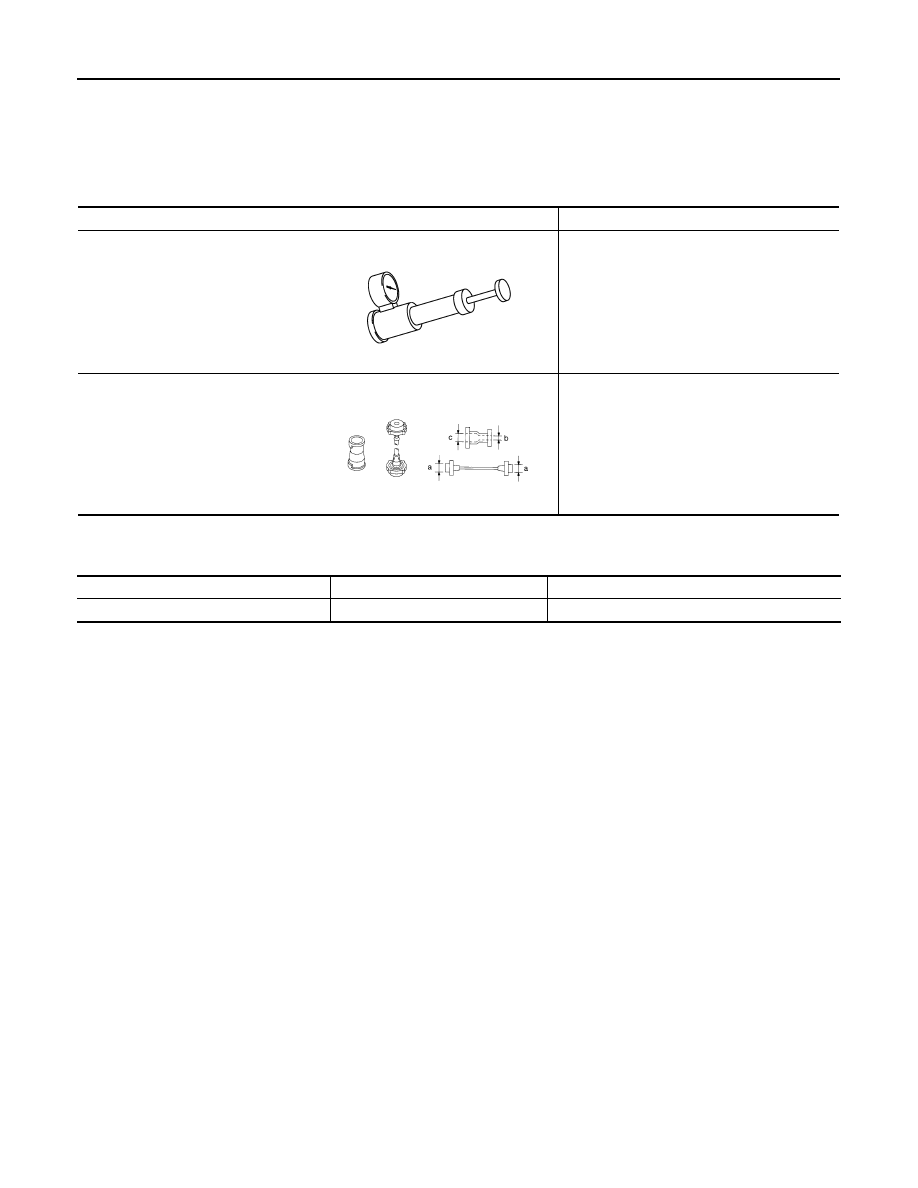

Commercial Service Tools

INFOID:0000000010782924

Lubricant or/and Sealant

INFOID:0000000010782925

Tool name

Description

Radiator cap tester

Checking radiator and radiator cap

Radiator cap tester adapter

Adapting radiator cap tester to radiator cap
and water outlet (front) filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)

PBIC1982E

S-NT564

Name

Description

Note

Three bond 1303

Cooling fan

Fan moter shaft

DESCRIPTION

CO-7

< SYSTEM DESCRIPTION >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

SYSTEM DESCRIPTION

DESCRIPTION

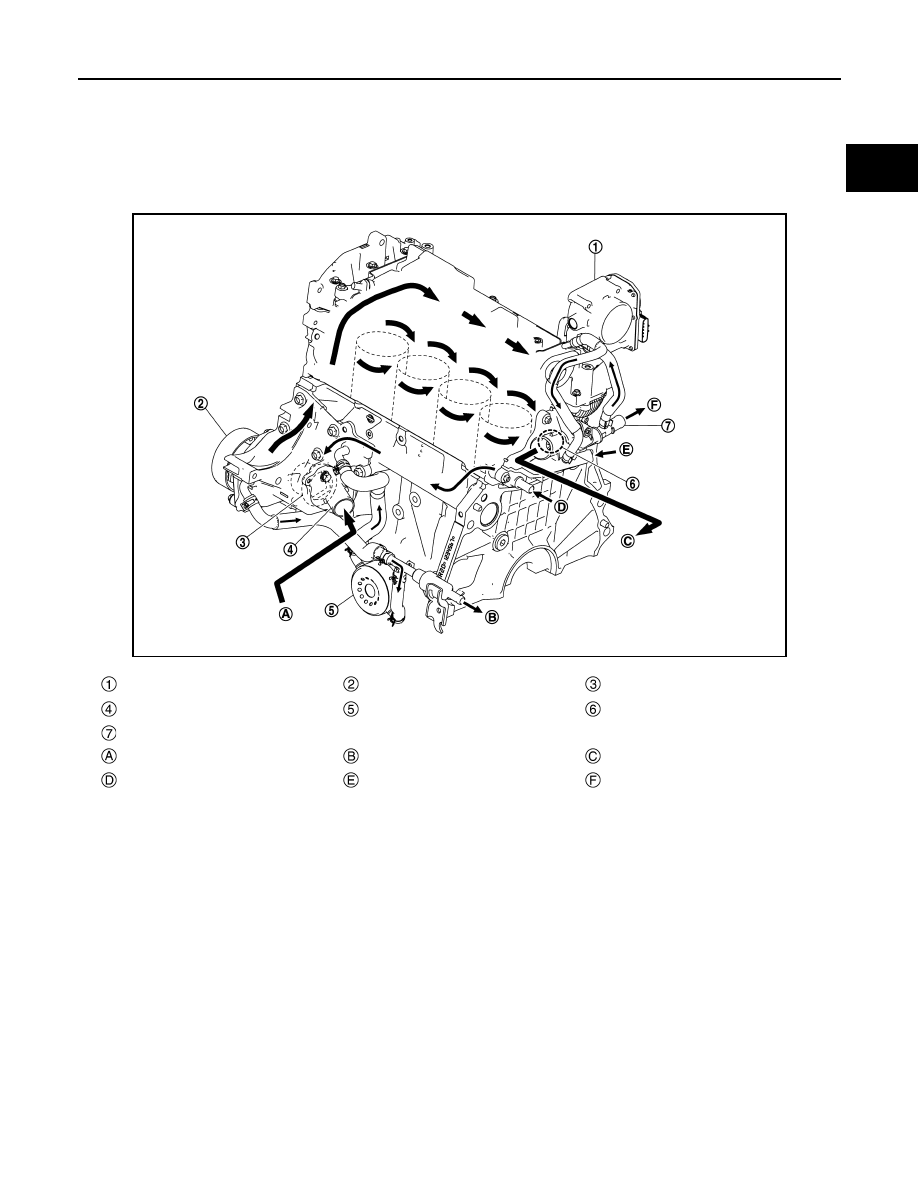

Engine Cooling System

INFOID:0000000010782926

CVT models

JPBIA6908ZZ

Electric control throttle actuator

Water pump

Thermostat

Water inlet

Oil cooler

Water control valve

Water outlet

From radiator

To CVT oil warmer

To radiator

From CVT oil warmer

From heater

To heater

CO-8

< SYSTEM DESCRIPTION >

[MR20DD]

DESCRIPTION

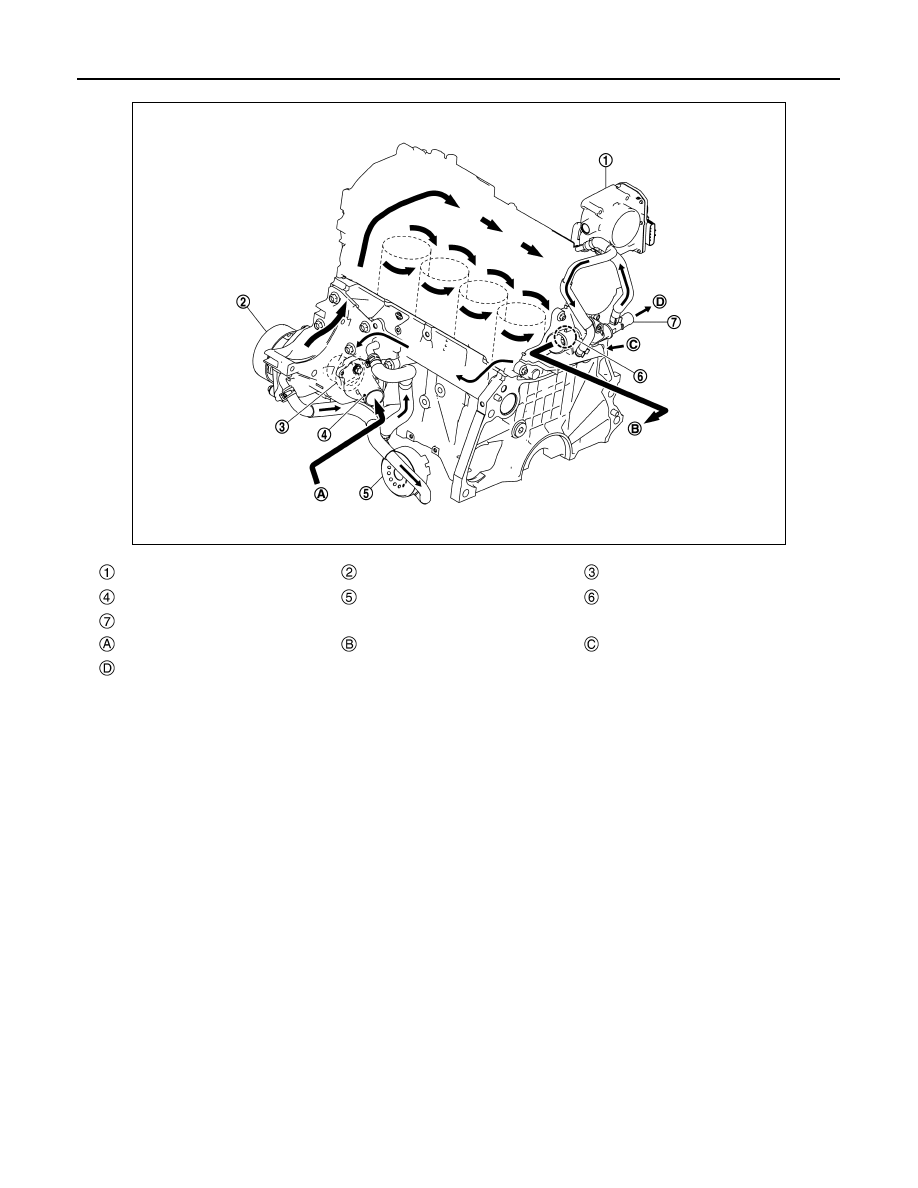

M/T models

JPBIA6909ZZ

Water pump

Thermostat

Water inlet

Water inlet

Oil cooler

Water control valve

Water outlet

From radiator

To radiator

From heater

To heater

DESCRIPTION

CO-9

< SYSTEM DESCRIPTION >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

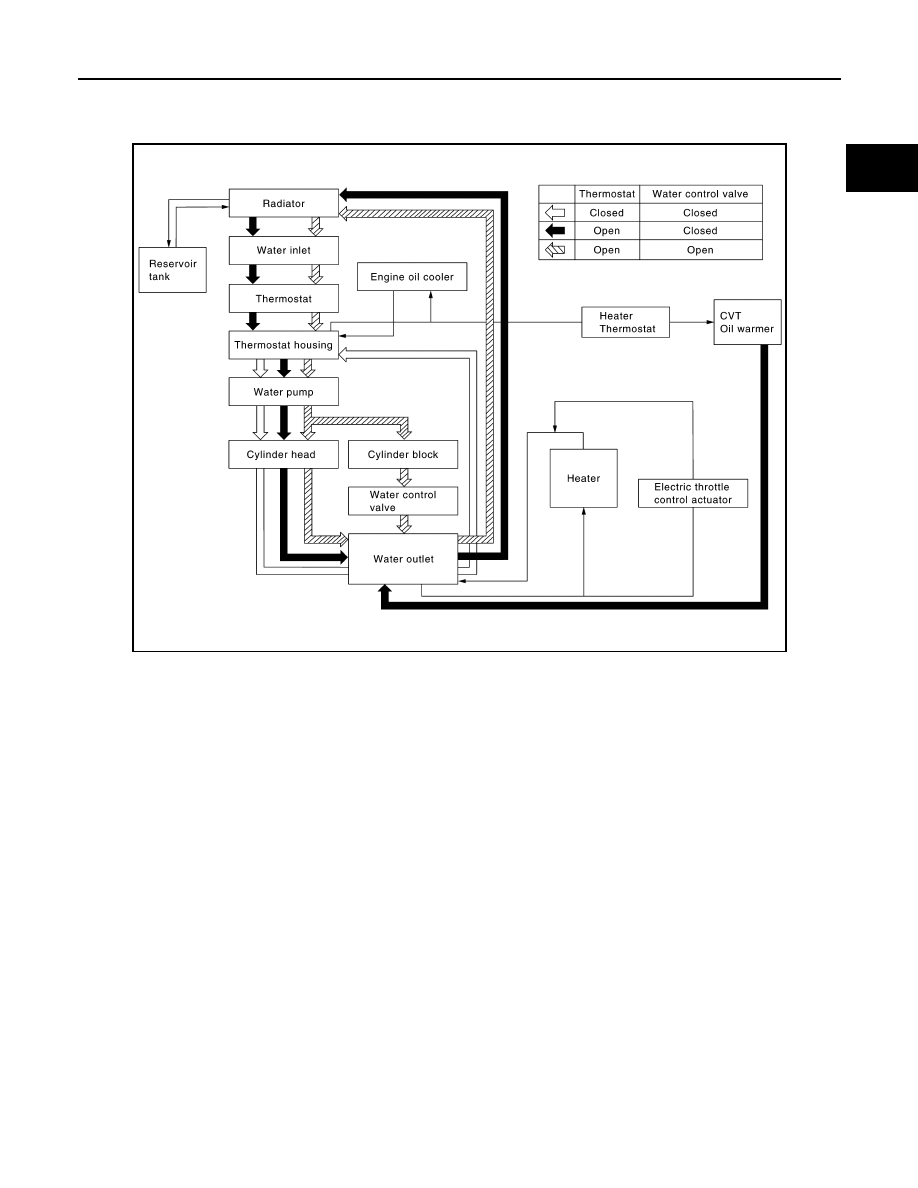

Engine Cooling System Schematic

INFOID:0000000010782927

CVT models

JPBIA6910GB
