Nissan X-Trail 32. Manual - part 293





CL-40

< REMOVAL AND INSTALLATION >

CLUTCH DISC AND CLUTCH COVER

INSPECTION AFTER INSTALLATION

Clutch Cover

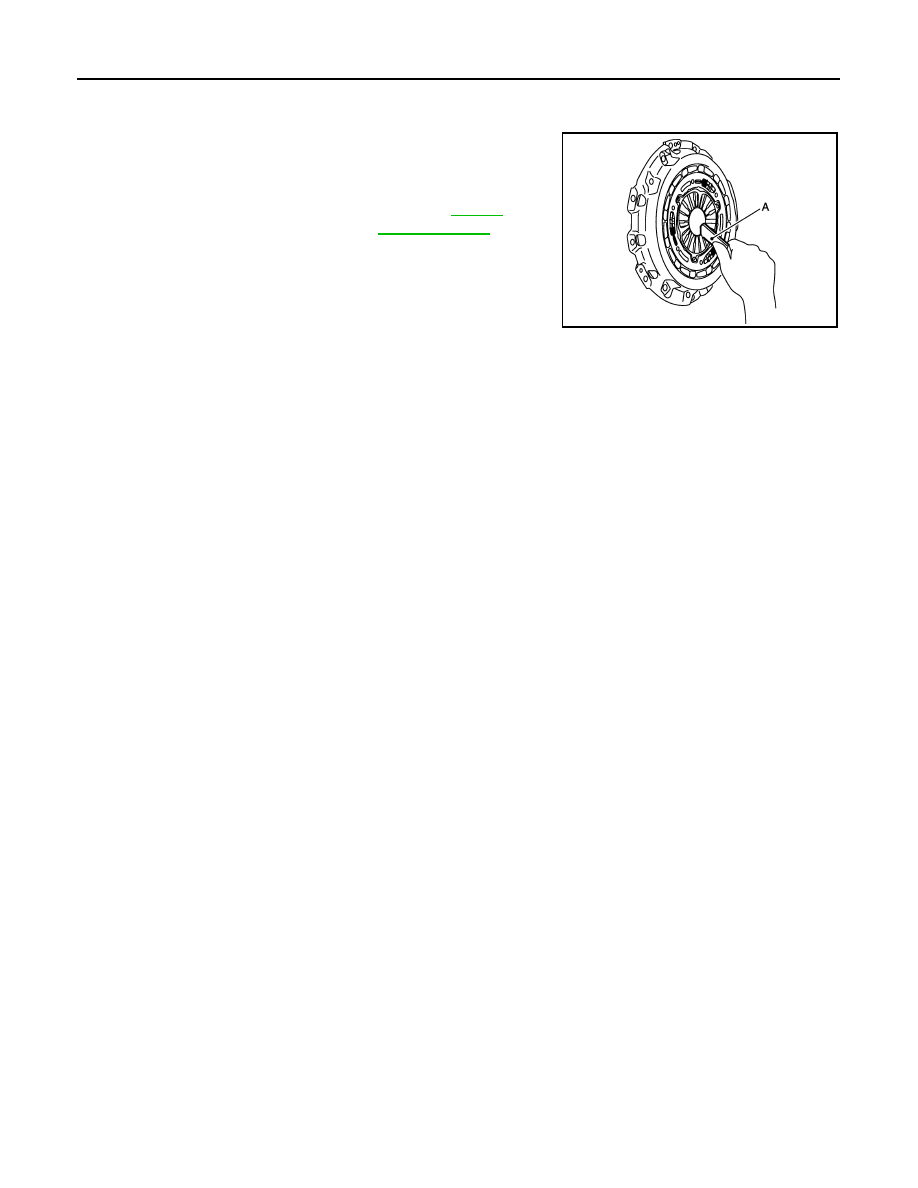

Check diaphragm spring lever claws for unevenness with the lever
still on the vehicle. If they exceed the tolerance, adjust lever height,
using the diaphragm adjusting wrench (A) (SST: ST20050240).

Tolerance for diaphragm spring
lever unevenness

: Refer to

CL-42,

"Clutch Cover"

.

JPDIB0160ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

CL-41

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

INFOID:0000000010745347

Unit: mm (in)

Clutch Pedal

INFOID:0000000010745348

LHD MODELS

Unit: mm (in)

RHD MODELS

Unit: mm (in)

Clutch Disc

INFOID:0000000010745349

Unit: mm (in)

Engine

MR20DD

R9M

Type of clutch control

Hydraulic

Clutch disc

Facing size
(Outer dia.

×

 Inner dia.

×

 Thickness)

230

×

 155

×

 3.2

(9.06

×

 6.10

×

 0.126)

239

×

 170

×

 3.45

(9.41

×

 6.69

×

 0.1358)

Recommended clutch fluid

Refer to

MA-23, "Fluids and Lubricants"

.

Item

Standard

Clutch pedal height

193.6 – 203.6 (7.62 – 8.02)

Clutch pedal height at clutch disengagement

MR20DD

111.7 (4.40) or more

R9M

96.0 (3.780) or more

Clutch pedal play

2 – 8 (0.08 – 0.31)

Clearance

Between the thread end of clutch interlock switch and
clutch pedal lever

0.2 – 1.96 (0.008 – 0.077)

Between the thread end of clutch pedal position switch
and clutch pedal lever

0.2 – 1.96 (0.008 – 0.077)

Item

Standard

Clutch pedal height

188.5 – 198.5 (7.42 – 7.81)

Clutch pedal height at clutch disengagement

MR20DD

R9M

93.4 (3.677) or more

Clutch pedal play

2 – 8 (0.08 – 0.31)

Clearance

Between the thread end of clutch interlock switch and
clutch pedal lever

0.2 – 1.96 (0.008 – 0.077)

Between the thread end of clutch pedal position switch
and clutch pedal lever

0.2 – 1.96 (0.008 – 0.077)

Item

Standard

Runout limit/diameter of the area to be measured

MR20DD

1.0 (0.039) / 220 (8.66) dia.

R9M

1.0 (0.039) / 229 (9.02) dia.

Maximum allowable spline backlash (at outer edge of disc)

MR20DD

0.9 (0.035)

R9M

1.0 (0.039)

Facing wear limit (depth to the rivet head)

MR20DD

0.3 (0.012)

R9M

CL-42

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Clutch Cover

INFOID:0000000010745350

Unit: mm (in)

Item

Standard

Tolerance for diaphragm spring lever unevenness

MR20DD

0.7 (0.028) or less

R9M

0.8 (0.031) or less

CO-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

CO

A

CO

N

O

P

CONTENTS

ENGINE COOLING SYSTEM

MR20DD

PRECAUTION ...............................................

4

PRECAUTIONS ...................................................

4

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

4

Precautions for Removing Battery Terminal  .............

4

PREPARATION ............................................

6

PREPARATION ...................................................

6

Commercial Service Tools .......................................

6

Lubricant or/and Sealant  ...........................................

6

SYSTEM DESCRIPTION  ..............................

7

DESCRIPTION ....................................................

7

Engine Cooling System .............................................

7

Engine Cooling System Schematic  ...........................

9

SYMPTOM DIAGNOSIS  ..............................

11

OVERHEATING CAUSE ANALYSIS  .................

11

Troubleshooting Chart .............................................

11

PERIODIC MAINTENANCE .........................

13

ENGINE COOLANT  ...........................................

13

Inspection ................................................................

13

Draining ...................................................................

13

Refilling ...................................................................

14

Flushing ...................................................................

15

RADIATOR .........................................................

16

RADIATOR CAP ........................................................

16

RADIATOR CAP : Inspection ..................................

16

RADIATOR ................................................................

16

RADIATOR : Inspection  ..........................................

16

REMOVAL AND INSTALLATION  ...............

17

RADIATOR ........................................................

17

Exploded View .........................................................

17

Removal and Installation  .........................................

17

Inspection ................................................................

20

COOLING FAN ..................................................

21

Exploded View .........................................................

21

Removal and Installation  .........................................

21

Disassembly and Assembly .....................................

22

Inspection ................................................................

23

WATER PUMP  ..................................................

24

Exploded View .........................................................

24

Removal and Installation  .........................................

24

Inspection ................................................................

24

THERMOSTAT ..................................................

26

Exploded View .........................................................

26

Removal and Installation  .........................................

26

Inspection ................................................................

27

WATER OUTLET  ..............................................

28

Exploded View .........................................................

28

Removal and Installation  .........................................

28

Inspection ................................................................

29

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

31

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

31

Periodical Maintenance Specification ......................

31

Radiator ...................................................................

31

Thermostat ..............................................................

31

Water Control Valve  ................................................

31

QR25DE

PRECAUTION ..............................................

32

PRECAUTIONS .................................................

32
