Nissan X-Trail 32. Manual - part 279

CHG-32

< PRECAUTION >

[TYPE 2]

PRECAUTIONS

2.

Turn key switch to the OFF position with the driver side door opened.

3.

Get out of the vehicle and close the driver side door.

4.

Wait at least 3 minutes.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

5.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

1.

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

CHG

COMPONENT PARTS

CHG-33

< SYSTEM DESCRIPTION >

[TYPE 2]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SYSTEM DESCRIPTION

COMPONENT PARTS

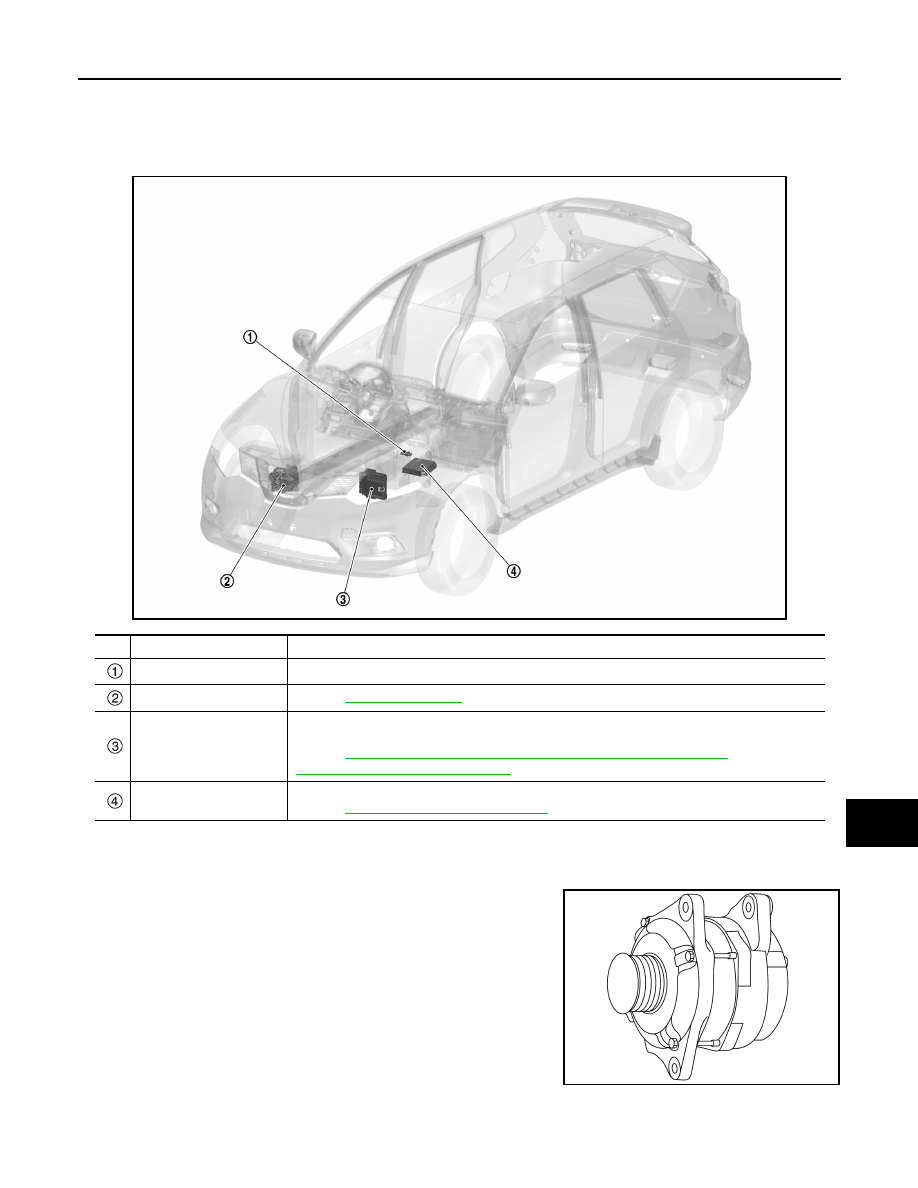

Component Parts Location

INFOID:0000000010957581

*: Not applicable

Alternator

INFOID:0000000010957582

The alternator provides DC voltage to operate the vehicle's electrical
system and to keep the battery charged.

JMMIA1712ZZ

No.

Component

Function

Battery current sensor*

—

Alternator

Refer to

CHG-33, "Alternator"

.

ECM

ECM transmits the received alternator voltage request signal to alternator via LIN communica-
tion.
Refer to

EC-28, "ENGINE CONTROL SYSTEM : Component Parts Location"

 (MR engine) or

EC-440, "Component Parts Location"

 (QR engine) for detailed installation location.

IPDM E/R

IPDM E/R sends the alternator voltage request signal to ECM via CAN communication.
Refer to

PCS-5, "Component Parts Location"

 for detailed installation location.

JMMIA1018ZZ

CHG-34

< SYSTEM DESCRIPTION >

[TYPE 2]

SYSTEM

SYSTEM

CHARGING SYSTEM

CHARGING SYSTEM : System Description

INFOID:0000000010957583

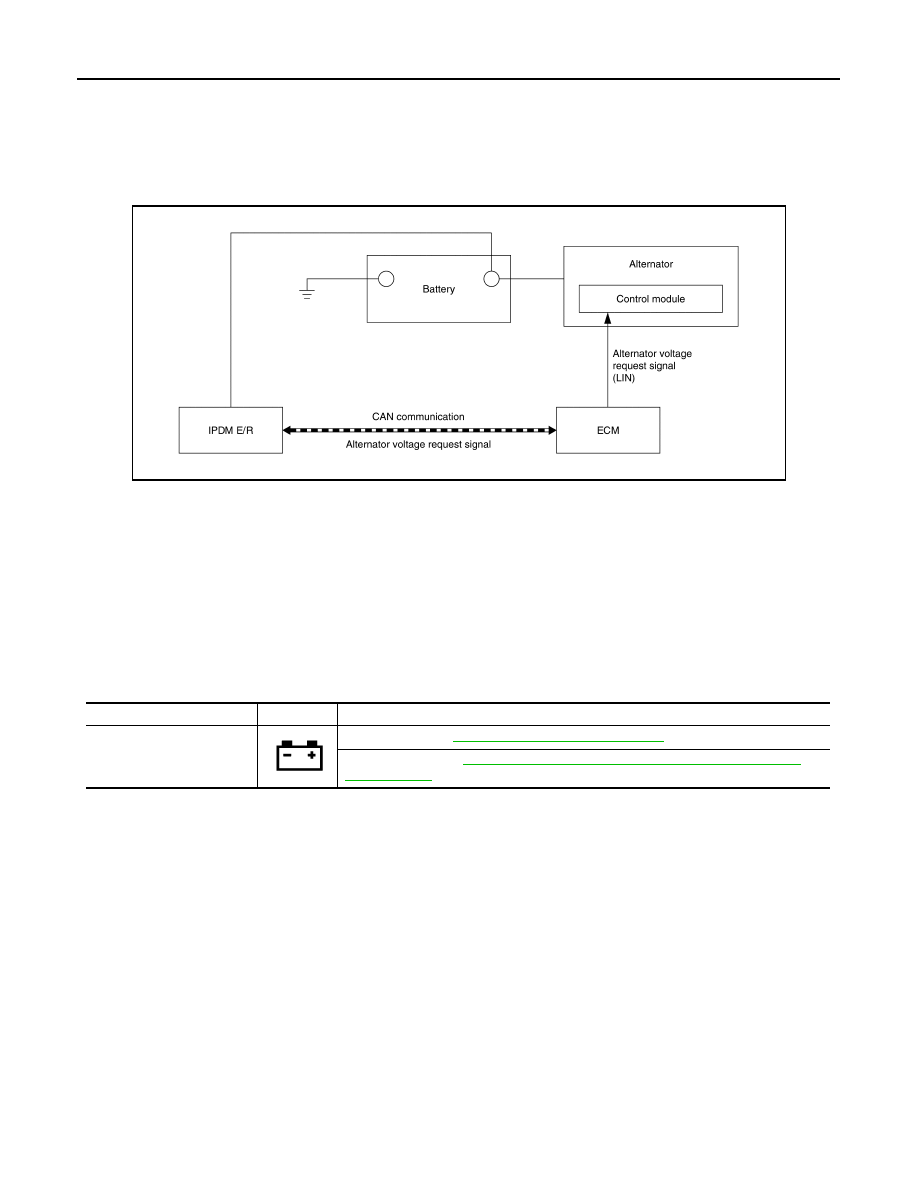

SYSTEM DIAGRAM

SYSTEM DESCRIPTION

• IPDM E/R sends alternator voltage request signal to ECM via CAN communication.
• ECM transmits alternator voltage request signal to alternator via LIN communication.
• Control module inside alternator controls the power generation voltage based on the received alternator volt-

age request signal.

• Alternator includes a self-diagnosis function and transmits the diagnosis result to ECM via LIN communica-

tion when detecting any malfunction.

WARNING/INDICATOR/CHIME LIST

WARNING/INDICATOR/CHIME LIST : Warning Lamps/Indicator Lamps

INFOID:0000000010957584

JMMIA1816GB

Item

Design

Reference

Charge warning lamp

For layout, refer to

MWI-10, "METER SYSTEM : Design"

.

For function, refer to

MWI-30, "WARNING LAMPS/INDICATOR LAMPS : Charge

Warning Lamp"

.

CHG

ECM, IPDM E/R

CHG-35

< ECU DIAGNOSIS INFORMATION >

[TYPE 2]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ECU DIAGNOSIS INFORMATION

ECM, IPDM E/R

List of ECU Reference

INFOID:0000000010957585

ECU

Reference

ECM (MR engine)

EC-89, "Reference Value"

.

EC-103, "Fail-safe"

.

EC-107, "DTC Inspection Priority Chart"

.

EC-109, "DTC Index"

.

EC-112, "Test Value and Test Limit"

.

ECM (QR engine)

EC-501, "Reference Value"

.

EC-513, "Fail Safe"

.

EC-515, "DTC Inspection Priority Chart"

.

EC-517, "DTC Index"

.

EC-519, "Test Value and Test Limit"

.

IPDM E/R

PCS-22, "Reference Value"

.

PCS-34, "Fail-safe"

.

PCS-37, "DTC Inspection Priority Chart"

.

PCS-38, "DTC Index"

.
