CORROSION PROTECTION

BRM-181

< REMOVAL AND INSTALLATION >

[FOR RUSSIA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Body Sealing (MR20DD Engine Models)

INFOID:0000000010843605

The following figure shows the areas that are sealed at the factory. Sealant that is applied to these areas
should be smooth and free from cuts or gaps. Care should be taken not to apply an excess amount of sealant
and not to allow other unaffected parts to come into contact with the sealant.

: Vehicle front

: Sealed portions

JSKIA4732ZZ

BRM-182

< REMOVAL AND INSTALLATION >

[FOR RUSSIA]

CORROSION PROTECTION

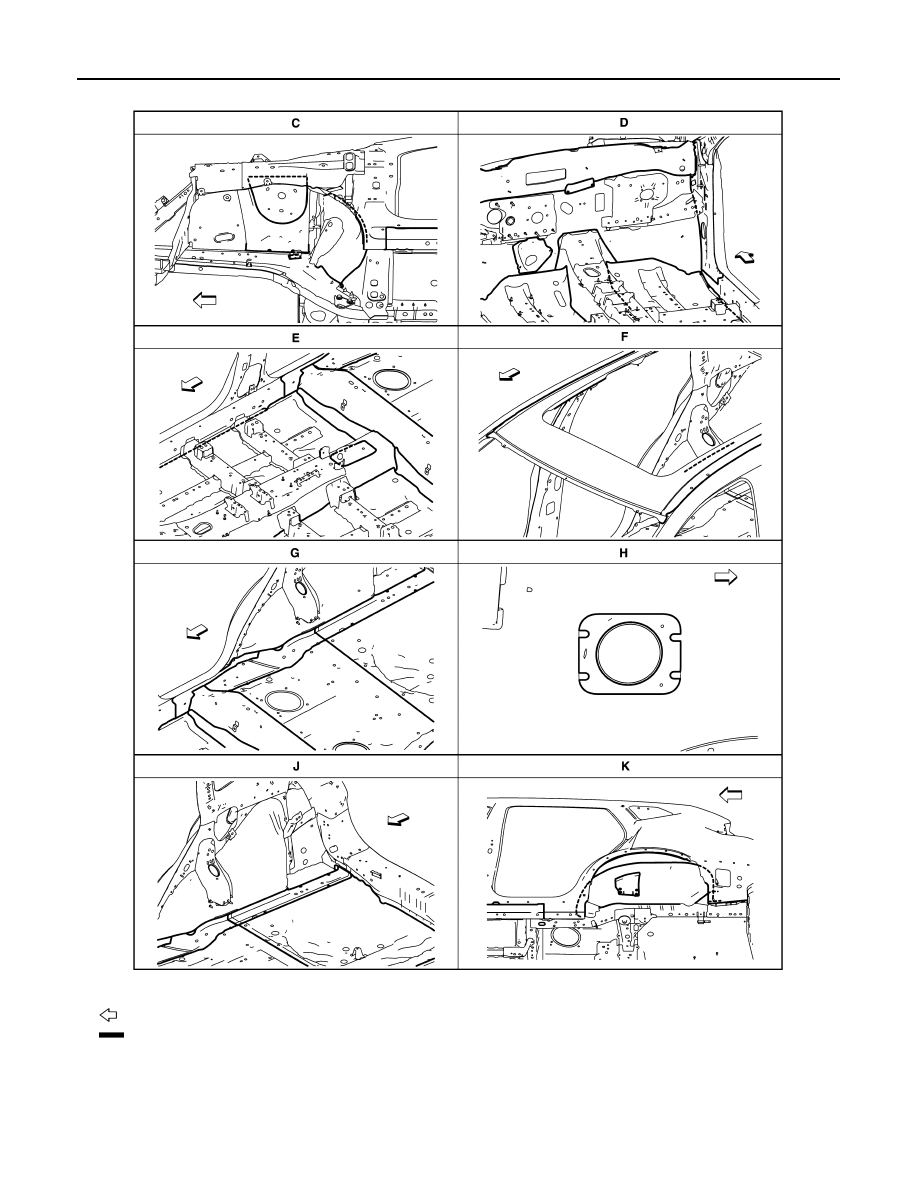

: Vehicle front

: Sealed portions

JSKIA4705ZZ

CORROSION PROTECTION

BRM-183

< REMOVAL AND INSTALLATION >

[FOR RUSSIA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

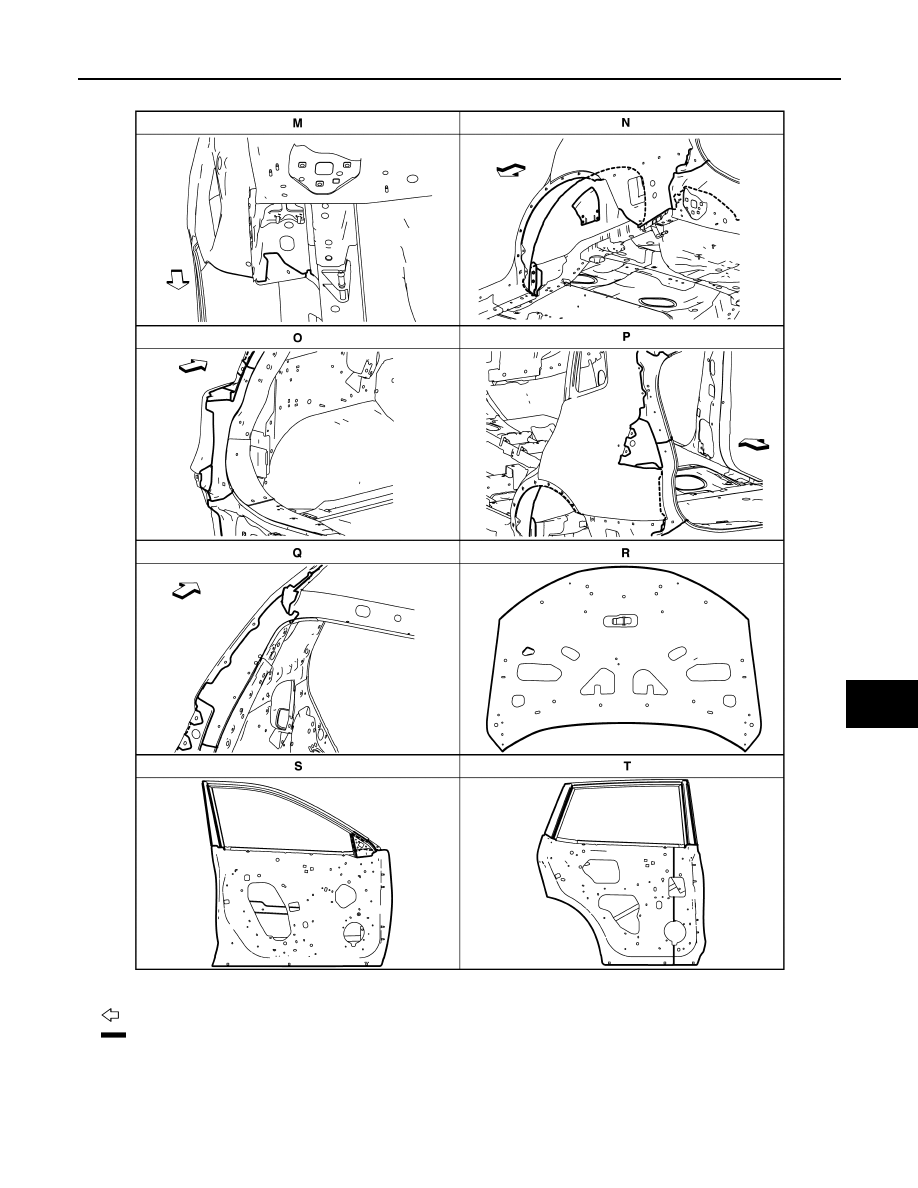

: Vehicle front

: Sealed portions

JSKIA4706ZZ

BRM-184

< REMOVAL AND INSTALLATION >

[FOR RUSSIA]

CORROSION PROTECTION

Body Sealing (QR25DE Engine Models)

INFOID:0000000010843606

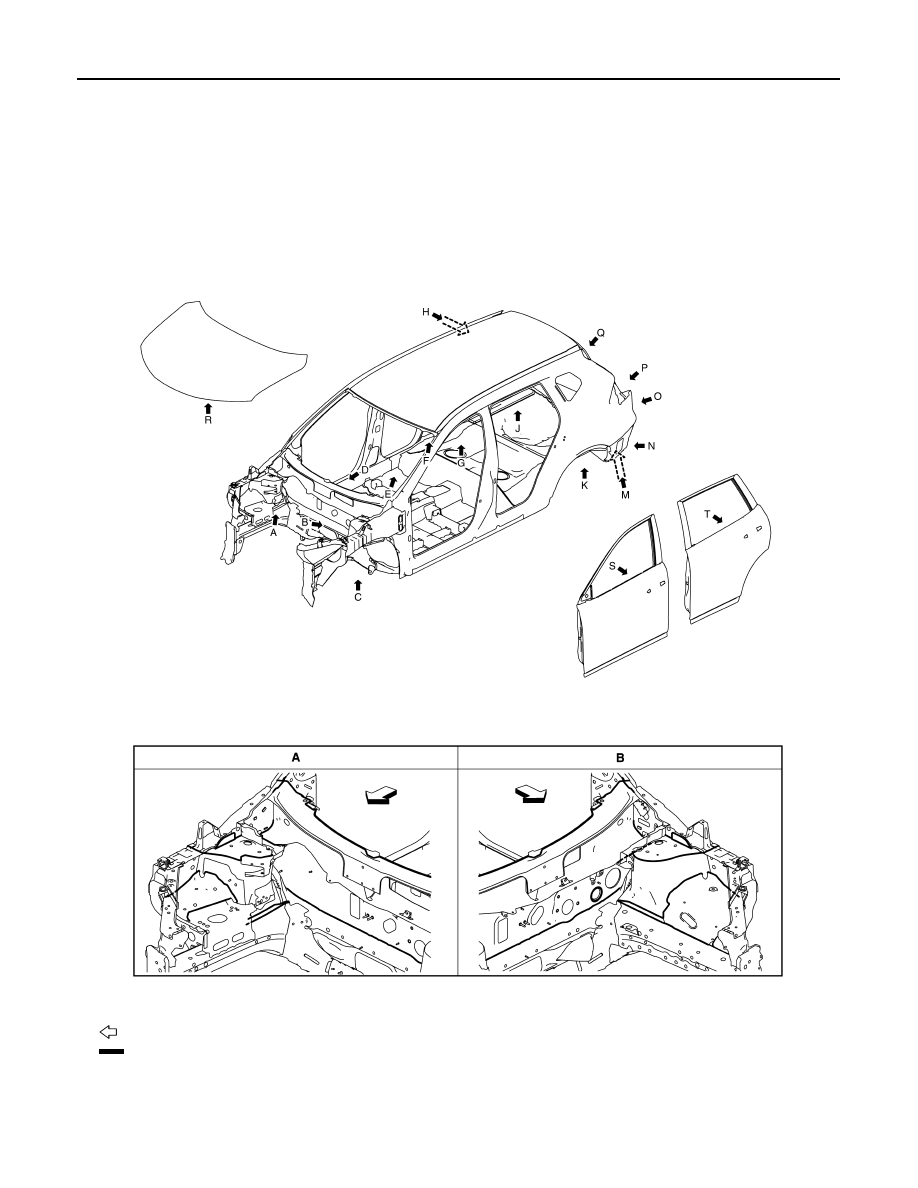

The following figure shows the areas that are sealed at the factory. Sealant that is applied to these areas
should be smooth and free from cuts or gaps. Care should be taken not to apply an excess amount of sealant
and not to allow other unaffected parts to come into contact with the sealant.

: Vehicle front

: Sealed portions

JSKIA4735ZZ
