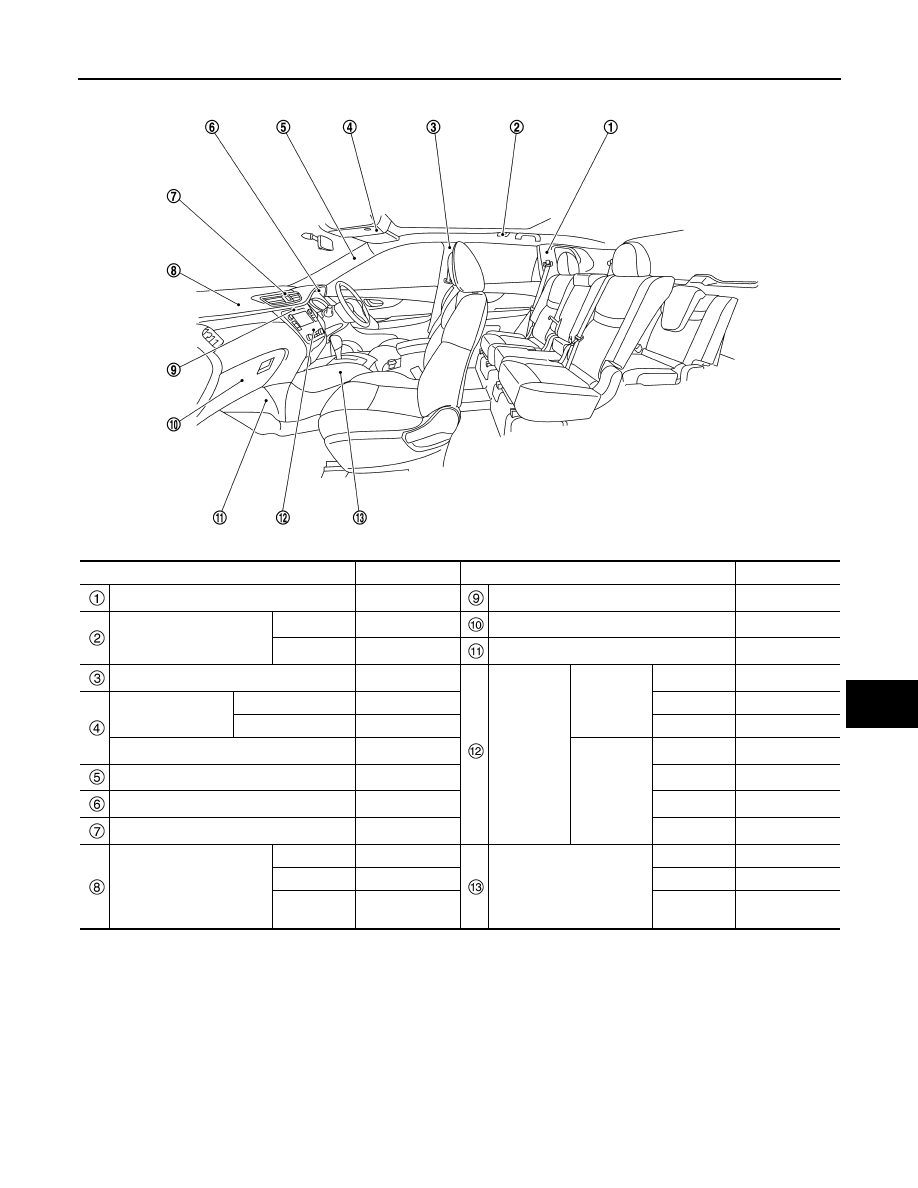

LOCATION OF PLASTIC PARTS

BRM-161

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Component

Material

Component

Material

Side luggage finisher

PP

Cluster lid C

PC + ABS

Personal lamp

Lens

PC

Glove box

PP

Housing

PP

Lower side panel

PP + EPM

Center pillar garnish

PP

Finisher

PC + ABS

Map lamp

Switch finisher

PP

Manual A/C

Switch

PC

Console

PP

Case

ABS

Lid box

PC + ABS

A/C Control

Finisher

PC + ABS

Front pillar garnish

PP

Automatic
A/C

Switch

PC

Cluster lid A

PP

Case

PC + ABS

Center ventilator grille

PC + ABS

Lens

PC

Instrument panel

Skin

TPO

Center console

Body

PP

Pad

PUR

Console box

PP

Core

PP + EPDM

A/T console
finisher

PC + ABS

JSKIA3819ZZ

BRM-162

< VEHICLE INFORMATION >

[FOR RUSSIA]

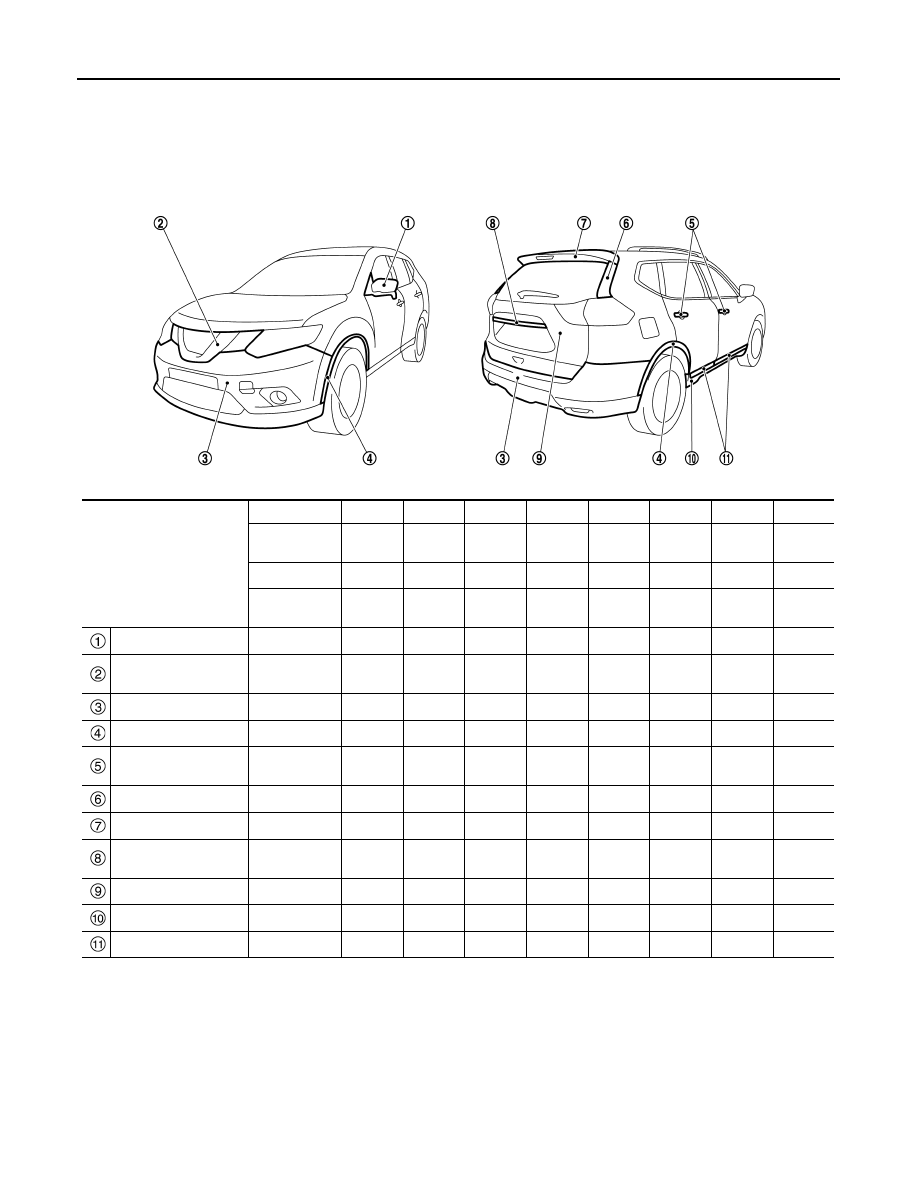

BODY EXTERIOR PAINT COLOR

VEHICLE INFORMATION

BODY EXTERIOR PAINT COLOR

Body Exterior Paint Color

INFOID:0000000010843595

NOTE:

• 2M: 2-Coat Metallic

• 2P: 2-Coat pearl

• 2S: 2-Coat solid

• 3P: 3-Coat pearl

• 2PM: 2-Coat Pearl metallic

Component

Color code

BAX6

BEAN

BEAR

BG41

BK23

BKAD

BQAB

BRAQ

Description

Red

Dark Ol-

ive

Orange

Black

Silver

Gray

White

Dark

Blue

Paint type

 note

2S

2PM

2PM

2P

2M

2M

3P

2M

Hard clear
coat

×

×

×

×

–

–

–

×

Door mirror cover

Body color

BAX6

BEAN

BEAR

BG41

BK23

BKAD

BQAB

BRAQ

Front grille

Chromium
plate

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Bumper fascia

Body color

BAX6

BEAN

BEAR

BG41

BK23

BKAD

BQAB

BRAQ

Fillet  molding

Material  color

–

–

–

–

–

–

–

–

Door outside handle

Chromium
plate

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Rear spoiler (Side)

Black

G01

G01

G01

G01

G01

G01

G01

G01

Rear spoiler (Upper)

Body color

BAX6

BEAN

BEAR

BG41

BK23

BKAD

BQAB

BRAQ

Back door finisher

Chromium
plate

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Back door

Body color

BAX6

BEAN

BEAR

BG41

BK23

BKAD

BQAB

BRAQ

Sill  cover

Material  color

–

–

–

–

–

–

–

–

Side  guard  molding

Material  color

–

–

–

–

–

–

–

–

JSKIA4358ZZ

PRECAUTIONS

BRM-163

< PRECAUTION >

[FOR RUSSIA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

PRECAUTION

PRECAUTIONS

Precautions for Removing Battery Terminal

INFOID:0000000010843596

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

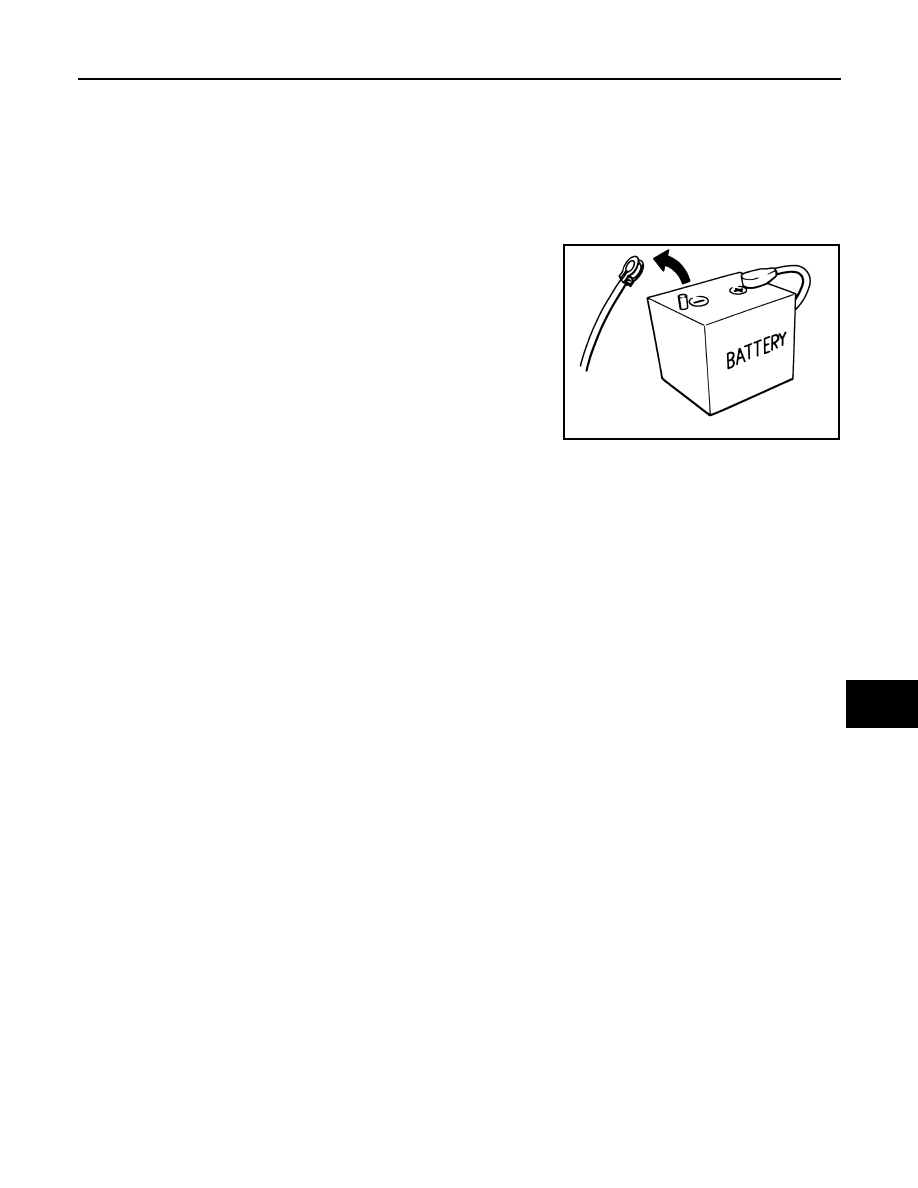

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

1.

Open the hood.

2.

Turn key switch to the OFF position with the driver side door opened.

3.

Get out of the vehicle and close the driver side door.

4.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

5.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

1.

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

SEF289H

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

BRM-164

< PRECAUTION >

[FOR RUSSIA]

PRECAUTIONS

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.
