BODY ALIGNMENT

BRM-157

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

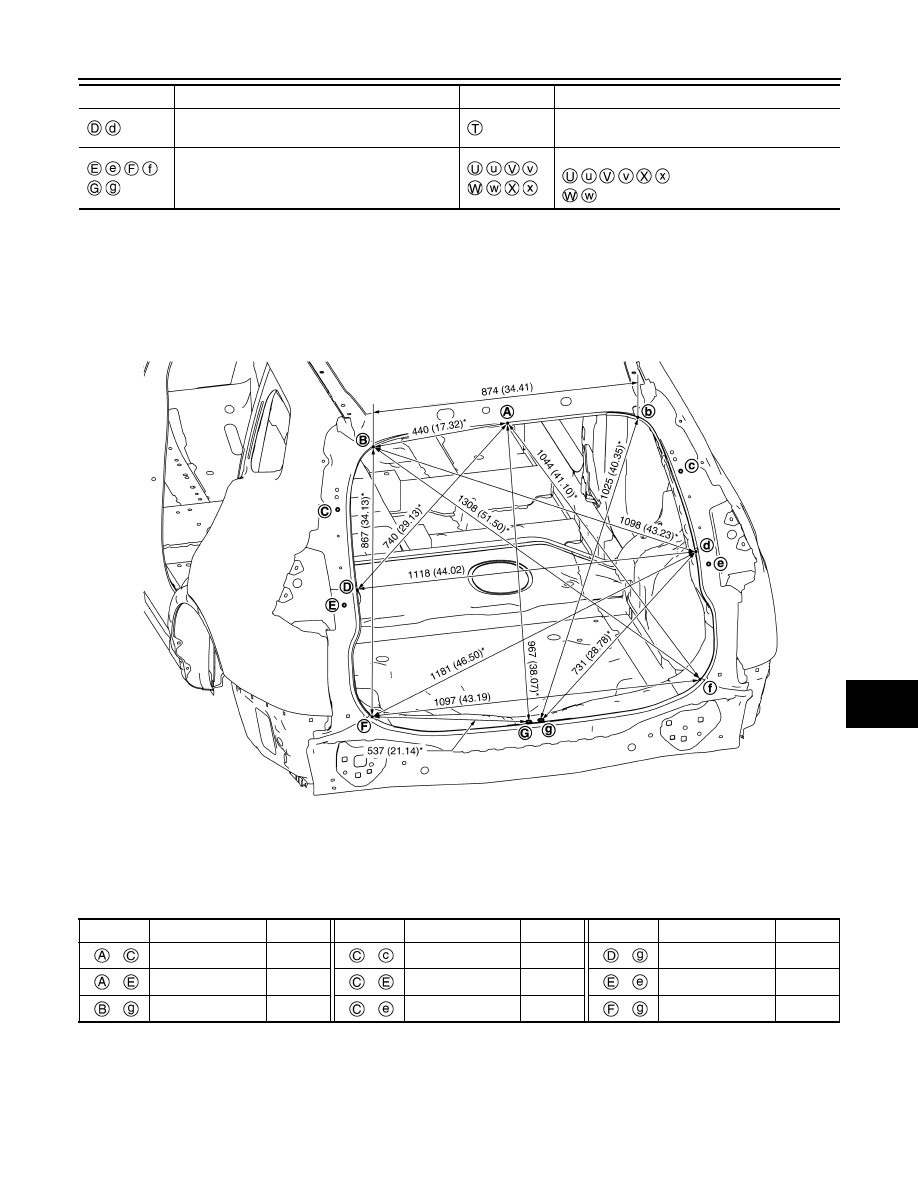

Rear Body

INFOID:0000000010843526

MEASUREMENT

Dimensions marked with

″

*

″

 indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

«The others»

Unit: mm (in)

MEASUREMENT POINTS



Outer side body indent

Rear seat crossmember positioning mark of cen-
ter positioning mark











Front pillar indent















Door hinge installing hole center











:

φ

12 (0.47)

 :

φ

9 (0.35)

Point

Material

Point

Material

Unit: mm (in)

JSKIA4428GB

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

 –

612 (24.09)*

 –

1131 (44.53)

 –

762 (30.00)*

 –

797 (31.38)*

 –

323 (12.72)*

 –

1202 (47.32)

 –

1042 (41.02)*

 –

1210 (47.64)*

 –

578 (22.76)*

BRM-158

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR EUROPE (RHD)]

BODY ALIGNMENT

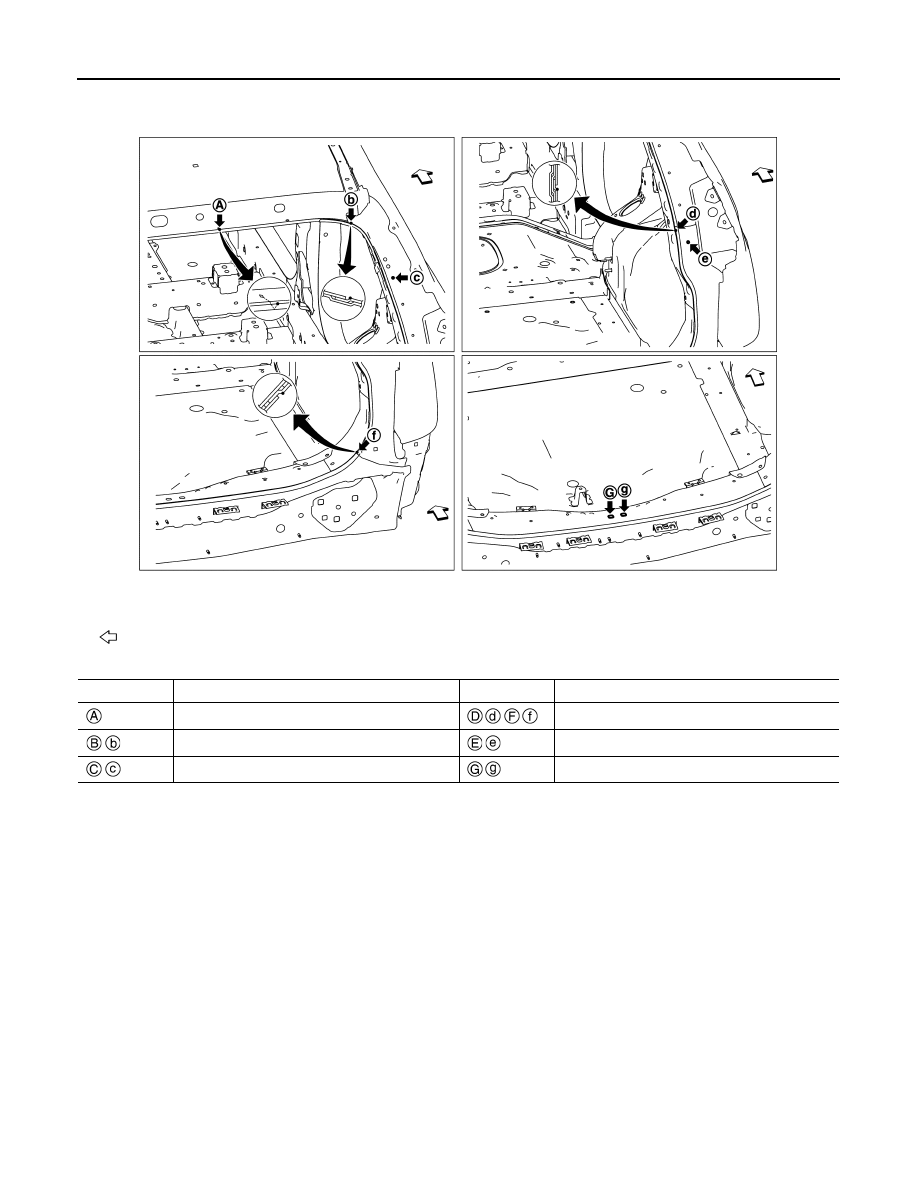

Unit: mm (in)

: Vehicle front

JSKIA4429ZZ

Point

Material

Point

Material

Roof flange end of center positioning mark







Lower back pillar main joggle



Center back pillar main joggle



Lower back pillar main hole center

φ

7 (0.28)



Center back pillar main hole center

φ

7 (0.28)



Back door striker installing hole center

LOCATION OF PLASTIC PARTS

BRM-159

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

LOCATION OF PLASTIC PARTS

Precautions for Plastics

INFOID:0000000010843527

CAUTION:

• When repairing and painting a portion of the body adjacent to plastic parts, consider their characteristics (influence of heat

and solvent) and remove them if necessary or take suitable measures to protect them.

• Plastic parts should be repaired and painted using methods suiting the materials

,

 characteristics.

Abbre-

viation

Material name

Heat resisting

temperature

°

C (

°

F)

Resistance to gasoline and

solvents

Other cautions

PE

Polyethylene

60 (140)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Flammable

ABS

Acrylonitrile Butadiene Styrene

80 (176)

Avoid gasoline and solvents.

—

AES

Acrylonitrile Ethylene Styrene

80 (176)

↑

—

EPM/
EPDM

Ethylene Propylene (Diene) co-
polymer

80 (176)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Flammable

PS

Polystyrene

80 (176)

Avoid solvents.

Flammable

PVC

Poly Vinyl Chloride

80 (176)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Poisonous gas is emitted
when burned.

TPO

Thermoplastic Olefine

80 (176)

↑

Flammable

AAS

Acrylonitrile Acrylic Styrene

85 (185)

Avoid gasoline and solvents.

—

PMMA

Poly Methyl Methacrylate

85 (185)

↑

—

EVAC

Ethylene Vinyl Acetate

90 (194)

↑

—

PP

Polypropylene

90 (194)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Flammable, avoid bat-
tery acid.

PUR

Polyurethane

90 (194)

Avoid gasoline and solvents.

—

UP

Unsaturated Polyester

90 (194)

↑

Flammable

ASA

Acrylonitrile Styrene Acrylate

100 (212)

↑

Flammable

PPE

Poly Phenylene Ether

110 (230)

↑

—

TPU

Thermoplastic Urethane

110 (230)

↑

—

PBT+
PC

Poly Butylene Terephthalate +
Polycarbonate

120 (248)

↑

Flammable

PC

Polycarbonate

120 (248)

↑

—

POM

Poly Oxymethylene

120 (248)

↑

Avoid battery acid.

PA

Polyamide

140 (284)

↑

Avoid immersing in wa-
ter.

PBT

Poly Butylene Terephthalate

140 (284)

↑

—

PAR

Polyarylate

180 (356)

↑

—

PET

Polyethylene terephthalate

180 (356)

↑

—

PEI

Polyetherimide

200 (392)

↑

—

BRM-160

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR EUROPE (RHD)]

LOCATION OF PLASTIC PARTS

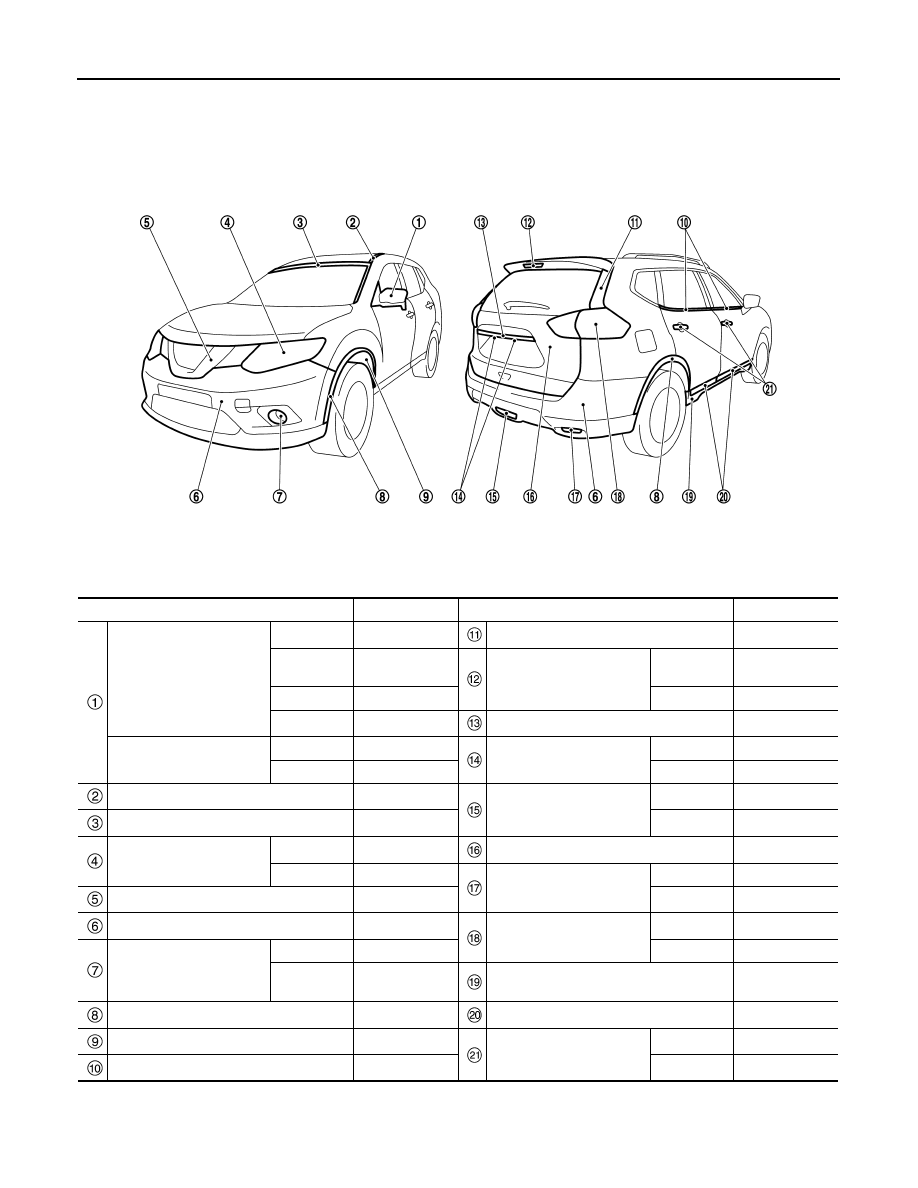

Location of Plastic Parts

INFOID:0000000010843528

Component

Material

Component

Material

Door mirror

Cover

ABS

Rear spoiler

PC + ABS

Base

PBT + PET +

Glass fiber

High mount stop lamp

Lens

PMMA

Case

ASA

Housing

ABS

Finisher

ASA

Back door finisher

ABS

Side turn signal lamp

Lens

PMMA

License plate lamp

Lens

PC

Housing

ABS

Housing

PC

Side roof molding

PVC + Stainless

Rear fog lamp

Lens

PC

Wind shield molding

PVC

Housing

PC

Front combination lamp

Lens

PC

Back door

PP

Housing

PP

Reflex reflector

Lens

PMMA

Front grille

ABS

Housing

ABS

Bumper fascia

PP + EPM

Rear combination lamp

Lens

PMMA

Front fog lamp

Lens

Glass

Housing

ASA

Housing

PBT + ASA +

Glass fiber

Sill cover

PP

Fillet molding

PP

Side guard molding

PP

Front fender protector

PP

Door outside handle

Grip cover

PC + PET

Door outside molding

PVC + Stainless

Grip body

PC + ABS

JSKIA4713ZZ
