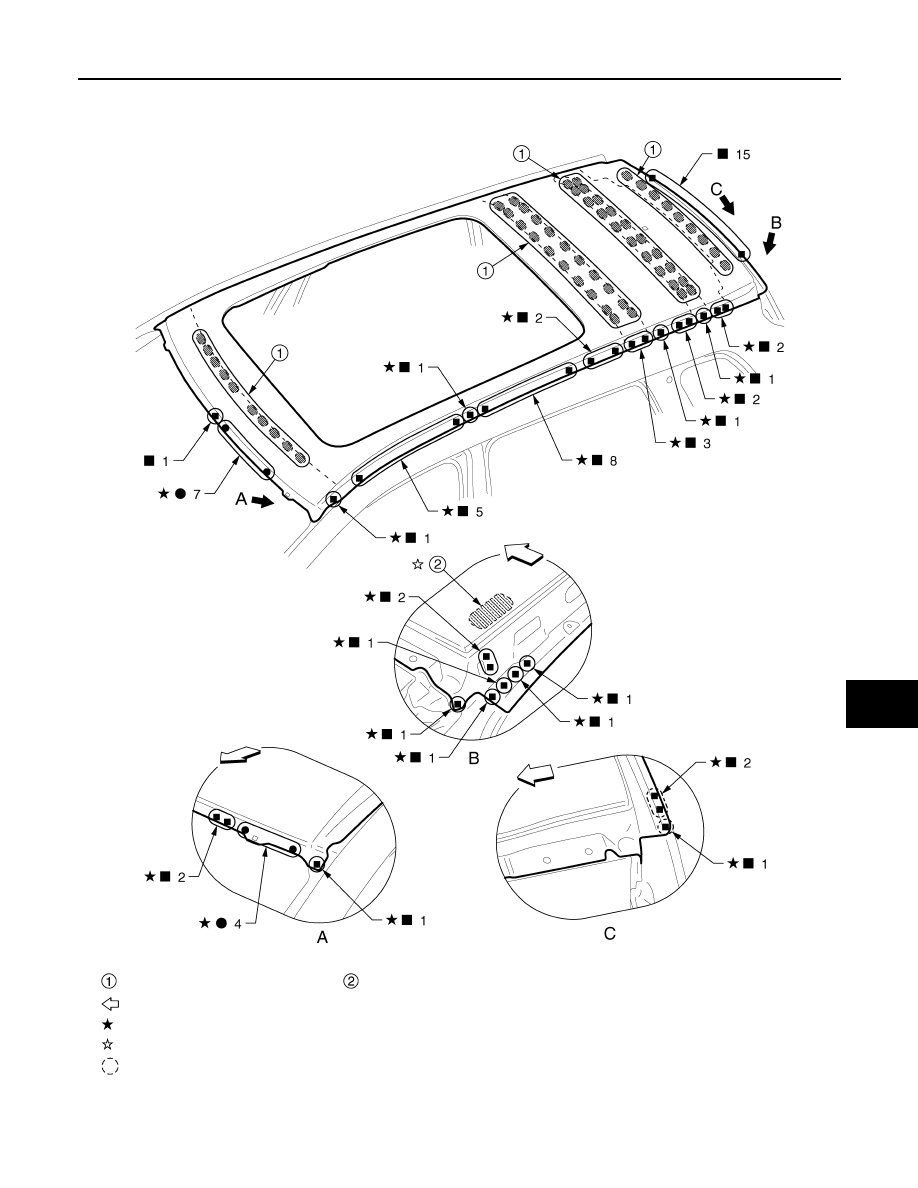

Roof (Sunroof Models)

INFOID:0000000011005443

Body sealing

adhesive

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

: Adhesive portion apply to both side of the vehicle.

: Weld the parts onto the back of the component part.

Replacement part

z

Roof

z

Roof bow No.4

z

Roof bow No.5

JSKIA4935ZZ

BRM-146

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

REPLACEMENT OPERATIONS

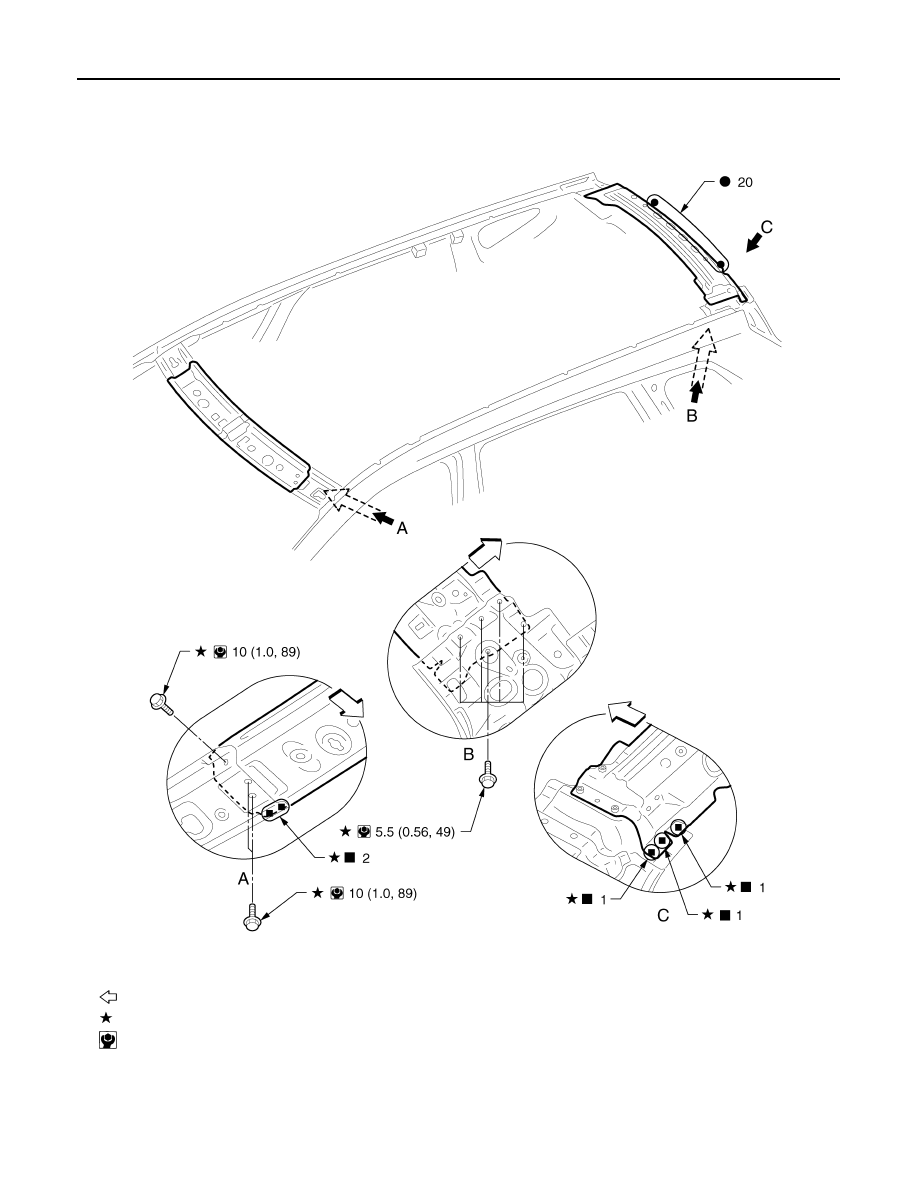

Roof Rail

INFOID:0000000011005444

Work after roof is removed.

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

: N·m (kg-m, in-lb)

Replacement part

z

Front roof rail

z

Rear roof rail

JSKIA4936GB

BODY ALIGNMENT

BRM-147

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

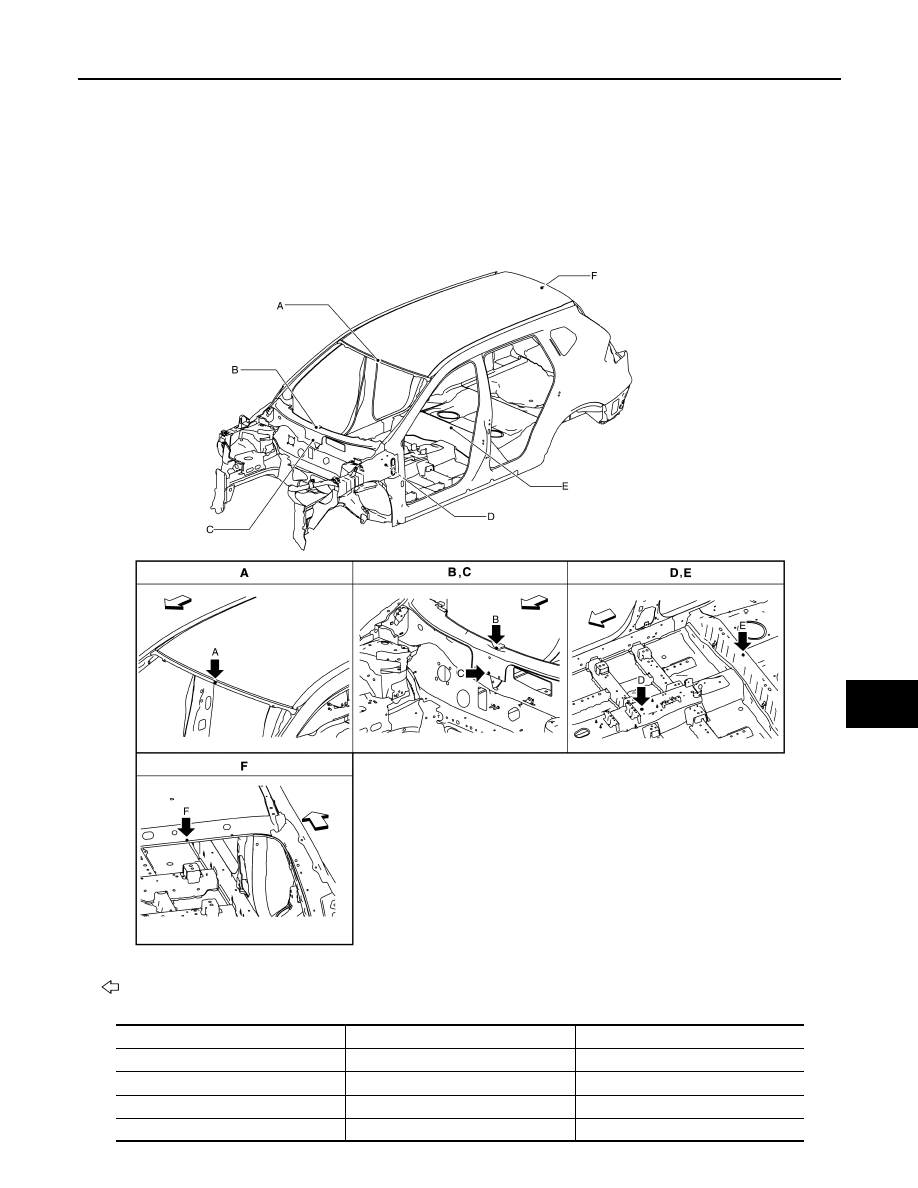

Body Center Marks

INFOID:0000000010843518

A mark is placed on each part of the body to indicate the vehicle center. When repairing the vehicle frame
(members, pillars, etc.) damaged by an accident which it enables more accurate and effective repair by using
these marks together with body alignment specifications.

Unit: mm (in)

: Vehicle front

Points

Portion

Marks

A

Front roof

Embossment

B

Cowl top

Indent

C

Cowl top

Hole

φ

8 (0.31)

D

Trans control reinforcement

Hole 14

×

12 (0.55

×

0.47)

JSKIA4722ZZ

BRM-148

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR EUROPE (RHD)]

BODY ALIGNMENT

Description

INFOID:0000000010843520

• All dimensions indicated in the figures are actual.
• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself

to make sure there is no free play.

• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
• Measurements should be taken at the center of the mounting holes.
• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side

is symmetrically the same value.

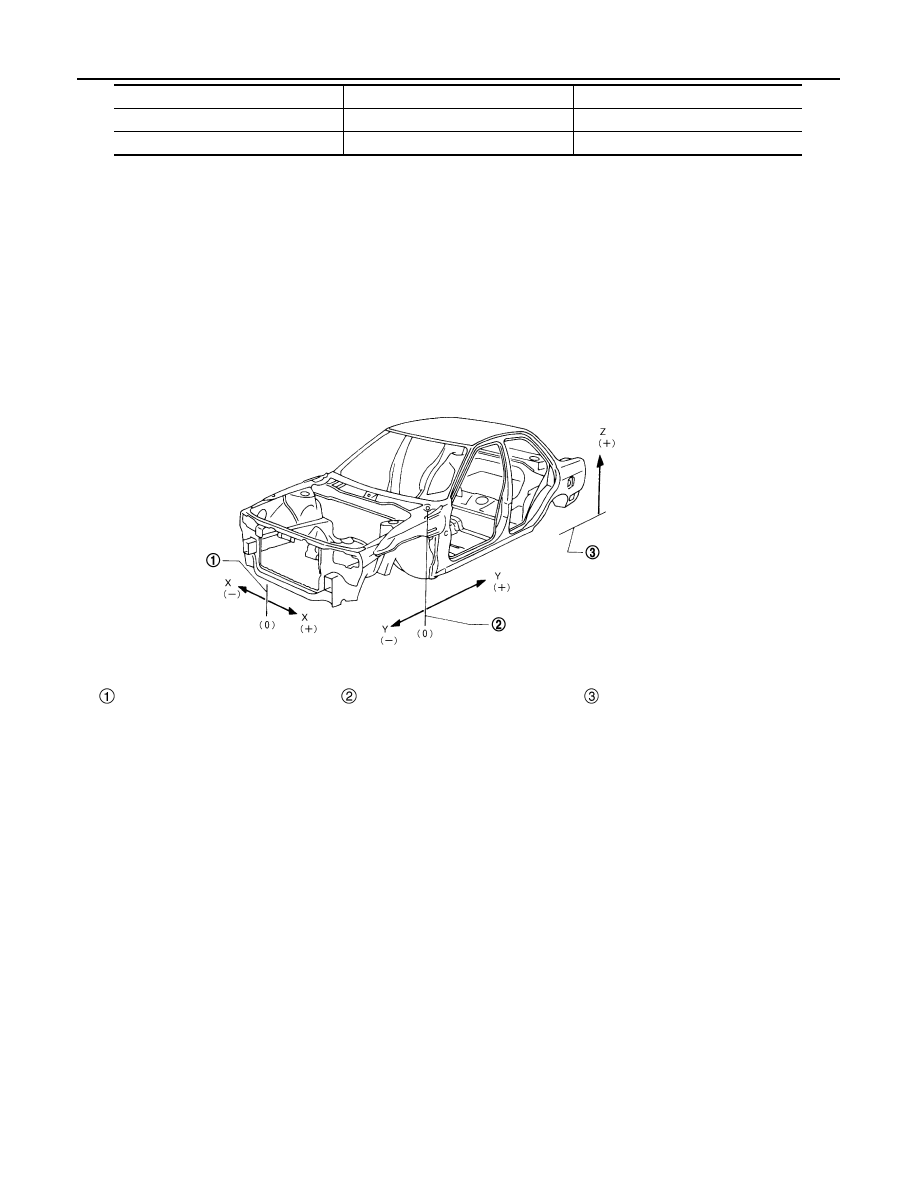

• The coordinates of the measurement points are the distances measured from the standard line of

″

X

″

,

″

Y

″

and

″

Z

″

.

•

″

Z

″

: Imaginary base line [200 mm (7.87 in) below datum line (

″

0Z

″

 at design plan)]

Engine Compartment

INFOID:0000000010843521

MEASUREMENT

Dimensions marked with

″

*

″

 indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

E

Rear seat crossmember

Embossment

F

Rear roof

Embossment

Points

Portion

Marks

Vehicle center

Front axle center

Imaginary base line

JSKIA0073GB
