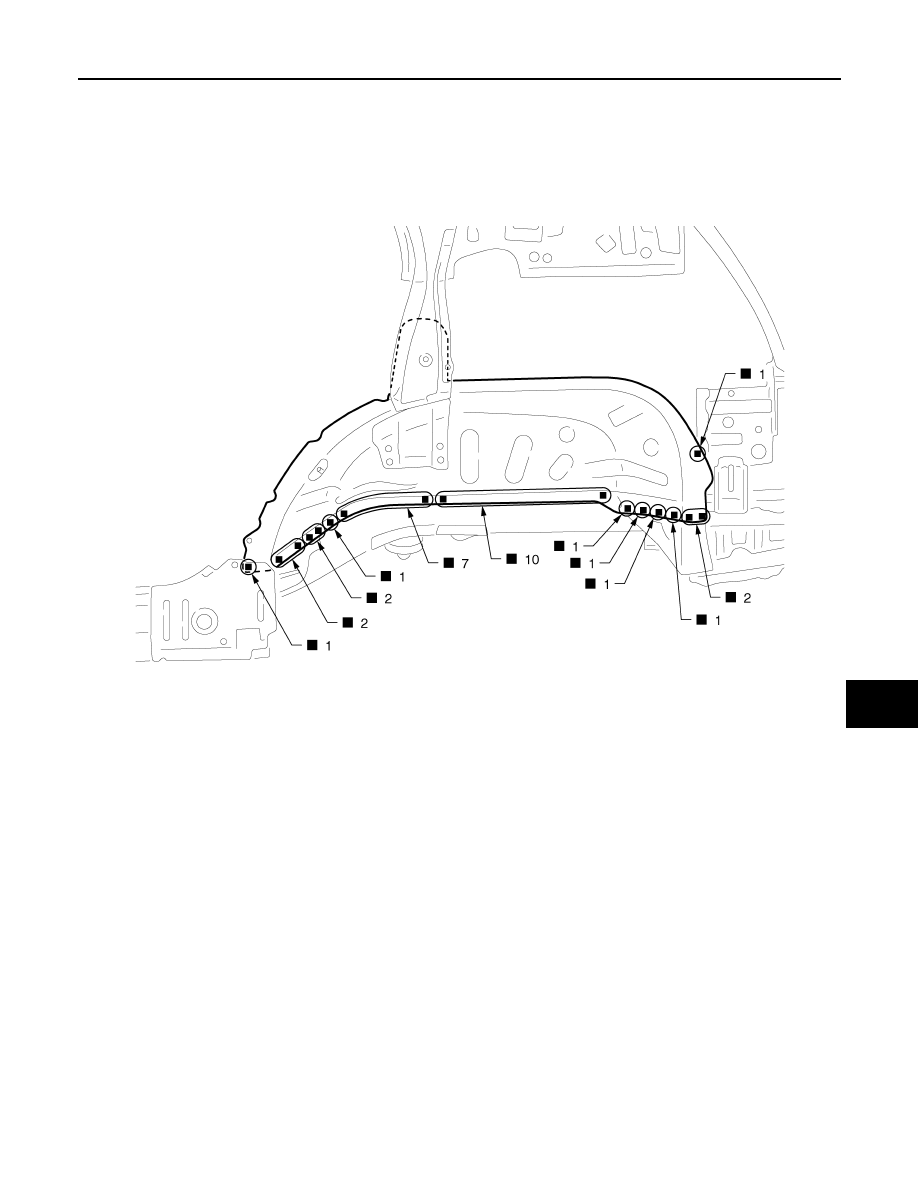

Inner Rear Pillar Reinforcement

INFOID:0000000011005440

Work after rear fender is removed.

Replacement part

z

Inner rear wheelhouse

JSKIA4932ZZ

BRM-138

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

REPLACEMENT OPERATIONS

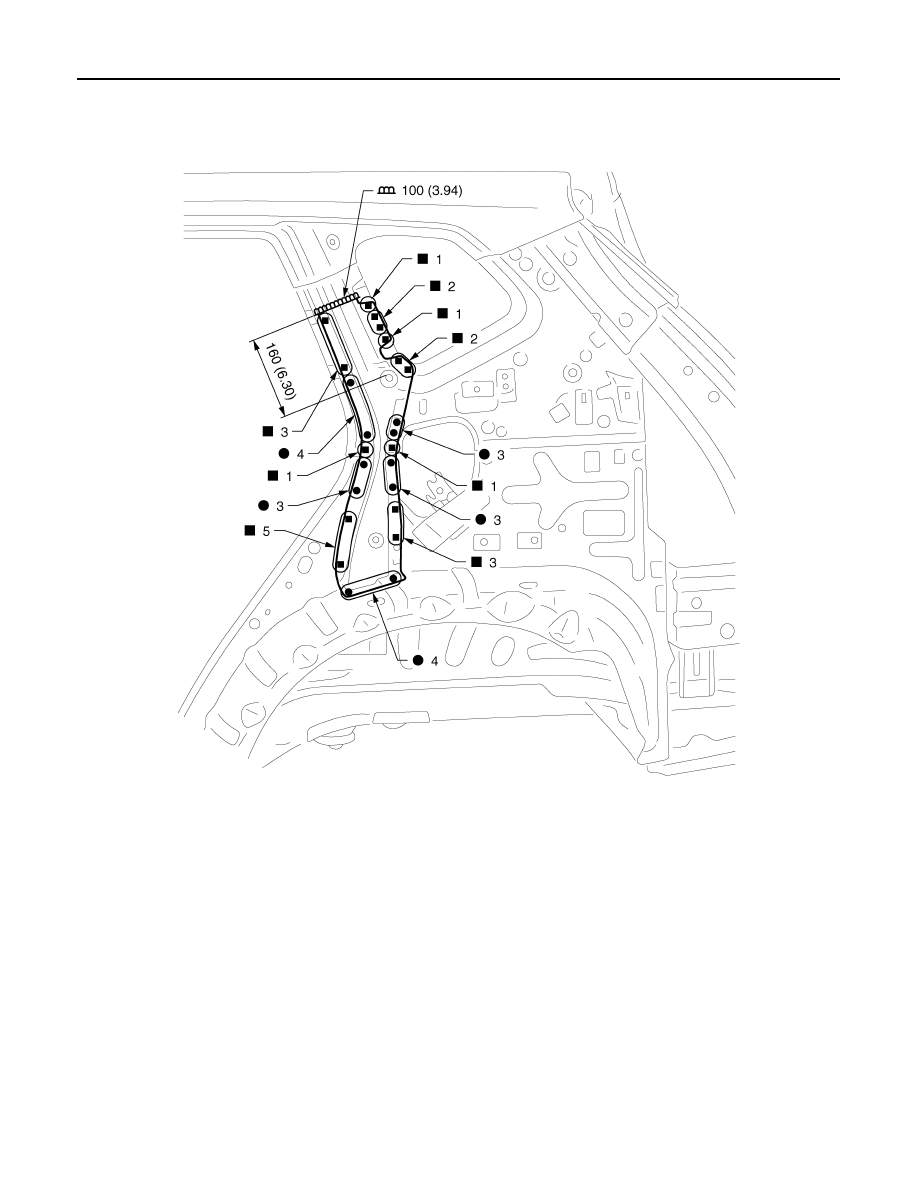

Inner Rear Pillar

INFOID:0000000011005441

Work after rear fender is removed.

Unit: mm (in)

Replacement part

z

Upper rear pillar reinforcement

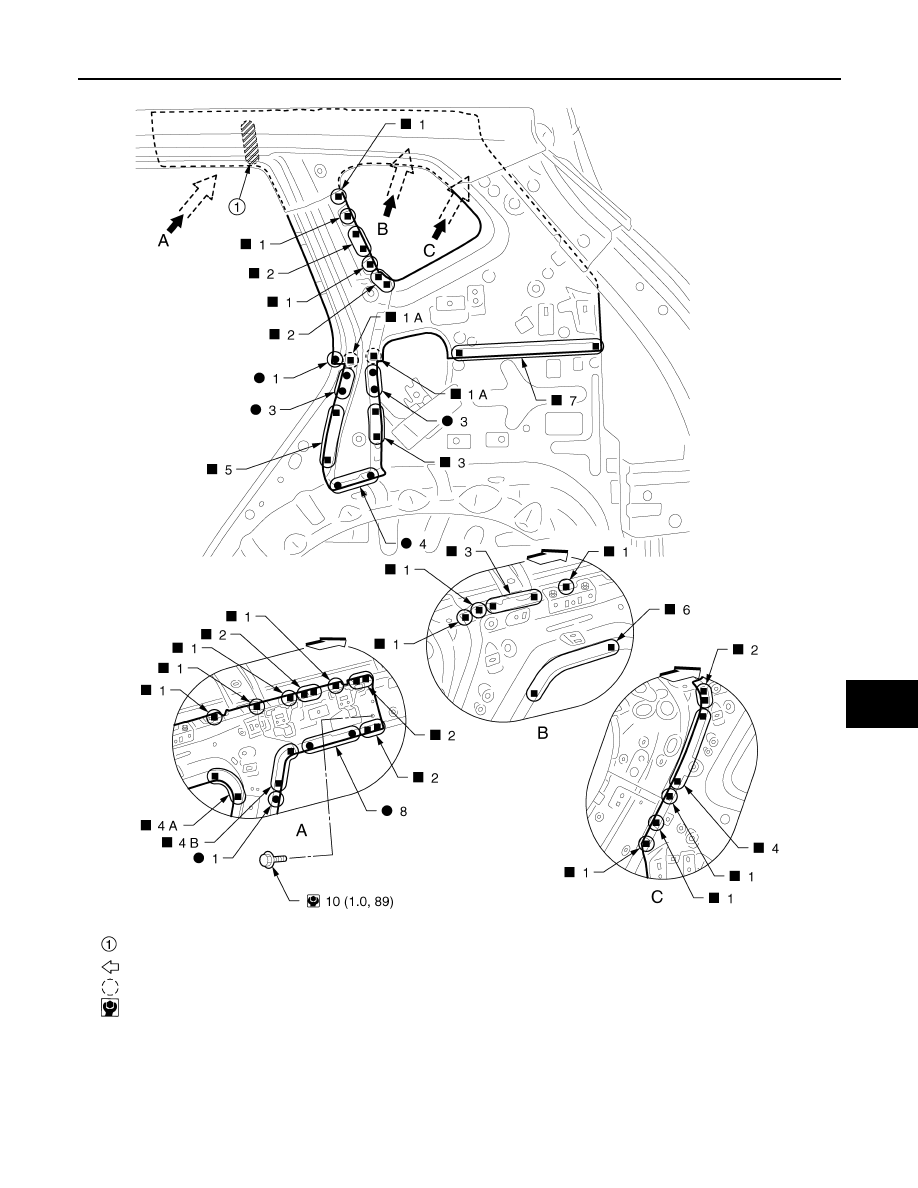

JSKIA4933GB

REPLACEMENT OPERATIONS

BRM-139

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Urethane foam

: Vehicle front

: Weld the parts onto the back of the component part.

: N·m (kg-m, in-lb)

Replacement part

z

Inner rear pillar

z

Upper rear pillar reinforcement

JSKIA4934GB

BRM-140

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

REPLACEMENT OPERATIONS

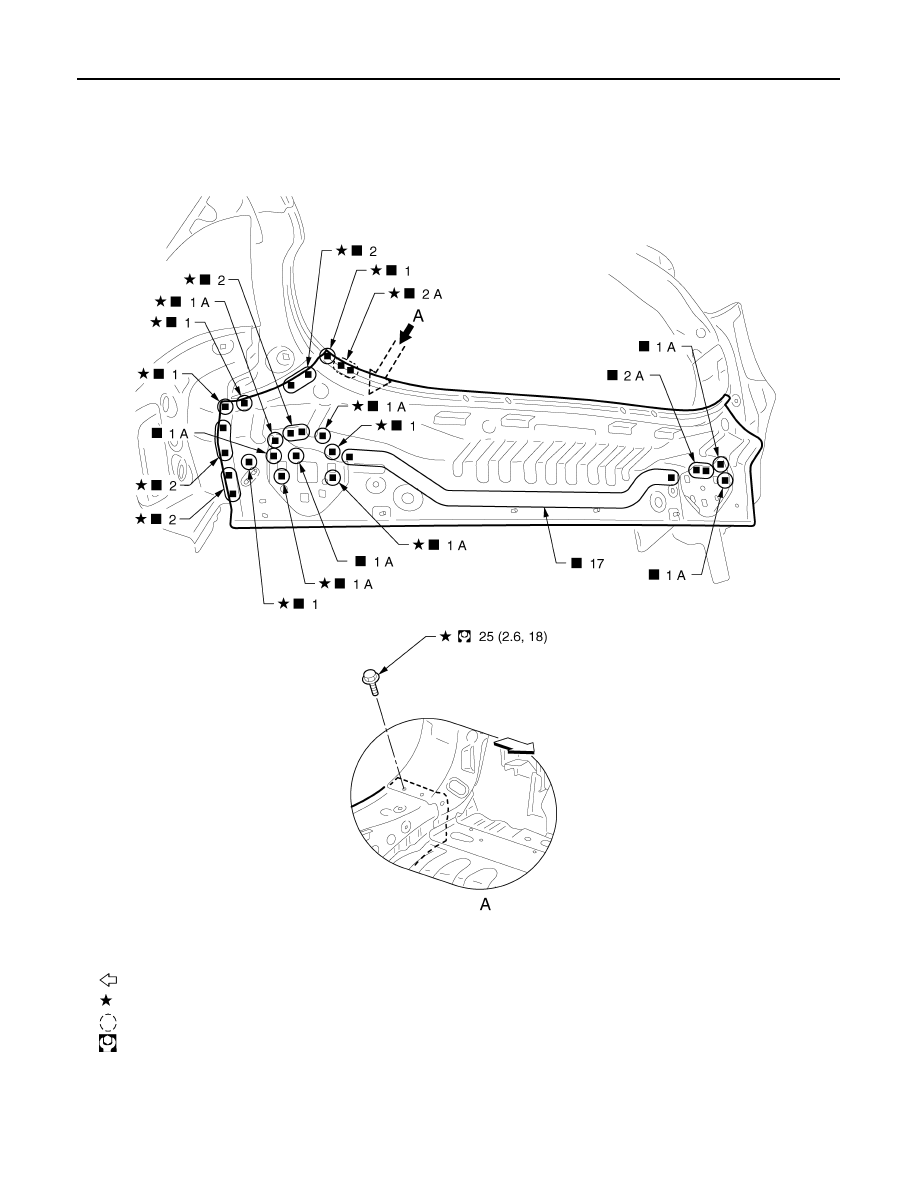

Rear Panel

INFOID:0000000010843514

: Vehicle front

: Welding method, the number of welding points, and the tightening torque apply to both side of the vehicle.

: Weld the parts onto the back of the component part.

: N·m (kg-m, ft-lb)

Replacement part

z

Upper rear panel

JSKIA4614GB
