CORROSION PROTECTION

BRM-101

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Body Sealing

INFOID:0000000010843499

The following figure shows the areas that are sealed at the factory. Sealant that is applied to these areas
should be smooth and free from cuts or gaps. Care should be taken not to apply an excess amount of sealant
and not to allow other unaffected parts to come into contact with the sealant.

: Undercoated areas

: Sealed portions

JSKIA4717ZZ

BRM-102

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

CORROSION PROTECTION

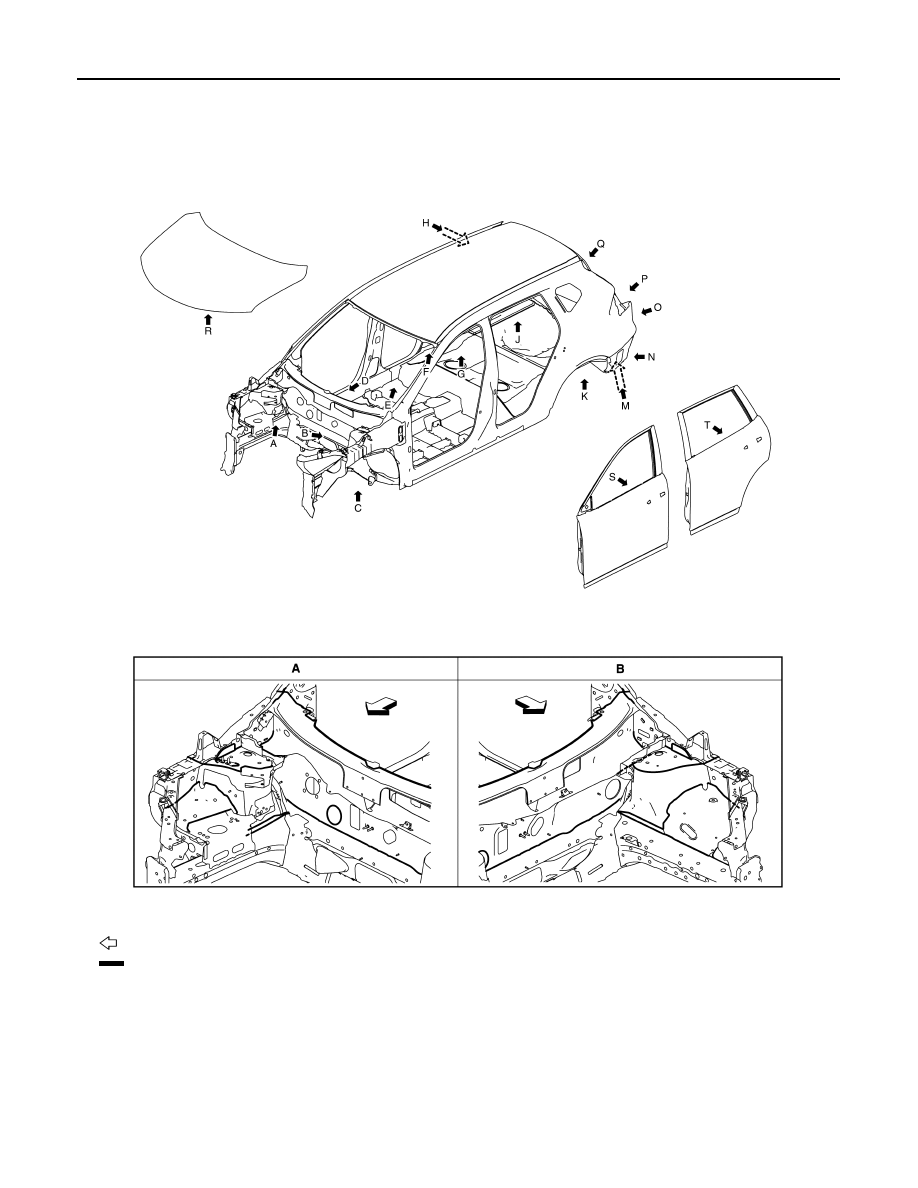

: Vehicle front

: Sealed portions

JSKIA4718ZZ

CORROSION PROTECTION

BRM-103

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

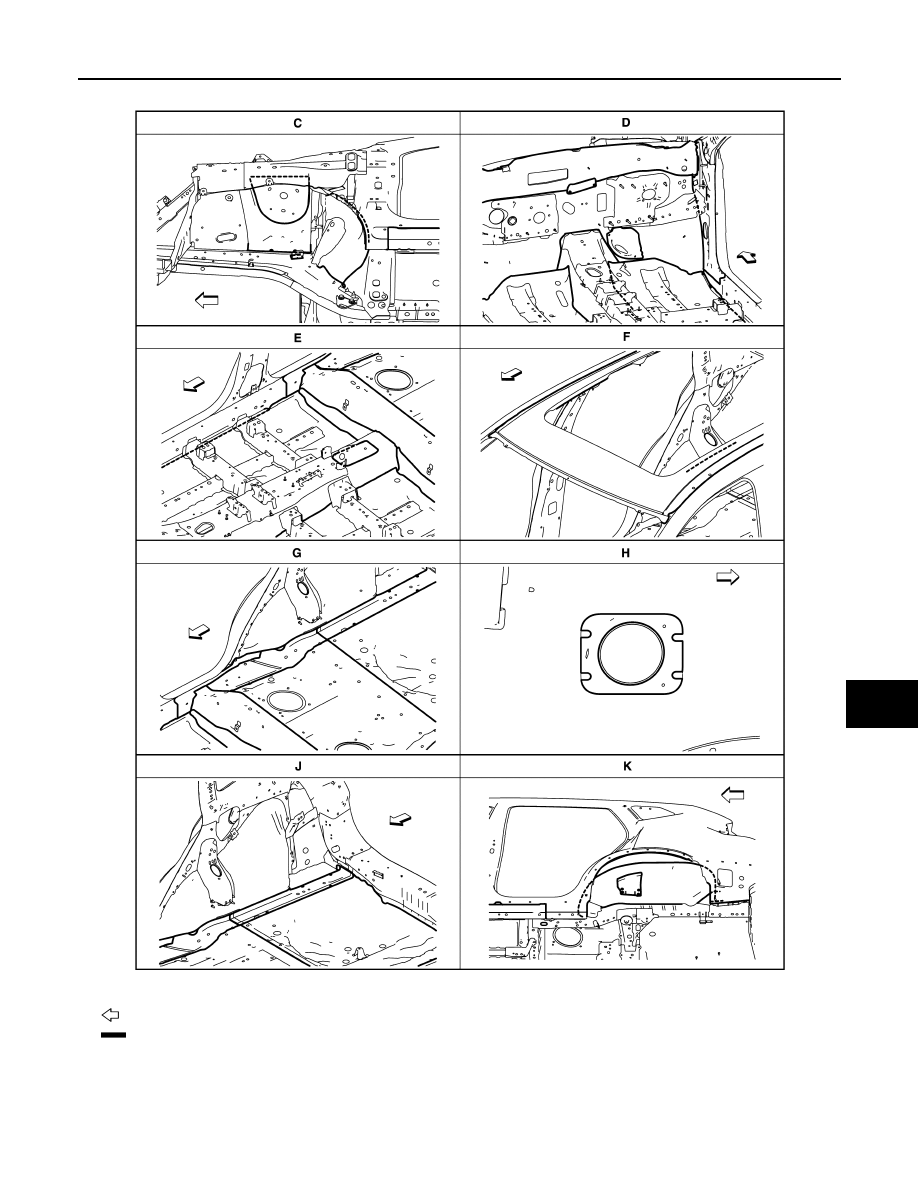

: Vehicle front

: Sealed portions

JSKIA4719ZZ

BRM-104

< REMOVAL AND INSTALLATION >

[FOR EUROPE (RHD)]

CORROSION PROTECTION

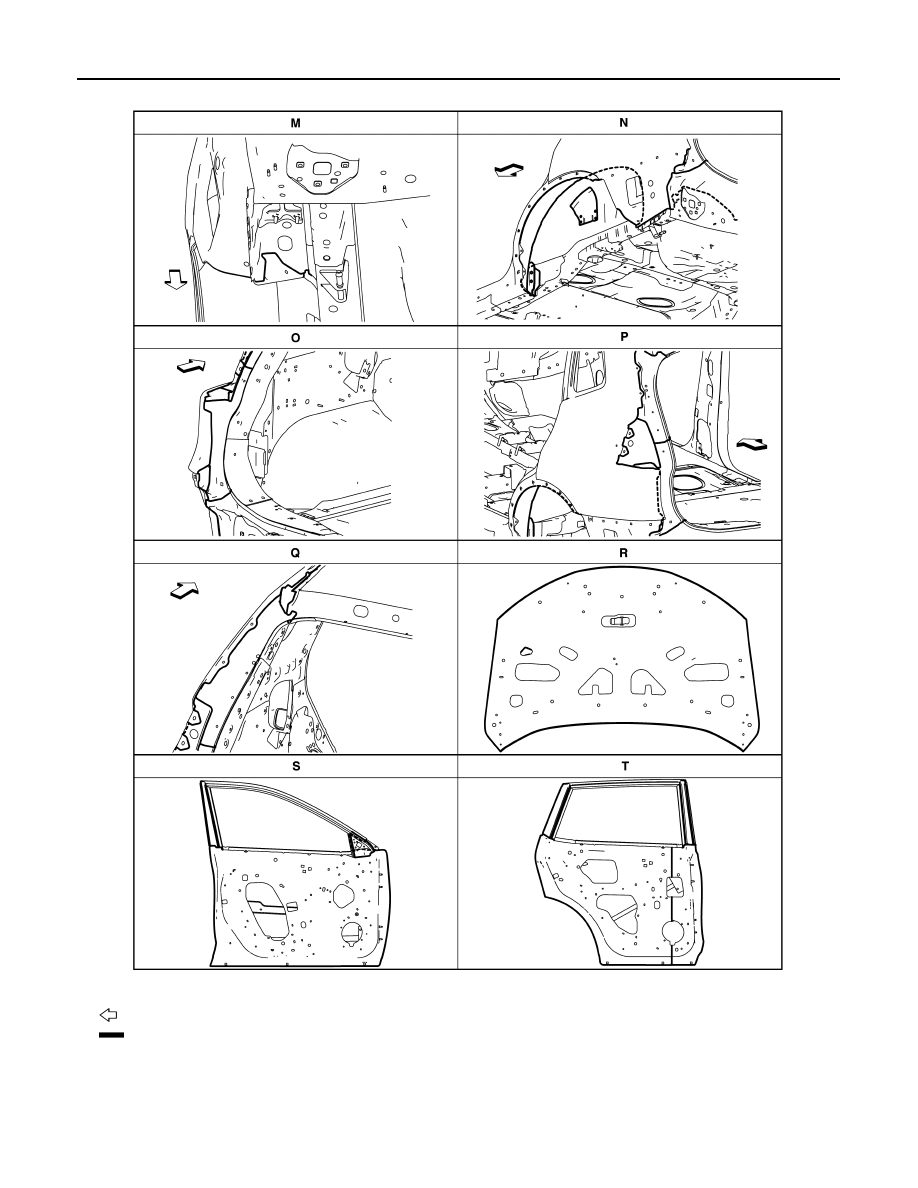

: Vehicle front

: Sealed portions

JSKIA4441ZZ
