BODY COMPONENT PARTS

BRM-93

< PREPARATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

BODY COMPONENT PARTS

Ultra High Strength Steel Part

INFOID:0000000010843493

DESCRIPTION

Ultra high strength steel parts signify high strength steel plates with tensile strength of 980 MPa or more.
When replacing parts made of ultra high strength steel or parts including ultra high strength steel, never per-
form the prohibition described below:

PROHIBITION

WARNING:

Never cut ultra high strength steel parts or perform butt welding. Violation of this prohibition causes
extreme strength degradation, and the strength before damage cannot be secured.

PART REPLACEMENT

To replace an ultra high strength part, be sure to replace it by panel supply unit of ultra high strength steel part.
For the welding method, refer to

BRM-108, "Welding of Ultra High Strength Steel"

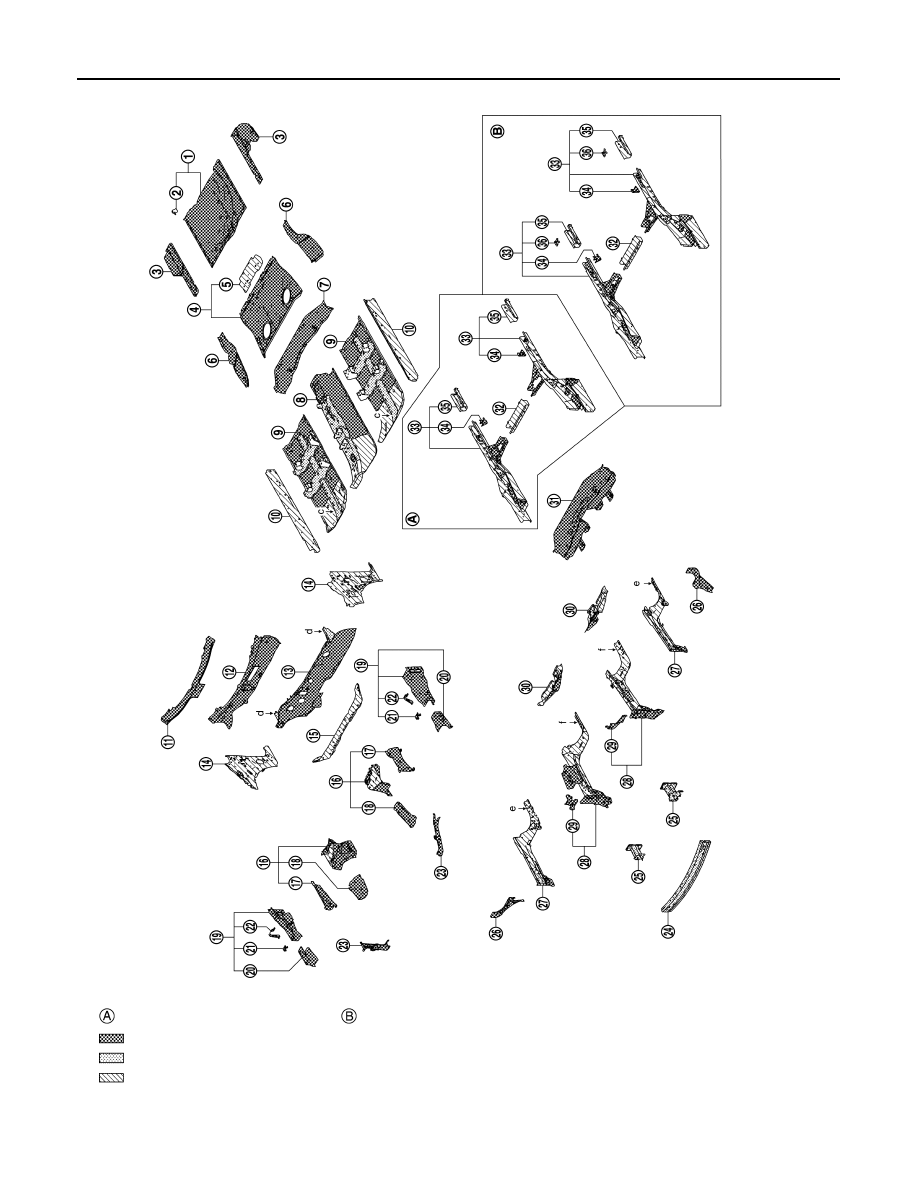

Underbody Component Parts

INFOID:0000000010843494

Refer to parts catalogue for the replacement parts.

BRM-94

< PREPARATION >

[FOR EUROPE (RHD)]

BODY COMPONENT PARTS

SUV models

Wagon models

: Both sided anti-corrosive precoated steel sections

: High strength steel (HSS) sections

: Both sided anti-corrosive steel and HSS sections

JSKIA4715ZZ

BODY COMPONENT PARTS

BRM-95

< PREPARATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

Rear floor rear

Under 440

×

Spare tire clamp bracket

Under 440

—

Rear floor side assembly (RH & LH)

Under 440

×

Rear floor front

Under 440

—

Rear floor board reinforcement

590

×

Rear floor front extension (Upper RH & LH)

Under 440

×

Rear seat crossmember assembly

590

×

Center front floor

780

×

Front floor (RH & LH)

c.

980MPa

caution

T=1.8 mm (0.071 in)

590

×

Inside (RH only)

980MPa

caution

T=2.0 mm (0.079 in)

Inner sill (RH & LH)

980MPa

caution

T=1.4 mm (0.055 in)

590

×

Cowl top

Under 440

×

Upper dash assembly

Under 440

×

Lower dash complete

d.

980MPa

caution

T=1.4 mm (0.055 in)

590

×

Side dash (RH & LH)

590

×

Lower dash crossmember

980MPa

caution

T=2.0 mm (0.079 in)

440

×

Front strut housing assembly (RH & LH)

590

×

Upper hoodledge (RH & LH)

Under 440

×

Lower hoodledge (RH & LH)

Under 440

×

Hoodledge reinforcement (RH & LH)

Under 440

×

Front hoodledge reinforcement (RH & LH)

Under 440

×

Upper front fender bracket (RH & LH)

Under 440

×

Front fender bracket (RH & LH)

Under 440

×

Upper radiator core support assembly (RH & LH)

Under 440

×

Front bumper armature assembly

1500MPa

caution

T=1.0 mm (0.039 in)

—

—

Front bumper stay (RH & LH)

590

—

Hoodledge connector assembly (RH & LH)

Under 440

×

Front side member closing plate (RH & LH)

e.

980MPa

caution

T=2.0 mm (0.079 in)

590

×

Front side member assembly (RH & LH)

f.

980MPa

caution

T=2.0 mm (0.079 in)

590

×

Side radiator core support (RH & LH)

Under 440

×

Front suspension mounting bracket (RH & LH)

590

×

BRM-96

< PREPARATION >

[FOR EUROPE (RHD)]

BODY COMPONENT PARTS

CAUTION:

If the high strength steel (ultra high strength steel) of this is broken, replace by assembly for the supply part.

NOTE:

• For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.

• Tensile strength column shows the largest strength value of a part in the component part.

Body Component Parts

INFOID:0000000010860048

Refer to parts catalogue for the replacement parts.

Rear floor front extension (Lower)

Under 440

×

Rear crossmember center assembly

590

×

Rear side member (RH & LH)

590

×

Muffler mounting bracket assembly (RH & LH)

Under 440

×

Rear side member extension (RH & LH)

780

×

Rear 3rd seat mounting bracket assembly (RH & LH)

Under 440

×

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections
