PREPARATION

WW-7

< PREPARATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

PREPARATION

PREPARATION

Commercial Service Tool

INFOID:0000000010785405

Tool name

Description

Washer nozzle adjuster

Adjusting washer nozzle.
(Available in SEC. 289 of PARTS CATALOG: Part
No. 28949 1EA0A)
NOTE:
Washer nozzle adjuster is included with shipment
of nozzle.

JSLIA0149ZZ

WW-8

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

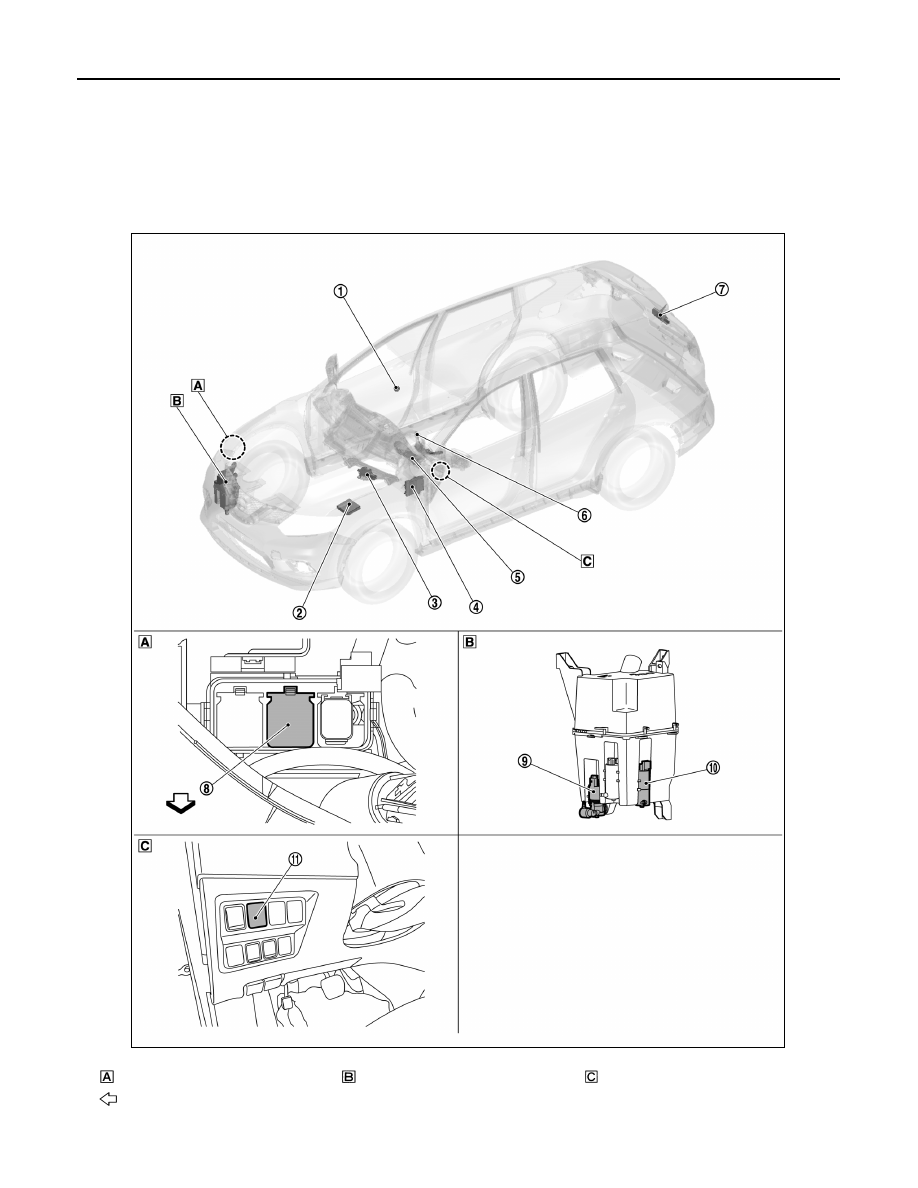

Component Parts Location

INFOID:0000000010785406

LHD MODELS

Front right side of engine room area

Washer tank

Instrument lower panel LH

: Vehicle front

JMLIA5539ZZ

COMPONENT PARTS

WW-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

*

1

: For models with light & rain sensor

*

2

: For M/T models

*

3

: Except for M/T models

*

4

: For models with headlamp washer

*

5

: For models with headlamp washer switch

RHD MODELS

No.

Component

Function

Light & rain sensor*

1

Refer to

WW-12, "Light & Rain Sensor"

.

IPDM E/R

• Controls integrated relays according to the request (via CAN communication) from BCM.

• Transmits reverse switch signal to BCM via CAN communication*

2

.

Refer to

PCS-5, "Component Parts Location"

 for detailed installation location.

Front wiper motor

Refer to

WW-11, "Front Wiper Motor"

.

BCM

• BCM receives shift position signal from TCM via CAN communication*

3

.

• Judges each switch status by the combination switch reading function.
• Requests (via CAN communication) the front wiper relay, the front wiper HI/LO relay ON and

the headlamp washer relay*

4

 to IPDM E/R.

• Supplies power to the rear wiper motor.
• Performs the auto stop control of the rear wiper.
• Refer  to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

 for detailed instal-

lation location.

Combination meter

Transmits vehicle speed signal to BCM via CAN communication.

Combination switch
(Wiper & washer switch)

• Combination switch: Transmits the status of the combination switch (wiper and washer) to BCM.
• Washer switch: Refer to

WW-12, "Washer Switch"

.

Rear wiper motor

Refer to

WW-12, "Rear Wiper Motor"

.

Headlamp washer relay*

4

Headlamp washer relay is controlled by IPDM E/R and supplies power to headlamp washer pump.

Washer pump

Refer to

WW-12, "Washer Pump"

.

Headlamp washer pump*

4

Refer to

WW-11, "Headlamp Washer Pump"

.

Headlamp washer switch*

5

Refer to

WW-11, "Headlamp Washer Switch"

.

WW-10

< SYSTEM DESCRIPTION >

COMPONENT PARTS

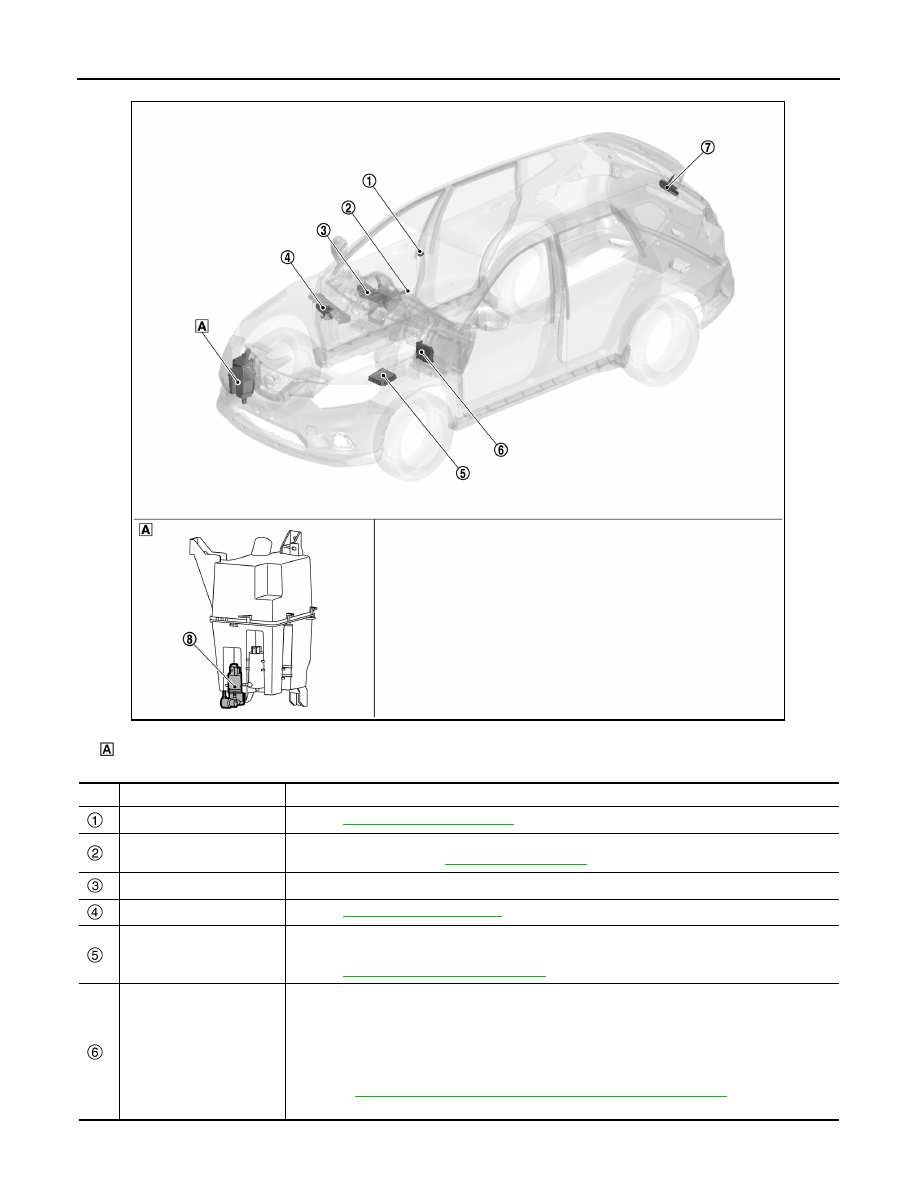

Washer tank

JMLIA5378ZZ

No.

Component

Function

Light & rain sensor*

1

Refer to

WW-12, "Light & Rain Sensor"

.

Combination switch
(Wiper & washer switch)

• Combination switch: Transmits the status of the combination switch (wiper and washer) to BCM.
• Washer switch: Refer to

WW-12, "Washer Switch"

.

Combination meter

Transmits vehicle speed signal to BCM via CAN communication.

Front wiper motor

Refer to

WW-11, "Front Wiper Motor"

.

IPDM E/R

• Controls integrated relays according to the request (via CAN communication) from BCM.

• Transmits reverse switch signal to BCM via CAN communication*

2

.

Refer to

PCS-5, "Component Parts Location"

 for detailed installation location.

BCM

• BCM receives shift position signal from TCM via CAN communication*

3

.

• Judges each switch status by the combination switch reading function.
• Requests (via CAN communication) the front wiper relay and the front wiper HI/LO relay ON to

IPDM E/R.

• Supplies power to the rear wiper motor.
• Performs the auto stop control of the rear wiper.
• Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

 for detailed instal-

lation location.
