REMOVAL AND INSTALLATION

ROAD WHEEL TIRE ASSEMBLY

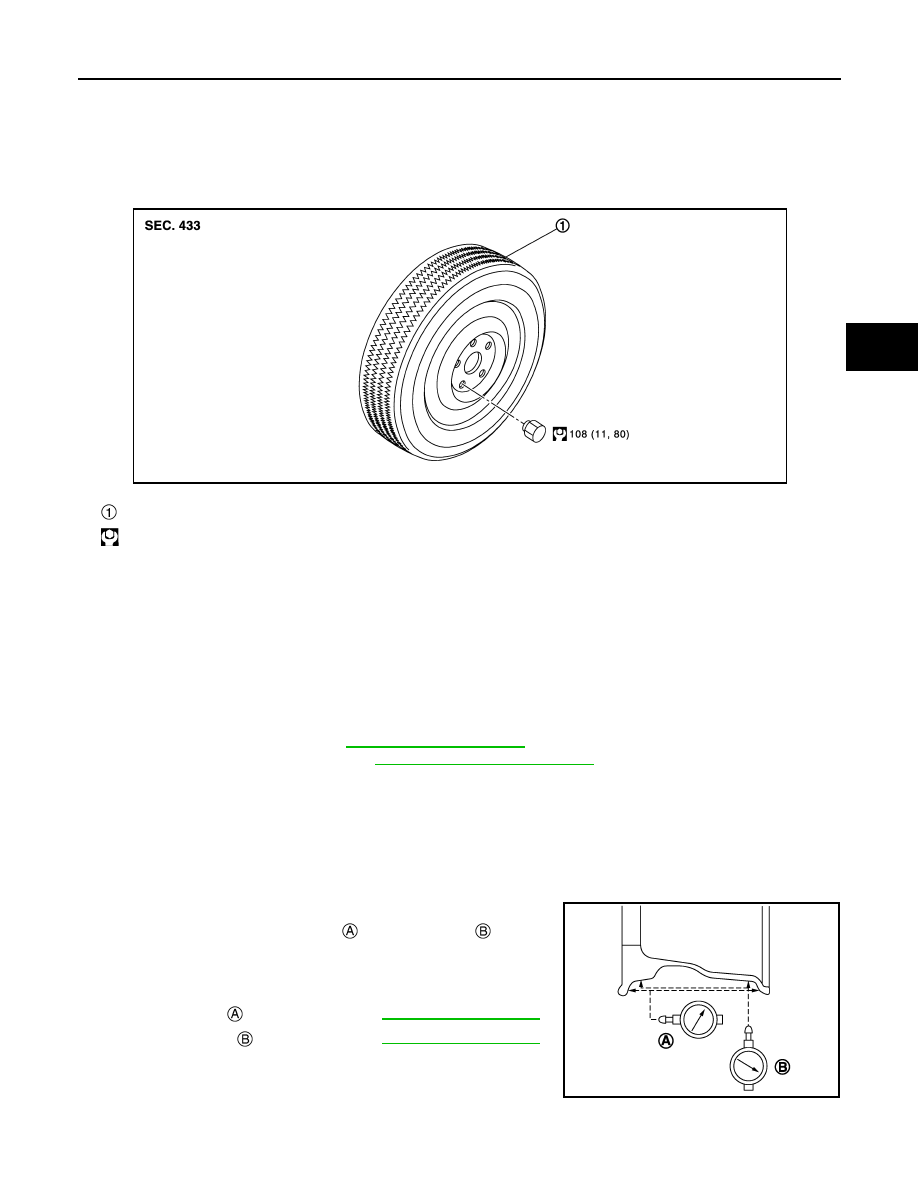

Exploded View

INFOID:0000000010715122

Removal and Installation

INFOID:0000000010715123

REMOVAL

1.

Remove wheel nuts.

2.

Remove tire assembly.

INSTALLATION

Note the following, install in the reverse order of removal.
• When replacing or rotating wheels, perform following;
- Perform the ID registration. Refer to

WT-30, "Work Procedure"

.

- Perform TPMS reset operation. Refer to

WT-14, "TPMS reset operation"

.

Inspection

INFOID:0000000010715124

1.

Check tires for wear and improper inflation.

2.

Check wheels for deformation, cracks and other damage. If deformed, remove wheel and check wheel
runout.

a.

Remove tire from aluminum wheel and mount on a tire balance machine.

b.

Set dial indicator as shown in the figure.

c.

Check runout, if the axial runout

 or radial runout

 exceeds

the limit, replace aluminum wheel.

Tire assembly

: N·m (kg-m, ft-lb)

JSGIA0639GB

Limit

Axial runout

: Refer to

WT-66, "Road Wheel"

.

Radial runout

: Refer to

WT-66, "Road Wheel"

.

SEIA0737E

WT-62

< REMOVAL AND INSTALLATION >

TIRE PRESSURE SENSOR

TIRE PRESSURE SENSOR

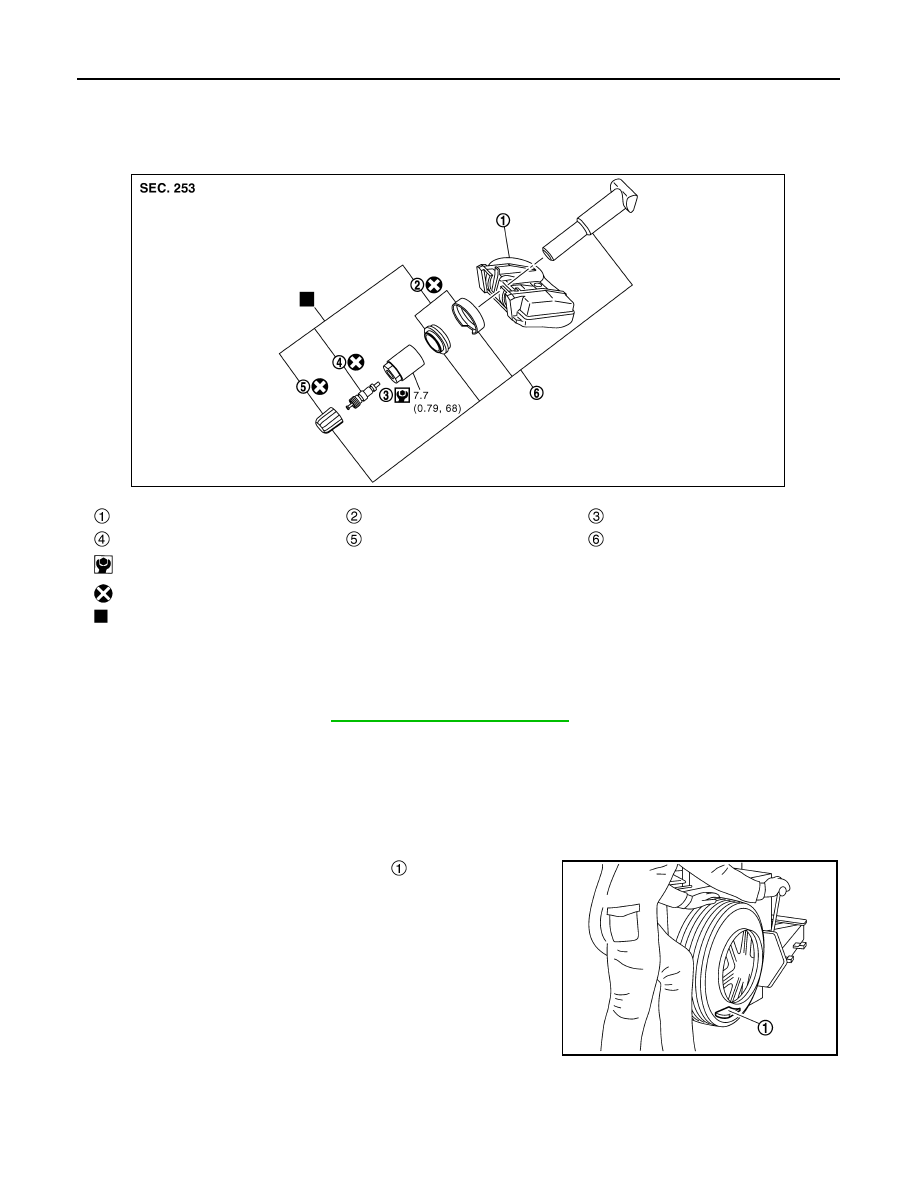

Exploded View

INFOID:0000000010715125

Removal and Installation

INFOID:0000000010715126

REMOVAL

1.

Remove tire assembly. Refer to

WT-61, "Removal and Installation"

.

2.

Remove valve cap, valve core and then deflate tire.
NOTE:
If the tire is reused, apply a matching mark to the position of the tire road wheel valve hole for the purpose
of wheel balance adjustment after installation.

3.

Remove valve nut retaining tire pressure sensor and allow tire pressure sensor to fall into tire.

4.

Use the tire changer and disengage the tire beads.

CAUTION:

• Verify that the tire pressure sensor

 is at the bottom of

the tire while performing the above.

• Never damage the road wheel or tire pressure sensor.

5.

Apply bead cream or an equivalent to the tire beads.

6.

Set tire onto the tire changer turntable so that the tire pressure
sensor inside the tire is located close to the road wheel valve
hole.

Tire pressure sensor

Washer/Seal

Valve nut

Valve core

Valve cap

Valve stem assembly

: N·m (kg-m, in-lb)

: Always replace after every disassembly.

:

Parts that are replaced as a set when the tire is replaced.

JMEIA0210GB

JPEIC0104ZZ

TIRE PRESSURE SENSOR

WT-63

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

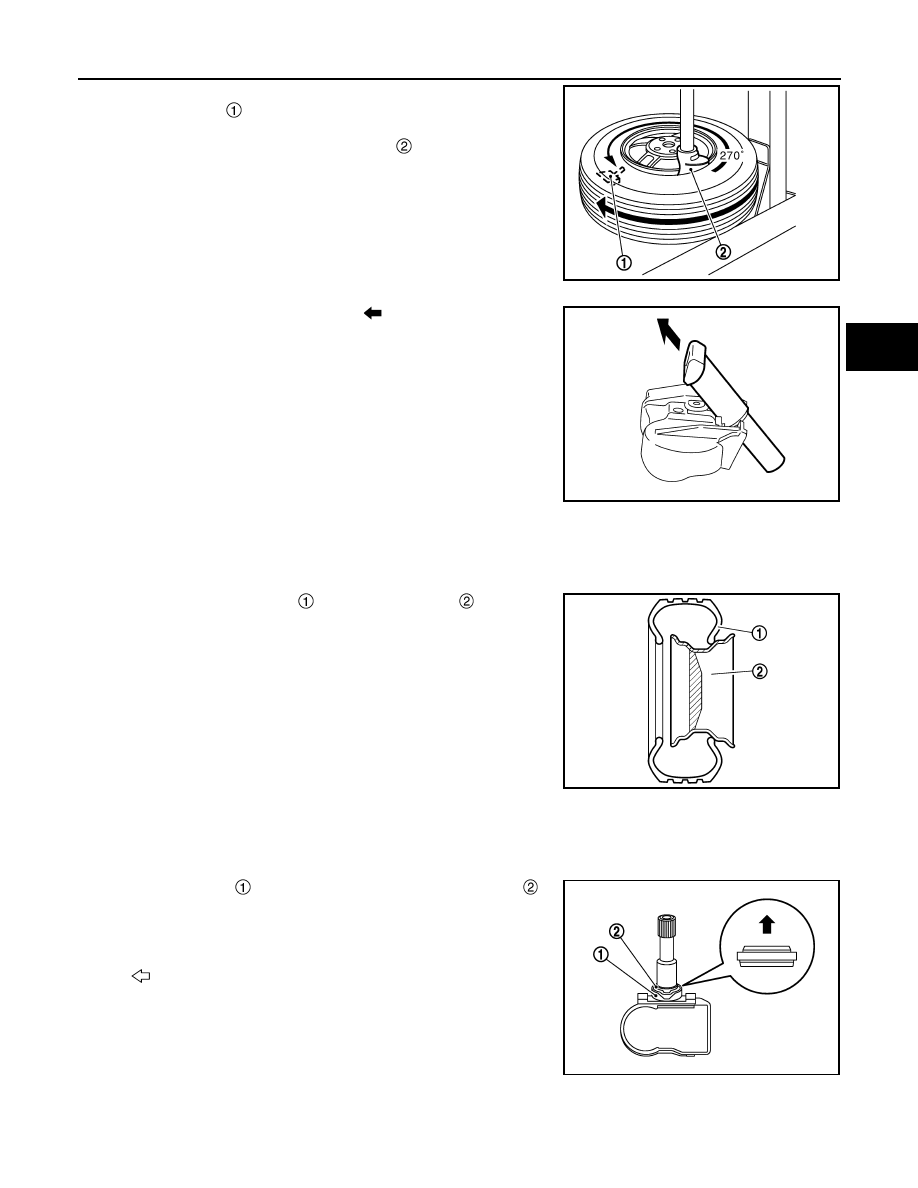

7.

Turn tire so that valve hole is at bottom and bounce so that tire
pressure sensor

 is near valve hole. Carefully lift tire onto turn-

table and position valve hole (and tire pressure sensor) 270
degree from mounting/dismounting head

.

CAUTION:

Never damage the road wheel and tire pressure sensor.

8.

Remove tire pressure sensor from tire.

9.

Remove the grommet seal.

10. Remove valve stem in the direction (

).

INSTALLATION

CAUTION:

Replace valve stem assembly if the valve stem has deformations, cracks, damage or corrosion.
1.

Apply bead cream or an equivalent to the tire beads.

2.

Install the tire inside beads

 onto the road wheel

 in the posi-

tion shown in the figure.

3.

Install valve stem to tire pressure sensor.

4.

Install grommet seal to the tire pressure sensor assembly.

CAUTION:

• Never reuse grommet seal.
• Insert grommet seal all the way to the base.

5.

Follow the procedure below and install the tire pressure sensor to the road wheel.

a.

When valve stem assembly is replaced.

i.

Set valve stem in the tire pressure sensor.

ii.

Install the washer

 in the valve stem, and then install seal

 in

the valve stem.

CAUTION:

• Direction of the seal is checked.

JPEIC0014GB

JSEIA0378ZZ

JPEIC0105ZZ

: Upper side

JMEIA0211ZZ

WT-64

< REMOVAL AND INSTALLATION >

TIRE PRESSURE SENSOR

• The cut part

 of washer becomes in the center of valve

stem.

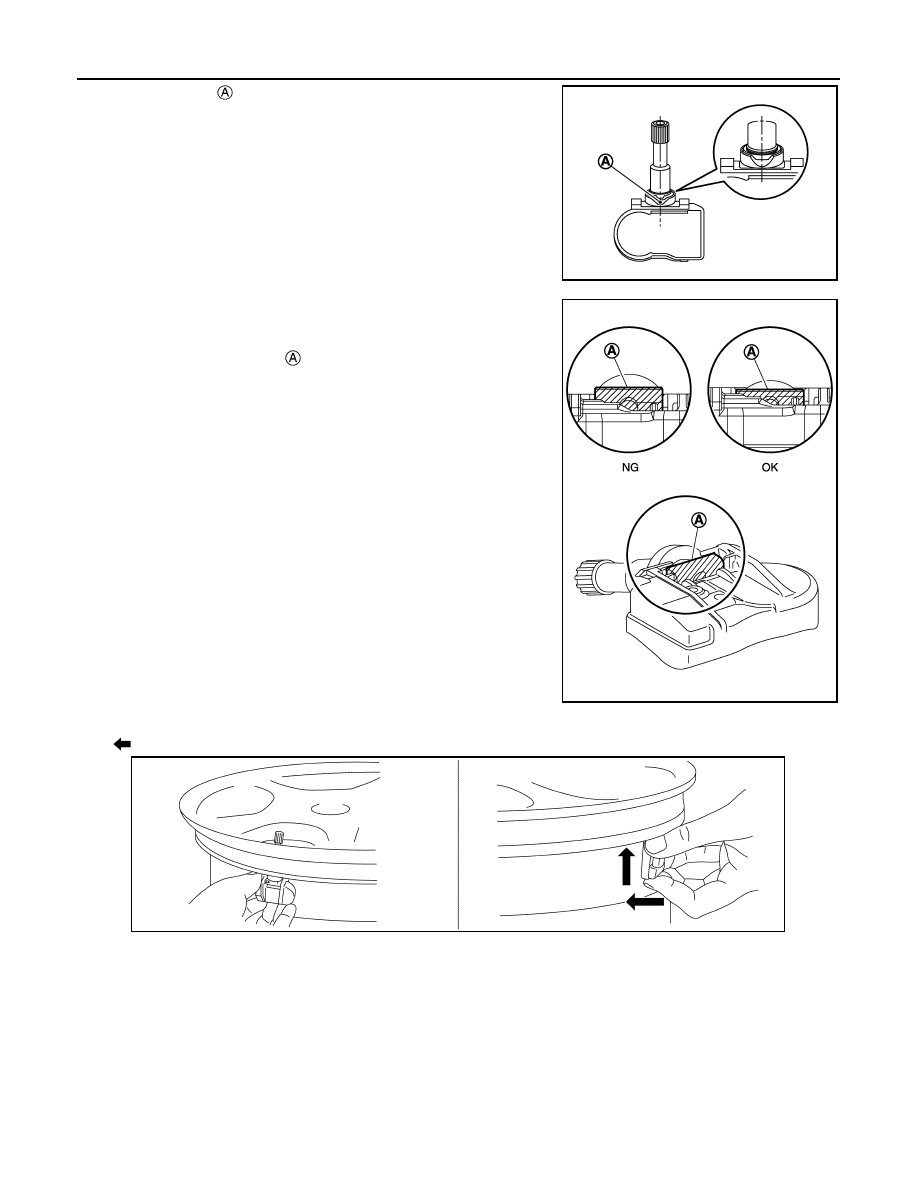

b.

Check the condition of valve stem before installing tire pressure
sensor to road wheel.

CAUTION:

The base of valve stem

 must be positioned in the groove

of the metal plate as shown in the figure.

c.

Hold tire pressure sensor as shown in the figure, and press the sensor in the direction shown by arrow
(

) to bring it into absolute contact with road wheel. After this, tighten valve nut to the specified torque.

CAUTION:

• Never reuse valve core and valve cap.
• Check that grommet seal is free of foreign matter.
• Check that grommet seal contacts horizontally with road wheel.
• Check again that the base of valve stem is positioned in the groove of the metal plate.
• Manually tighten valve nut all the way to the wheel. (Never use a power tool to avoid impact.)

JMEIA0212ZZ

JSEIA0376GB

JSEIA0465GB
