Nissan X-Trail 32. Manual - part 221

REPLACEMENT OPERATIONS

BRM-45

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

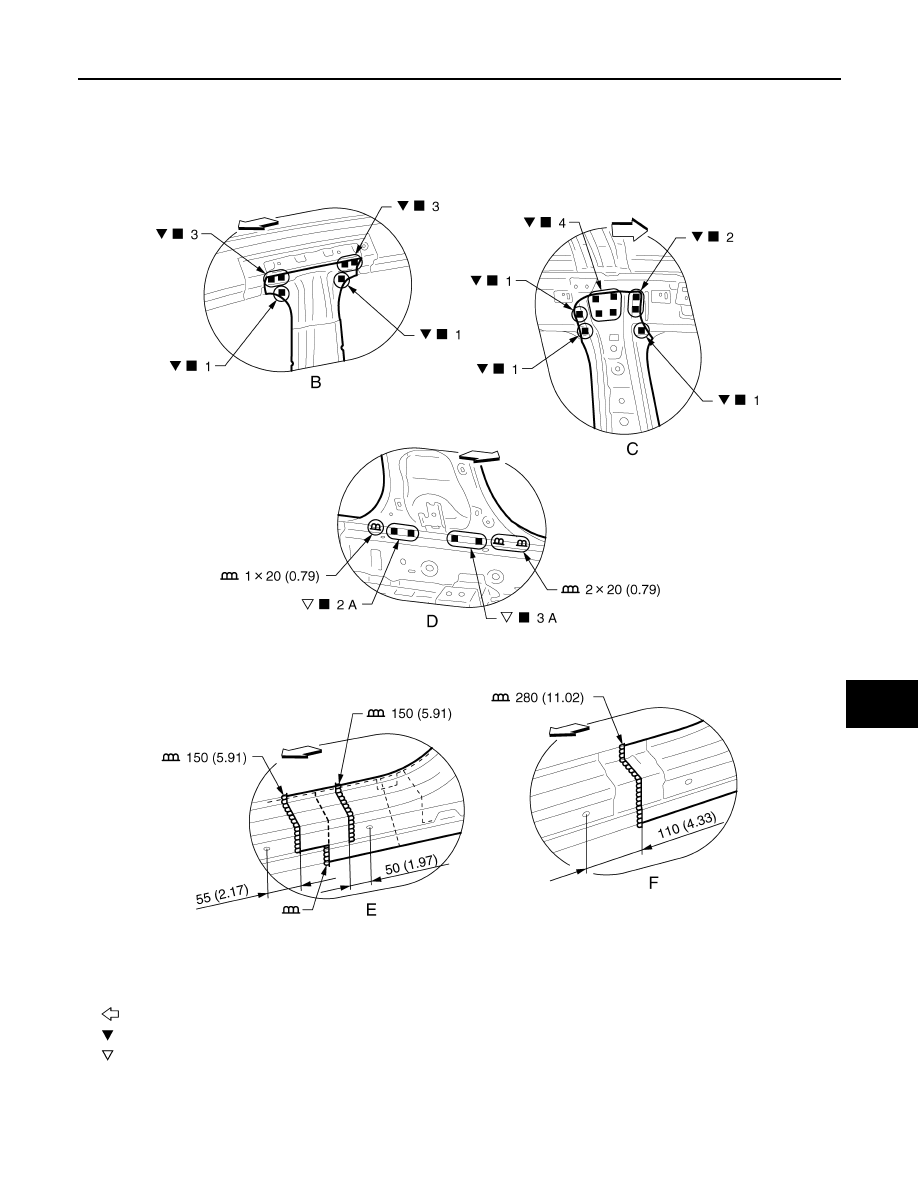

View B and F: Before installing outer front side body

Replacement part

z

Side body assembly

z

Inner center pillar assembly

Unit: mm (in)

: Vehicle front

: Drill

φ

7 mm (0.28 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

9 mm (0.35 in) hole for the plug welding hole (ultra high strength steel).

JSKIA3857GB

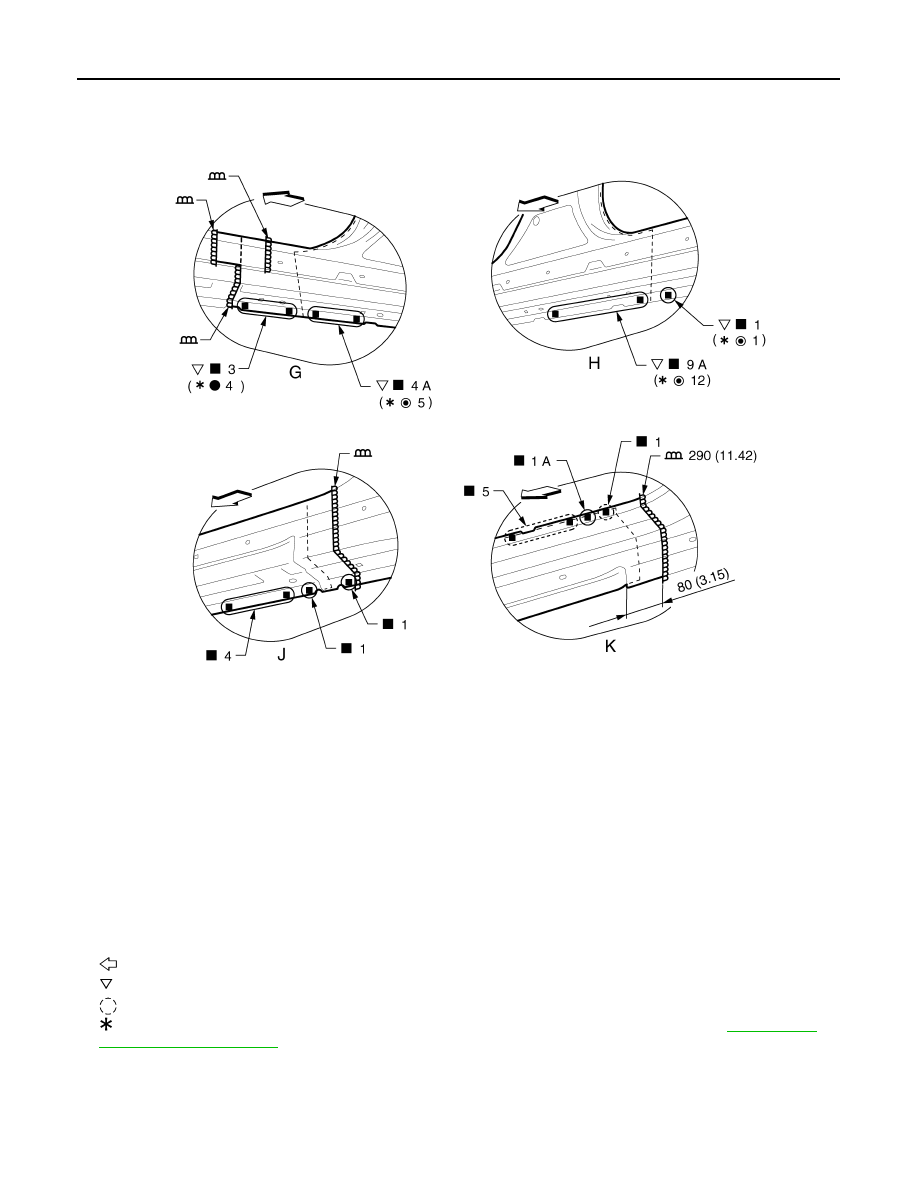

BRM-46

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

Unit: mm (in)

: Vehicle front

: Drill

φ

9 mm (0.35 in) hole for the plug welding hole (ultra high strength steel).

: Weld the parts onto the back of the component part.

: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to

BRM-29, "Weld-

ing of Ultra High Strength Steel"

JSKIA4609GB

REPLACEMENT OPERATIONS

BRM-47

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

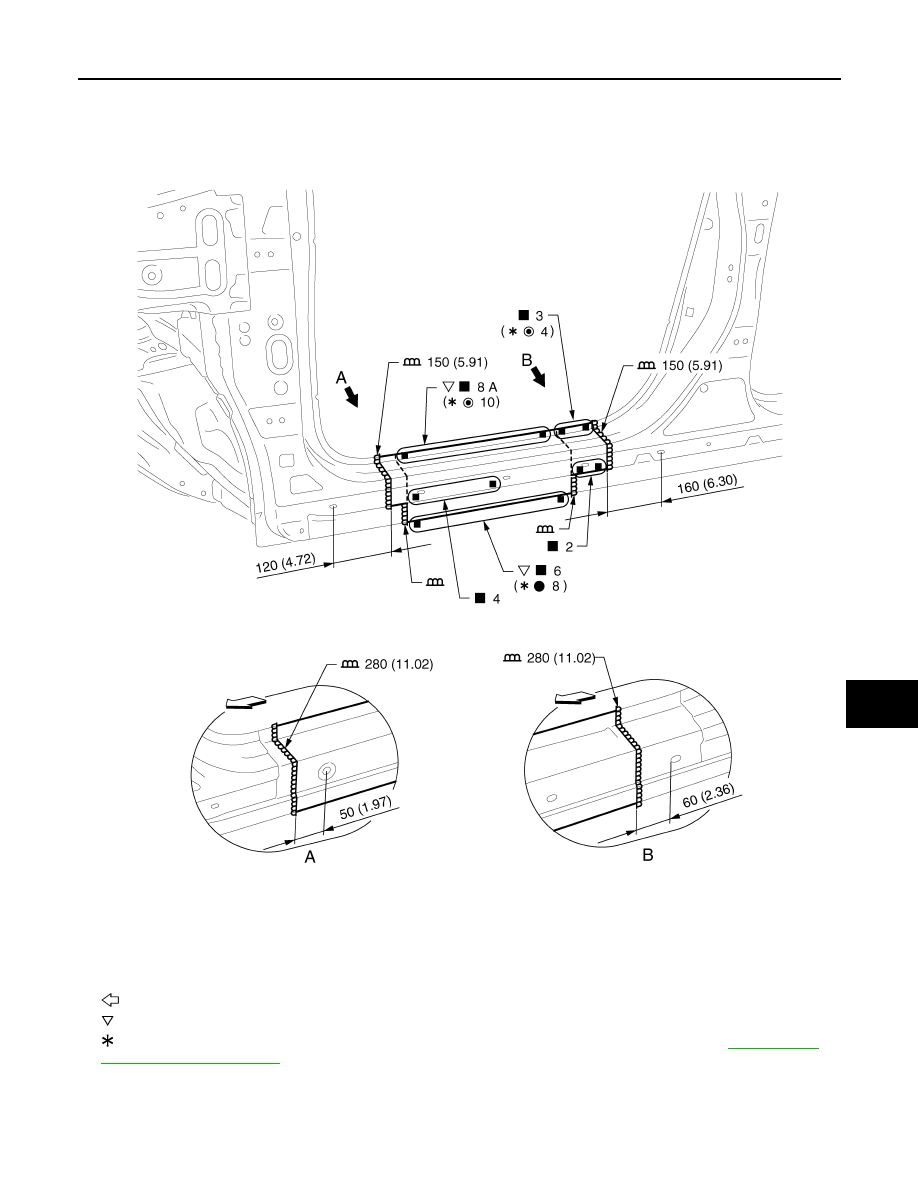

Outer Sill (Partial Replacement)

INFOID:0000000010843437

View A and B: Before installing outer sill assembly

Unit: mm (in)

: Vehicle front

: Drill

φ

9 mm (0.35 in) hole for the plug welding hole (ultra high strength steel).

: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to

BRM-29, "Weld-

ing of Ultra High Strength Steel"

Replacement part

z

Outer sill assembly

z

Outer sill reinforcement

JSKIA4626GB

BRM-48

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

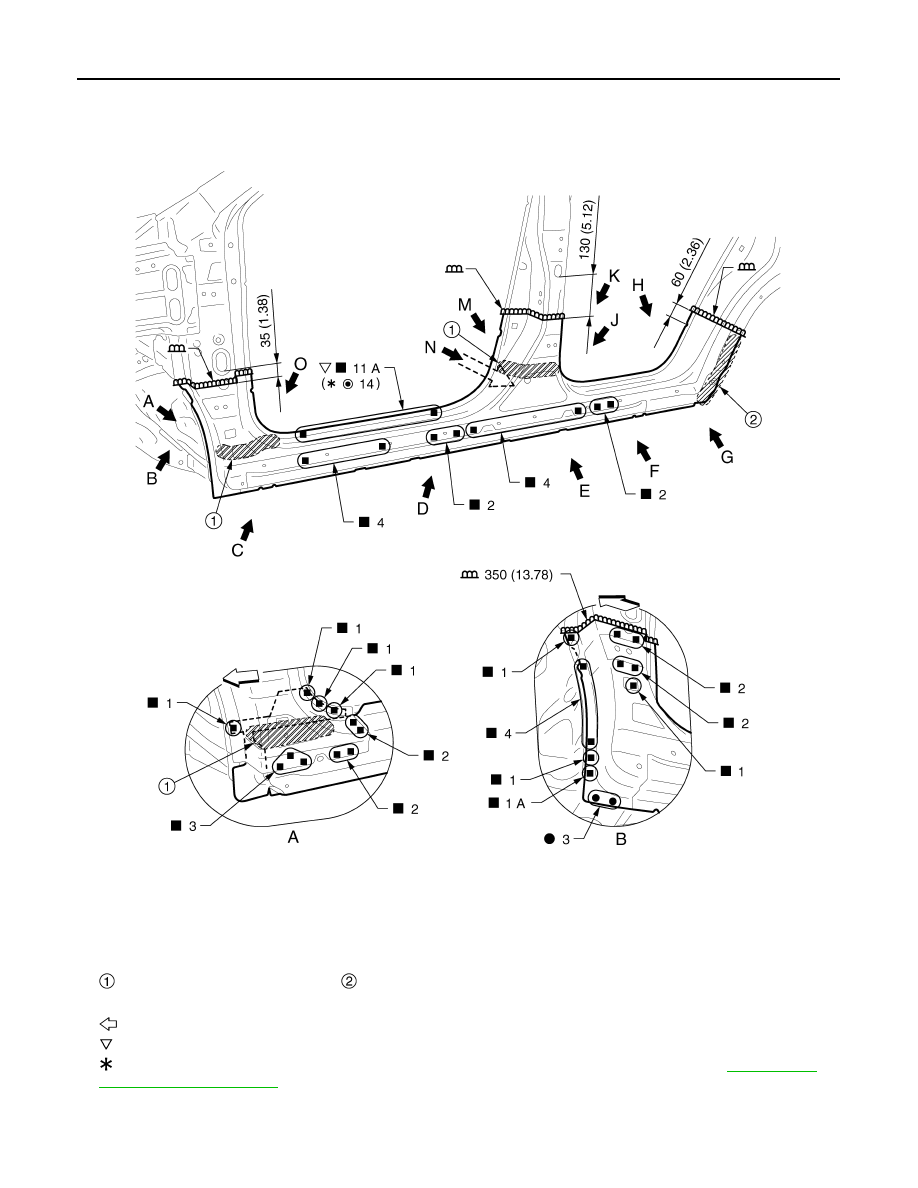

Outer Sill

INFOID:0000000010843438

Urethane foam

Body sealing

Unit: mm (in)

: Vehicle front

: Drill

φ

9 mm (0.35 in) hole for the plug welding hole (ultra high strength steel).

: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to

BRM-29, "Weld-

ing of Ultra High Strength Steel"

Replacement part

z

Outer sill assembly

z

Outer sill reinforcement

JSKIA4923GB
