REPLACEMENT OPERATIONS

BRM-37

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

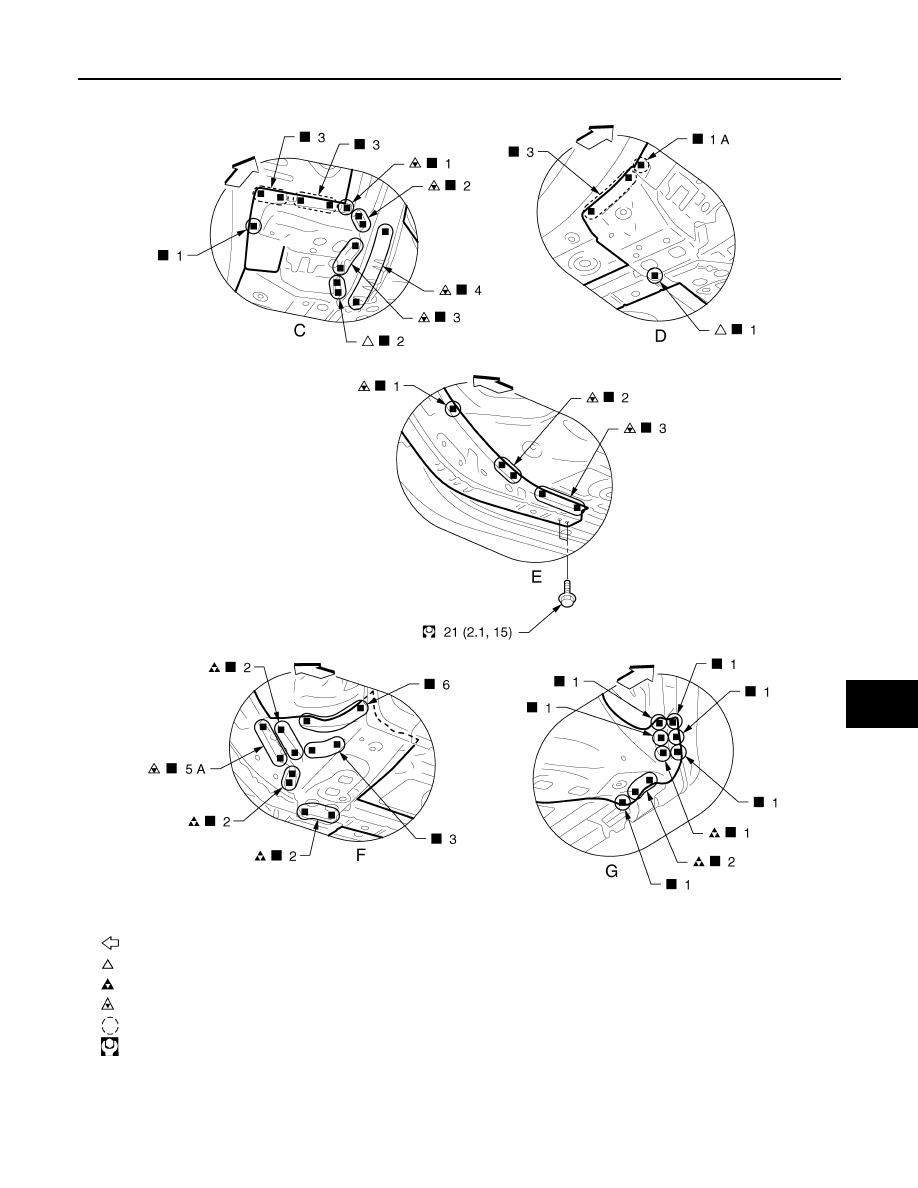

View E: Before installing front suspension mounting bracket

: Vehicle front

: Drill

φ

8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

10 mm (0.39 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

12 mm (0.47 in) hole for the plug welding hole (ultra high strength steel).

: Weld the parts onto the back of the component part.

: N·m (kg-m, ft-lb)

JSKIA4919GB

BRM-38

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

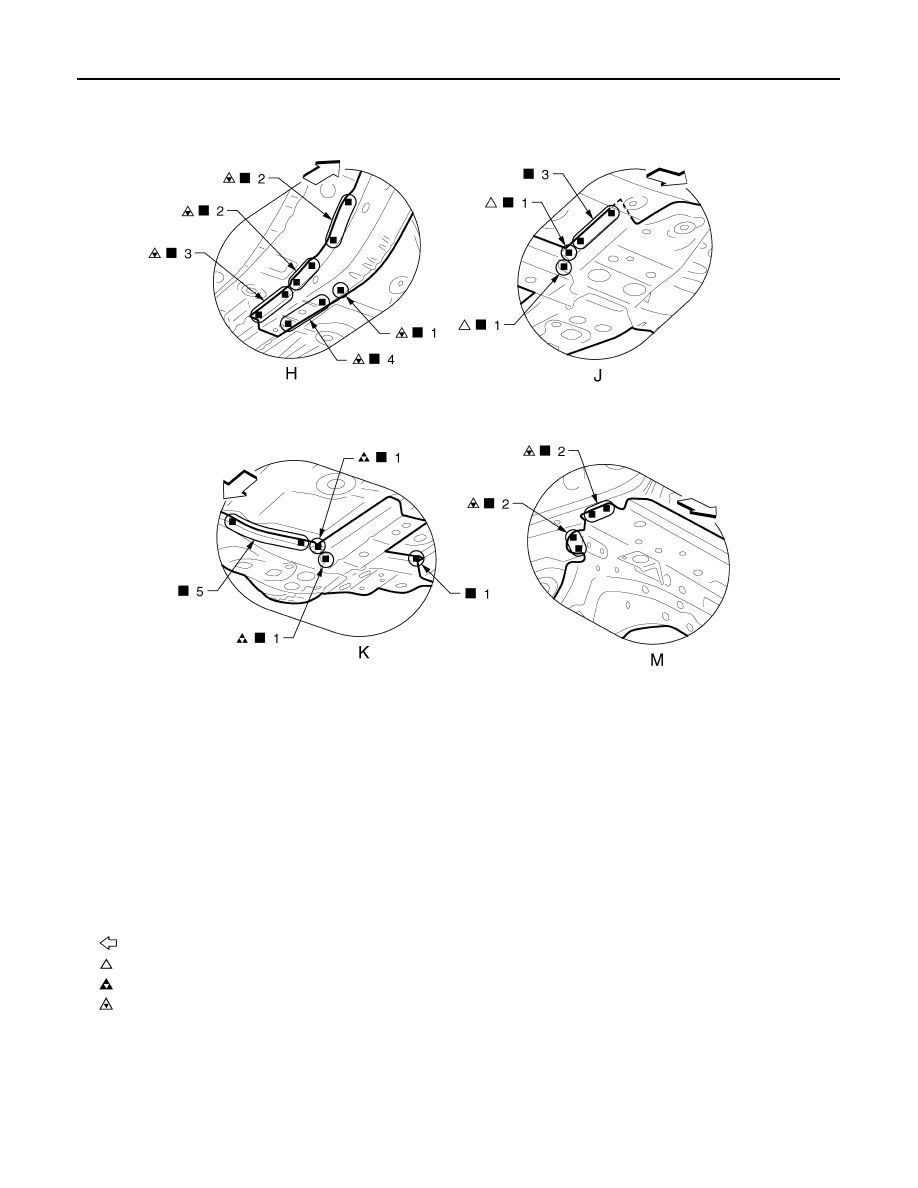

View H: Before installing front suspension mounting bracket

Front Side Member (Partial Replacement)

INFOID:0000000010843434

Work after upper radiator core support assembly and hoodledge connector assembly are removed.

: Vehicle front

: Drill

φ

8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

10 mm (0.39 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

12 mm (0.47 in) hole for the plug welding hole (ultra high strength steel).

JSKIA3850ZZ

REPLACEMENT OPERATIONS

BRM-39

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

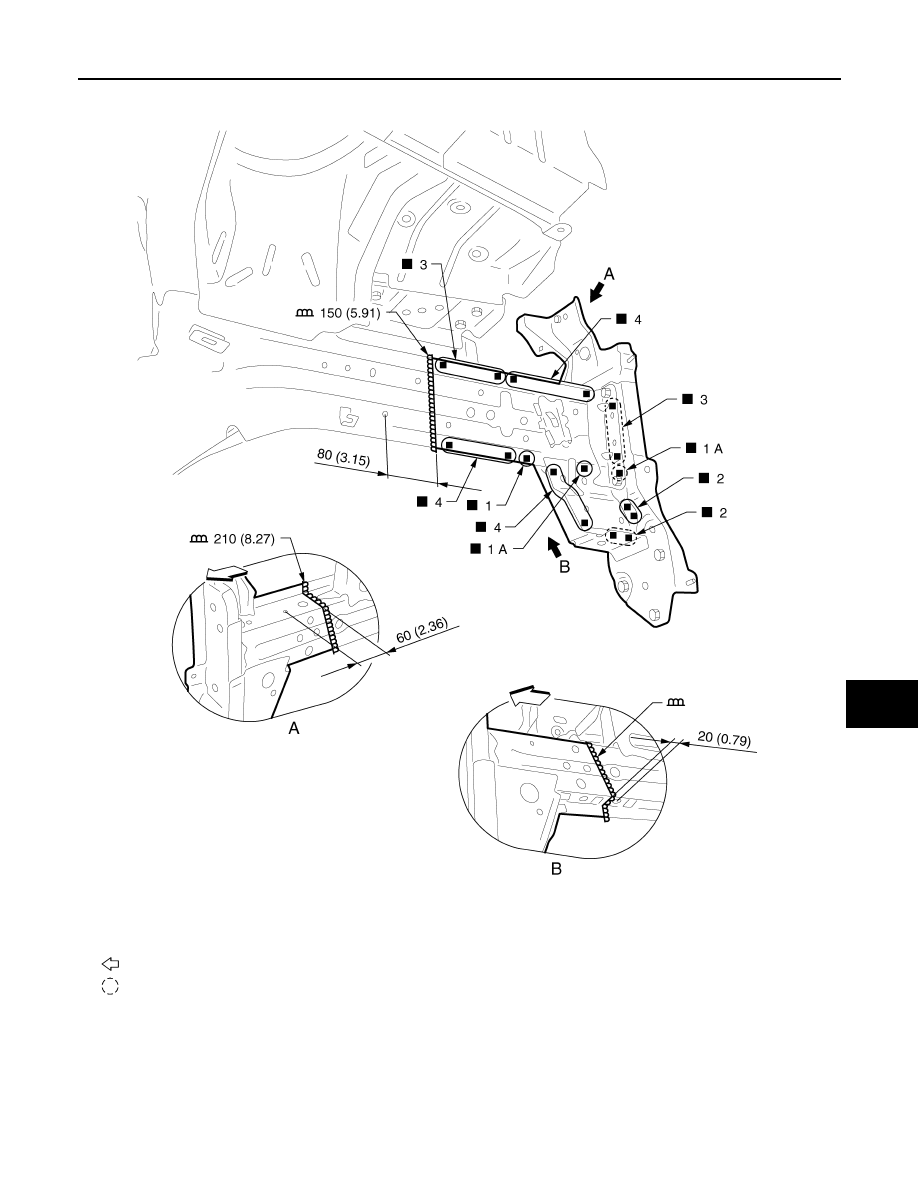

POINT

The front side member on the left can also be replaced partially by cutting at the position shown in the figure.

Unit: mm (in)

: Vehicle front

: Weld the parts onto the back of the component part.

Replacement part

z

Front side member closing plate
(RH)

z

Front side member assembly (RH)

JSKIA4604GB

BRM-40

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

Front Pillar

INFOID:0000000010843435

Work after hoodledge reinforcement is removed.

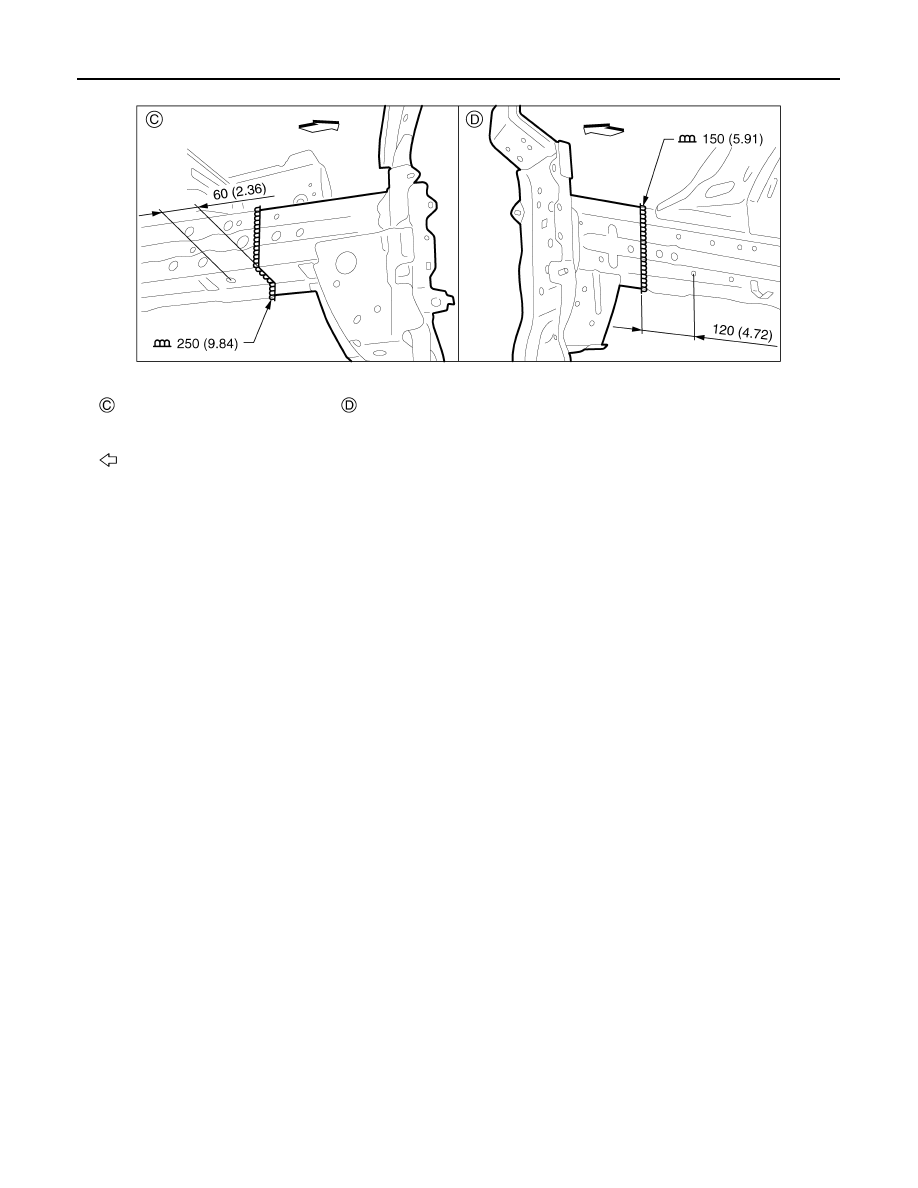

Front side member assembly cutting
position (LH)

Front side member closing plate cut-
ting position (LH)

Unit: mm (in)

: Vehicle front

Replacement part

z

Front side member closing plate (LH)

z

Front side member assembly (LH)

JSKIA3852GB
