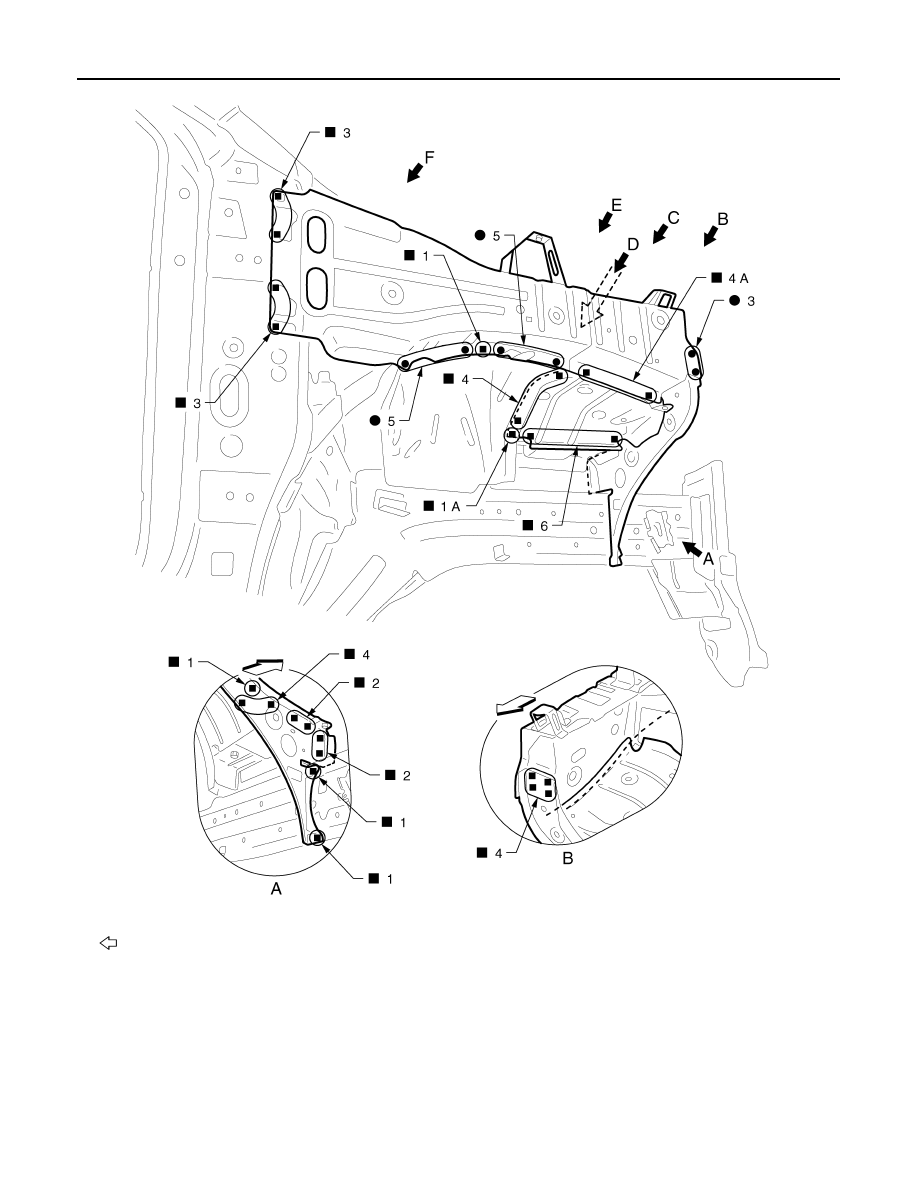

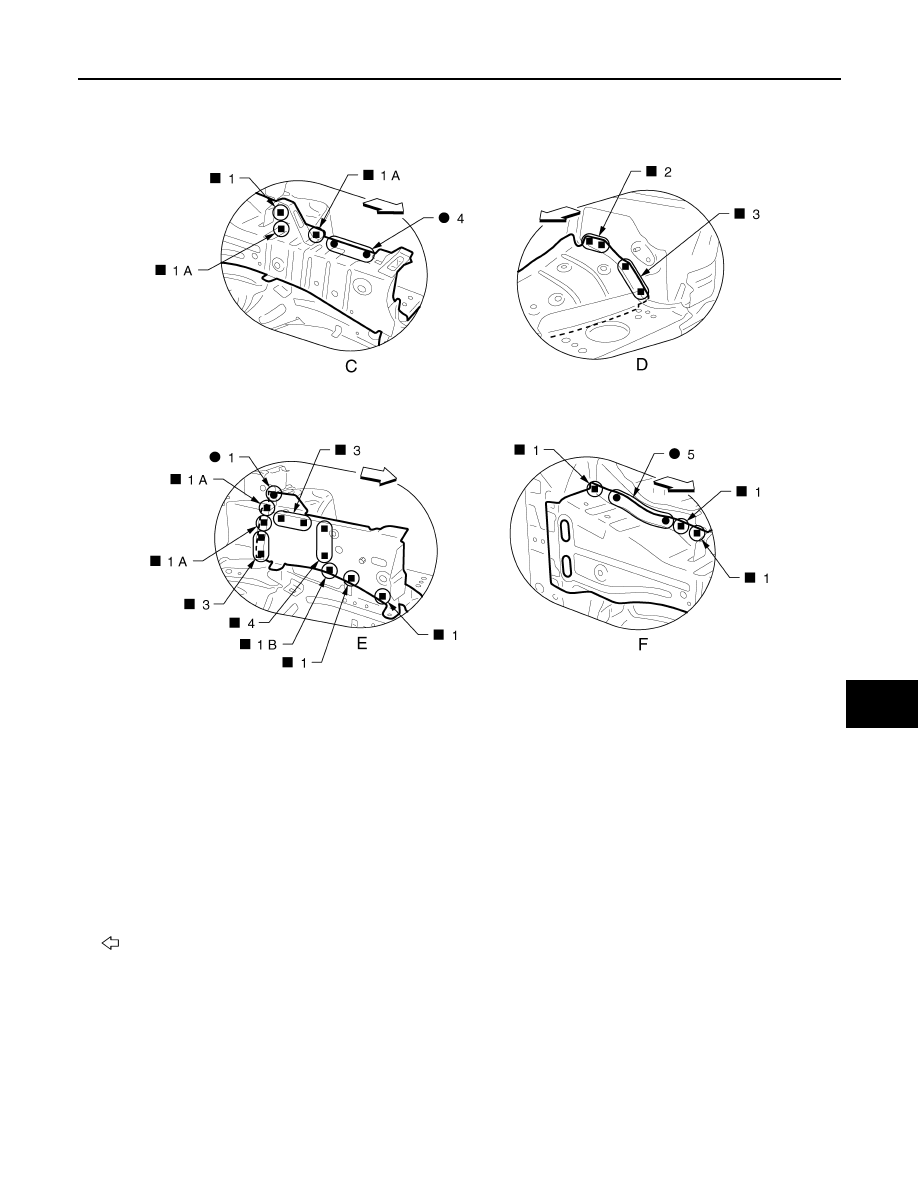

View F and H: Before installing hoodledge reinforcement

Hoodledge (Partial Replacement)

INFOID:0000000010843432

Work after radiator core support is removed.

: Vehicle front

JSKIA4616ZZ

BRM-34

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

: Vehicle front

Replacement part

z

Front strut housing assembly

z

Hoodledge reinforcement

z

Hoodledge connector assembly

JSKIA4617ZZ

REPLACEMENT OPERATIONS

BRM-35

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

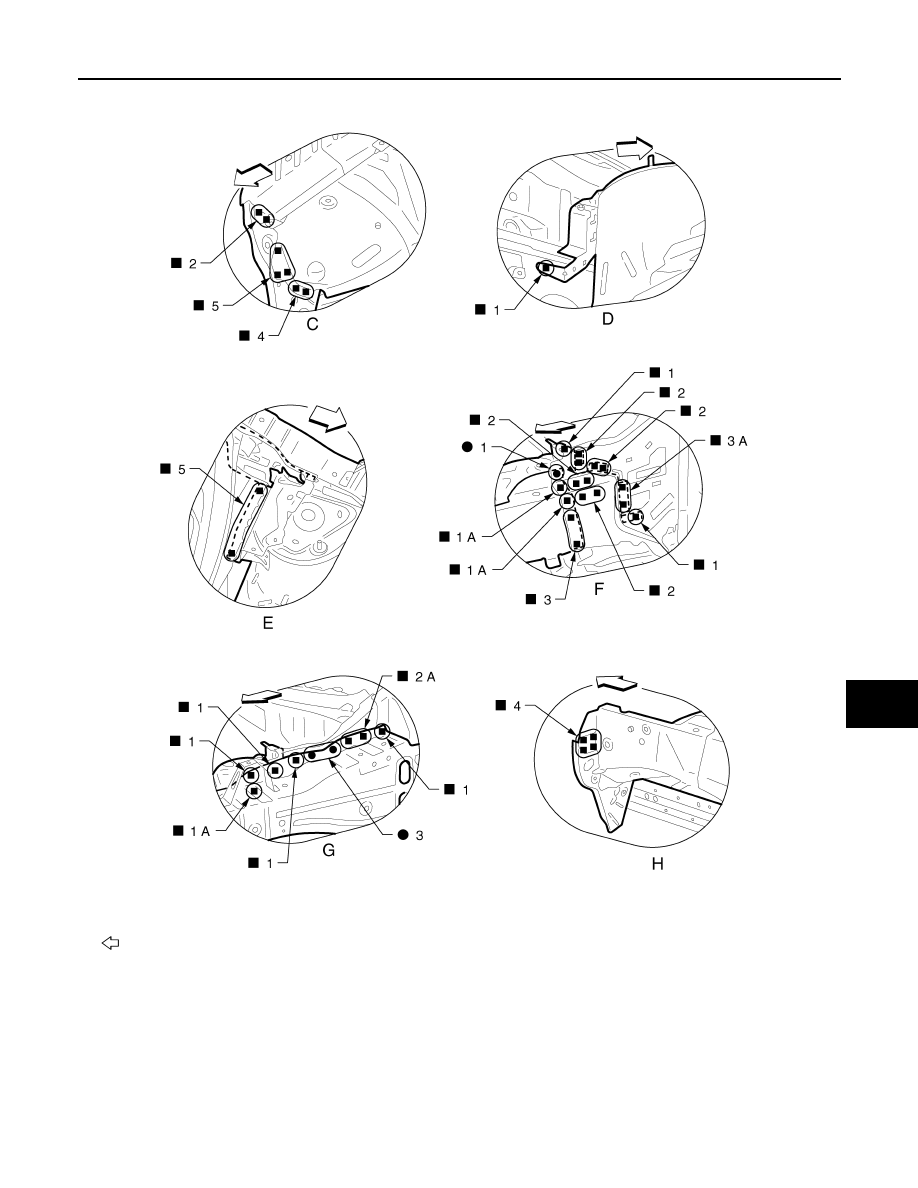

View E: Before installing hoodledge reinforcement

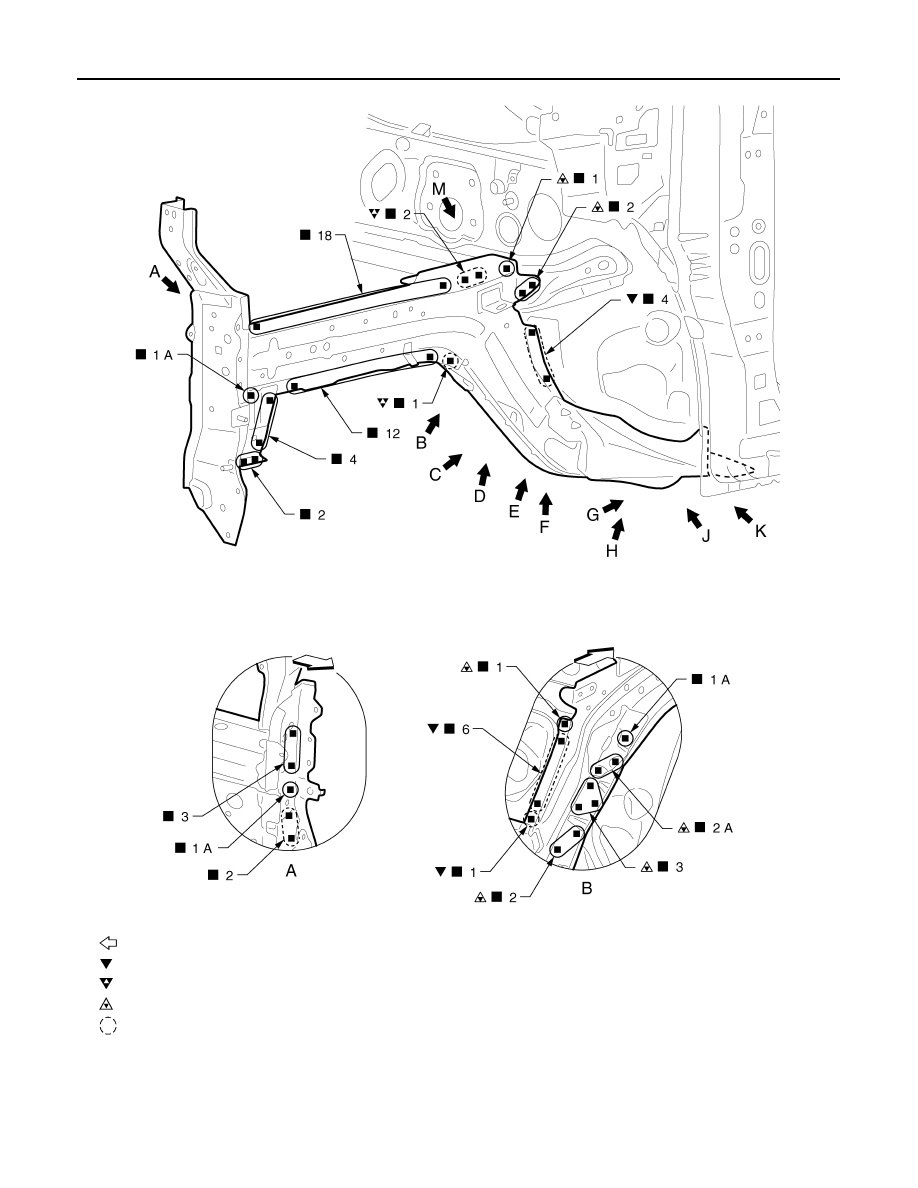

Front Side Member

INFOID:0000000010843433

Work after upper radiator core support assembly and hoodledge are removed.

: Vehicle front

JSKIA4618ZZ

BRM-36

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

: Vehicle front

: Drill

φ

7 mm (0.28 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

11 mm (0.43 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

12 mm (0.47 in) hole for the plug welding hole (ultra high strength steel).

: Weld the parts onto the back of the component part.

Replacement part

z

Front side member closing plate

z

Front side member assembly

z

Front suspension mounting bracket

JSKIA4918ZZ
