PRECAUTIONS

WT-5

< PRECAUTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

NOTE:
• Do not close driver door because the steering wheel locks when driver door is closed.
• The auto acc function is adapted to this vehicle. For this reason, even when the ignition switch is turned

to OFF position, the accessory power source does not turned OFF and continues to be supplied for a
certain amount of time.

6.

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

7.

Perform the necessary repair operation.

8.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the ignition switch from OFF position to ON position, then to LOCK position. (The steering wheel will lock
when the ignition switch is turned to LOCK position.)

9.

Perform self-diagnosis check of all control units using CONSULT.

Service Notice and Precautions for TPMS

INFOID:0000000010715053

• Low tire pressure warning lamp turns ON when tire pressure is less than warning tire pressure value. Adjust

tire pressure for all wheels to the specified value. Refer to

WT-66, "Tire Air Pressure"

. And then, perform

TPMS reset operation. Refer to

WT-14, "TPMS reset operation"

• Low tire pressure warning lamp blinks for 1 minute, then turns ON when occurring any malfunction or no

sensor(s) except low tire pressure. Erase the self-diagnosis memories for Tire Pressure Monitoring System
(TPMS), or register the ID to turn low tire pressure warning lamp OFF. For ID registration, refer to

WT-30,

"Work Procedure"

.

• ID registration is required when replacing or rotating tires and/or wheels, replacing tire pressure sensor or

BCM. Refer to

WT-30, "Work Procedure"

.

• Be sure to replace seal, washer, valve core and valve cap of tire pressure sensor, when removing tire pres-

sure sensor from wheel. Refer to

WT-62, "Exploded View"

.

Replacing seal and washer, valve core and valve cap of tire pressure sensor is recommended, when replac-
ing each tire by reaching the wear limit. Refer to

WT-62, "Exploded View"

.

• Never apply excessive force to an inflator not to damage valve stem and tire pressure sensor when adjusting

tire pressure.

• Jack up the vehicle in order not to damage tire pressure sensor when extracting all the tire air on the vehicle

(e.g. when filling up work of N

2

 gas to tire). For supporting points for lifting and jacking point, refer to

GI-31,

"Garage Jack and Safety Stand and 2-Pole Lift"

.

• Because the tire pressure sensor conforms to Europe radio law, the following items must be observed.
- The sensor may be used only in Europe.
- It may not be used in any method other than the specified method.
- It must not be disassembled or modified.
• Never attach tire pressure sensor of other cars. Tire Pressure Monitoring System (TPMS) does not function

if specified Genuine NISSAN tire pressure sensor is not attached.

Service Notice and Precautions for Road Wheel

INFOID:0000000010715054

• Genuine NISSAN aluminum wheel is designed for each type of vehicle. Use it on the specified vehicle only.
• Use Genuine NISSAN parts for the road wheels, valve caps and wheel nuts.
• Always use them after adjusting the wheel balance. For the balance weights, use Genuine NISSAN alumi-

num wheel weights.

• Use caution when handling the aluminum wheels, because they can be easily scratched. When removing

dirt, do not use any abrasives, a wire brush, or other items that may scratch the coating. Use a neutral deter-
gent if a detergent is needed.

• After driving on roads scattered with anti-icing salts, wash off the wheels completely.
• When installing road wheels onto the vehicle, always wipe off any dirt or foreign substances to prevent them

from being trapped between the contact surfaces of wheel.

• Never apply oil to nut and bolt threads.
• When tightening the valve cap there is a risk of damaging the valve cap if a tool is used. Tighten by hand.

WT-6

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

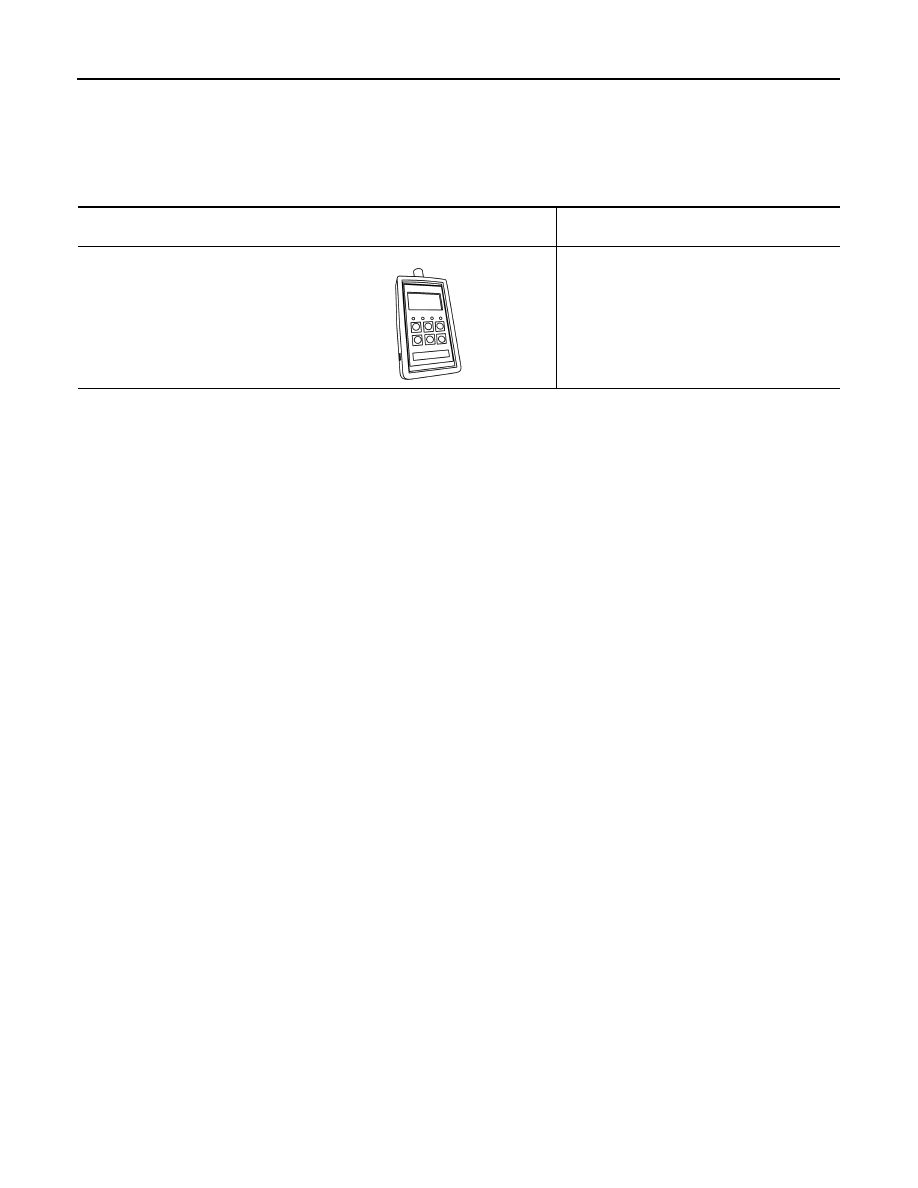

Special Service Tool

INFOID:0000000010715055

Tool number
Tool name

Description

KV48105501
(NI-4032)
Tire pressure sensor activation tool

Tire pressure sensor wake-up procedure and
ID registration

JSEIA0650ZZ

COMPONENT PARTS

WT-7

< SYSTEM DESCRIPTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

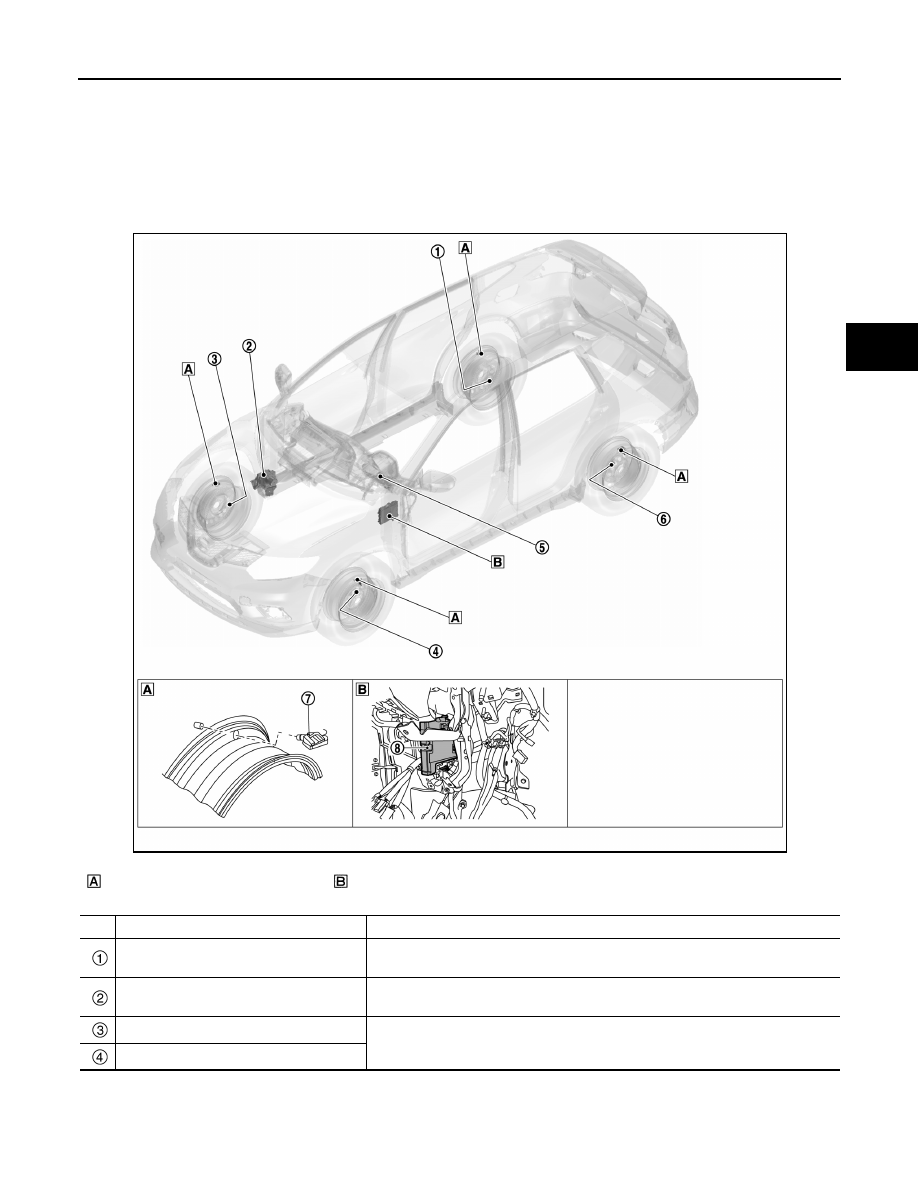

Component Parts Location

INFOID:0000000010715056

LHD MODELS

Wheel assembly

Behind instrument panel (LH)

No.

Component parts

Function

Rear wheel sensor (RH)

Location of wheel is specified due to the synchronism of wheel sensor position and
tire pressure sensor position.

ABS actuator and electric unit (control unit)

Mainly transmits the following signals to BCM via CAN communication.
• Vehicle speed signal (ABS)

Front wheel sensor (RH)

Location of wheel is specified due to the synchronism of wheel sensor position and
tire pressure sensor position.

Front wheel sensor (LH)

JSEIA0867ZZ

WT-8

< SYSTEM DESCRIPTION >

COMPONENT PARTS

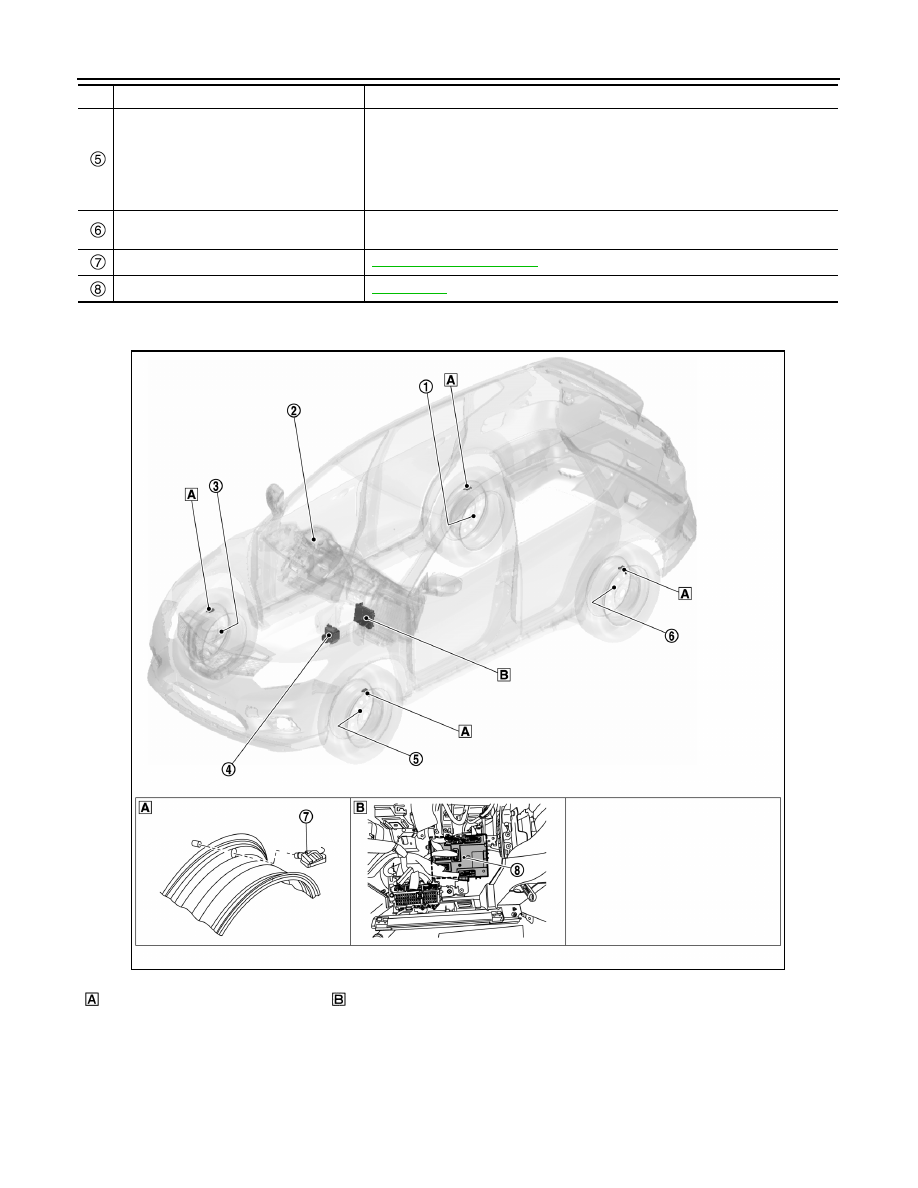

RHD MODELS

Combination meter

Mainly receives the following signals from BCM via CAN communication.
• Low tire pressure warning lamp signal
• Low tire pressure wheel location signal
• TPMS malfunction warning lamp signal
Mainly transmits the following signals to BCM via CAN communication.
• TPMS reset signal

Rear wheel sensor (LH)

Location of wheel is specified due to the synchronism of wheel sensor position and
tire pressure sensor position.

Tire pressure sensor

WT-9, "Tire Pressure Sensor"

.

BCM

WT-9, "BCM"

.

No.

Component parts

Function

Wheel assembly

Behind of grove box (LH)

JSEIA0938ZZ
