Nissan X-Trail 32. Manual - part 2207





WT-1

SUSPENSION

C

D

F

G

H

I

J

K

L

M

SECTION

WT

A

B

WT

N

O

P

CONTENTS

ROAD WHEELS & TIRES

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

3

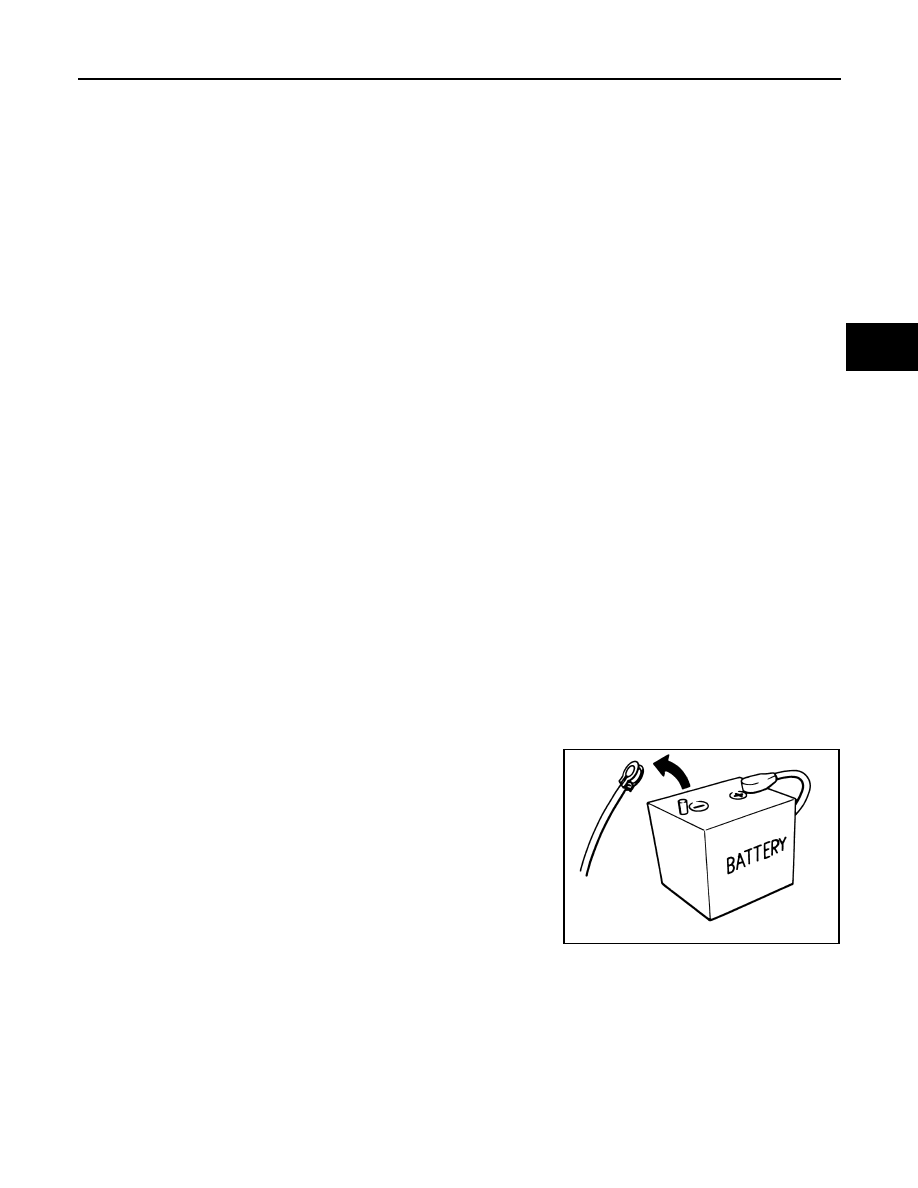

Precautions for Removing Battery Terminal  .............

3

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ...................................
..

4

Service Notice and Precautions for TPMS  ................

5

Service Notice and Precautions for Road Wheel ......

5

PREPARATION ............................................

6

PREPARATION ...................................................

6

Special Service Tool  .................................................

6

SYSTEM DESCRIPTION  ..............................

7

COMPONENT PARTS  ........................................

7

Component Parts Location ........................................

7

BCM ..........................................................................

9

Tire Pressure Sensor  ................................................

9

SYSTEM .............................................................

10

System Description  .................................................

10

Circuit Diagram  .......................................................

12

WARNING/INDICATOR/CHIME LIST  .......................

12

WARNING/INDICATOR/CHIME LIST : Warning
Lamp/Indicator Lamp  ..............................................

12

INFORMATION DISPLAY (COMBINATION
METER) .....................................................................

12

INFORMATION DISPLAY (COMBINATION
METER) : Low Tire Pressure Location Indicator  .....

12

INFORMATION DISPLAY (COMBINATION
METER) : Tire Pressure Display  .............................

13

OPERATION .......................................................

14

TPMS reset operation  .............................................

14

DIAGNOSIS SYSTEM (TIRE PRESSURE
MONITORING SYSTEM)  ..................................

15

CONSULT Function .................................................

15

ECU DIAGNOSIS INFORMATION ..............

18

TIRE PRESSURE MONITORING SYSTEM ......

18

Reference Value ......................................................

18

DTC Inspection Priority Chart ..................................

20

DTC Index  ...............................................................

21

WIRING DIAGRAM  ......................................

23

TIRE PRESSURE MONITORING SYSTEM ......

23

Wiring Diagram ........................................................

23

BASIC INSPECTION  ...................................

27

DIAGNOSIS AND REPAIR WORK FLOW  .......

27

Work Flow ................................................................

27

TIRE PRESSURE SENSOR ID REGISTRA-
TION ..................................................................

30

Description ...............................................................

30

Work Procedure .......................................................

30

CONFIGURATION (TIRE PRESSURE MONI-
TORING SYSTEM) ............................................

31

Work Procedure .......................................................

31

DTC/CIRCUIT DIAGNOSIS  .........................

33

C1704-00, C1705-00, C1706-00, C1707-00
LOW TIRE PRESSURE  ....................................

33

DTC Description  ......................................................

33

Diagnosis Procedure  ...............................................

33

C1708-00, C1709-00, C1710-00, C1711-00
TIRE PRESSURE SENSOR ..............................

35

DTC Description  ......................................................

35

Diagnosis Procedure  ...............................................

35

WT-2

C1716-00, C1717-00, C1718-00, C1719-00
TIRE PRESSURE SENSOR  ..............................

37

DTC Description  .....................................................

37

Diagnosis Procedure  ..............................................

37

C1729-00 VEHICLE SPEED SIGNAL  ...............

38

DTC Description  .....................................................

38

Diagnosis Procedure  ..............................................

38

C1734-00 CONTROL UNIT  ...............................

39

DTC Description  .....................................................

39

Diagnosis Procedure  ..............................................

39

C1735-00 IGNITION SIGNAL  ............................

40

DTC Description  .....................................................

40

Diagnosis Procedure  ..............................................

40

C1761-00, C1762-00, C1763-00, C1764-00
TIRE PRESSURE SENSOR  ..............................

41

DTC Description  .....................................................

41

Diagnosis Procedure  ..............................................

41

C1765-00, C1766-00, C1767-00, C1768-00
WHEEL SENSOR  ..............................................

42

DTC Description  .....................................................

42

Diagnosis Procedure  ..............................................

42

C1769-00 CONFIGURATION SETTING ............

43

DTC Description  .....................................................

43

Diagnosis Procedure  ..............................................

43

C1770-00, C1771-00, C1772-00, C1773-00 G
SENSOR ............................................................

44

DTC Description  .....................................................

44

Diagnosis Procedure  ..............................................

44

U1000-01 CAN COMM CIRCUIT  .......................

45

Description ..............................................................

45

DTC Description  .....................................................

45

Diagnosis Procedure  ..............................................

45

U1010-49 CONTROL UNIT (CAN)  ....................

46

Description ..............................................................

46

DTC Description  .....................................................

46

Diagnosis Procedure  ..............................................

46

LOW TIRE PRESSURE WARNING LAMP  .......

47

Component Function Check  ...................................

47

Diagnosis Procedure  ..............................................

47

SYMPTOM DIAGNOSIS  .............................

48

TPMS .................................................................

48

Symptom Table  ......................................................

48

LOW TIRE PRESSURE WARNING LAMP
DOES NOT TURN ON  .......................................

50

Description ..............................................................

50

Diagnosis Procedure  ..............................................

50

LOW TIRE PRESSURE WARNING LAMP
DOES NOT TURN OFF .....................................

51

Description ..............................................................

51

Diagnosis Procedure ...............................................

51

LOW TIRE PRESSURE WARNING LAMP
BLINKS ..............................................................

52

Description ..............................................................

52

Diagnosis Procedure ...............................................

52

LOW TIRE PRESSURE LOCATION INDICA-
TOR DOES NOT DISPLAY  ...............................

53

Description ..............................................................

53

Diagnosis Procedure ...............................................

53

LOW TIRE PRESSURE LOCATION INDICA-
TOR CONTINUES DISPLAYING  ......................

54

Description ..............................................................

54

Diagnosis Procedure ...............................................

54

TIRE PRESSURE SENSOR ID REGISTRA-
TION CANNOT BE COMPLETED .....................

55

Description ..............................................................

55

Diagnosis Procedure ..............................................

55

HAZARD WARNING LAMP REMAINS ON  ......

56

Description ..............................................................

56

Diagnosis Procedure ...............................................

56

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING ............................

57

NVH Troubleshooting Chart ....................................

57

PERIODIC MAINTENANCE  .......................

58

ROAD WHEEL ...................................................

58

Inspection ................................................................

58

Wheel Balance Adjustment (Aluminum Wheel)  ......

58

Wheel Balance Adjustment (Steel Wheel)  ..............

59

Tire Rotation  ...........................................................

60

REMOVAL AND INSTALLATION ..............

61

ROAD WHEEL TIRE ASSEMBLY  ....................

61

Exploded View  ........................................................

61

Removal and Installation .........................................

61

Inspection ................................................................

61

TIRE PRESSURE SENSOR  ..............................

62

Exploded View  ........................................................

62

Removal and Installation .........................................

62

Disposal ..................................................................

65

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

66

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

66

Road Wheel  ............................................................

66

Tire Air Pressure  .....................................................

66

PRECAUTIONS

WT-3

< PRECAUTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010715050

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions for Removing Battery Terminal

INFOID:0000000010766768

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

1.

Open the hood.

SEF289H

WT-4

< PRECAUTION >

PRECAUTIONS

2.

Turn key switch to the OFF position with the driver side door opened.

3.

Get out of the vehicle and close the driver side door.

4.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

5.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

1.

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000010715052

CAUTION:

Comply with the following cautions to prevent any error and malfunction.
• Before removing and installing any control units, first turn the ignition power source and accessory

power source to the OFF, then disconnect both battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect

both battery cables.

• Always use CONSULT to perform self-diagnosis as a part of each function inspection after finishing

work. If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

For vehicle with steering lock unit, if the battery is disconnected or discharged, the steering wheel will lock and
cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the operation pro-
cedure below before starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Open driver door.

3.

Turn the ignition switch to the ON position.
(At this time, the steering lock will be released.)

4.

Turn the ignition switch to OFF position with driver door open.

5.

Wait for 3 minutes or longer with driver door open.

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes
