TM-538

< WIRING DIAGRAM >

[CVT: RE0F10G]

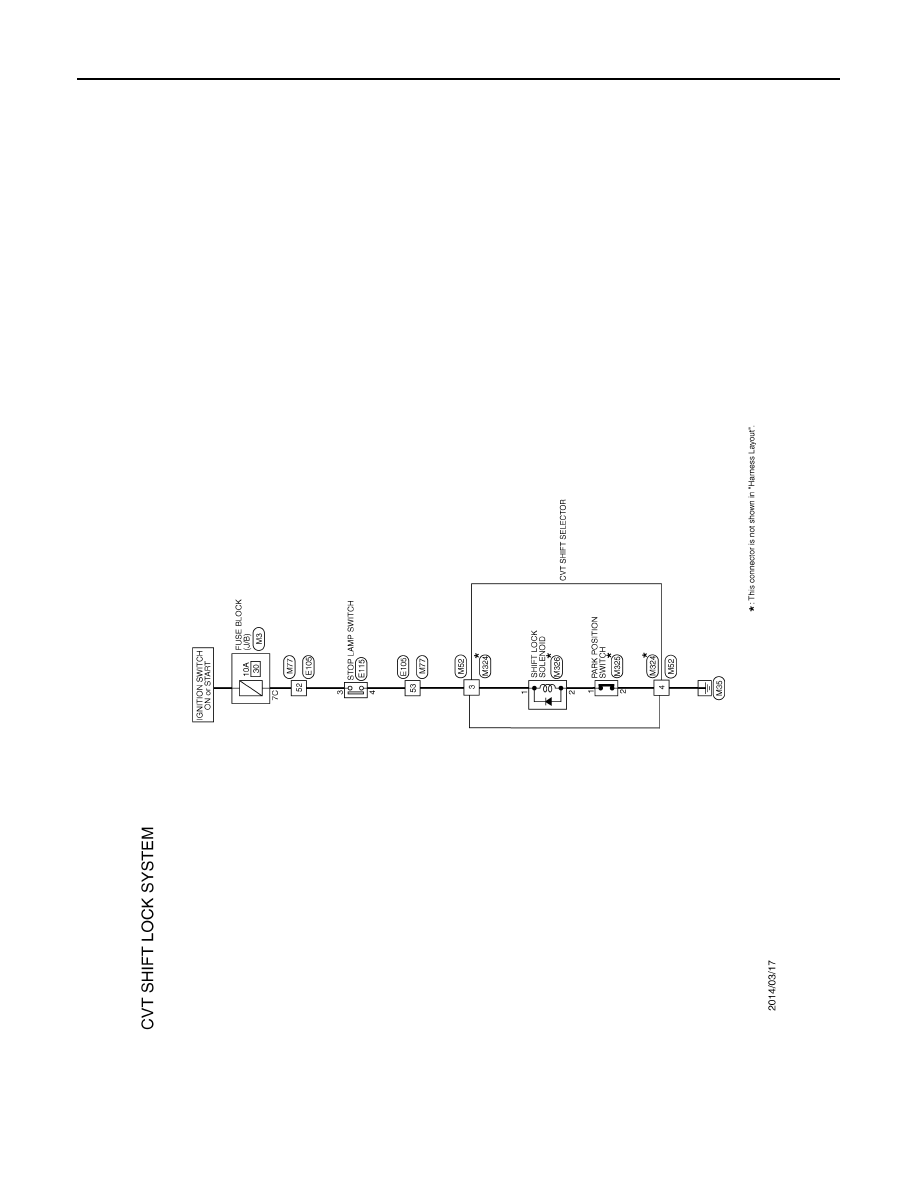

CVT SHIFT LOCK SYSTEM

CVT SHIFT LOCK SYSTEM

Wiring Diagram

INFOID:0000000010622757

JRDWC2854GB

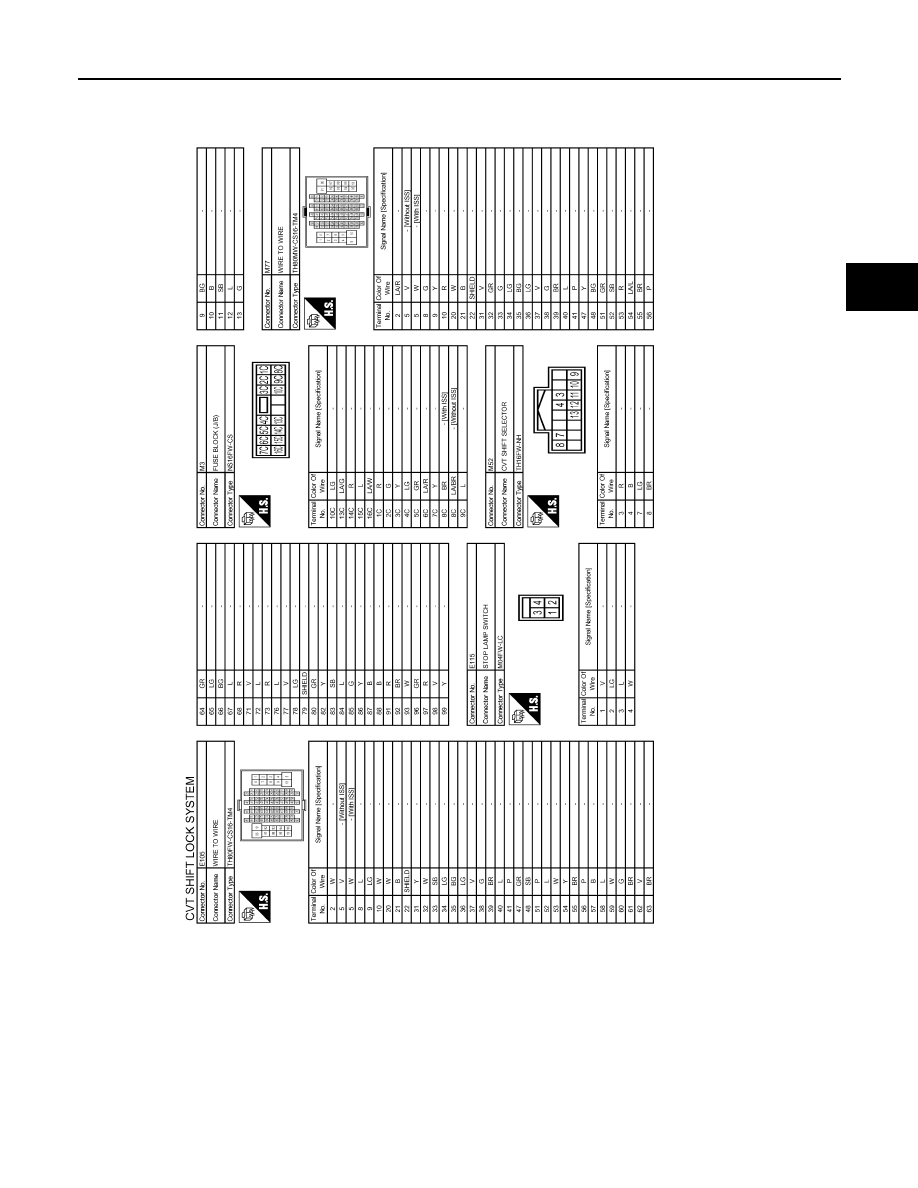

CVT SHIFT LOCK SYSTEM

TM-539

< WIRING DIAGRAM >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

JRDWC2855GB

TM-540

< WIRING DIAGRAM >

[CVT: RE0F10G]

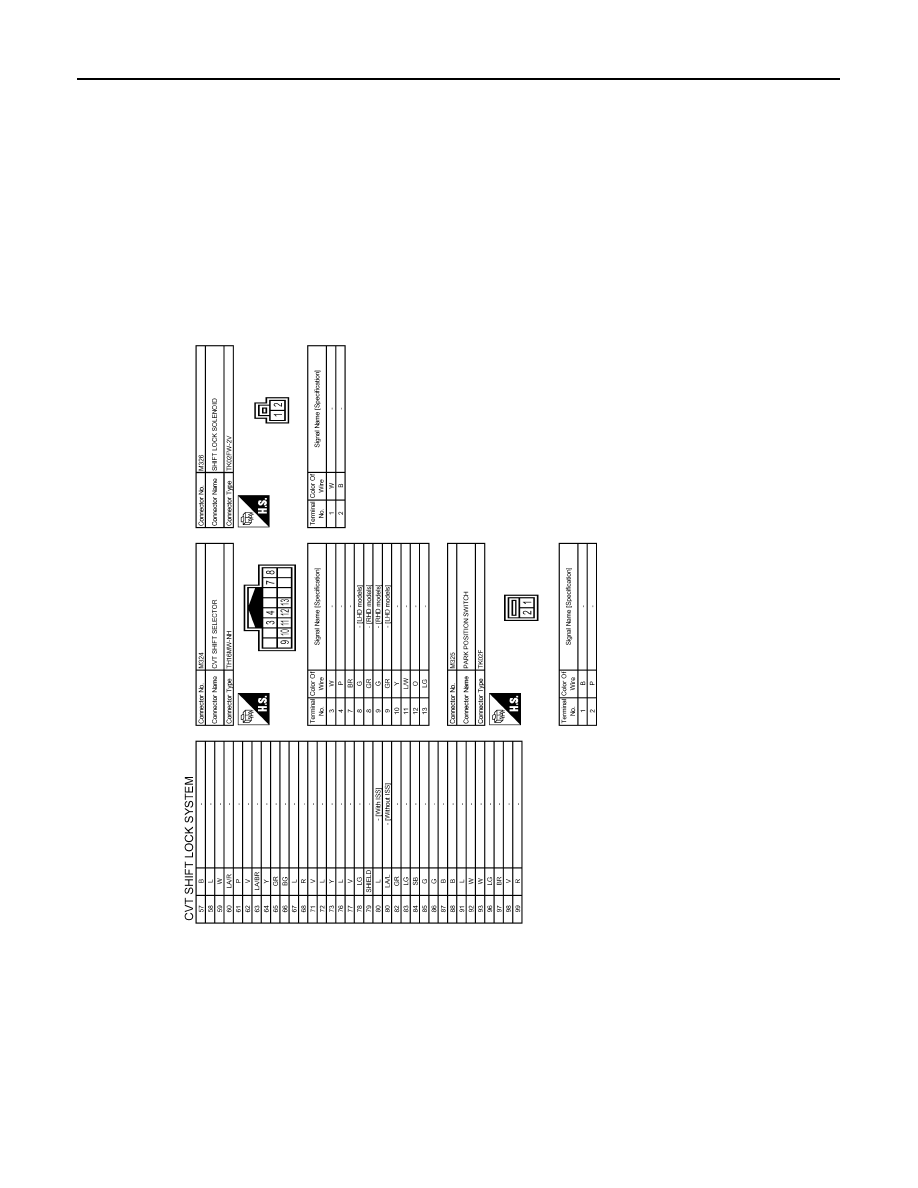

CVT SHIFT LOCK SYSTEM

JRDWC2856GB

DIAGNOSIS AND REPAIR WORK FLOW

TM-541

< BASIC INSPECTION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000010622758

NOTE:
“DTC” includes DTC at the 1st trip.

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Refer to

TM-542, "Diagnostic Work Sheet"

 and interview the customer to obtain the malfunction information

(conditions and environment when the malfunction occurred) as much as possible when the customer brings
in the vehicle.

>> GO TO 2.

2.

CHECK DTC

1.

Before checking the malfunction, check whether any DTC exists.

2.

If DTC exists, perform the following operations.

-

Records the DTCs. (Print out using CONSULT and affix to the Work Order Sheet.)

-

Erase DTCs.

-

Check the relation between the cause found by DTC and the malfunction information from customer.

TM-

659, "Symptom Table"

 can be used effectively.

3.

Check the relevant information including STI, etc.

Do malfunction information and DTC exists?

Malfunction information and DTC exists.>>GO TO 3.
Malfunction information exists but no DTC.>>GO TO 4.
No malfunction information, but DTC exists.>>GO TO 5.

3.

REPRODUCE MALFUCTION SYSTEM

Check the malfunction described by the customer on the vehicle.
Check if the behavior is fail safe or normal operation. Refer to

TM-522, "Fail-safe"

.

Interview sheet can be used effectively when reproduce malfunction conditions. Refer to

TM-542, "Diagnostic

Work Sheet"

.

Verify the relationship between the symptom and the conditions in which the malfunction described by the cus-
tomer occurs.

>> GO TO 5.

4.

REPRODUCE MALFUNCTION SYMPTOM

Check the malfunction described by the customer on the vehicle.
Check if the behavior is fail safe or normal operation. Refer to

TM-522, "Fail-safe"

.

Interview sheet can be used effectively when reproduce malfunction conditions. Refer to

TM-542, "Diagnostic

Work Sheet"

.

Verify the relationship between the symptom and the conditions in which the malfunction described by the cus-
tomer occurs.

>> GO TO 6.

5.

PERFORM “DTC CONFIRMATION PROCEDURE”

Perform “DTC CONFIRMATION PROCEDURE” of the appropriate DTC to check if DTC is detected again.
Refer to

TM-528, "DTC Inspection Priority Chart"

 when multiple DTCs are detected, and then determine the

order for performing the diagnosis.
Is any DTC detected?

YES

>> GO TO 7.

NO

>> Follow

GI-44, "Intermittent Incident"

 to check.

6.

IDENTIFY MALFUNCTIONING SYSTEM WITH “DIAGNOSIS CHART BY SYMPTOM”
