< ECU DIAGNOSIS INFORMATION >

[CVT: RE0F10G]

TCM

*1: These numbers are specified by SAE J2012/ISO 15031-6.
*2: The DTC number of the 1st trip is the same as the DTC number.
*3: Refer to

TM-508, "DIAGNOSIS DESCRIPTION : Malfunction Indicator Lamp (MIL)"

.

P0746

P0746

PC SOLENOID A

2

ON

Blinking

TM-592

P0776

P0776

PC SOLENOID B

2

ON

—

TM-594

P0778

P0778

PC SOLENOID B

2

ON

—

TM-596

P0779

P0779

PC SOLENOID B

2

ON

—

TM-598

—

P0826

UP/DOWN SHIFT
SWITCH

1

—

—

TM-600

P0841

P0841

FLUID PRESS SEN/SW A

2

—

Blinking

TM-603

P0847

P0847

FLUID PRESS SEN/SW B

2

ON

Blinking

TM-605

P0848

P0848

FLUID PRESS SEN/SW B

2

ON

Blinking

TM-607

P084C

P084C

FLUID PRESS SEN/SW H

2

ON

—

TM-609

P084D

P084D

FLUID PRESS SEN/SW H

2

ON

—

TM-611

P0863

P0863

CONTROL UNIT (CAN)

1

ON

Blinking

TM-613

P0890

P0890

TCM

1

ON

Blinking

TM-614

P0962

P0962

PC SOLENOID A

2

ON

Blinking

TM-616

P0963

P0963

PC SOLENOID A

2

ON

Blinking

TM-618

P0965

P0965

PC SOLENOID B

2

ON

Blinking

TM-620

P0966

P0966

PC SOLENOID B

2

ON

Blinking

TM-622

P0967

P0967

PC SOLENOID B

2

ON

Blinking

TM-624

—

P1586

G SENSOR

1

—

Blinking

TM-626

—

P1588

G SENSOR

1

—

Blinking

TM-629

—

P188E

ELECTRIC OIL PUMP

1

—

—

TM-632

—

P188F

ELECTRIC OIL PUMP

1

—

—

TM-637

—

P1890

ELECTRIC OIL PUMP RE-
LAY

1

—

—

TM-639

P2765

P2765

INPUT SPEED SENSOR B

2

ON

Blinking

TM-643

P2813

P2813

SELECT SOLENOID

2

ON

Blinking

TM-646

P2814

P2814

SELECT SOLENOID

2

ON

Blinking

TM-648

P2815

P2815

SELECT SOLENOID

2

ON

Blinking

TM-650

U0073

U0073

COMM BUS A OFF

1

ON

Blinking

TM-555

U0100

U0100

LOST COMM (ECM A)

1

ON

Blinking

TM-556

—

U0140

LOST COMM (BCM)

1

—

Blinking

TM-558

—

U0141

LOST COMM (BCM A)

1

—

Blinking

TM-559

—

U0155

LOST COMM (IPC)

1

—

Blinking

TM-560

—

U0300

CAN COMM DATA

1

—

Blinking

TM-561

—

U1000

CAN COMM CIRCUIT

1

—

Blinking

TM-563

—

U110F

LOST COMM (ECM)

1

—

—

TM-564

—

U1111

LOST COMM (CHASSIS
CONT MDUL)

1

—

—

TM-565

—

U1117

LOST COMM (ABS)

1

—

Blinking

TM-566

DTC

*1, *2

Items

(CONSULT screen terms)

Trip

MIL

*3

Stop/start

indicator

lamp

Reference

GST

CONSULT

(TRANSMISSION)

CVT CONTROL SYSTEM

TM-531

< WIRING DIAGRAM >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

WIRING DIAGRAM

CVT CONTROL SYSTEM

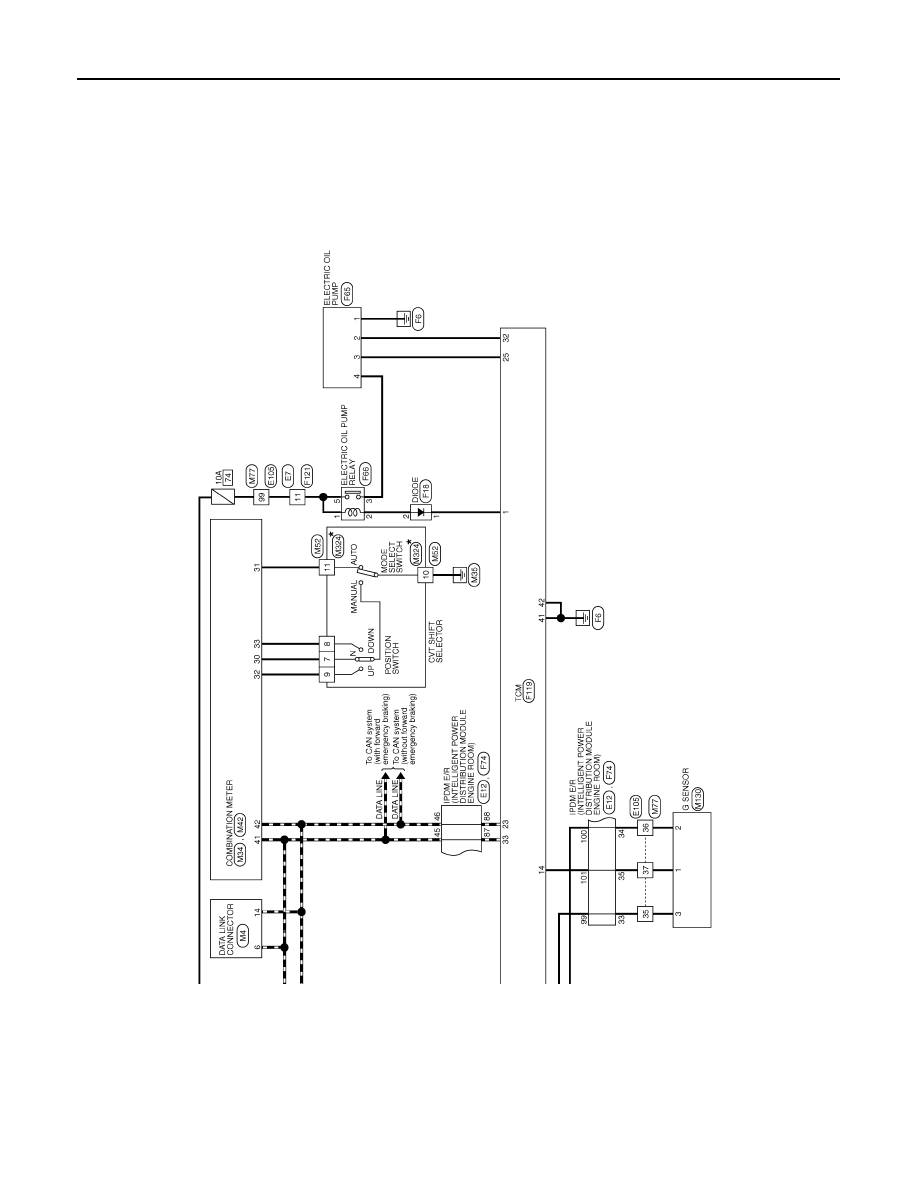

Wiring Diagram

INFOID:0000000010622756

JRDWC2847GB

TM-532

< WIRING DIAGRAM >

[CVT: RE0F10G]

CVT CONTROL SYSTEM

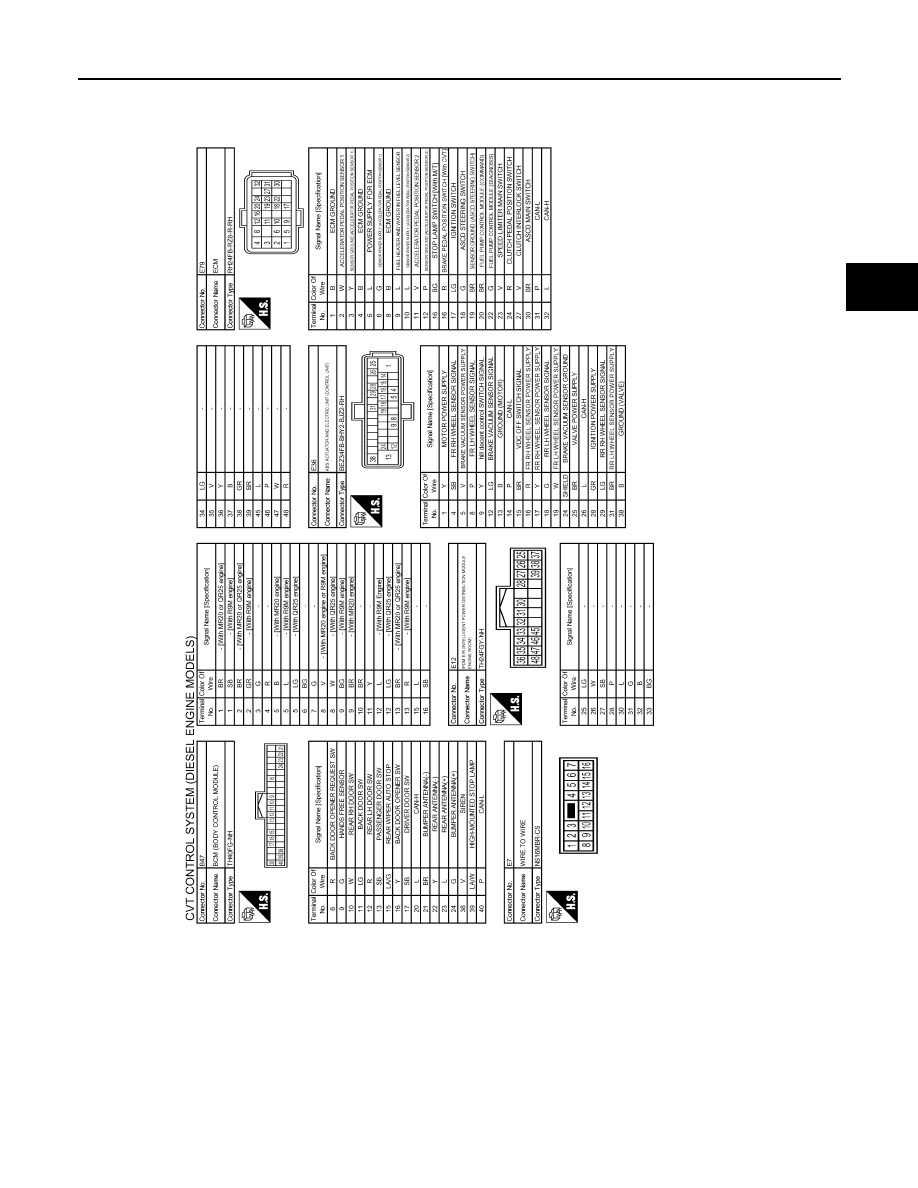

JRDWC2848GB

CVT CONTROL SYSTEM

TM-533

< WIRING DIAGRAM >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

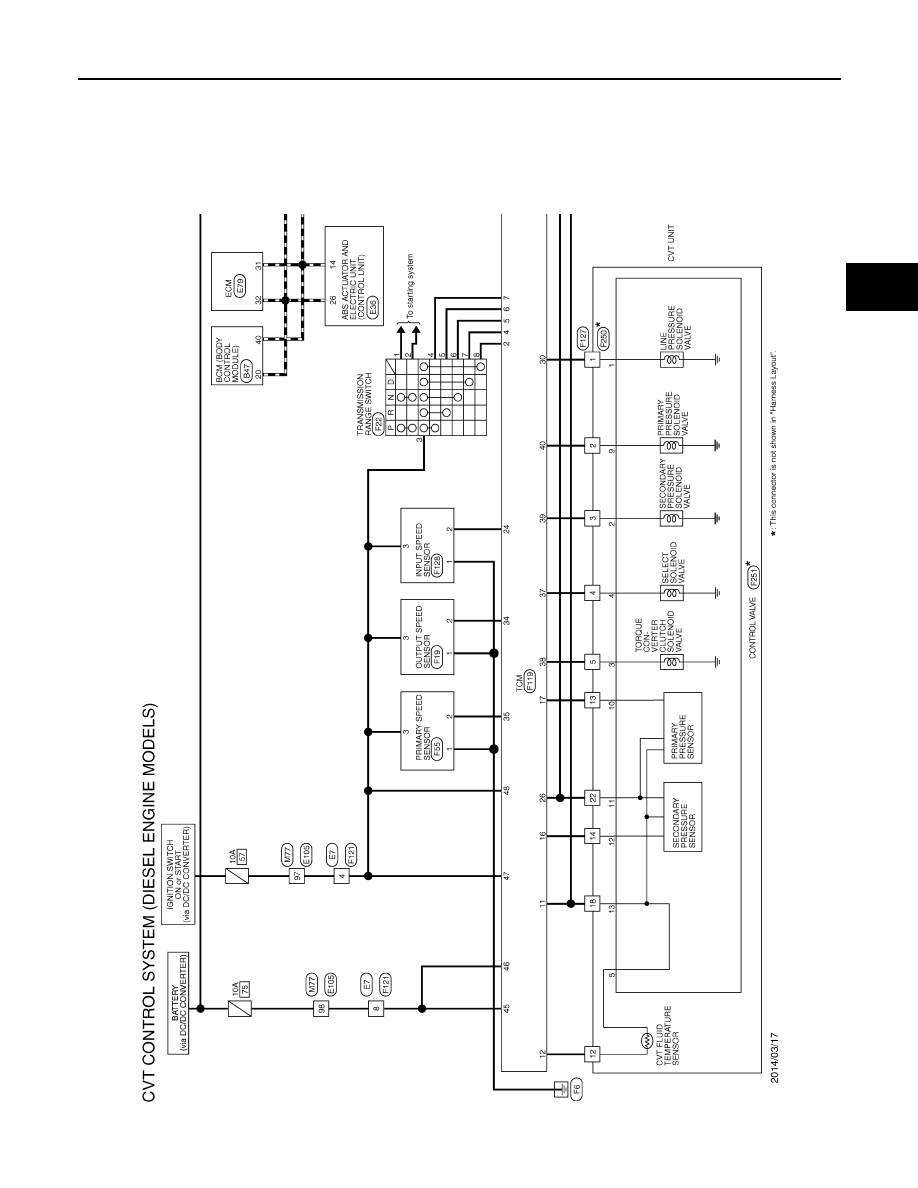

JRDWC2849GB
