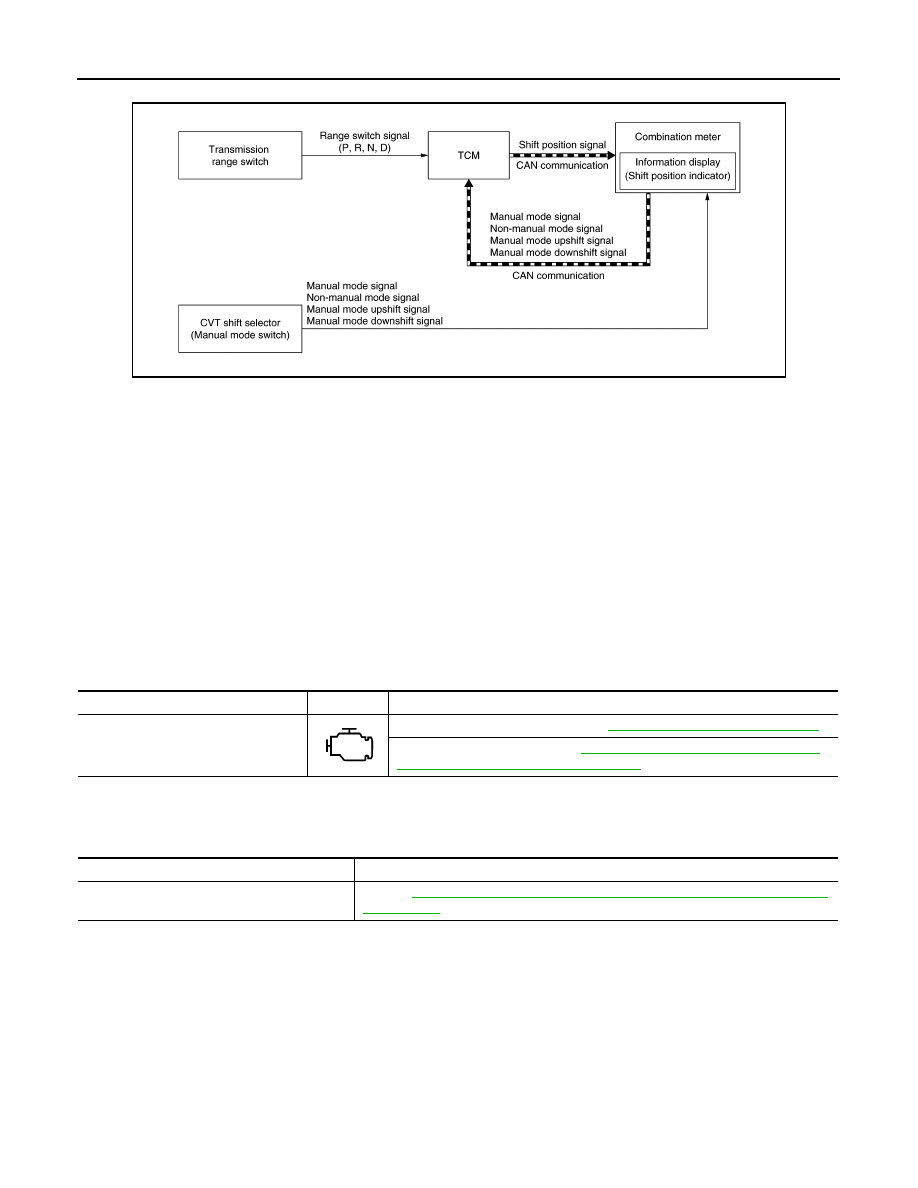

TM-506 < SYSTEM DESCRIPTION > [CVT: RE0F10G] SYSTEM SYSTEM DIAGRAM NOTE: SIGNAL PATH • The TCM judges the shift position by the transmission range switch signal, manual mode switch signal, non- manual mode switch signal, manual mode upshift signal, and manual mode downshift signal. • The TCM transmits the shift position signal to the combination meter via CAN communication. The combina- tion meter shows the shift position indicator on the information display, according to the signal. LIGHTING CONDITION Ignition switch: ON SHUTOFF CONDITION Ignition switch: Other than ON WARNING/INDICATOR/CHIME LIST WARNING/INDICATOR/CHIME LIST : Warning Lamp/Indicator Lamp INFOID:0000000010622742 WARNING/INDICATOR/CHIME LIST : Warning/Indicator (On Information Display) INFOID:0000000010622743 JSDIA6078GB Name Design Arrangement/Function Malfunction indicator lamp (MIL) Regarding the arrangement. Refer to MWI-10, "METER SYSTEM : Design" . Regarding the function. Refer to MWI-50, "WARNING LAMPS/INDICATOR LAMPS : Malfunction Indicator Lamp (MIL)" Item Reference Shift position indicator Refer to TM-505, "INFORMATION DISPLAY (COMBINATION METER) : Shift Posi- . |
