TRANSAXLE : Component Description

INFOID:0000000010622729

FLUID COOLER & FLUID WARMER SYSTEM

Part name

Function

Torque converter

Increases engine torque and transmits it to the transaxle.

Oil pump

Utilizes a vane-type oil pump that is driven by the engine through the oil pump drive chain in order to
increase efficiency of pump discharge volume in low-speed zone and optimize pump discharge volume
in high-speed zone. Discharged oil from oil pump is transmitted to control valve. It is used as the oil of
primary and secondary pulley operation, the oil of clutch operation, and the lubricant for each part.

Forward clutch

The forward clutch is wet and multiple plate type clutch that consists of clutch drum, piston, drive plate,
and driven plate. It is a clutch to move the vehicle forward by activating piston hydraulically, engaging
plates, and directly connecting sun gear and input shaft.

Reverse brake

The reverse brake is a wet multiple-plate type brake that consists of transaxle case, piston, drive plate,
and driven plate. It is a brake to move the vehicle in reverse by activating piston hydraulically, engaging
plates, and fixing planetary gear.

Internal gear

The internal gear is directly connected to forward clutch drum. It is a gear that moves the outer edge of
pinion planet of planet carrier. It transmits power to move the vehicle in reverse when the planet carrier
is fixed.

Planet carrier

Composed of a carrier, pinion planet, and pinion shaft. This gear fixes and releases the planet carrier in
order to switch between forward and reverse driving.

Sun gear

Sun gear is a set part with planet carrier and internal gear. It transmits transmitted force to primary fixed
sheave. It rotates in forward or reverse direction according to activation of either forward clutch or re-
verse brake.

Input shaft

The input shaft is directly connected to forward clutch drum and transmits traction force from torque con-
verter. In shaft center, there are holes for hydraulic distribution to primary pulley and hydraulic distribution
for lockup ON/OFF.

Primary pulley

It is composed of a pair of pulleys (the groove width is changed freely in the axial direction) and the chain
belt. The groove width changes according to wrapping radius of steel belt and pulley from low status to
overdrive status continuously with non-step. It is controlled with the oil pressures of primary pulley and
secondary pulley.

Secondary pulley

Chain belt

Manual shaft

When the manual shaft is in the P position, the parking rod that is linked to the manual shaft rotates the
parking pole. When the parking pole rotates, it engages with the parking gear, fixing the parking gear. As
a result, the secondary pulley that is integrated with the parking gear is fixed.

Parking rod

Parking pawl

Parking gear

Output gear

The deceleration gears are composed of 2 stages: primary deceleration (output gear, idler gear pair) and
secondary deceleration (reduction gear, final gear pair). All of these gears are helical gears.

Idler gear

Reduction gear

Differential

Torque converter regulator
valve

Adjusts the feed pressure to the torque converter to the optimum pressure corresponding to the driving
condition.

Pressure regulator valve

Adjusts the discharge pressure from the oil pump to the optimum pressure (line pressure) corresponding
to the driving condition.

Torque converter clutch
control valve

Adjusts the torque converter engage and disengage pressures.

Manual valve

Distributes the clutch operation pressure to each circuit according to the selector lever position.

Secondary reducing valve

Reduces line pressure and adjusts secondary pressure.

Primary reducing valve

Reduces line pressure and adjusts primary pressure.

Pilot valve A

Reduces line pressure and adjusts pilot pressure to the solenoid valves listed below.
• Primary pressure solenoid valve
• Secondary pressure solenoid valve
• Select solenoid valve
• Line pressure solenoid valve

Pilot valve B

Reduces pilot pressure and adjusts pilot pressure to the torque converter clutch solenoid valve.

STRUCTURE AND OPERATION

TM-487

< SYSTEM DESCRIPTION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

FLUID COOLER & FLUID WARMER SYSTEM : System Description

INFOID:0000000010622730

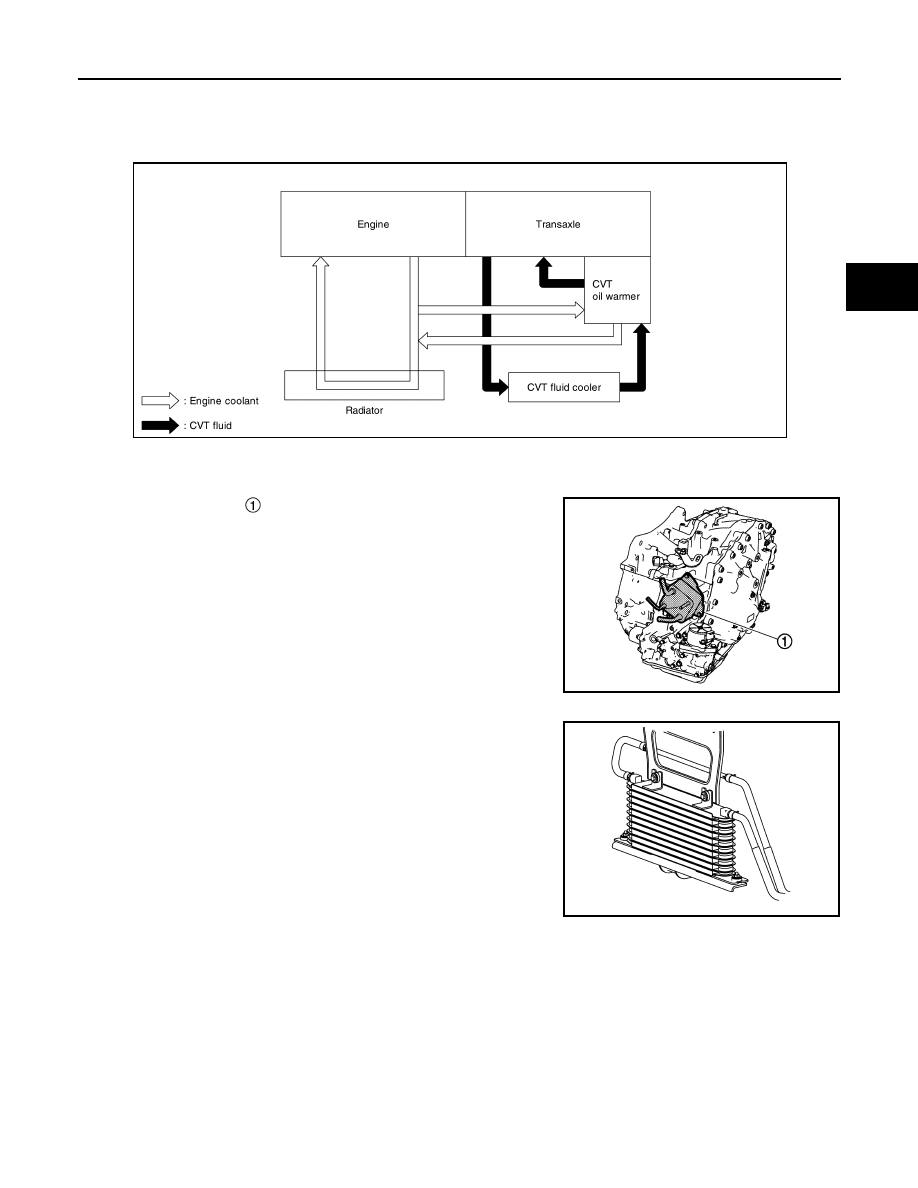

CVT FLUID COOLER SCHEMATIC

COMPONENT DESCRIPTION

CVT Oil Warmer

• The CVT oil warmer

 is installed on the front part of transaxle

assembly.

• When engine is started while engine and CVT are cold, engine

coolant temperature rises more quickly than CVT fluid tempera-
ture. CVT oil warmer is provided with two circuits for CVT and
engine coolant respectively so that warmed engine coolant warms
CVT quickly. This helps shorten CVT warming up time, improving
fuel economy.

• A cooling effect is obtained when CVT fluid temperature is high.

CVT Fluid Cooler (Air Cooling Type)

• The CVT fluid cooler (air cooling type) is installed to the vehicle

front.

• CVT fluid is cooled by driving blast while driving the vehicle.

SHIFT LOCK SYSTEM

SHIFT LOCK SYSTEM : System Description

INFOID:0000000010622731

• The shift lock system prevents the select lever from being moved from “P” position to other positions due to

a driver's improper operation and prevents the occurrence of an abrupt start.

• Shift lock can be released when the following conditions are satisfied.
- Ignition switch is ON.
- Brake pedal is depressed. (Stop lamp switch is ON)

SHIFT LOCK OPERATION AT P POSITION

When brake pedal is not depressed (no selector operation allowed)

JSDIA5444GB

JSDIA5170ZZ

JSDIA5577GB

TM-488

< SYSTEM DESCRIPTION >

[CVT: RE0F10G]

STRUCTURE AND OPERATION

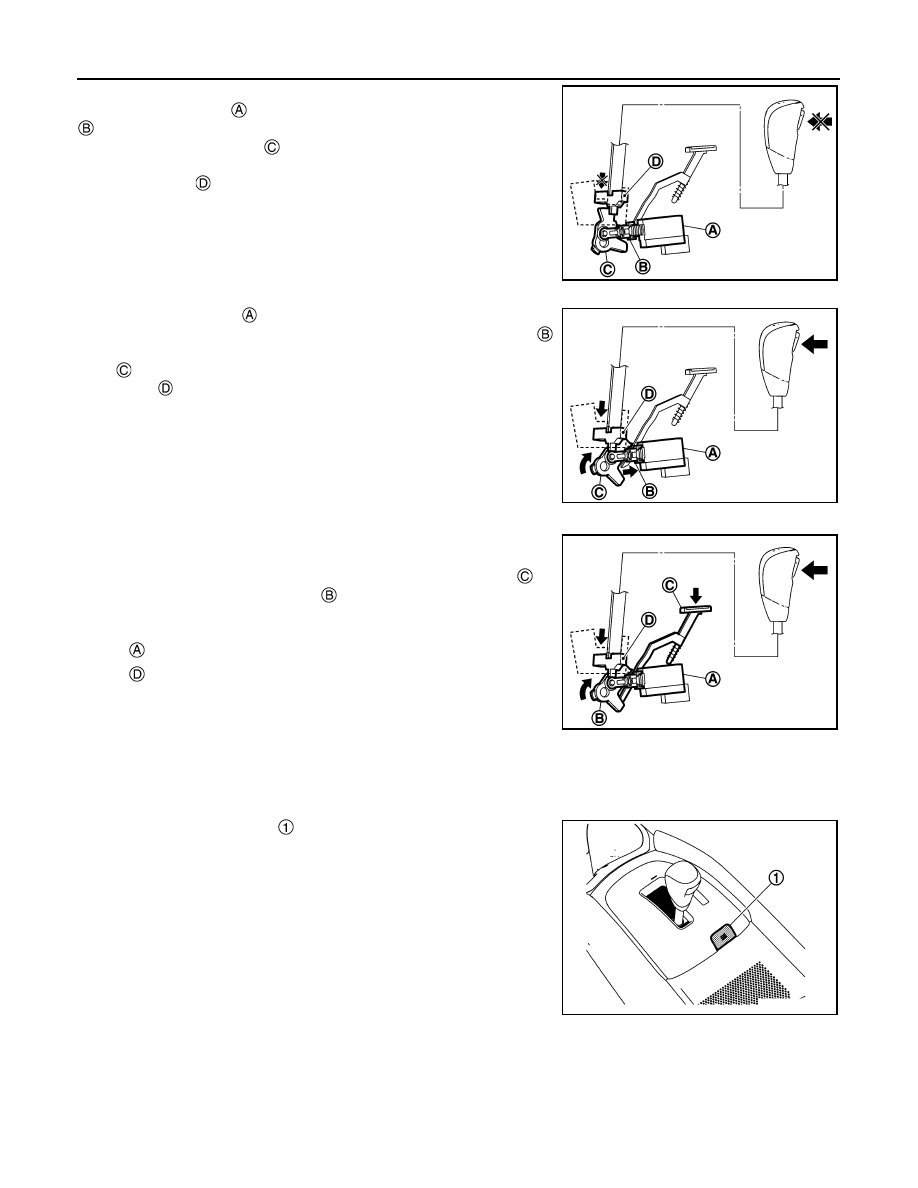

When the brake pedal is not depressed with the ignition switch ON,
the shift lock solenoid

 is OFF (not energized) and the solenoid rod

 is extended with spring.

The connecting lock lever

 is located at the position shown in the

figure when the solenoid rod is extended. It prevents the movement
of the detent rod

. The selector lever cannot be shifted from the “P”

position for this reason.

When brake pedal is depressed (selector lever operation allowed)

The shift lock solenoid

 is turned ON (energized) when the brake

pedal is depressed with the ignition switch ON. The solenoid rod
is compressed with the electromagnetic force. The connecting lock
lever

 rotates when the solenoid rod is compressed. Therefore, the

detent rod

 can be moved. The selector lever can be shifted to

other positions for this reason.

FORCIBLE RELEASE OF SHIFT LOCK

• When battery voltage decreases or an electrical/mechanical mal-

function occurs in the shift lock system, the selector lever cannot
be operated in “P” position. When shift lock release rod

 is

pressed in this state, lock lever

 is forcibly rotated, and then it

becomes possible to release shift lock.

• To release the shift lock forcibly and shift the selector lever from “P” position to other positions, follow the

steps below.

1.

Turn ignition switch OFF.

2.

Apply parking brake.

3.

Remove shift lock cover

.

JSDIA2817ZZ

JSDIA2818ZZ

: Shift lock solenoid

: Detent rod

JSDIA2819ZZ

JSDIA5575ZZ

STRUCTURE AND OPERATION

TM-489

< SYSTEM DESCRIPTION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

4.

Insert key

 to finisher opening

 and press the shift lock

release rod.

5.

Press the selector lever knob button and move the selector lever
from “P” position to other positions.

KEY LOCK SYSTEM

KEY LOCK SYSTEM : System Description

INFOID:0000000011009348

KEY LOCK MECHANISM

The key is not set to LOCK when the selector lever is not selected to P position. This prevents the key from
being removed from the key cylinder.

Key lock status

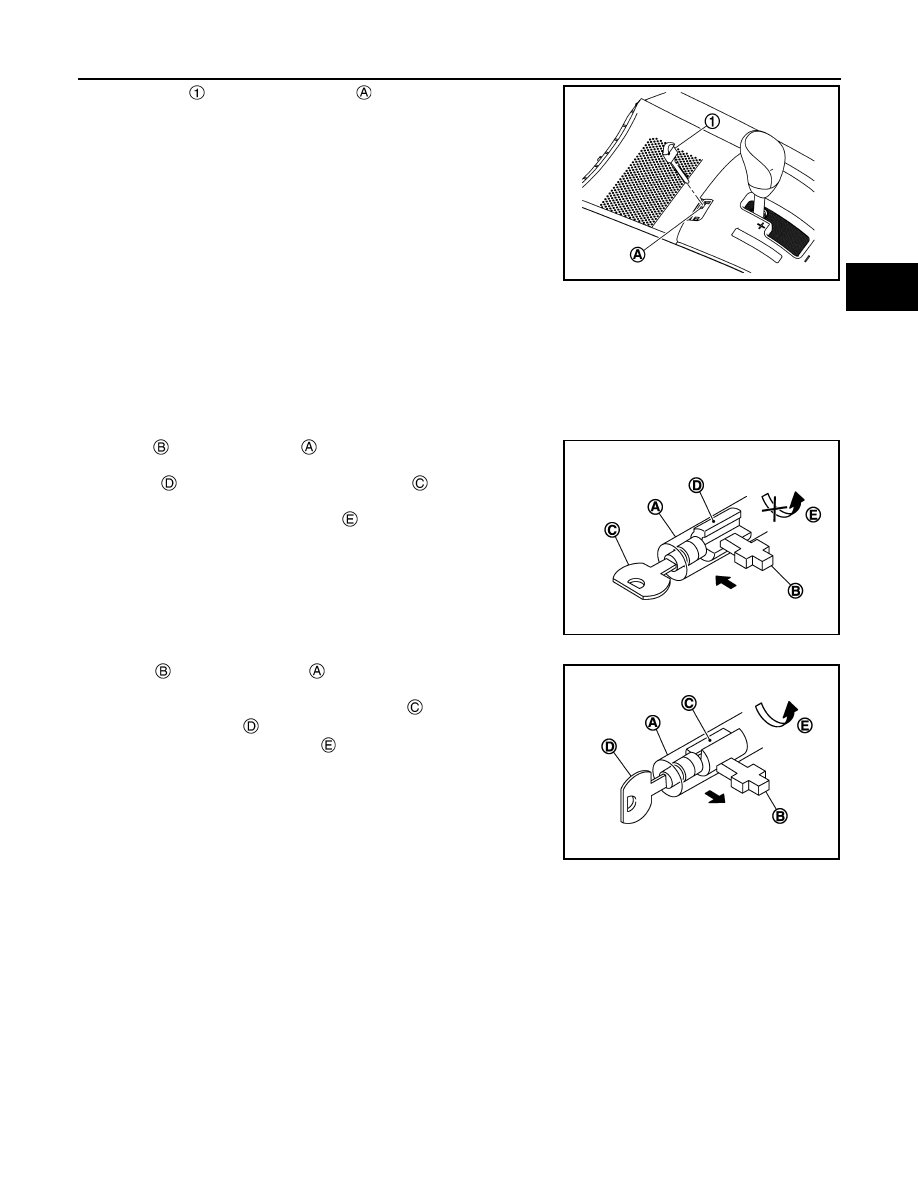

The slider

 in the key cylinder

 is moved to the left side of the fig-

ure when the selector lever is in any position other than P position.
The rotator

 that rotates together with the key

 cannot be rotated

for this reason. The key cannot be removed from the key cylinder
because it cannot be turned to LOCK

.

Key unlock status

The slider

 in the key cylinder

 is moved to the right side of the

figure when the selector lever is in P position and the finger is
removed from the selector button. The rotator

 can be rotated for

this reason. The key

 can be removed from the key cylinder

because it can be turned to LOCK

.
