COMPONENT PARTS

Electric oil pump status signal characteristics

CVT CONTROL SYSTEM : Electric Oil Pump Relay

INFOID:0000000010632038

• The electric oil pump relay is deactivated when the vehicle speed reaches 11 km/h (7 MPH) or more and

becomes activated when it reaches 6 km/h (4 MPH) or less.

• It is ON with the signal from TCM. It is ready for operation of the electric oil pump by TCM.

CVT CONTROL SYSTEM : Manual Mode Switch

INFOID:0000000010622719

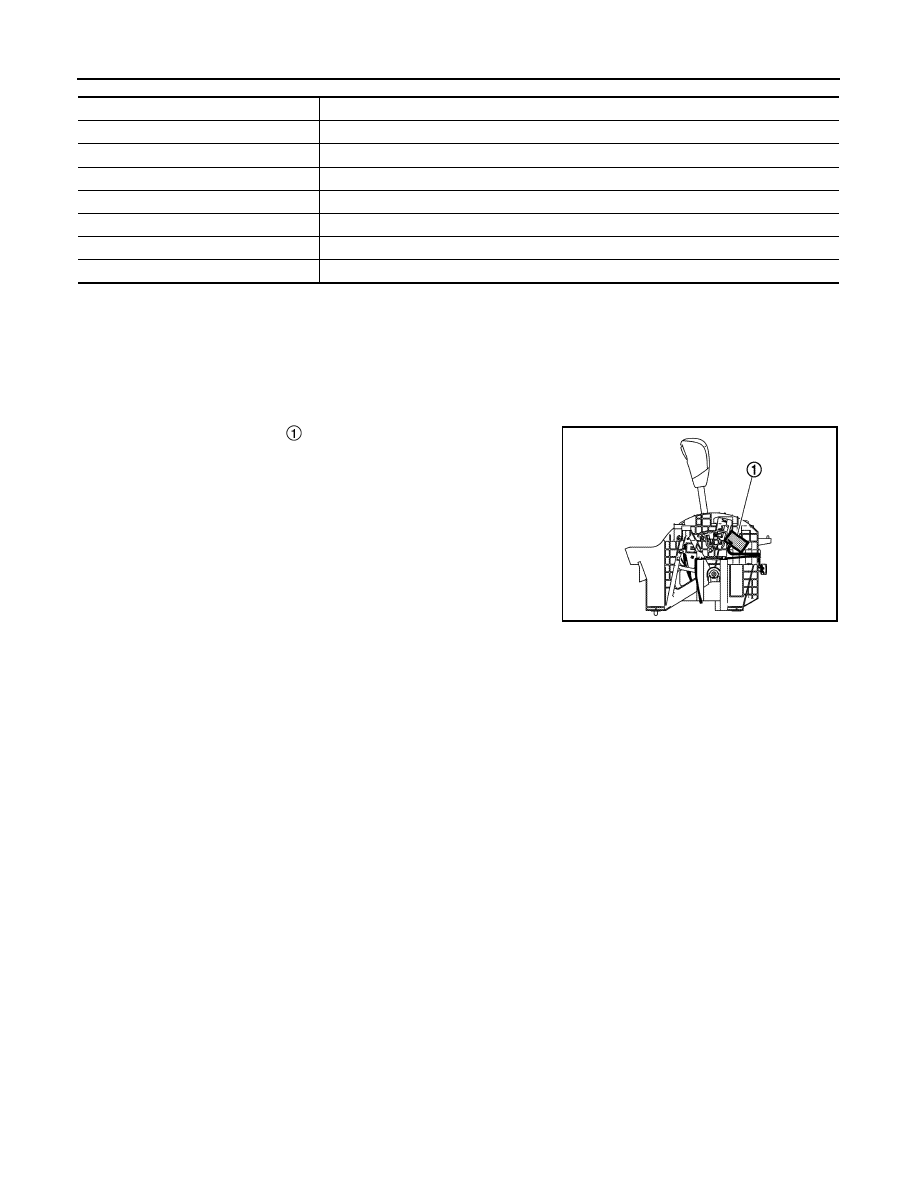

• The manual mode switch

 [mode select switch and position

select switch (upshift/downshift)] is installed in the CVT shift selec-
tor assembly.

• The mode select switch detects the position (the main shift gate

side or manual shift gate side) of the selector lever and transmits a
manual mode signal or a not manual mode signal to the combina-
tion meter. Then, the TCM receives a manual mode signal or non-
manual mode signal from the combination meter.

• The position select switch (upshift) detects that the selector lever is

shifted to the upshift side of the manual shift gate and transmits a
manual mode upshift signal to the combination meter. Then, the
TCM receives a manual mode upshift signal from the combination
meter.

• The position select switch (downshift) detects that the selector lever is shifted to the downshift side of the

manual shift gate and transmits a manual mode downshift signal to the combination meter. Then, the TCM
receives a manual mode downshift signal from the combination meter.

SHIFT LOCK SYSTEM

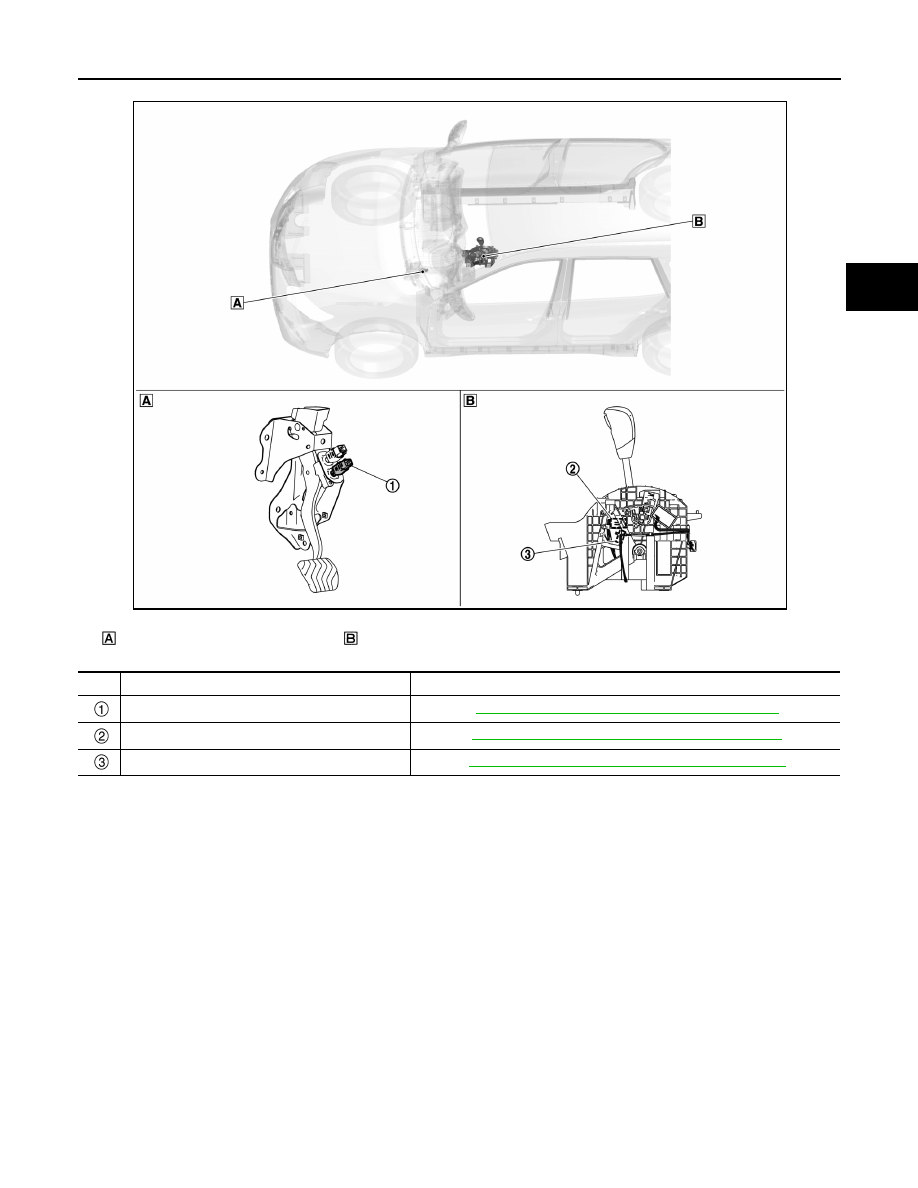

SHIFT LOCK SYSTEM : Component Parts Location

INFOID:0000000010622721

LHD MODELS

Status signal (Duty)

Condition

0 %

Electric oil pump power OFF

10 %

20 %

Overheat protection

30 %

In normal stop

40 %

In activation

50 %

In normal operation

60 – 100 %

Possible malfunction

JSDIA5578ZZ

COMPONENT PARTS

TM-479

< SYSTEM DESCRIPTION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

RHD MODELS

Brake pedal

CVT shift selector assembly

JSDIA6401ZZ

No.

Component

Function

Stop lamp switch

TM-480, "SHIFT LOCK SYSTEM : Stop Lamp Switch"

Shift lock solenoid

TM-481, "SHIFT LOCK SYSTEM : Shift Lock Solenoid"

Park position switch

TM-481, "SHIFT LOCK SYSTEM : Park Position Switch"

TM-480

< SYSTEM DESCRIPTION >

[CVT: RE0F10G]

COMPONENT PARTS

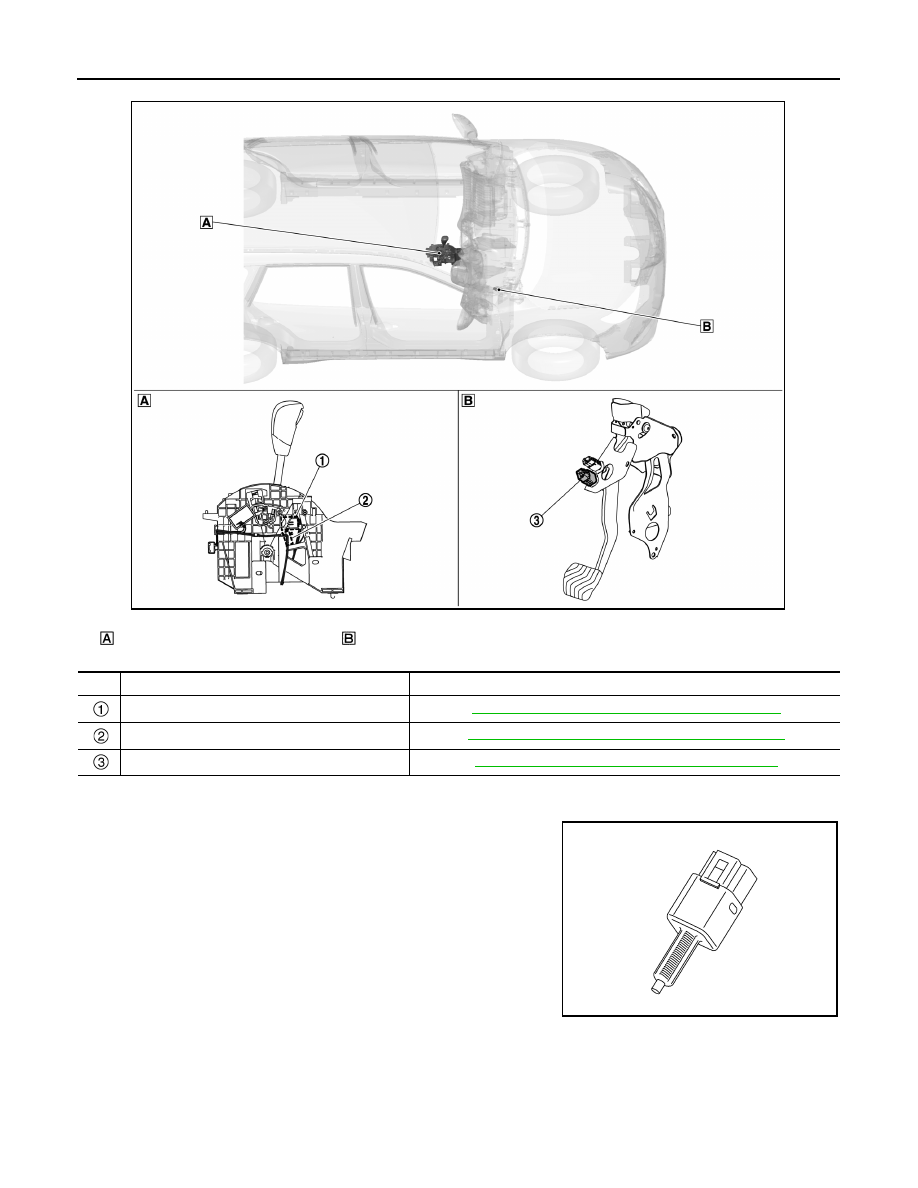

SHIFT LOCK SYSTEM : Stop Lamp Switch

INFOID:0000000010622722

• The stop lamp switch turns ON when the brake pedal is

depressed.

• When the stop lamp switch turns ON, shift lock solenoid is ener-

gized.

CVT shift selector assembl

Brake pedal

JSDIA6404ZZ

No.

Component

Function

Shift lock solenoid

TM-481, "SHIFT LOCK SYSTEM : Shift Lock Solenoid"

Park position switch

TM-481, "SHIFT LOCK SYSTEM : Park Position Switch"

Stop lamp switch

TM-480, "SHIFT LOCK SYSTEM : Stop Lamp Switch"

JSFIA1143ZZ

COMPONENT PARTS

TM-481

< SYSTEM DESCRIPTION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SHIFT LOCK SYSTEM : Shift Lock Solenoid

INFOID:0000000010622723

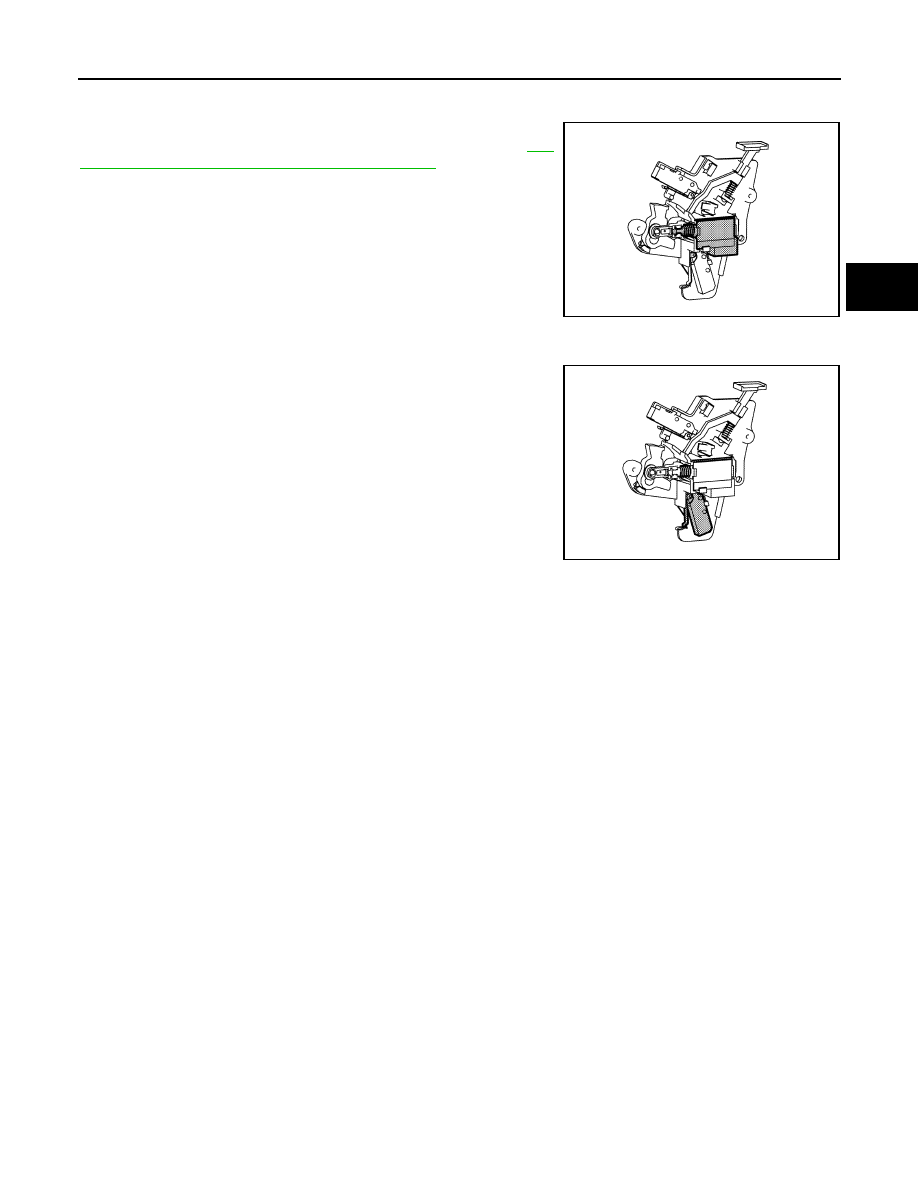

The shift lock solenoid operates according to the signal from the
BCM and moves the lock lever. For shift lock operation, refer to

TM-

487, "SHIFT LOCK SYSTEM : System Description"

.

SHIFT LOCK SYSTEM : Park Position Switch

INFOID:0000000010622724

The park position switch detects that the selector lever is in “P” posi-
tion.

JSDIA5311ZZ

JSDIA5310ZZ
