TM-450

< UNIT REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

TRANSAXLE ASSEMBLY

QR25DE Models

Removal and Installation

INFOID:0000000010622649

REMOVAL

WARNING:

Do not remove the radiator cap when the engine is hot. Serious burns could occur from high pressure
engine coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly turn it a quarter
turn to allow built-up pressure to escape. Carefully remove the cap by turning it all the way.

CAUTION:

Perform when the engine is cold.
NOTE:
When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-
ing.

1.

Remove engine and transaxle assembly. Refer to

EM-56, "Removal and Installation"

 (MR20DD),

EM-200,

"Removal and Installation"

 (QR25DE).

2.

Remove starter motor. Refer to

STR-27, "MR20DD : Removal and Installation"

 (MR20DD)

STR-34,

"QR25DE : Removal and Installation"

 (QR25DE).

3.

Remove the CVT water hoses from engine side. Refer to

TM-431, "MR20DD : Exploded View"

(MR20DD),

TM-433, "QR25DE : Exploded View"

 (QR25DE).

4.

Remove transfer assembly. Refer to

DLN-80, "MR20DD : Removal and Installation"

 (MR20DD),

DLN-81,

"QR25DE : Removal and Installation"

 (QR25DE). (4WD models only)

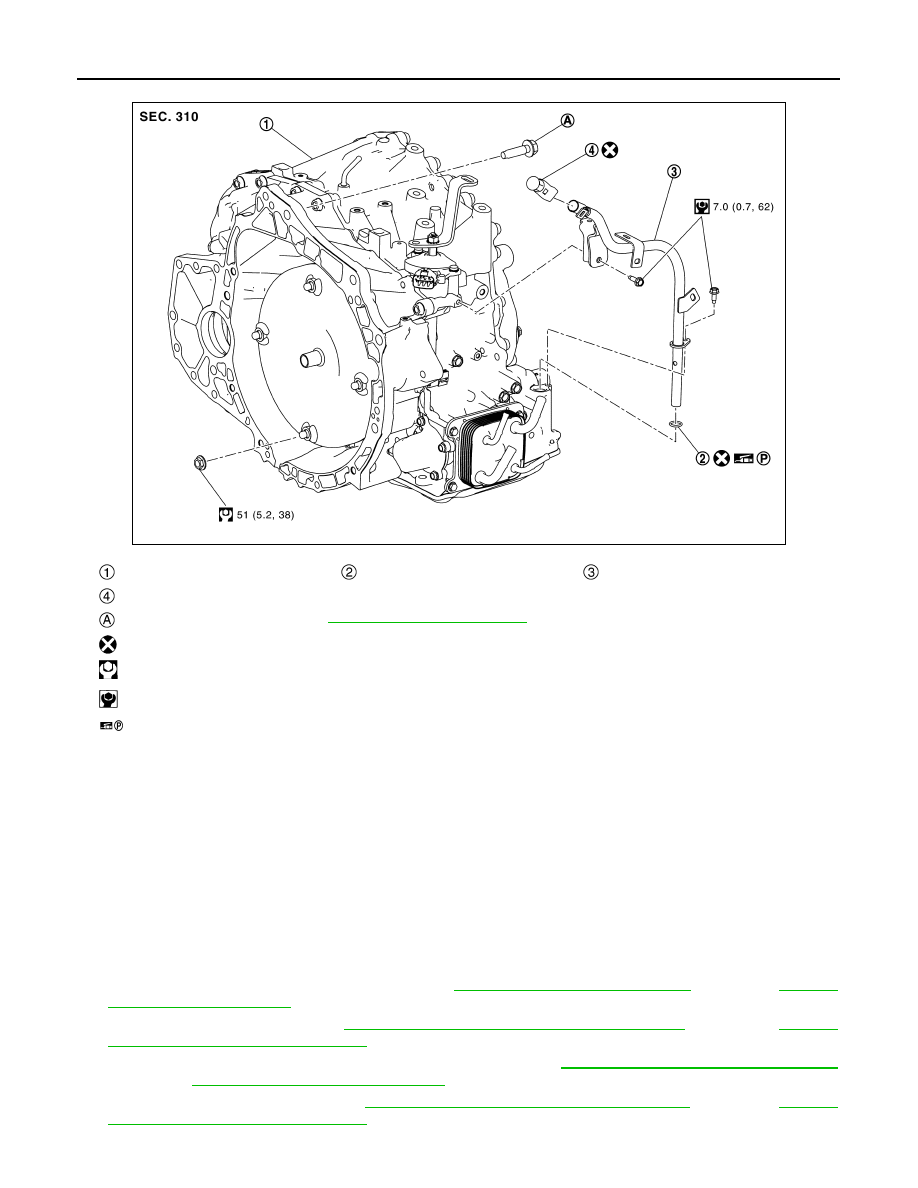

JSDIA5144GB

Transaxle assembly

O-ring

CVT fluid charging pipe

CVT fluid charging pipe cap

: For the tightening torque, refer to

TM-450, "Removal and Installation"

.

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

: Apply petroleum jelly

TRANSAXLE ASSEMBLY

TM-451

< UNIT REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

5.

Remove the bolts that fasten the transaxle assembly and engine assembly.

6.

Separate the engine from the transaxle assembly.
NOTE:
Using paint, put matching marks on the drive plate and torque converter when removing the torque con-
verter to drive plate nuts.

7.

Remove following parts from transaxle assembly.
• Control cable bracket [Refer to

TM-406, "MR20DD : Exploded View"

 (MR20DD),

TM-409, "QR25DE :

Exploded View"

 (QR25DE).]

• Air breather hose [Refer to

TM-417, "MR20DD : Exploded View"

 (MR20DD),

TM-418, "QR25DE :

Exploded View"

 (QR25DE).]

• CVT water hoses and heater thermostat [Refer to

TM-431, "MR20DD : Exploded View"

 (MR20DD),

TM-

433, "QR25DE : Exploded View"

 (QR25DE).]

• CVT fluid cooler hose and tube [Refer to

TM-436, "MR20DD : Exploded View"

 (MR20DD),

TM-441,

"QR25DE : Exploded View"

 (QR25DE).]

• Charging pipe and O-ring

INSTALLATION

Note the followings and installation is in the reverse order of removal.
NOTE:

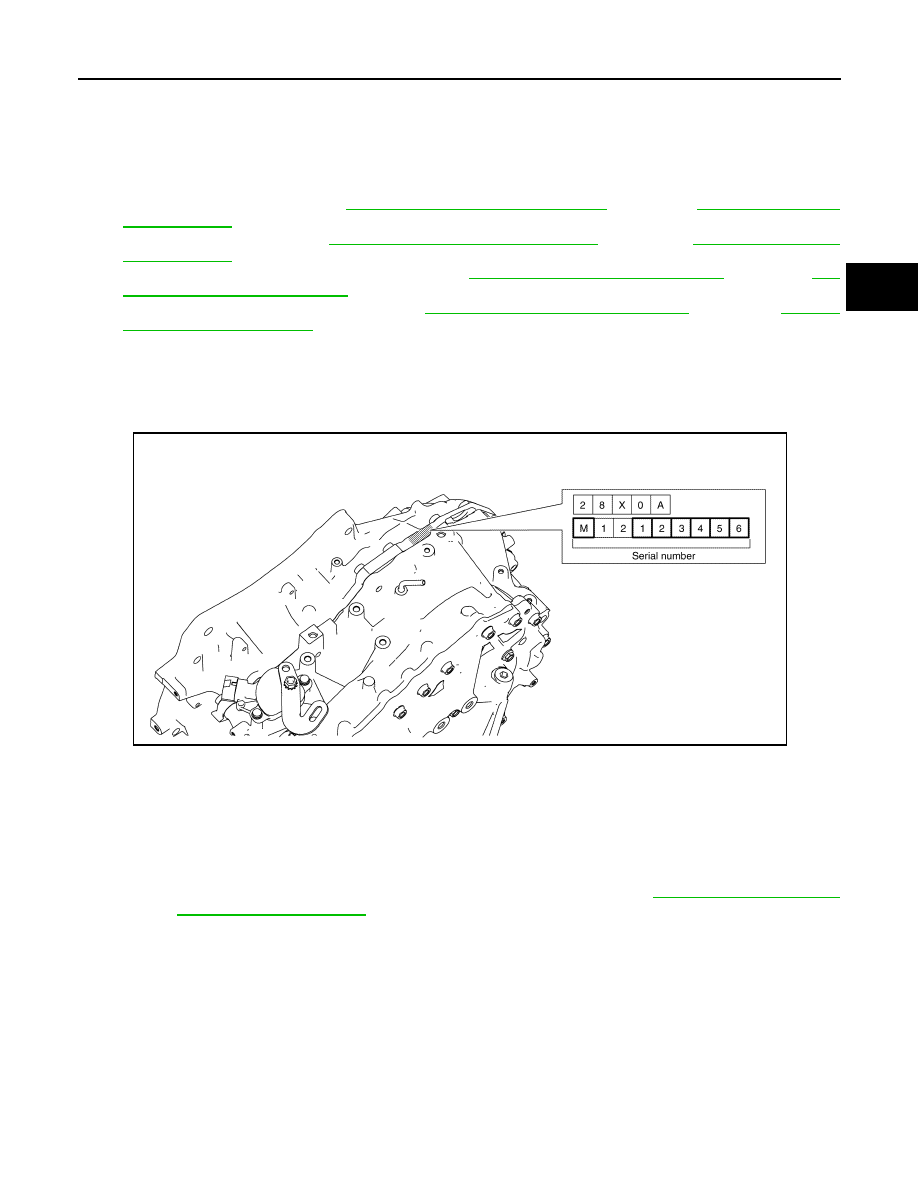

Write down the serial number of the new transaxle assembly.

CAUTION:

• When replacing an engine or transaxle you must make sure any dowels are installed correctly during

re-assembly

• Improper alignment caused by missing dowels may cause vibration, oil leaks or breakage of drive

train components.

• Do not reuse O-rings or copper sealing washers.
• When turning crankshaft, turn it clockwise as viewed from the front of the engine.
• When tightening the nuts for the torque converter while securing the crankshaft pulley bolt, be sure

to confirm the tightening torque of the crankshaft pulley bolt. Refer to

EM-67, "Exploded View"

(MR20DD),

EM-210, "Exploded View"

 (QR25DE).

• After converter is installed to drive plate, rotate crankshaft several turns to check that CVT rotates

freely without binding.

• When installing the CVT to the engine, align the matching mark on the drive plate with the matching

mark on the torque converter.

• When installing the drive plate to torque converter nuts, tighten them temporarily. then tighten the nuts to the

specified torque.

• Install the transaxle assembly and engine assembly mounting bolts according to the following standards.
- MR20DE

JSDIA6075GB

TM-452

< UNIT REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

TRANSAXLE ASSEMBLY

- QR25DE

Inspection and Adjustment

INFOID:0000000010622650

INSPECTION BEFORE INSTALLATION

After inserting a torque converter to the CVT, check dimension (A)
with in the reference value limit.

INSPECTION AFTER INSTALLATION

Check the following items:
• CVT fluid leakage, refer to

TM-399, "Inspection"

.

• For CVT position, refer to

TM-308, "Inspection"

.

• Start the engine and check for coolant leakage from the parts which are removed and reinstalled.

ADJUSTMENT AFTER INSTALLATION

• Adjust the CVT fluid level. Refer to

TM-401, "Adjustment"

.

• Perform "ADDITIONAL SERVICE WHEN REPLACE TRANSAXLE ASSEMBLY". Refer to

TM-303, "Work

Procedure"

.

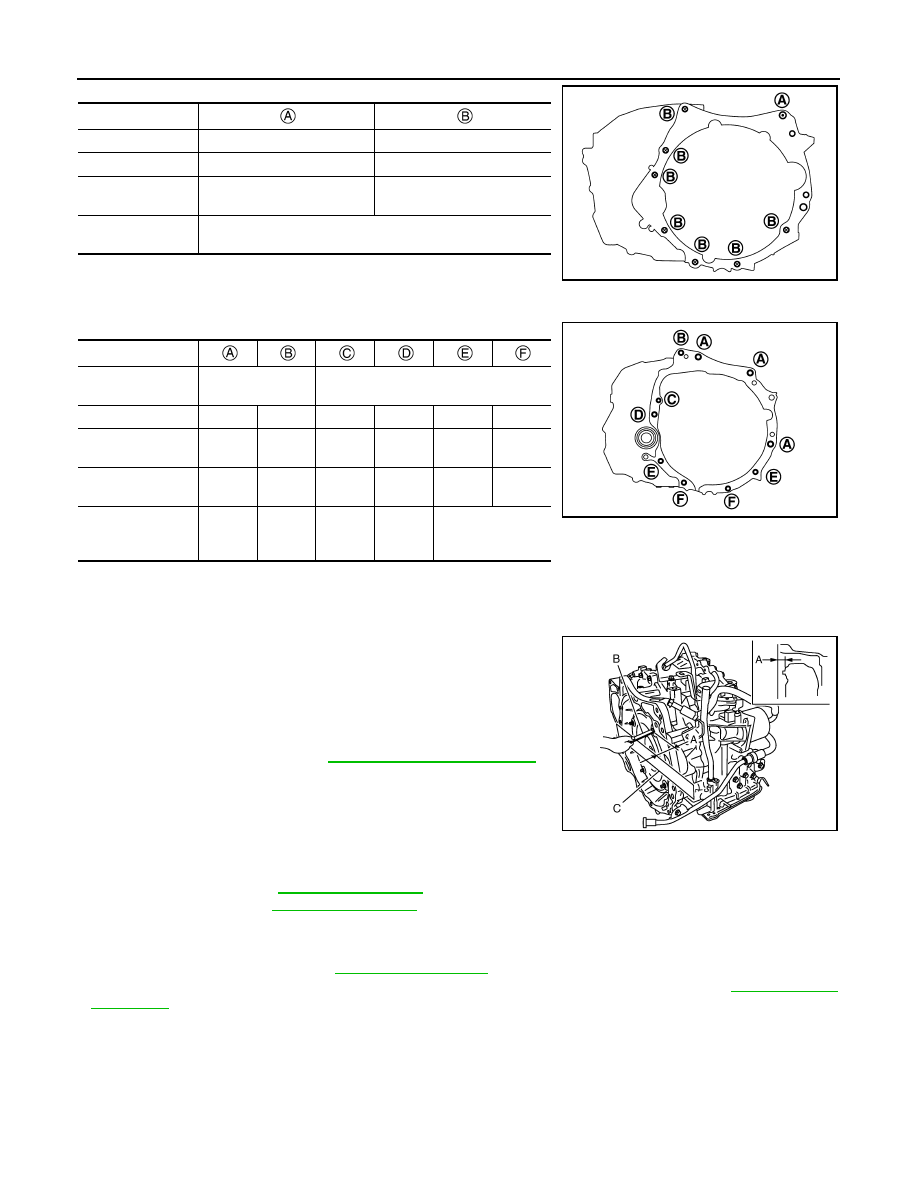

Bolt No.

Insertion direction

Transaxle to engine

Engine to transaxle

Number of bolts

1

7

Bolt length
mm (in)

55 (2.17)

50 (1.97)

Tightening torque
N·m (kg-m, ft-lb)

62 (6.3, 46)

JSDIA5265ZZ

Bolt No.

Insertion direction

Transaxle to en-

gine

Engine to transaxle

Number of bolts

3

1

1

1

2

2

Bolt length
mm (in)

45

(1.77)

45

(1.77)

45

(1.77)

45

(1.77)

45

(1.77)

35

(1.38)

Bolt pitch
mm

1.75

1.5

1.5

1.75

1.5

Tightening torque
N·m (kg-m, ft-lb)

74.5
(7.6,

55)

35.3
(3.6,

26)

48 (4.9,

35)

74.5
(7.6,

55)

42.7

(4.4, 31)

JSDIA4170ZZ

B

:  Scale

C

: Straightedge

Dimension (A)

: Refer to

TM-457, "Torque Converter"

.

JPDIA0115ZZ

TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL

TM-453

< UNIT DISASSEMBLY AND ASSEMBLY >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL

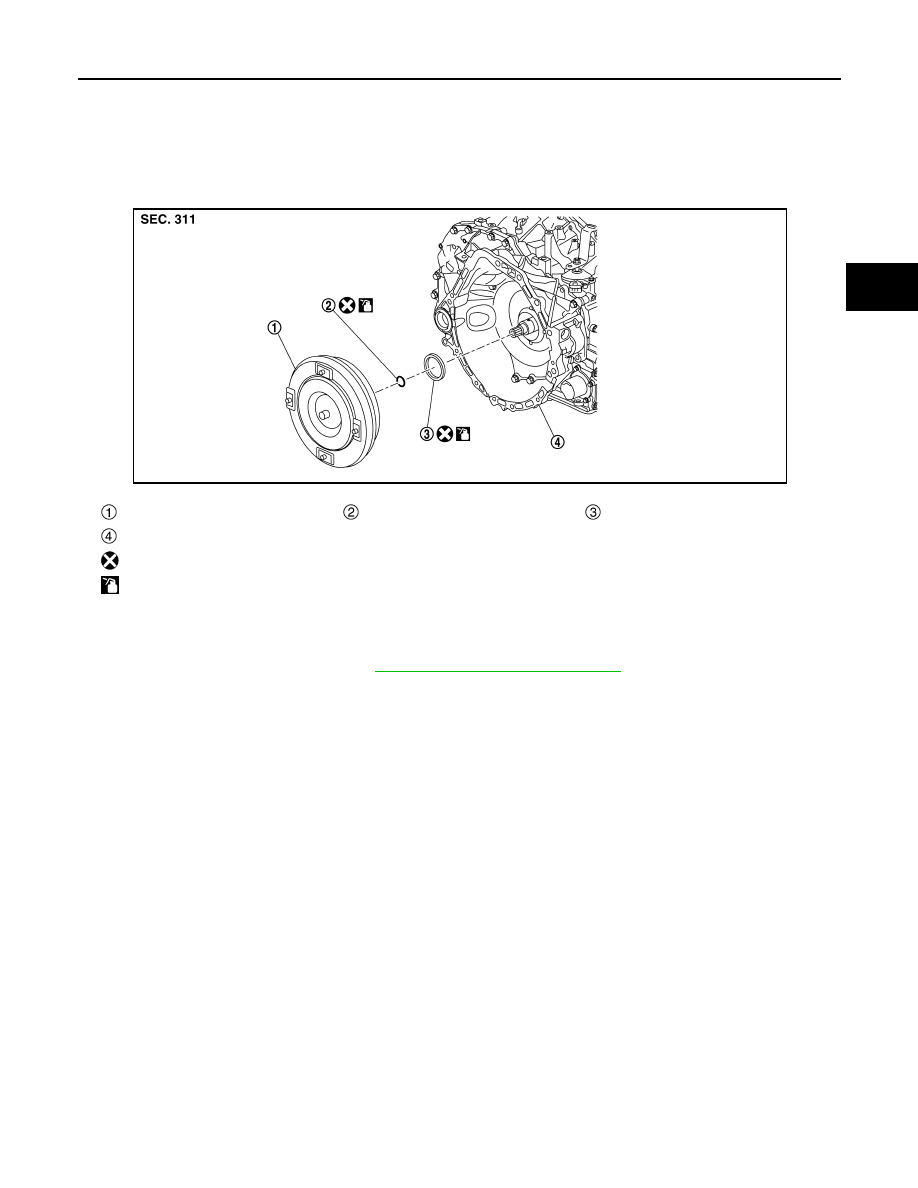

Exploded View

INFOID:0000000010622651

Disassembly

INFOID:0000000010622652

1.

Remove transaxle assembly. Refer to

TM-450, "Removal and Installation"

.

2.

Remove torque converter from transaxle assembly.

CAUTION:

Never damage the bushing on the inside of torque converter sleeve when removing torque con-
verter.

3.

Remove O-ring from input shaft.

4.

Remove converter housing oil seal using a suitable tool.

CAUTION:

Be careful not to scratch converter housing.

Assembly

INFOID:0000000010622653

Note the followings and assembly is in the reverse order of disassembly.

CAUTION:

• Never reuse O-ring.
• Never reuse converter housing oil seal.
• Apply CVT fluid to O-ring.
• Apply CVT fluid to converter housing oil seal.

Torque converter

O-ring

Converter housing oil seal

Transaxle assembly

: Always replace after every disassembly.

: Apply CVT fluid

JSDIA4173ZZ
