SHIFT LOCK SYSTEM : System Description

INFOID:0000000010622450

• The shift lock system prevents the select lever from being moved from “P” position to other positions due to

a driver's improper operation and prevents the occurrence of an abrupt start.

• Shift lock can be released when the following conditions are satisfied.
- Ignition switch is ON.
- Brake pedal is depressed. (Stop lamp switch is ON)

SHIFT LOCK OPERATION AT P POSITION

When brake pedal is not depressed (no selector operation allowed)

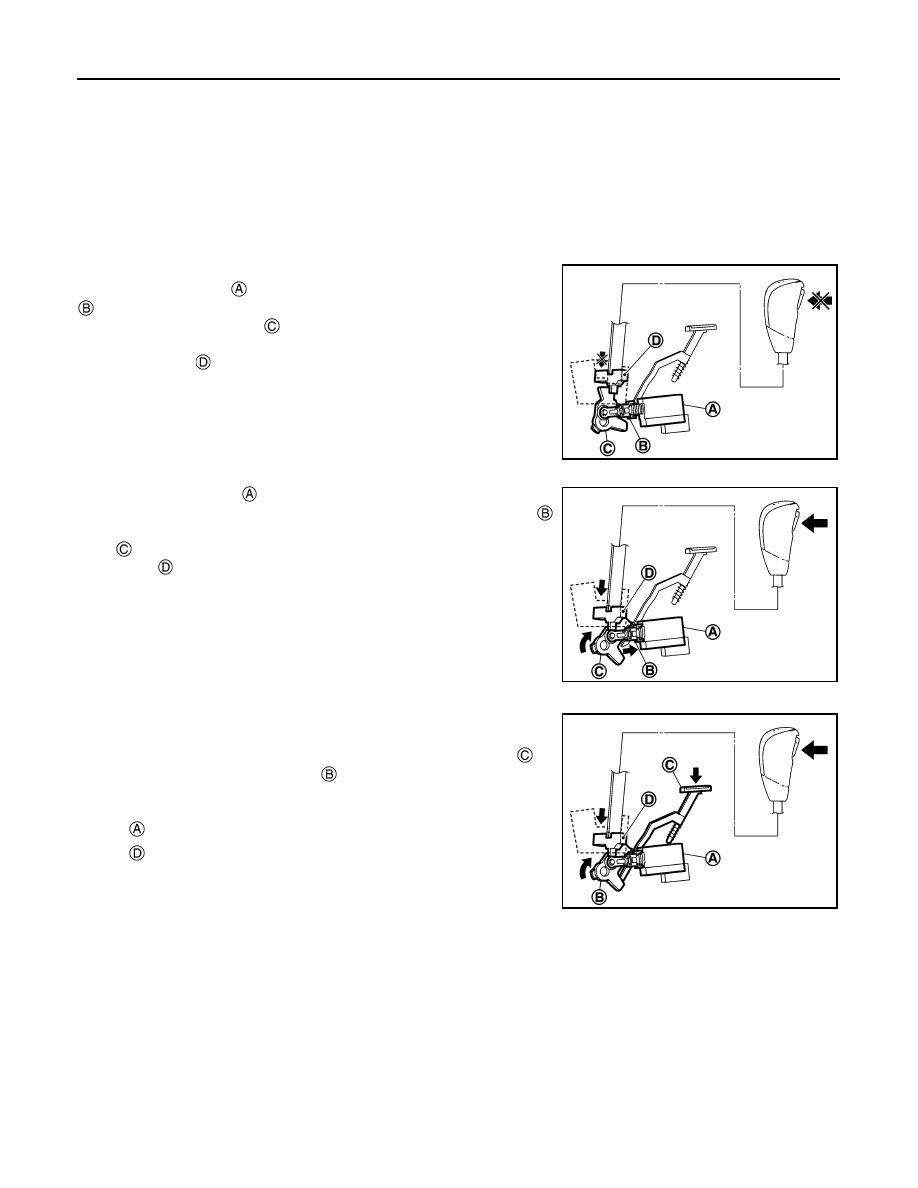

When the brake pedal is not depressed with the ignition switch ON,
the shift lock solenoid

 is OFF (not energized) and the solenoid rod

 is extended with spring.

The connecting lock lever

 is located at the position shown in the

figure when the solenoid rod is extended. It prevents the movement
of the detent rod

. The selector lever cannot be shifted from the “P”

position for this reason.

When brake pedal is depressed (selector lever operation allowed)

The shift lock solenoid

 is turned ON (energized) when the brake

pedal is depressed with the ignition switch ON. The solenoid rod
is compressed with the electromagnetic force. The connecting lock
lever

 rotates when the solenoid rod is compressed. Therefore, the

detent rod

 can be moved. The selector lever can be shifted to

other positions for this reason.

FORCIBLE RELEASE OF SHIFT LOCK

• When battery voltage decreases or an electrical/mechanical mal-

function occurs in the shift lock system, the selector lever cannot
be operated in “P” position. When shift lock release rod

 is

pressed in this state, lock lever

 is forcibly rotated, and then it

becomes possible to release shift lock.

• To release the shift lock forcibly and shift the selector lever from “P” position to other positions, follow the

steps below.

1.

Turn ignition switch OFF.

2.

Apply parking brake.

JSDIA2817ZZ

JSDIA2818ZZ

: Shift lock solenoid

: Detent rod

JSDIA2819ZZ

STRUCTURE AND OPERATION

TM-255

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

3.

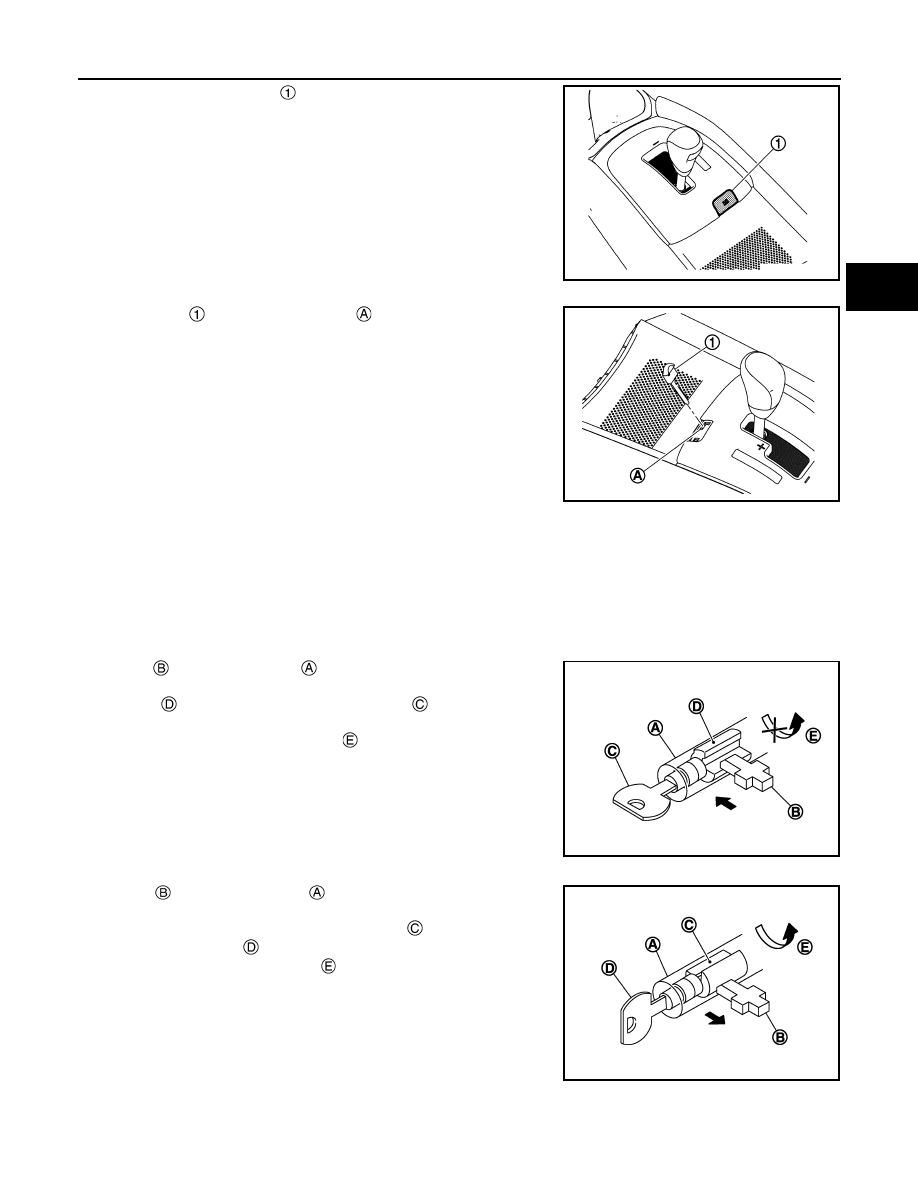

Remove shift lock cover

.

4.

Insert key

 to finisher opening

 and press the shift lock

release rod.

5.

Press the selector lever knob button and move the selector lever
from “P” position to other positions.

KEY LOCK SYSTEM

KEY LOCK SYSTEM : System Description

INFOID:0000000011009337

KEY LOCK MECHANISM

The key is not set to LOCK when the selector lever is not selected to P position. This prevents the key from
being removed from the key cylinder.

Key lock status

The slider

 in the key cylinder

 is moved to the left side of the fig-

ure when the selector lever is in any position other than P position.
The rotator

 that rotates together with the key

 cannot be rotated

for this reason. The key cannot be removed from the key cylinder
because it cannot be turned to LOCK

.

Key unlock status

The slider

 in the key cylinder

 is moved to the right side of the

figure when the selector lever is in P position and the finger is
removed from the selector button. The rotator

 can be rotated for

this reason. The key

 can be removed from the key cylinder

because it can be turned to LOCK

.

JSDIA5575ZZ

JSDIA5576ZZ

JPDIA0108ZZ

JPDIA0109ZZ

TM-256

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

SYSTEM

SYSTEM

CVT CONTROL SYSTEM

CVT CONTROL SYSTEM : System Description

INFOID:0000000010622451

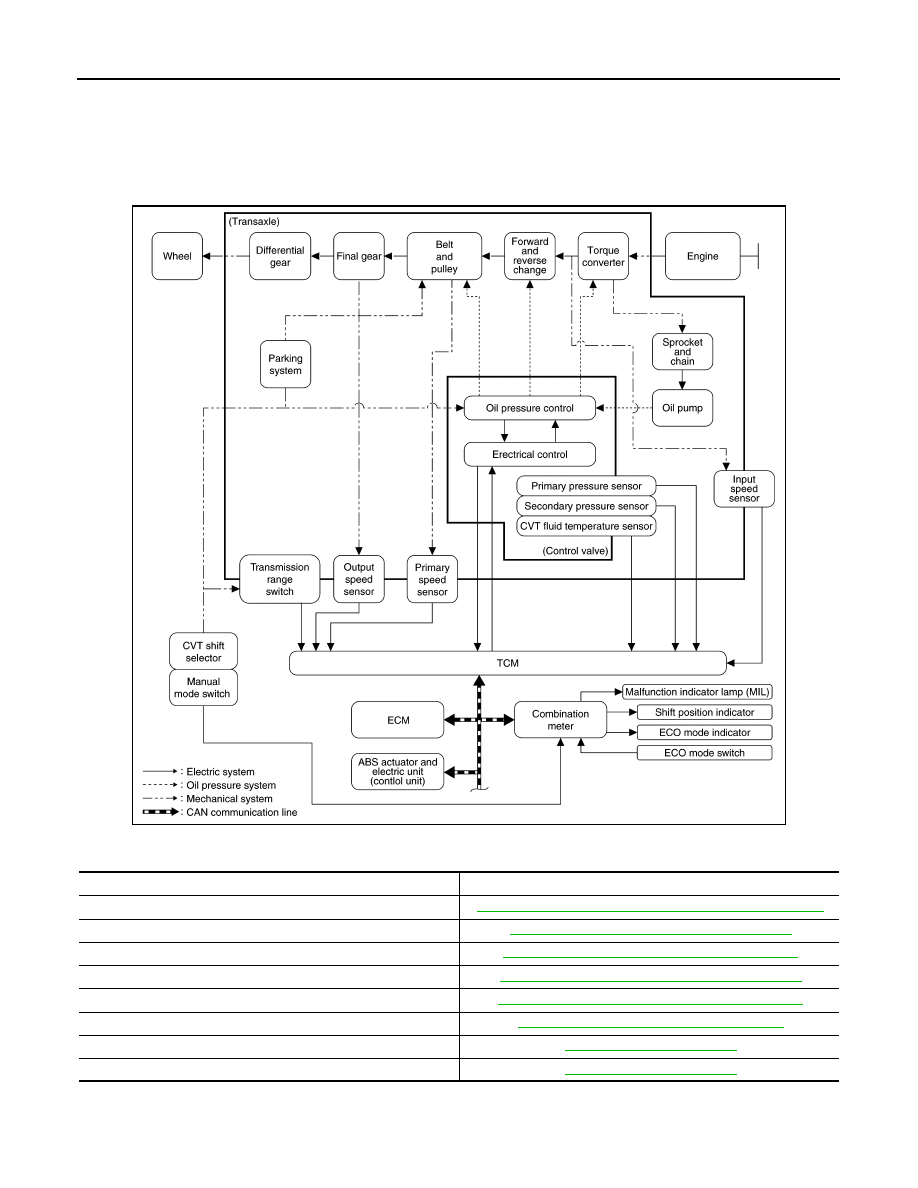

SYSTEM DIAGRAM

MAIN CONTROL CONTENTS OF TCM

LIST OF CONTROL ITEMS AND INPUT/OUTPUT

JSDIA5579GB

Controls

Reference

Line pressure control

TM-262, "LINE PRESSURE CONTROL : System Description"

Shift control

TM-263, "SHIFT CONTROL : System Description"

Select control

TM-266, "SELECT CONTROL : System Description"

Lock-up control

TM-267, "LOCK-UP CONTROL : System Description"

ECO mode control

TM-267, "ECO MODE SYSTEM : System Description"

Fail-safe

TM-258, "CVT CONTROL SYSTEM : Fail-safe"

Self-diagnosis function

TM-272, "CONSULT Function"

Communication function with CONSULT

TM-272, "CONSULT Function"

SYSTEM

TM-257

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

*: If these input/output signals show errors, TCM activates the fail-safe function.

Control Item

Shift control

Line pressure

control

Select control

Lock-up con-

trol

Fail-safe func-

tion*

Input

Engine torque signal
(CAN communication)

×

×

×

×

×

Engine speed signal
(CAN communication)

×

×

×

×

×

Accelerator pedal position signal
(CAN communication)

×

×

×

×

Closed throttle position signal
(CAN communication)

×

×

×

Stop lamp switch signal
(CAN communication)

×

×

×

×

Primary pressure sensor

×

Secondary pressure sensor

×

×

×

CVT fluid temperature sensor

×

×

×

×

×

Primary speed sensor

×

×

×

×

×

Output speed sensor

×

×

×

×

Input speed sensor

×

×

×

×

×

Transmission range switch

×

×

×

×

×

Manual mode switch signal
(Manual mode signal, non-manual
mode signal, manual mode upshift
signal, manual mode downshift sig-
nal)
(CAN communication)

×

×

×

Output

Line pressure solenoid valve

×

×

×

×

Primary pressure solenoid valve

×

×

×

Torque converter clutch solenoid
valve

×

×

Secondary pressure solenoid valve

×

×

×

Select solenoid valve

×

×

×

Shift position indicator
(CAN communication)

×
