Nissan X-Trail 32. Manual - part 2044

TM-134

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

TRANSAXLE ASSEMBLY

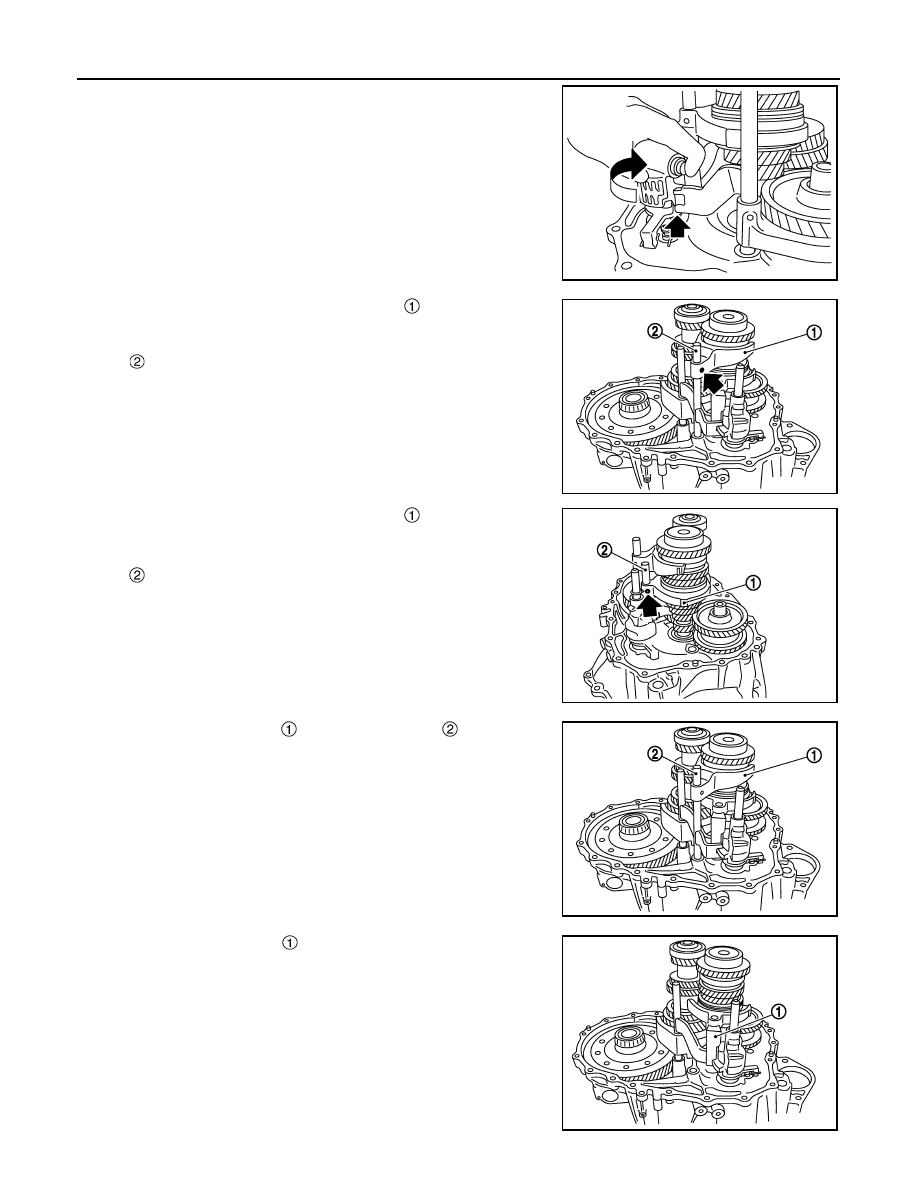

20. Rotate striking lever of striking rod as shown in the figure. Then

rotate reverse fork rod to a position where bracket of reverse
fork rod does not interfere with striking lever of striking rod.

21. Pull out reverse shift fork and reverse fork rod.

22. Remove retaining pin of 5th-6th shift fork

 using a pin punch

(commercial service tool).

23. Remove retaining pin of 3rd-4th shift fork

 using a pin punch

(commercial service tool).

24. Pull out 3rd-4th fork rod.

25. Pull out 5th-6th shift fork

 and 5th-6th fork rod

.

26. Pull out 3rd-4th shift fork

.

PCIB1851E

: 5th-6th fork rod

PCIB1852E

: 3rd-4th fork rod

PCIB1853E

PCIB1854E

PCIB1855E

TRANSAXLE ASSEMBLY

TM-135

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

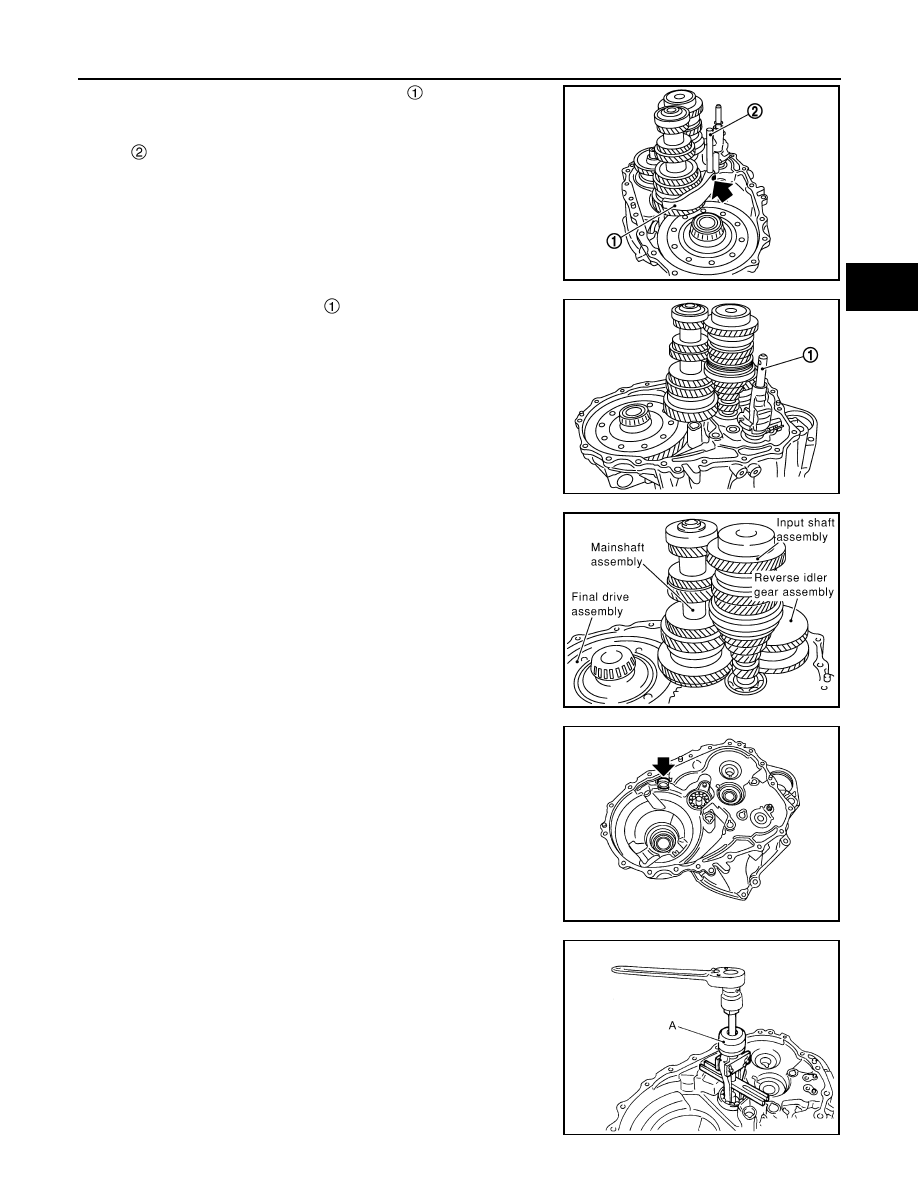

27. Remove retaining pin of 1st-2nd shift fork

 using a pin punch

(commercial service tool).

28. Pull out 1st-2nd shift fork and 1st-2nd fork rod.

29. Remove striking rod assembly

.

30. Remove gear components from clutch housing, as per the fol-

lowing procedure.

a.

Remove a set of input shaft assembly, mainshaft assembly, and
reverse idler gear assembly by tapping the tip of input shaft from
the back of the clutch housing with a plastic hammer.

CAUTION:

Always withdraw mainshaft straight out. Failure to do so
can damage resin oil channel on clutch housing side.

b.

Remove final drive assembly.

31. Remove magnet from clutch housing.

32. Remove mainshaft bearing retainer and then mainshaft front

bearing from clutch housing using the puller (A) (SST:
KV381054S0).

CAUTION:

Never damage clutch housing, mainshaft front bearing, and
oil channel.

33. Remove oil channel from clutch housing.

: 1st-2nd fork rod

PCIB1856E

PCIB1857E

SCIA0964E

PCIB1859E

JSDIA6488ZZ

TM-136

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

TRANSAXLE ASSEMBLY

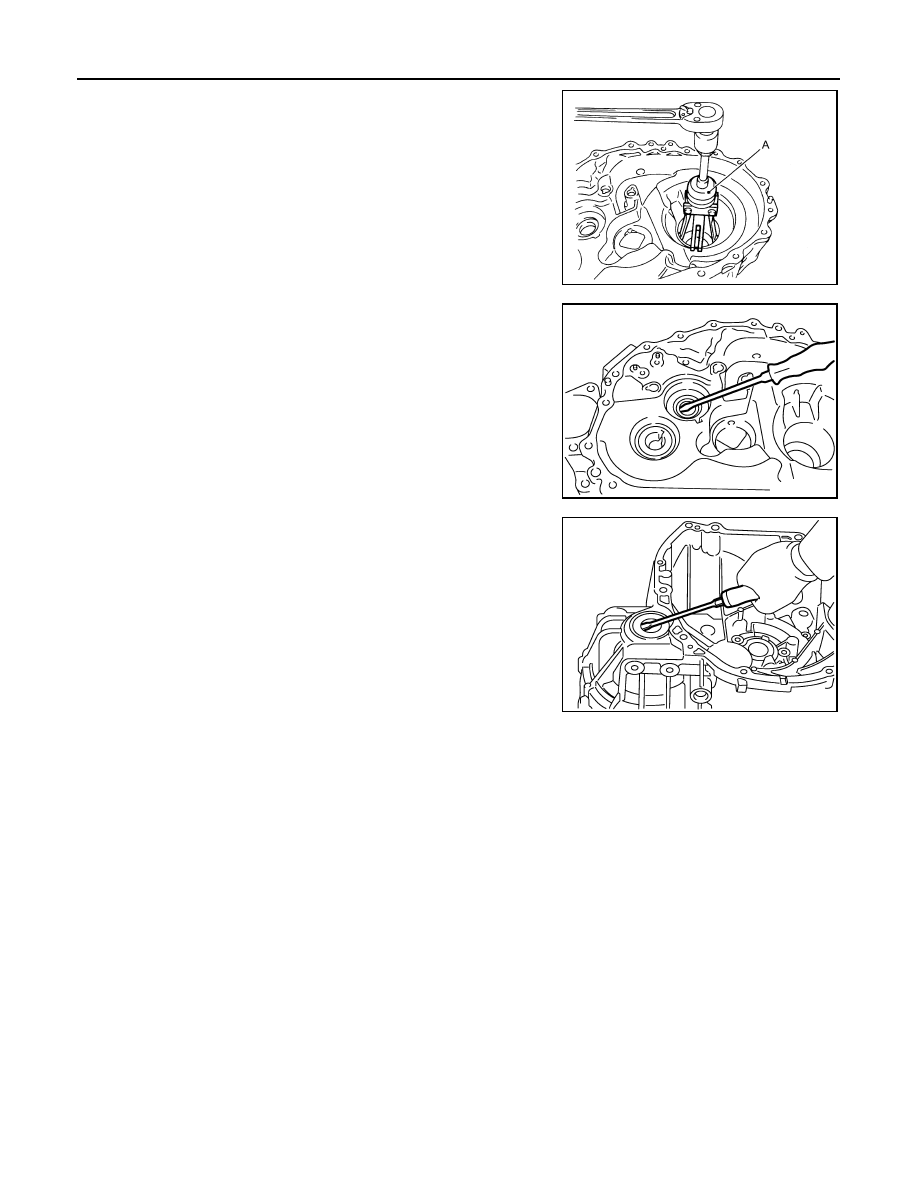

34. Remove differential side bearing outer race (clutch housing

side) from clutch housing using the puller (A) (SST:
KV381054S0).

CAUTION:

Never damage clutch housing and differential side bearing
outer race.

35. Remove input shaft oil seal from clutch housing, using oil seal

remover (commercial service tool).

CAUTION:

Never damage clutch housing.

36. Remove differential side oil seal from clutch housing, using oil

seal remover (commercial service tool).

CAUTION:

Never damage clutch housing.

ASSEMBLY

JSDIA6489ZZ

SCIA0398E

PCIB1874E

TRANSAXLE ASSEMBLY

TM-137

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

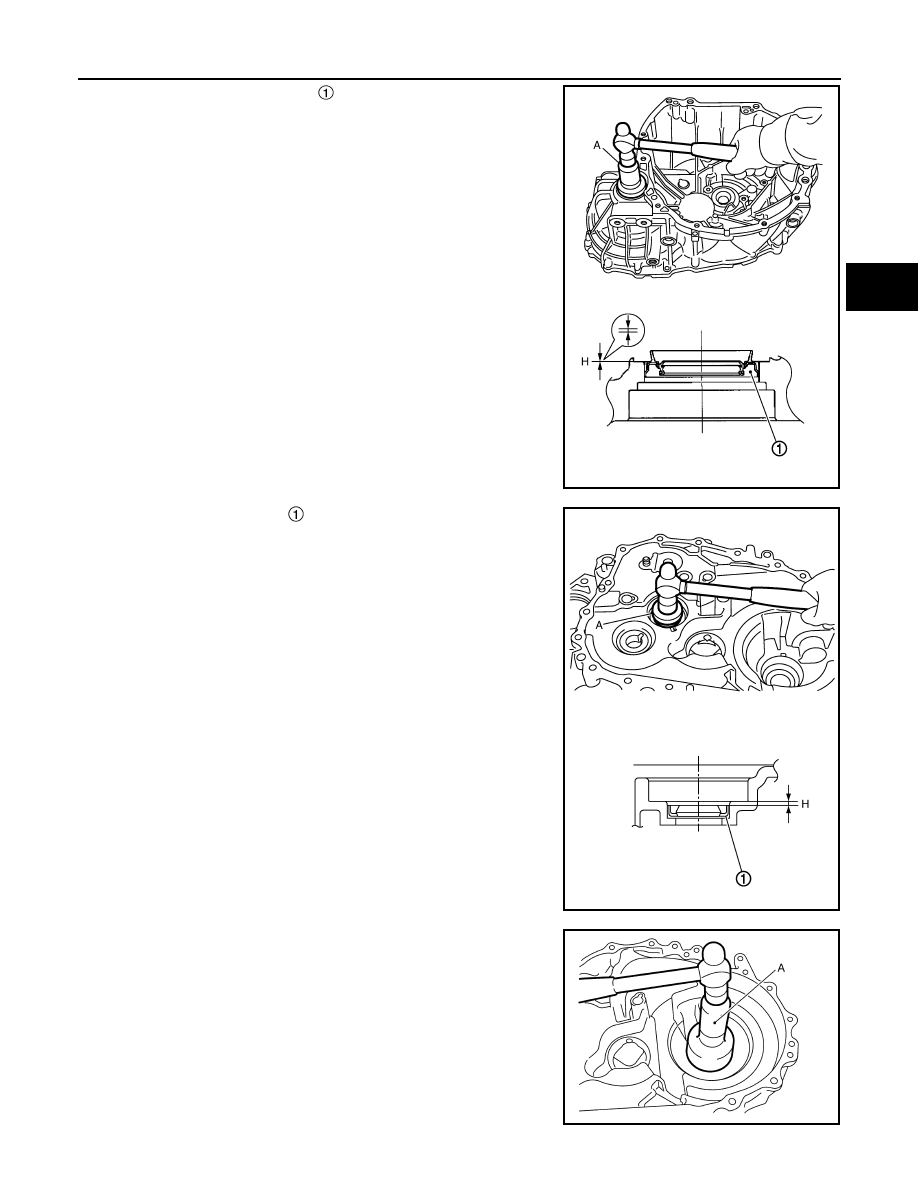

1.

Install differential side oil seal

 to clutch housing using the drift

(A) (SST: ST33400001).

CAUTION:

• Never reuse differential side oil seal.
• Apply multi-purpose grease onto oil seal lip.
• Never incline differential side oil seal.
• Never damage clutch housing.

2.

Install input shaft oil seal

 to clutch housing using the drift (A)

(SST: ST35321000).

CAUTION:

• Never reuse input shaft oil seal.
• Apply multi-purpose grease onto oil seal lip.
• Never incline input shaft oil seal.
• Never damage clutch housing.

3.

Install differential side bearing outer race (clutch housing side) to
clutch housing using the drift (A) (SST: ST30720000).

CAUTION:

Replace differential side bearing and differential side bear-
ing outer race as a set.

Dimension (H)

:

−

0.5 – 0.5 mm (

−

0.020 – 0.020 in)

PCIB1864E

Dimension (H)

: 1.1 – 2.1 mm (0.043 – 0.083 in)

PCIB1814E
