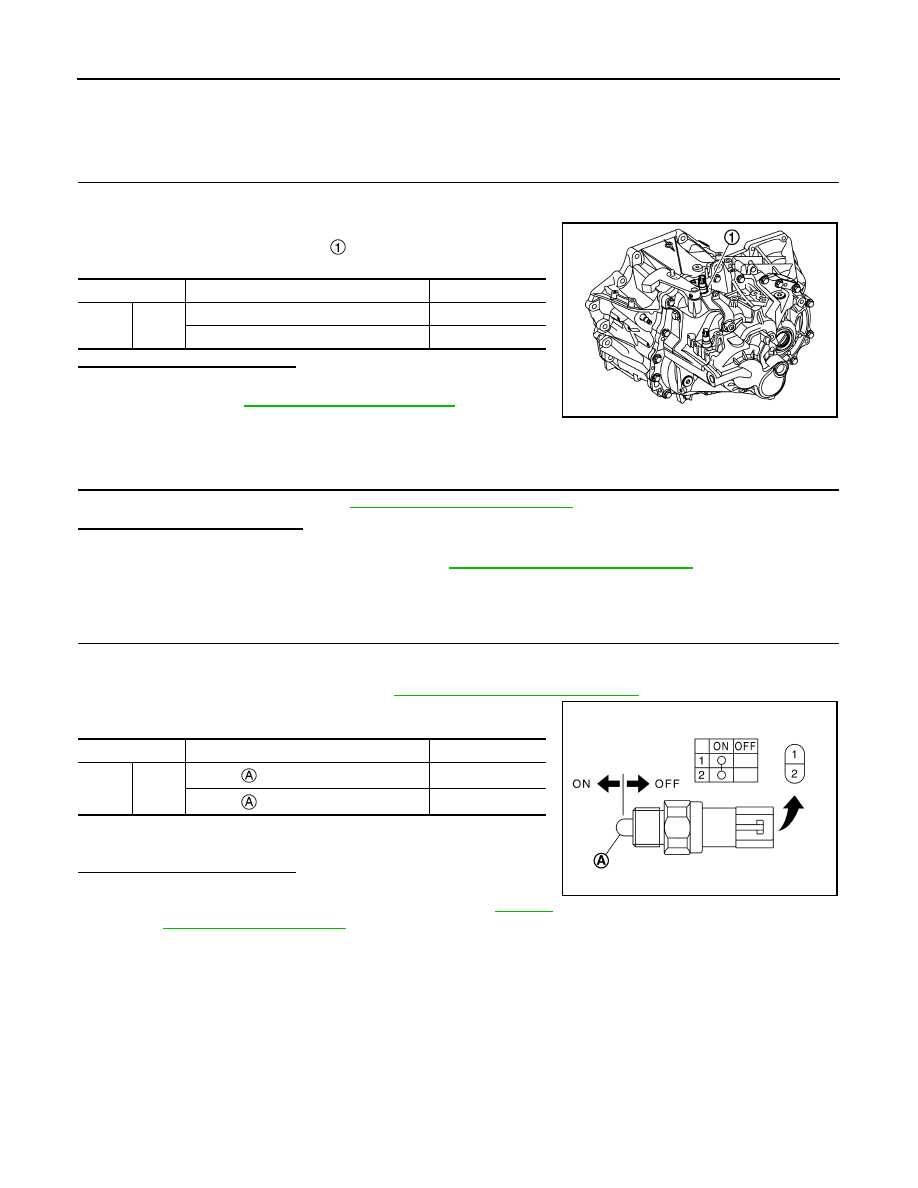

NEUTRAL POSITION SWITCH

NEUTRAL POSITION SWITCH

Component Function Check

INFOID:0000000010929206

1.

NEUTRAL POSITION SIGNAL OUTPUT CHECK

1.

Turn the ignition switch OFF.

2.

Disconnect neutral position switch harness connector.

3.

Operate shift lever to each position and check continuity
between neutral position switch

 terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Proceed to

TM-94, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010929207

1.

CHECK NEUTRAL POSITION SWITCH

Check neutral position switch. Refer to

TM-94, "Component Inspection"

.

Is the inspection results normal?

YES

>> Repair shift control function or transaxle for mechanical malfunction.

NO

>> Replace neutral position switch. Refer to

TM-116, "Removal and Installation"

.

Component Inspection

INFOID:0000000010921078

1.

CHECK NEUTRAL POSITION SWITCH

1.

Turn the ignition switch OFF.

2.

Disconnect neutral position switch harness connector.

3.

Remove neutral position switch. Refer to

TM-116, "Removal and Installation"

.

4.

Check continuity between neutral position switch terminals.

NOTE:
When shift lever is in neutral gear position, plunger is released.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace neutral position switch. Refer to

TM-116,

"Removal and Installation"

.

Terminals

Condition

Continuity

1

2

Neutral gear position

Existed

Except neutral gear position

Not existed

JSDIA6270ZZ

Terminals

Condition

Continuity

1

2

Plunger

is

pressed.

Not existed

Plunger

is

released.

Existed

JSDIA6326ZZ

SHIFTING IS DIFFICULT OR GEAR SQUEAL OCCURS WHEN SHIFTING TO

THE 2ND GEAR

TM-95

< SYMPTOM DIAGNOSIS >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SYMPTOM DIAGNOSIS

SHIFTING IS DIFFICULT OR GEAR SQUEAL OCCURS WHEN SHIFTING
TO THE 2ND GEAR

Description

INFOID:0000000010980339

• The shift lever shifting is heavy or difficult during driving when the shift lever is shifted from 1st gear to 2nd

gear position or 3rd gear to 2nd gear position.

• Gear squeal occurs during driving when the shift lever is shifted from 1st gear to 2nd gear position or from

3rd gear to 2nd gear position.

Diagnosis Procedure

INFOID:0000000010980340

1.

CHECK SYMPTOM

When the clutch pedal is fully depressed, check whether or not this malfunction occurs. Refer to

TM-95,

"Description"

.

Does the malfunction occur?

YES

>> GO TO 2.

NO

>>

Check for malfunction on the following parts and repair or replace the malfunctioning part, if any.

• M/T shift selector assembly, shift cable, and select cable. Refer to

TM-113, "Inspection"

.

• Clutch disc and clutch cover. Refer to

CL-39, "R9M : Inspection"

.

2.

CHECK THE OIL TYPE

Check that the gear oil is genuine NISSAN oil. Refer to

MA-23, "Fluids and Lubricants"

.

Is the gear oil genuine NISSAN oil?

YES

>> GO TO 3.

NO

>> Replace the gear oil. Refer to

TM-103, "2WD : Draining"

/

TM-103, "2WD : Refilling"

 (2WD) or

TM-

104, "4WD : Draining"

/

TM-104, "4WD : Refilling"

 (4WD).

3.

CHECK THE OIL LEVEL

Check the oil level. Refer to

TM-103, "2WD : Inspection"

 (2WD) or

TM-104, "4WD : Inspection"

 (4WD).

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Adjust the gear oil to the specified level. Refer to

TM-103, "2WD : Refilling"

 (2WD) or

TM-104,

"4WD : Refilling"

 (4WD).

4.

CHECK THE SHIFTING OPERATION

Check the gear position that causes the following malfunctions when the shift lever is shifted to each gear
position.
• The shift lever shifting is heavy or difficult.
• Gear squeaks.
In what gear position does the malfunction occur?

All gear positions>>Check the clutch disc and clutch cover, and repair or replace malfunctions, if any. Refer

to

CL-39, "R9M : Inspection"

.

Specific gear positions>>GO TO 5.

5.

CHECK THE M/T SHIFT SELECTOR ASSEMBLY, SHIFT CABLE AND SELECT CABLE

Check the M/T shift selector assembly, shift cable, and select cable for damage or trapped foreign material.
Refer to

TM-113, "Inspection"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace the error-detected parts.

6.

CHECK SYMPTOM AGAIN (1)

When the shift lever is shifted to the 2nd gear position, check that rough touch (rough and scraping feel) can
be felt in all of the following situations.
• Rough touch can only be felt in cold start and it is reduced after warming up.

TM-96

< SYMPTOM DIAGNOSIS >

[6MT: RS6F52A]

SHIFTING IS DIFFICULT OR GEAR SQUEAL OCCURS WHEN SHIFTING TO

THE 2ND GEAR

• Rough touch occurs in slow shifting and does not occur in quick shifting.
• Rough touch occurs and does not occur depending on the situation.
Does rough touch apply to all situations?

YES

>> • Change the gear oil and fill the gear oil to the lowest limit of the specified level. Refer to

TM-103,

"2WD : Refilling"

 (2WD) or

TM-104, "4WD : Refilling"

 (4WD).

NOTE:
When oil level is the lowest limit, viscosity resistance of the gear oil is reduced, resulting in
improvement of the shift lever operability.

NO

>> GO TO 7.

7.

CHECK SYMPTOM AGAIN (2)

When the shift lever is shifted to the 2nd gear position, check that gear squeal (rasping noise is heard) applies
to all of the following situations.
• Gear squeal occurs when cold starting and after warming up.
• Gear squeal occurs when slow shifting and quick shifting.
Does gear squeal apply to all situations?

YES

>> GO TO 8.

NO

>> INSPECTION END.

8.

CHECK THE 2ND BAULK RING CLEARANCE

Check the 2nd baulk ring clearance. Refer to

TM-200, "Inspection"

.

Is the inspection result normal?

YES

>> INSPECTION END.

NO

>> • Replace the following parts. Refer to

TM-194, "Disassembly and Assembly"

.

- 1st-2nd spread spring
- 1st-2nd shifting insert
- 1st-2nd synchronizer hub
- 1st-2nd coupling sleeve
- 2nd outer baulk ring
- 2nd synchronizer cone
- 2nd inner baulk ring
- 2nd main gear
- 1st-2nd shift fork

SHIFTING IS DIFFICULT OR GEAR SQUEAL OCCURS WHEN SHIFTING TO

THE 3RD GEAR

TM-97

< SYMPTOM DIAGNOSIS >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SHIFTING IS DIFFICULT OR GEAR SQUEAL OCCURS WHEN SHIFTING
TO THE 3RD GEAR

Description

INFOID:0000000010980341

• The shift lever shifting is heavy or difficult during driving when the shift lever is shifted from 2nd gear to 3rd

gear position or 4th gear to 3rd gear position.

• Gear squeal occurs during driving when the shift lever is shifted from 2nd gear to 3rd gear position or from

4th gear to 3rd gear position.

Diagnosis Procedure

INFOID:0000000010980342

1.

CHECK SYMPTOM

When the clutch pedal is fully depressed, check whether or not this malfunction occurs. Refer to

TM-97,

"Description"

.

Does the malfunction occur?

YES

>> GO TO 2.

NO

>>

Check for malfunction on the following parts and repair or replace the malfunctioning part, if any.

• M/T shift selector assembly, shift cable, and select cable. Refer to

TM-113, "Inspection"

.

• Clutch disc and clutch cover. Refer to

CL-39, "R9M : Inspection"

.

2.

CHECK THE OIL TYPE

Check that the gear oil is genuine NISSAN oil. Refer to

MA-23, "Fluids and Lubricants"

.

Is the gear oil genuine NISSAN oil?

YES

>> GO TO 3.

NO

>> Replace the gear oil. Refer to

TM-103, "2WD : Draining"

/

TM-103, "2WD : Refilling"

 (2WD) or

TM-

104, "4WD : Draining"

/

TM-104, "4WD : Refilling"

 (4WD).

3.

CHECK THE OIL LEVEL

Check the oil level. Refer to

TM-103, "2WD : Inspection"

 (2WD) or

TM-104, "4WD : Inspection"

 (4WD).

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Adjust the gear oil to the specified level. Refer to

TM-103, "2WD : Refilling"

 (2WD) or

TM-104,

"4WD : Refilling"

 (4WD).

4.

CHECK THE SHIFTING OPERATION

Check the gear position that causes the following malfunctions when the shift lever is shifted to each gear
position.
• The shift lever shifting is heavy or difficult.
• Gear squeaks.

In what gear position does the malfunction occur?

All gear positions>>Check the clutch disc and clutch cover, and repair or replace malfunctions, if any. Refer

to

CL-39, "R9M : Inspection"

.

Specific gear positions>>GO TO 5.

5.

CHECK THE M/T SHIFT SELECTOR ASSEMBLY, SHIFT CABLE AND SELECT CABLE

Check the M/T shift selector assembly, shift cable, and select cable for damage or trapped foreign material.
Refer to

TM-113, "Inspection"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace the error-detected parts.

6.

CHECK SYMPTOM AGAIN (1)

When the shift lever is shifted to the 3rd gear position, check that rough touch (rough and scraping feel) can be
felt in all of the following situations.
• Rough touch can only be felt in cold start and it is reduced after warming up.
• Rough touch occurs in slow shifting and does not occur in quick shifting.
• Rough touch occurs and does not occur depending on the situation.
