TM-74

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

REVERSE IDLER SHAFT AND GEAR

Shaft and Gear

Check the following items. Replace reverse output gear, snap ring, reverse baulk ring, return spring, needle
bearing, reverse idler shaft, spacer, reverse input gear, and lock washer as a set, if necessary.
• Damage, peeling, bend, uneven wear, and distortion of shaft
• Excessive wear, damage, and peeling of gear

Bearing

Check damage and rotation of bearing. Replace reverse output gear, snap ring, reverse baulk ring, return
spring, needle bearing, reverse idler shaft, spacer, reverse input gear, and lock washer as a set, if necessary.

SHIFT FORK AND FORK ROD

TM-75

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

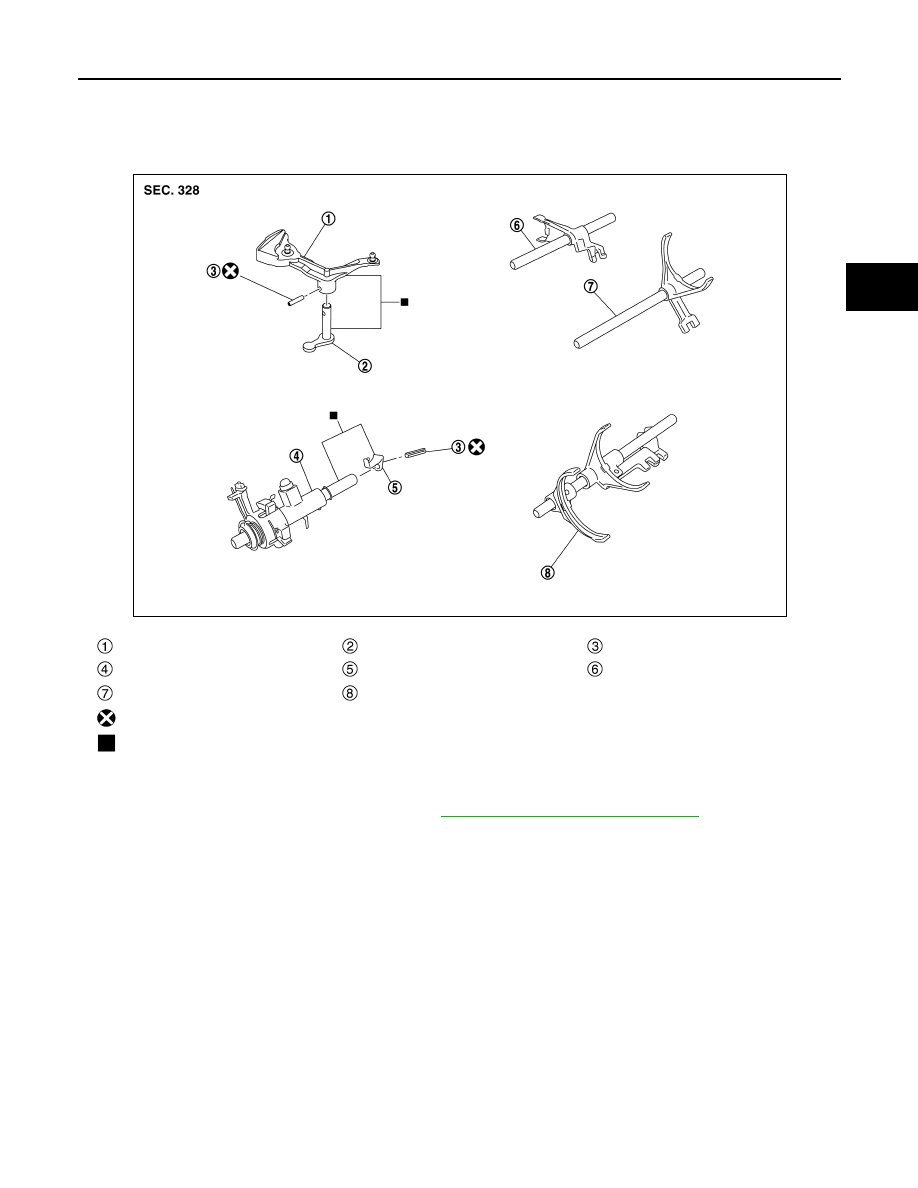

SHIFT FORK AND FORK ROD

Exploded View

INFOID:0000000010842473

Disassembly and Assembly

INFOID:0000000010842474

For disassembly and assembly procedures, refer to

TM-48, "Disassembly and Assembly"

.

Inspection

INFOID:0000000010842475

INSPECTION AFTER DISASSEMBLY

Shift lever (outer)

Shift lever (inner)

Retaining pin

Selector

Select lever

Reverse fork rod

1st-2nd fork rod

Fork rod

: Always replace after every disassembly.

: Replace the parts as a set.

JSDIA5985ZZ

TM-76

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

SHIFT FORK AND FORK ROD

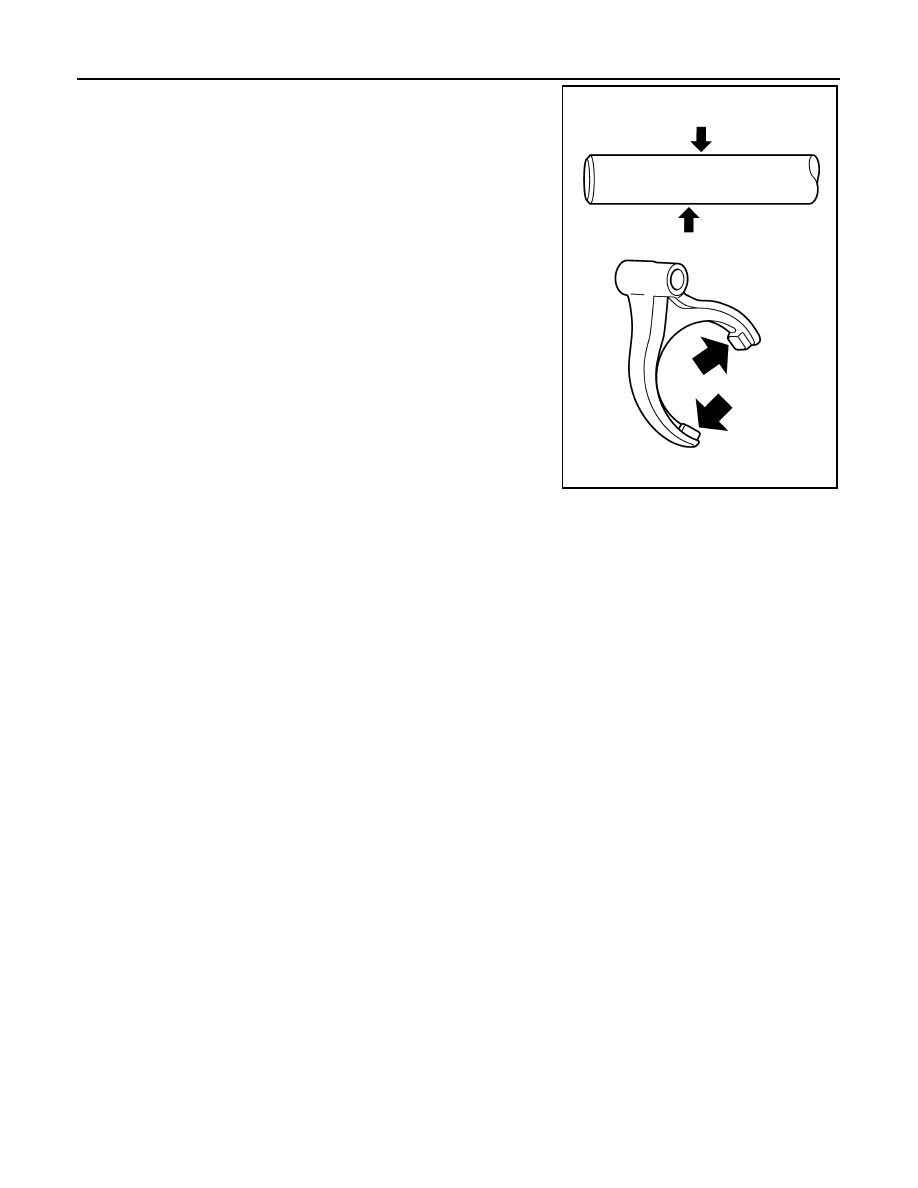

Check contact surface and sliding surface for excessive wear,
uneven wear, bend, and damage. Replace if necessary.

SCIA7785E

FINAL DRIVE

TM-77

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

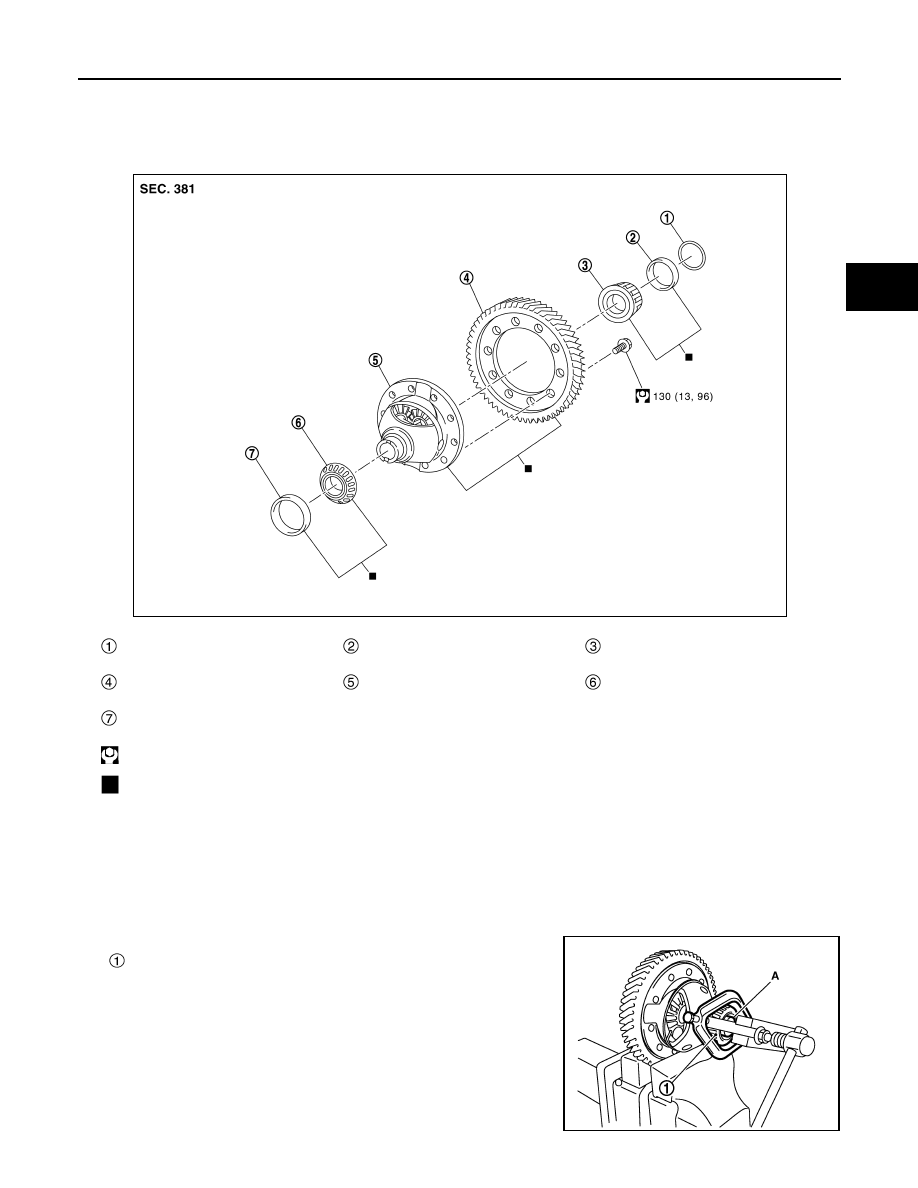

FINAL DRIVE

Exploded View

INFOID:0000000010842476

Disassembly and Assembly

INFOID:0000000010842477

DISASSEMBLY

1.

Remove differential side bearing inner race (clutch housing side), as per the following procedure.

a.

Set a puller (commercial service tool) and a separator (commercial service tool) to differential side bearing
inner race (clutch housing side).

b.

Remove differential side bearing inner race (clutch housing side)

, using the drift (A) (SST: ST33061000).

Shim

Differential side bearing outer race
(transaxle case side)

Differential side bearing inner race
(transaxle case side)

Final gear

Differential assembly

Differential side bearing inner race
(clutch housing side)

Differential side bearing outer race
(clutch housing side)

: N·m (kg-m, ft-lb)

: Replace the parts as a set.

JSDIA5987GB

PCIB1767E
