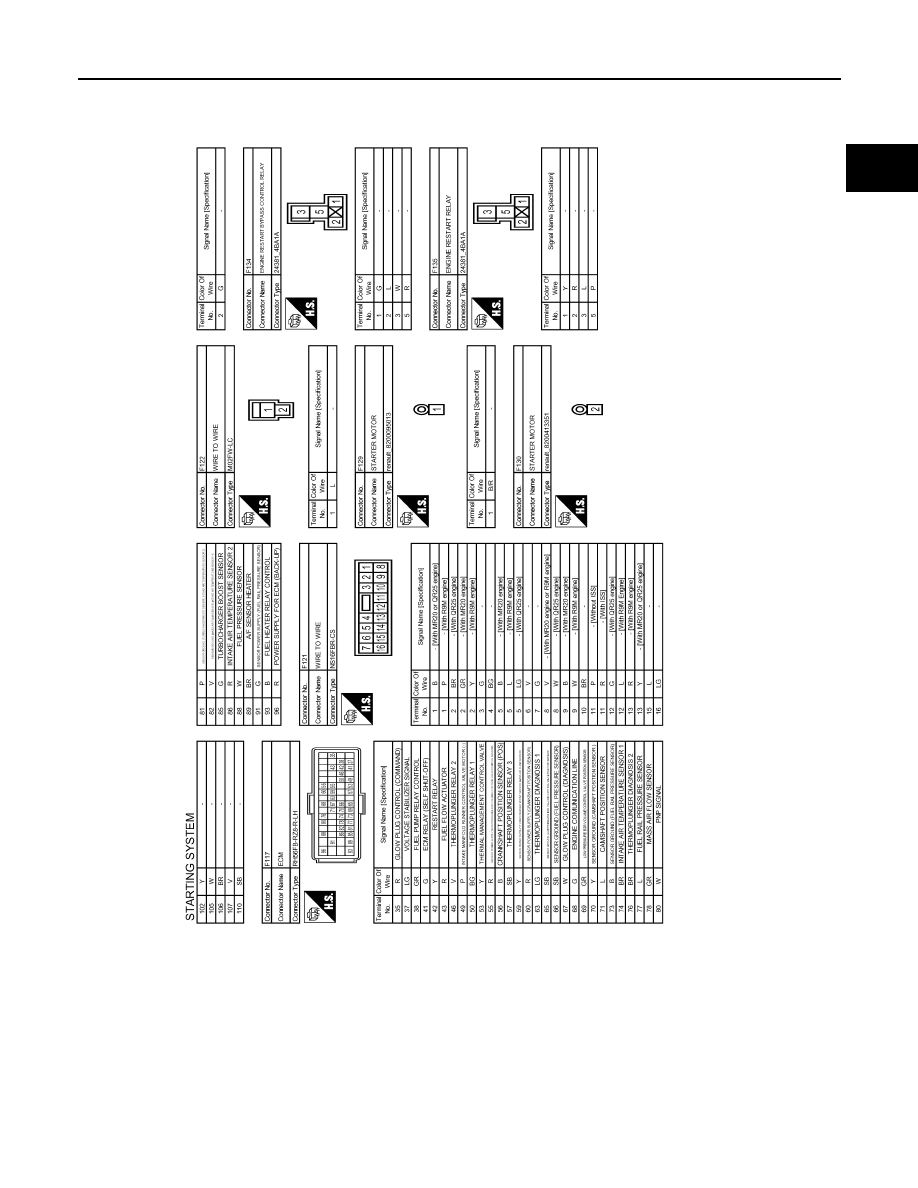

STR-16

< WIRING DIAGRAM >

STARTING SYSTEM

JRBWC7646GB

STARTING SYSTEM

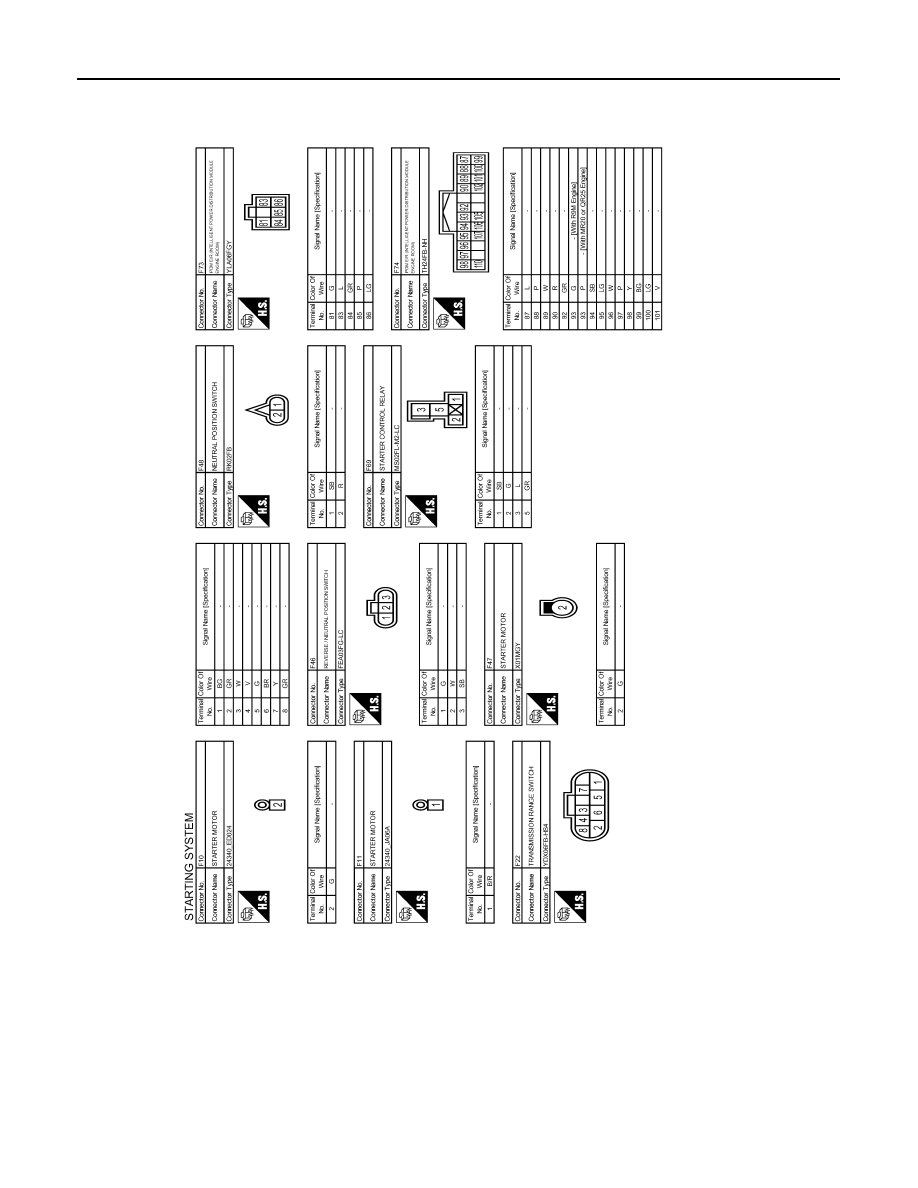

STR-17

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

JRBWC7647GB

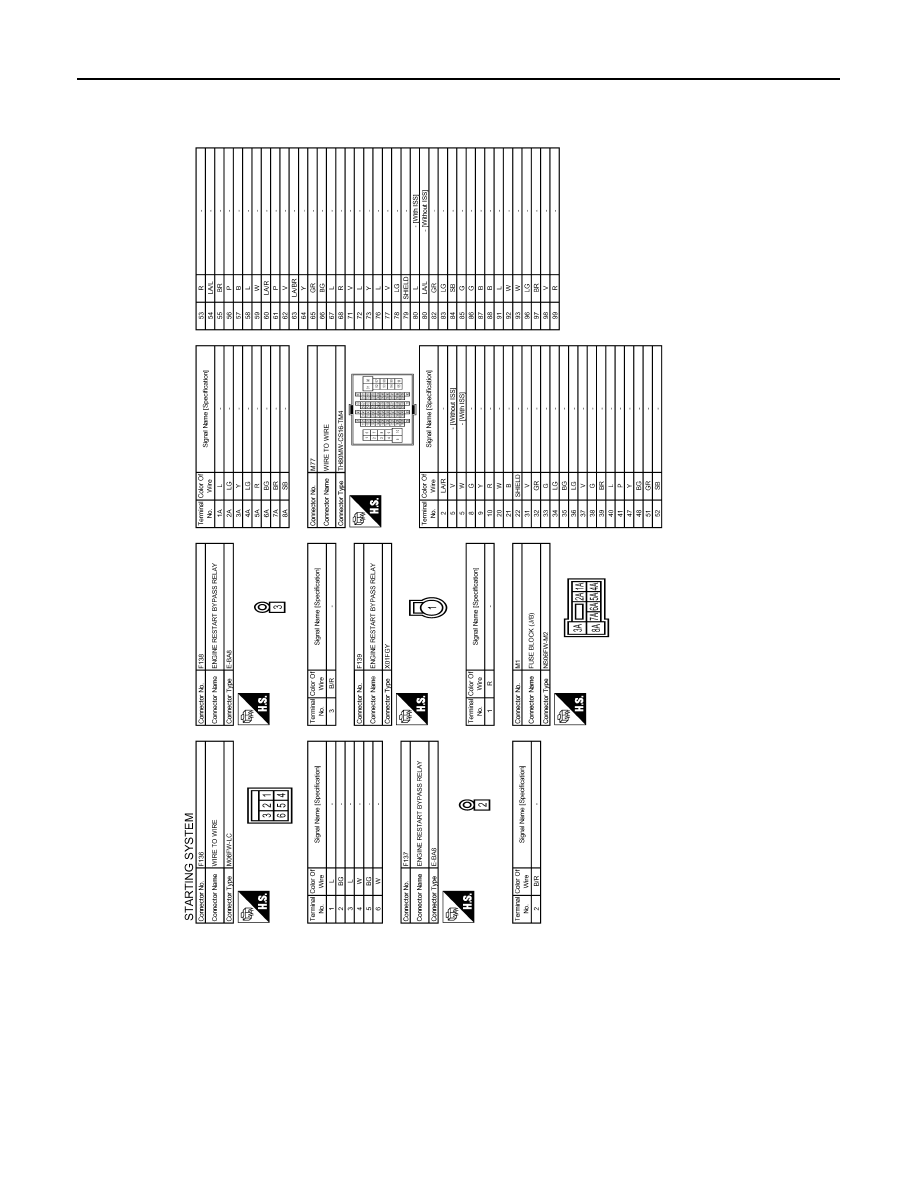

STR-18

< WIRING DIAGRAM >

STARTING SYSTEM

JRBWC7648GB

DIAGNOSIS AND REPAIR WORK FLOW

STR-19

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000010957647

DETAILED FLOW

NOTE:
If any malfunction is found, immediately disconnect the battery cable from the negative terminal.

CAUTION:

For models with stop/start system, erase the starter operation counter when the starter motor is
replaced. Refer to

EC-960, "Work Procedure"

.

1.

CHECK ENGINE TYPE

Check the vehicle information.

>> GO TO 2.

2.

CHECK ENGINE START

Crank the engine and check that the engine starts.

Does the engine start?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

CHECK THAT THE STARTER MOTOR STOPS

Check that the starter motor stops after starting the engine.

Does the starter motor stop?

YES

>> INSPECTION END

NO-1

>> Type 1: Replace starter motor.

NO-2

>> Type 2: Replace magnetic switch.

4.

CHECK THE ENGINE SPEED WITH CRANKING

Check that the engine runs at cranking.

Does engine turn by cranking?

YES

>> GO TO 5.

NO

>> GO TO 6.

5.

CHECK THE ENGINE SPEED WITH CRANKING

Check that the engine speed is not low at cranking.

Does engine turn normally?

YES

>> Check ignition/fuel system.

NO

>> Check charge condition, corrosion and connection condition of the battery. Refer to

PG-120,

"R9M : Work Flow"

 (R9M engine) or

PG-124, "EXCEPT FOR R9M : Work Procedure"

 (Except for

R9M engine).

6.

CHECK STARTER MOTOR ACTIVATION

Check that the starter motor runs at cranking.

Does starter motor turn?

YES-1 >> Type 1: Replace starter motor.
YES-2 >> Type 2: GO TO 7.
NO

>> GO TO 8.

Type

Engine

1

R9M engine

2

QR engine

MR engine
