Nissan X-Trail 32. Manual - part 1987





ST-26

< REMOVAL AND INSTALLATION >

STEERING GEAR AND LINKAGE

5.

Apply recommended grease to the boot mounting groove of gear housing assembly.Use Renolit JP1619
or equivalent.
NOTE:
Amount grease: 1.05 - 1.50 g (0.037 - 0.053 oz)

6.

Install boot to gear housing assembly and inner socket.

7.

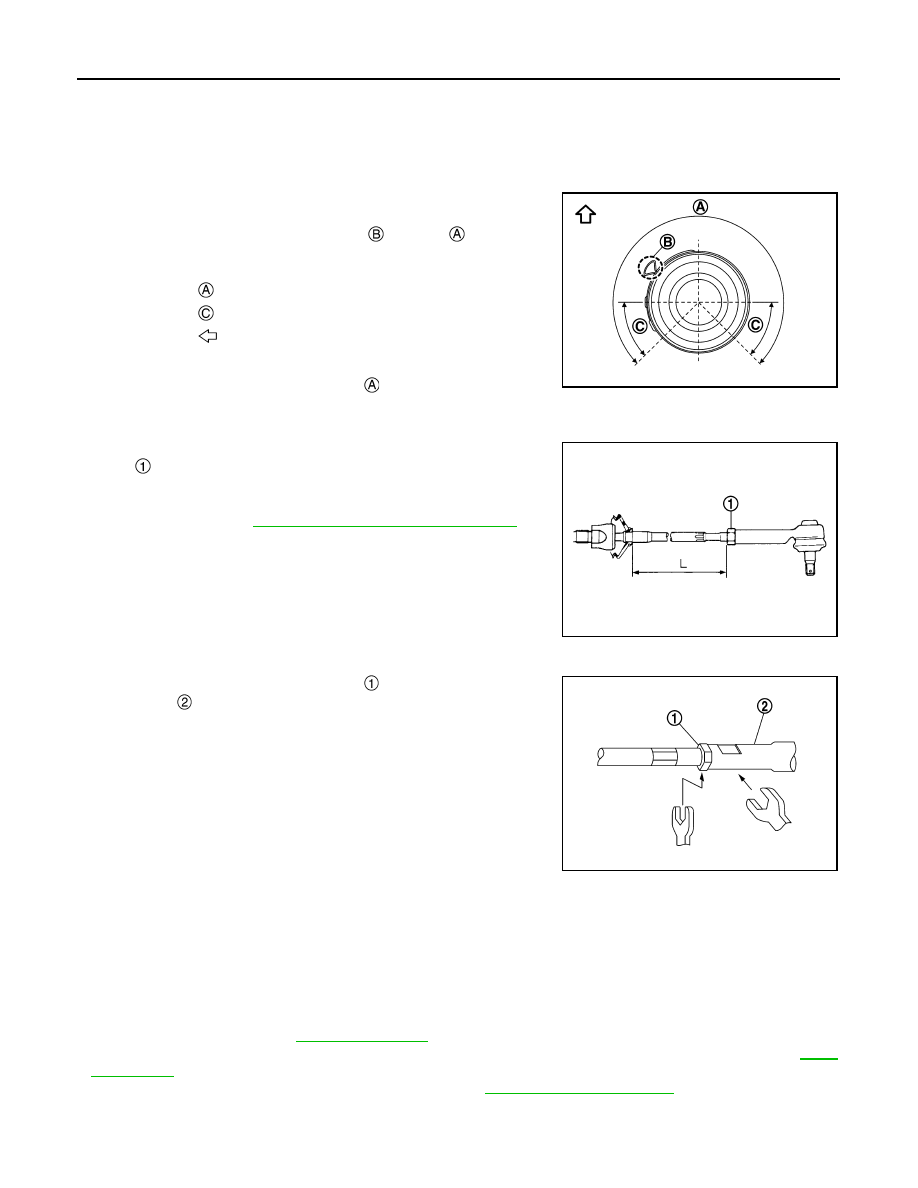

Install the boot clamp (large diameter) as following.
• After installing steering gear assembly to front suspension

member, crimp it so that crimp part

 is within

 range in the

figure.

CAUTION:

Never crimp boot clamp beyond

 range.

8.

Install the boot clamp (Small diameter).

9.

Adjust inner socket to standard length (L), and then tighten lock
nut

 to the specified torque. Check length again after tighten-

ing lock nut.

CAUTION:

• When tightening the lock nut

, be sure to fix outer

socket

 with a wrench or an equivalent to prevent the

ball joint from getting contact with the knuckle.

• Adjust toe-in after this procedure. The length achieved

after toe-in adjustment is not necessary the above value.

Inspection

INFOID:0000000010839345

INSPECTION AFTER INSTALLATION

Check the following items and replace, if necessary.
• Check if steering wheel turns smoothly when it is turned several times fully to the end of the left and right.
• Rotate steering wheel to check for decentered condition, binding, noise, or excessive steering effort.
• Check the steering wheel play, neutral position steering wheel, steering wheel turning torque, and front

wheel turning angle.

- Steering wheel play: Refer to

ST-11, "Inspection"

.

- Neutral position steering wheel, steering wheel turning torque, and front wheel turning angle: Refer to

ST-9,

"Inspection"

.

• Adjust neutral position of steering angle sensor. Refer to

BRC-99, "Work Procedure"

.

INSPECTION AFTER DISASSEMBLY

Check the following items and replace, if necessary.

270

°

45

°

: Vehicle upper

JSGIA1482ZZ

L

: Refer to

ST-28, "Steering Gear and Linkage"

.

JPGIA0187ZZ

JSGIA0538ZZ

STEERING GEAR AND LINKAGE

ST-27

< REMOVAL AND INSTALLATION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

Boot

Check boot for cracks, and replace it if a malfunction is detected.

Pinion Assembly

Check pinion gear for damage or wear, and replace it if a malfunction is detected.

Rack

Check rack for damage or wear, and replace it if a malfunction is detected.

Gear Housing Assembly

Check gear housing assembly for damage and scratches. Replace if there are any abnormal conditions.

Outer Socket and Inner Socket

Check the following items and replace the component if it does not meet the standard.

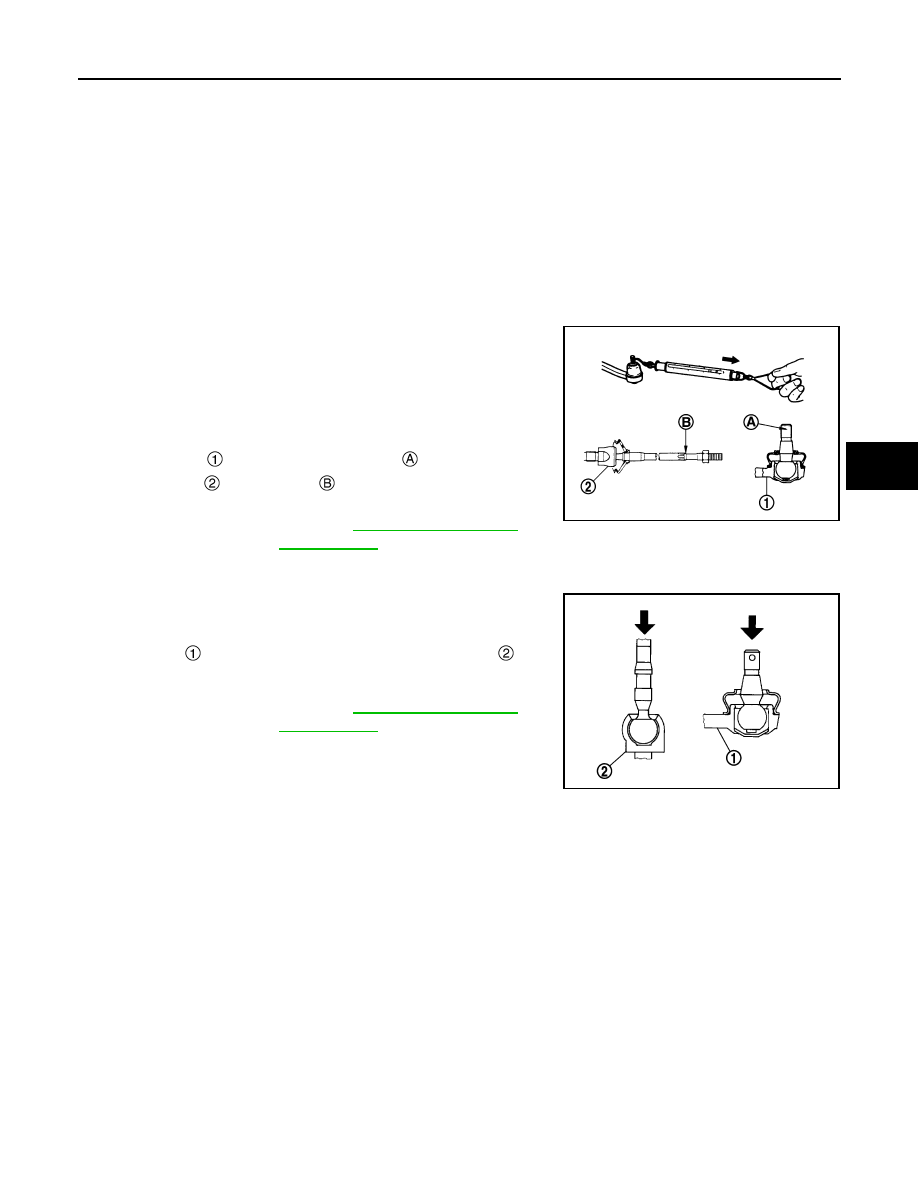

BALL JOINT SWINGING FORCE

• Hook a spring balance at the point and pull the spring balance.

Make sure that the spring balance reads the specified value when
ball stud and inner socket start to move. Replace outer socket or
steering gear assembly (inner socket) if they are outside the stan-
dard.

BALL JOINT AXIAL END PLAY

• Apply an axial load of 490 N (50 kg, 110 lb) to ball stud. Using a

dial gauge, measure amount of stud movement, and then make
sure that the value is within the following specified range. Replace
outer socket

 or steering gear assembly (inner socket)

 if the

measured value is outside the standard.

Measuring point

Outer socket

: Ball stud upper side

Inner socket

: Point

 shown in the figure

Swinging force

: Refer to

ST-28, "Steering Gear

and Linkage"

.

JPGIA0188ZZ

Axial end play

: Refer to

ST-28, "Steering Gear

and Linkage"

.

JSGIA0109ZZ

ST-28

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Steering Wheel

INFOID:0000000010839346

Steering Angle

INFOID:0000000010839347

Steering Column

INFOID:0000000010839348

*: For measuring position, Refer to

ST-15, "Inspection"

.

Steering Gear and Linkage

INFOID:0000000010839349

*: For measuring position, Refer to

ST-26, "Inspection"

.

Item

Standard

Steering wheel axial end play

0 mm (0 in)

Steering wheel play on the outer circumference

0 – 35 mm (0 – 1.38 in)

Steering wheel turning force

34 N (3.5 kg-f, 7.6 lb-f)

Rack sliding force

85 – 135 N (8.67 – 13.77 kg, 19.11 – 30.35 lb)

Item

Standard

Inner wheel

Minimum

34

°

 00

 (34.0

°

)

Nominal

37

°

 00

 (37.0

°

)

Maximum

38

°

 00

 (38.0

°

)

Outer wheel

31

°

 00

 (31.0

°

)

Item

Standard

Steering column length

*

463.7 mm (18.26 in)

Tilt operating range

*

44 mm (1.73 in)

Telescopic operating range

*

50 mm (1.97 in)

Rotating torque

0 – 2.2 N·m (0 – 0.22 kg-m, 0 – 19 in-lb)

Item Standard

Rack stroke neutral position

74 mm (2.91 in)

Outer socket ball joint

Swing force

*



 (Spring balance measurement)

0.3 – 2.9 N·m (0.03 – 0.29 kg-m, 3 – 25 in-lb)

Axial end play

0.5 mm (0.020 in) or less

Inner socket ball joint

Swing force

*



 (Spring balance measurement)

1.0 – 7.8 N·m (0.11 – 0.79 kg-m, 9 – 69 in-lb)

Axial end play

0.2 mm (0.008 in) or less

Inner socket length

99.5 mm (3.917 in)

STC-1

STEERING

C

D

E

F

H

I

J

K

L

M

SECTION

STC

A

B

STC

N

O

P

CONTENTS

STEERING CONTROL SYSTEM

HOW TO USE THIS MANUAL ......................

3

HOW TO USE THIS SECTION ............................

3

Information ................................................................

3

PRECAUTION ...............................................

4

PRECAUTIONS ...................................................

4

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

4

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ...................................
..

4

Precautions for Removing Battery Terminal  .............

5

Precaution for Stop/Start System Service .................

6

Service Notice and Precautions for EPS System ......

6

SYSTEM DESCRIPTION  ..............................

7

COMPONENT PARTS  ........................................

7

Component Parts Location ........................................

7

EPS Control Unit  .....................................................

10

EPS Motor, Torque Sensor, Reduction Gear  ..........

10

SYSTEM .............................................................

12

EPS SYSTEM  ............................................................

12

EPS SYSTEM : System Description .......................

12

EPS SYSTEM : Circuit Diagram .............................

14

EPS SYSTEM : Fail-Safe  ........................................

14

EPS SYSTEM : Protection Function .......................

15

WARNING/INDICATOR/CHIME LIST  .......................

15

WARNING/INDICATOR/CHIME LIST : Warning
Lamp/Indicator Lamp  ..............................................

15

DIAGNOSIS SYSTEM (EPS CONTROL UNIT)

....

16

CONSULT Function  ................................................

16

ECU DIAGNOSIS INFORMATION ..............

18

EPS CONTROL UNIT .........................................

18

Reference Value ......................................................

18

Fail-Safe ..................................................................

20

Protection Function ..................................................

20

DTC Inspection Priority Chart ..................................

20

DTC Index  ...............................................................

21

WIRING DIAGRAM  ......................................

22

EPS SYSTEM ....................................................

22

Wiring Diagram ........................................................

22

BASIC INSPECTION  ...................................

24

DIAGNOSIS AND REPAIR WORKFLOW  ........

24

Work Flow ................................................................

24

Diagnostic Work Sheet  ............................................

25

DTC/CIRCUIT DIAGNOSIS  .........................

27

C1601 BATTERY POWER SUPPLY  ................

27

DTC Description  ......................................................

27

Diagnosis Procedure  ...............................................

27

C1604 TORQUE SENSOR ................................

30

DTC Description  ......................................................

30

Diagnosis Procedure  ...............................................

30

C1606 EPS MOTOR ..........................................

31

DTC Description  ......................................................

31

Diagnosis Procedure  ...............................................

31

C1607, C1608 EPS CONTROL UNIT  ...............

32

DTC Description  ......................................................

32

Diagnosis Procedure  ...............................................

32

C1609 VEHICLE SPEED SIGNAL ....................

33

DTC Description  ......................................................

33

Diagnosis Procedure  ...............................................

33

U1000 CAN COMM CIRCUIT  ...........................

34

DTC Description  ......................................................

34

Diagnosis Procedure  ...............................................

34
